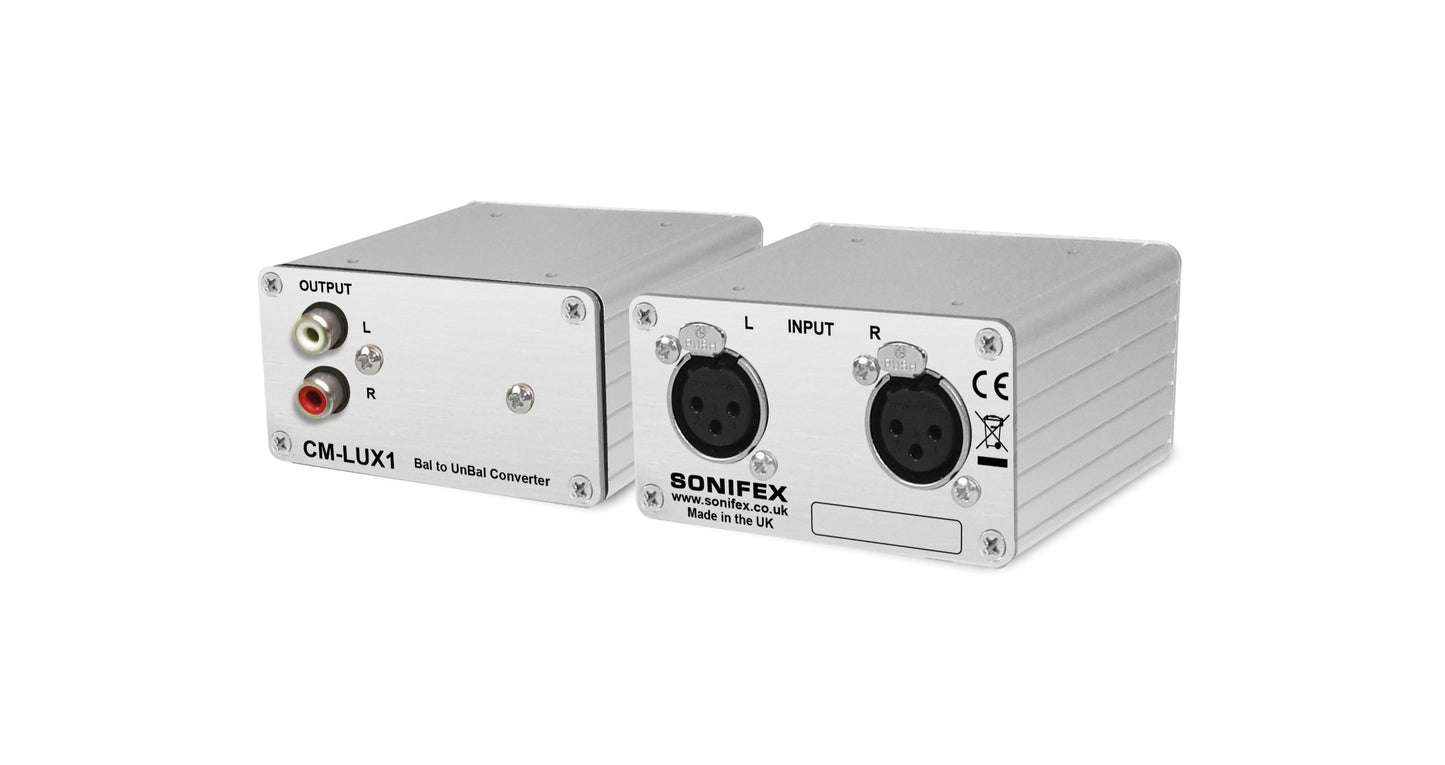

This product allows the connection of a stereo balanced line input via 2 x female XLRs to a stereo unbalanced output on phono connectors. It is transformer balanced, with a 2:1 ratio, so 6dB of attenuation is added to the input to help interface with the lower signal levels associated with consumer outputs.
Product Features
Stereo balanced line input via XLR-3.
Stereo unbalanced output on stereo phono connectors.
Transformer-balanced input with 2:1 ratio.
Typical Applications
Creates a connection of a stereo balanced line input via 2 x female XLRs to a stereo unbalanced output on phono connectors.
Product Category
Passive Converters
Technical Specifications
Audio Specification
Input/Output Level Ratio: 02:01
Input/Output Impedance Ratio: 04:01
Max Input Level: +28dBu
Max Output Level: +22dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB
Noise: <-115dBu A-wgtd
Distortion Ref +8dBu (Output): <0.01%
Common Mode Rejection: >80dB
Connections
Balanced Line Input: 2 x female XLRs
Unbalanced Line Output: 2 x RCA phono connectors
Equipment Type
Dimensions (Raw): 7.7cm (W) x 8.3cm (D) x 4.2cm (H)
