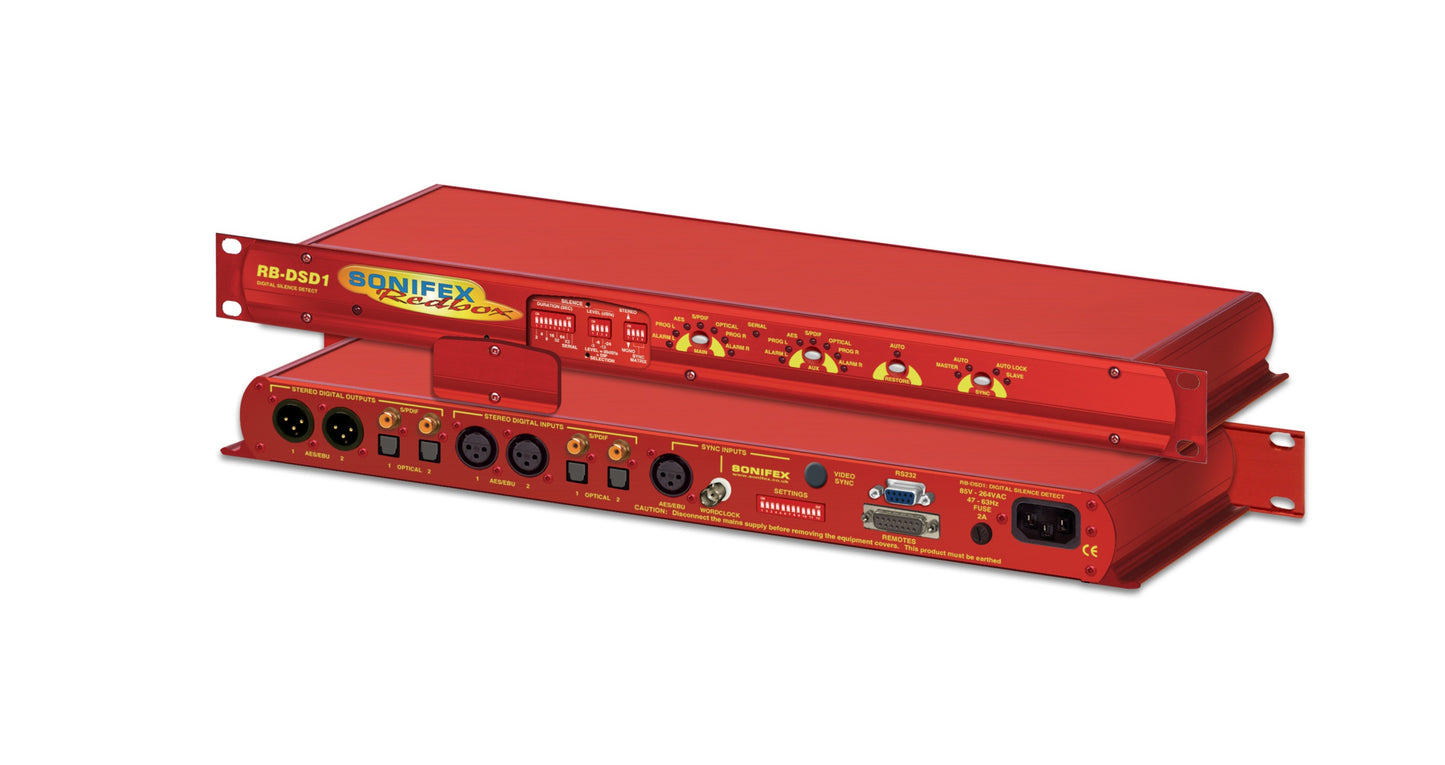

The RB-DSD1 digital silence detection unit works in a similar way to the Sonifex RB-SD1 analogue silence detection unit, but has AES/EBU, S/PDIF and TOSlink inputs and outputs instead of analogue inputs and output respectively. Designed to switch from one input to another in the event of loss of audio, the unit is ideal at transmitter sites, or after the master output of a studio, to switch in another audio source, or simultaneous broadcast, should a master source fail. The unit can switch: On loss of level of the main input.
Product Features
AES/EBU, S/PDIF. TOSLink (optical) digital I/O.
Dual digital outputs for flexible distribution.
Stereo, left, right, and sync lock loss detection.
Automatic or manual switch to or from the auxiliary source.
Adjustable silence detect threshold level and silence duration.
Passive signal path.
Remote I/O for alarms and unit functions.
Front panel LED indications of alarm status.
Variety of digital audio sync options and modes.
Optional RB-SYA or RB-SYB video sync boards.
Typical Applications
At a radio transmitter site, before the input to the transmitter. A local audio source can become the secondary input in case silence is detected.
Product Category
Silence Detectors
Technical Specifications
Audio Specification
Dynamic Range: >138dB
Distortion and Noise: <-137dB THD + N at 1kHz, ref 0dB FS
