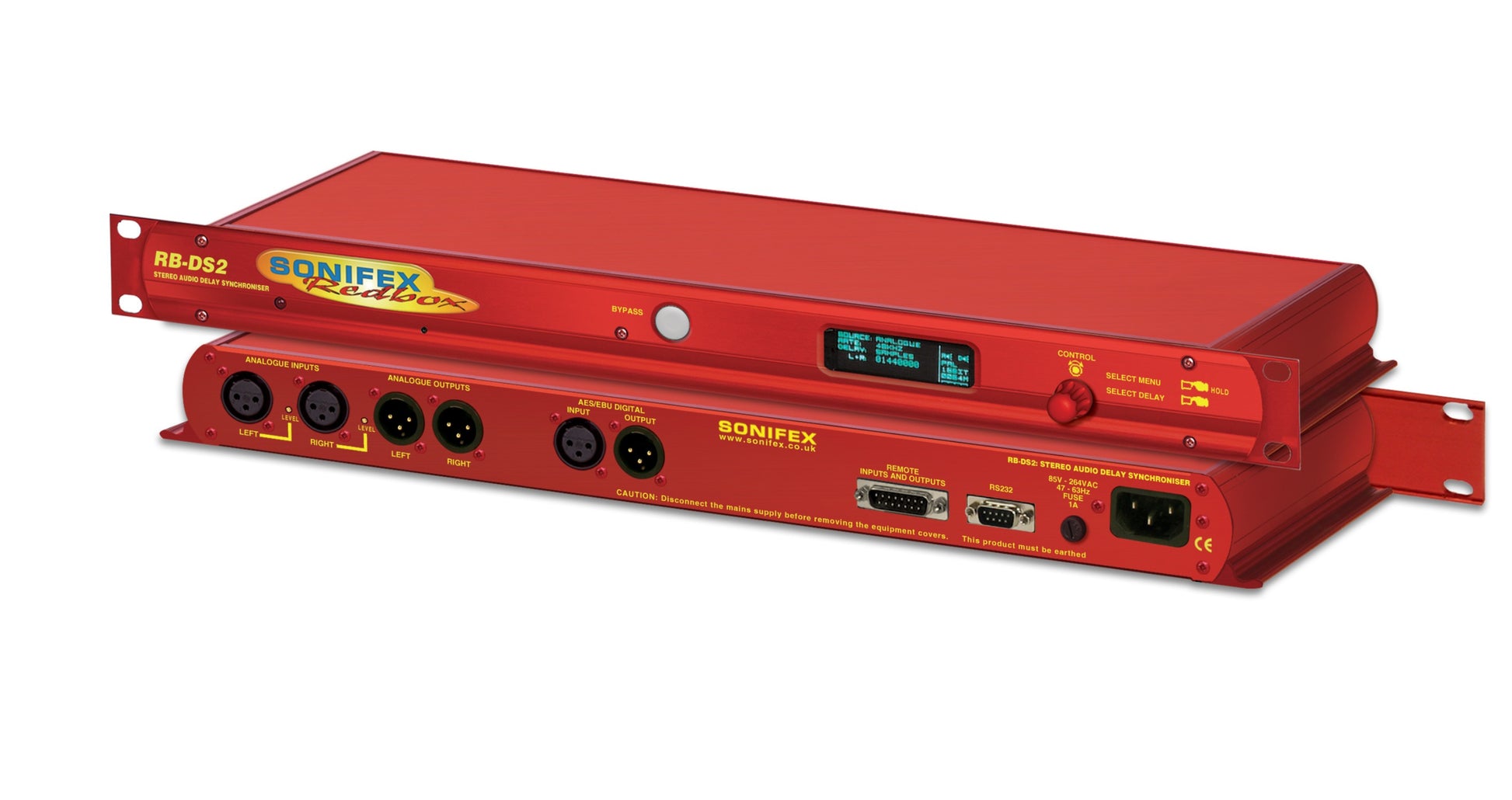

The RB-DS2 is a stereo audio delay synchroniser used for resynchronising audio to video following delay processes such as standards conversion, transmission delay, logo insertion, video aspect ratio conversion and network delays. It can be used for fixed installations to correct a permanent audio delay, or on an intermittent basis to provide occasional correction, for example for live links. Accepting digital audio signals up to 96kHz, 24 bit, the sonic quality of the RB-DS2 is superb and silent switching is used to provide the smoothest, cleanest audio delay available. The RB-DS2 has both balanced analogue and AES/EBU digital audio inputs and outputs on 3 pin XLR connectors. It can act as a combined A/D and D/A unit meaning that analogue inputs can be delayed and output as AES/EBU or vice-versa. It is a stereo delay, but can also be used as a dual mono delay, to process each audio path separately, or as a mono delay only. As standard the RB-DS2 can provide up to 10.5 seconds of delay at 96kHz sampling, 24 bit (42 secs at 48kHz, 16 bit).
Product Features

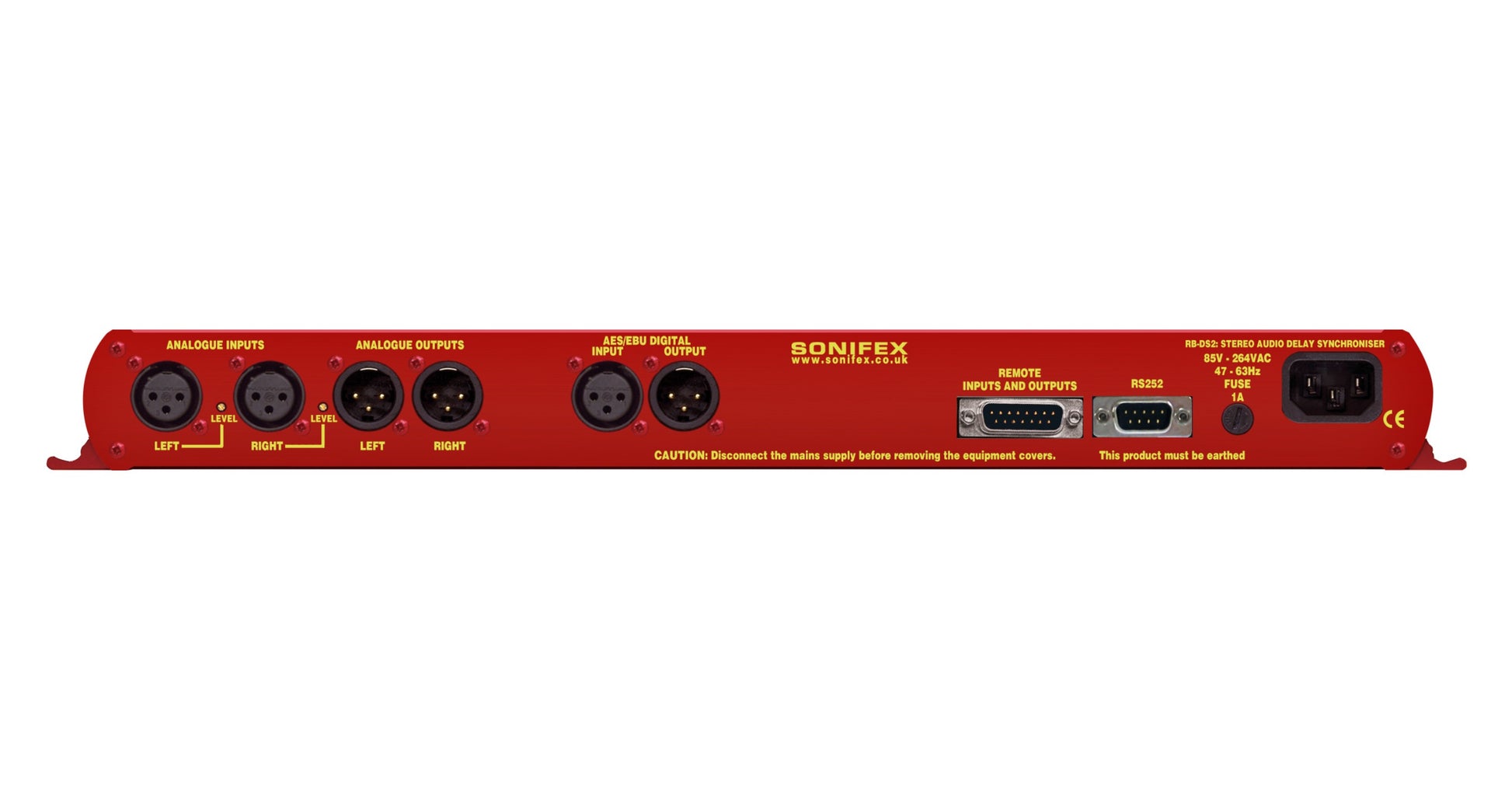

Balanced stereo analogue / AES/EBU digital inputs and outputs.
Sample rates up to 24-bit, 96kHz.
High quality stereo or dual-mono delay.
A/D and D/A conversion.

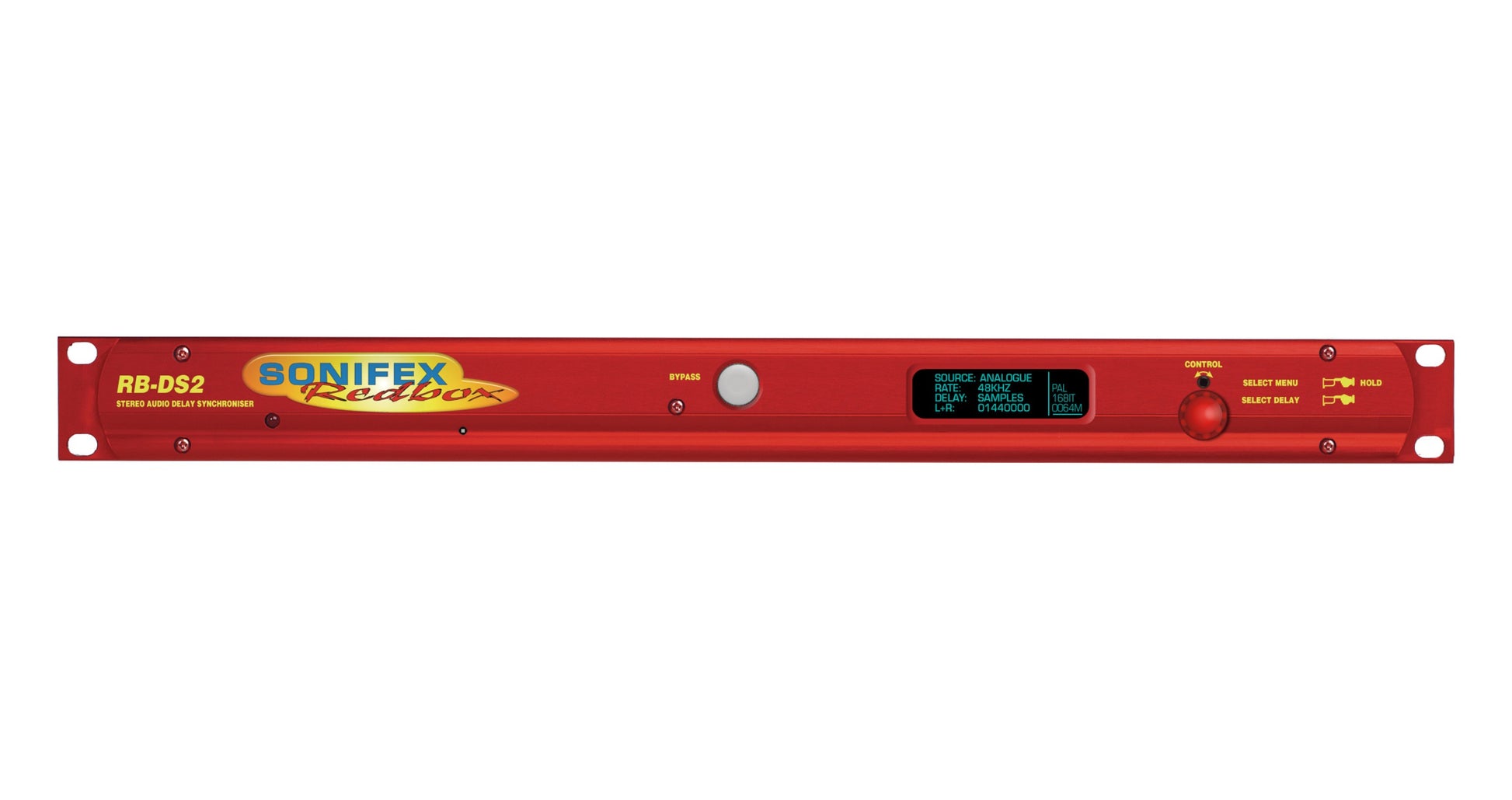

Blue display for easy user settings.
Up to 10.5S delay standard
Over four hours delay available with Compact Flash expansion.
User-selectable delay units.
Analogue and digital relay bypass.
Eight user configuration settings
RS232 Serial port for remote control
Eight GPI contacts for configuration loading.
Four remote outputs for signalling.
Optional RB-DS2R: remote control unit for up to four RB-D52s.
Front panel lock-out.
Typical Applications
In the broadcast chain to remove lip-sync errors, post production to synchronize audio when monitoring video signals, time zone delay to provide +1 hour programme feed.
Product Category
Delays & Synchronisors
Technical Specifications
A/D Specification
Maximum Input Level: +28dBu
Input Impedance: > 10kΩ bridging
Analogue & Digital Input Levels: Selectable +12dBu, +18dBu, +24dBu for FSD
Analogue Pre-set Input Gain Range: Adjustable 3dB loss to 3dB gain (L & R adjust)
Signal to Noise: Better than -101dBFS (RMS A-weighted at 24bit)
Dynamic Range: > 110dB
Distortion & Noise: > 96dB THD + N at 1kHz
D/A Specification
Maximum Output Level: +24dBu
Output Impedance: < 50Ω
Dynamic Range: > 100dB
Analogue Output Gain Range: Selectable -6dBu to +24dBu output level, ref FSD
Sampling Frequency: Selectable 32kHz, 44.1kHz, 48kHz 64kHz, 88.2kHz or 96kHz,
