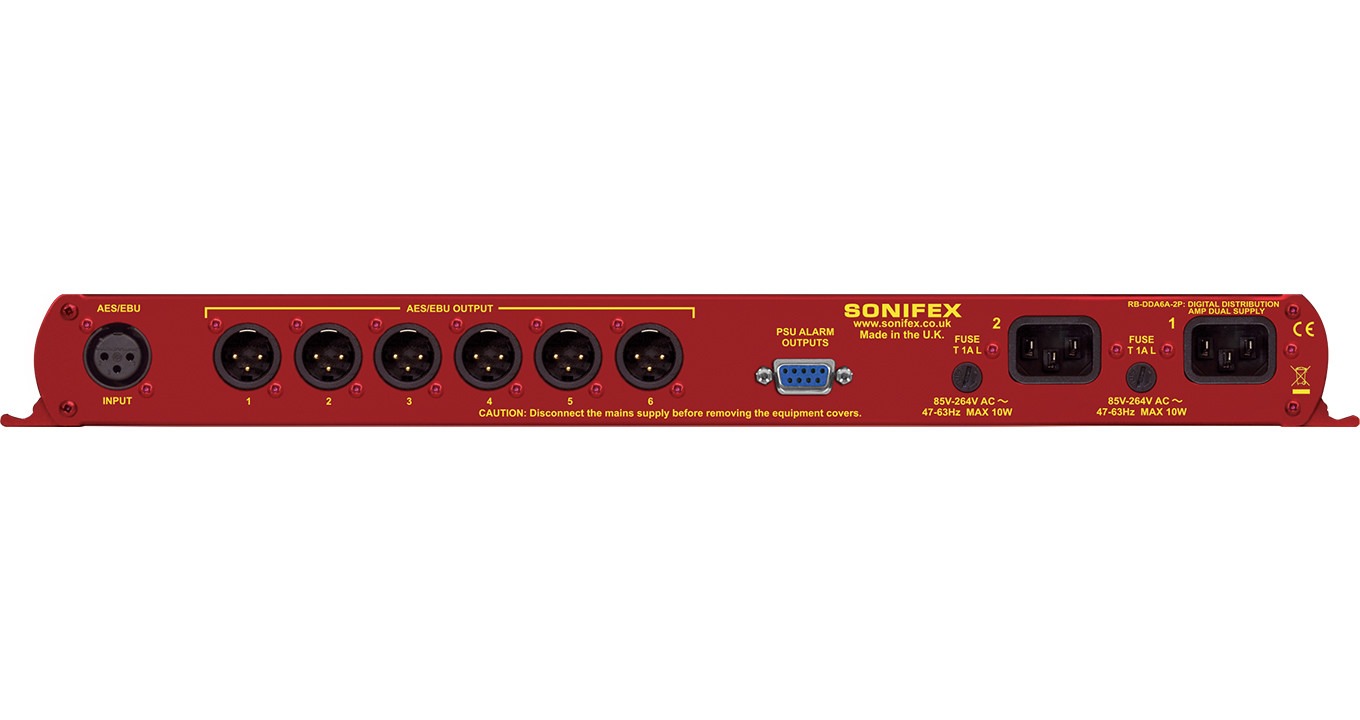

The RB-DDA6A-2P digital distribution amplifier is used for distributing digital audio data in AES/EBU format, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels. It has a single XLR-3 female AES/EBU audio input which is distributed to 6 XLR-3 male AES/EBU outputs. Applications include distributing audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a DAT machine. It can accept input sample rates in the range of 30kHz – 100kHz, and bit rates of 16, 20 and 24 bit. So, it can be used for standard signal distribution at 16 bit 44.1kHz, as well as for high quality 24 bit 96kHz recording. The unit provides redundancy protection by using two power supply units that can be supplied from separate mains feeds. The unit features dual power supplies with automatic load sharing, ensuring continuous operation if either supply fails. The status of each supply is indicated on the front panel by two red LEDs, which illuminate when the supply is functioning correctly. Additionally, the alarm output connector includes a changeover relay to indicate the status of each supply. The relay is normally closed to signal a power failure and switches to a normally open contact when the supply is operating correctly. 1x XLR AES/EBU digital audio input.
Product Features
1x XLR AES/EBU digital audio input.
6x XLR AES/EBU digital audio outputs.
Sample rates up to 96kHz.
Dual redundant, load sharing power supplies.

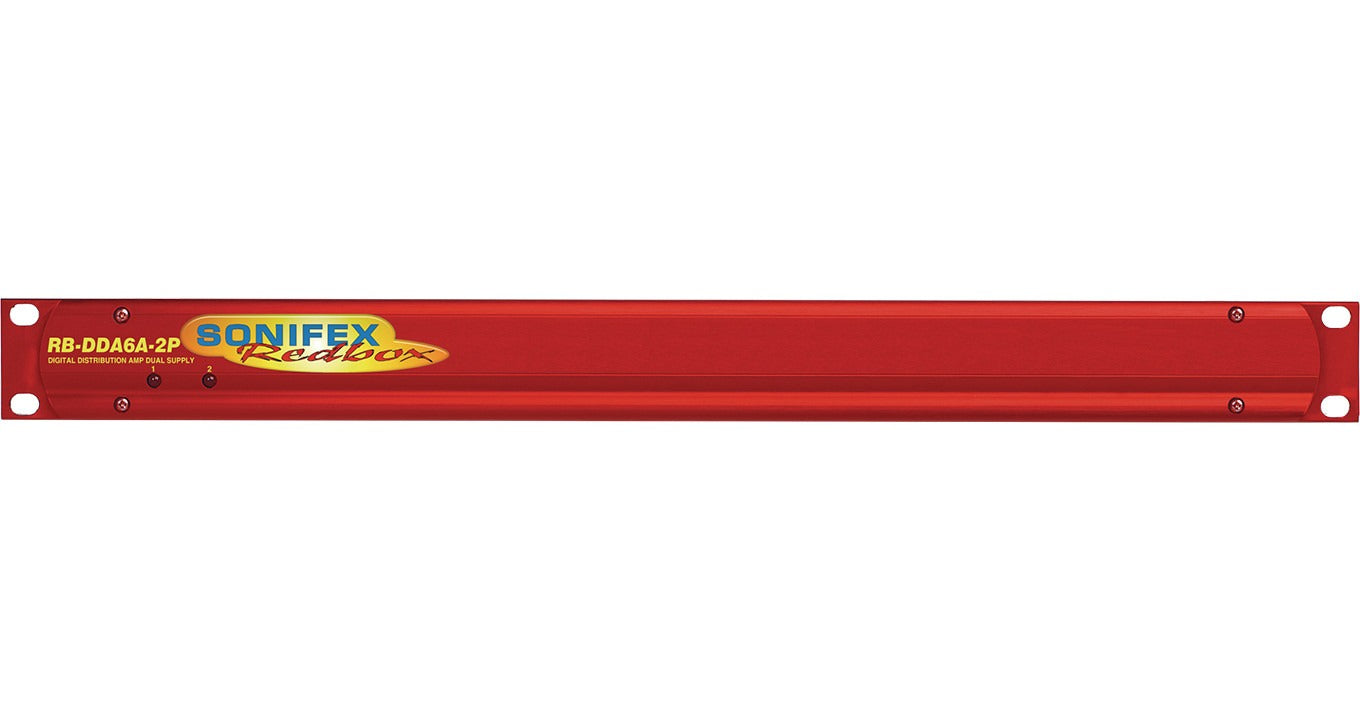

Front panel LED PSU status.
Relay-based alarm outputs.
Typical Applications
Distribution of audio from a digital mixing desk to multiple digital recorders, or feeding multiple studios with an output from a flashcard player.
Product Category
Distribution Amplifiers
Technical Specifications
Audio Specification
Input impedance: 110Ω ±20% balanced
Output impedance: 110Ω ±20% balanced
Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz and 96kHz
Signal Level: 2V/7V peak to peak min/max
Connections
Audio Inputs: 1 x AES/EBU XLR 3 pin female (balanced)
Audio Outputs: 6 x AES/EBU XLR 3 pin male (balanced)
Alarm Outputs: 2 x Relay output indicators on 1 x 9 pin D-Type socket
Mains Input: 2 x Filtered IEC, 85-264V switchable, fused, 6W max
Fuse Rating: 2 x Anti-surge fuse 1A 20 x 5mm
Equipment Type
RB-DDA6A-2P: 6 way AES/EBU stereo digital distribution amplifier with dual power supplies
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
