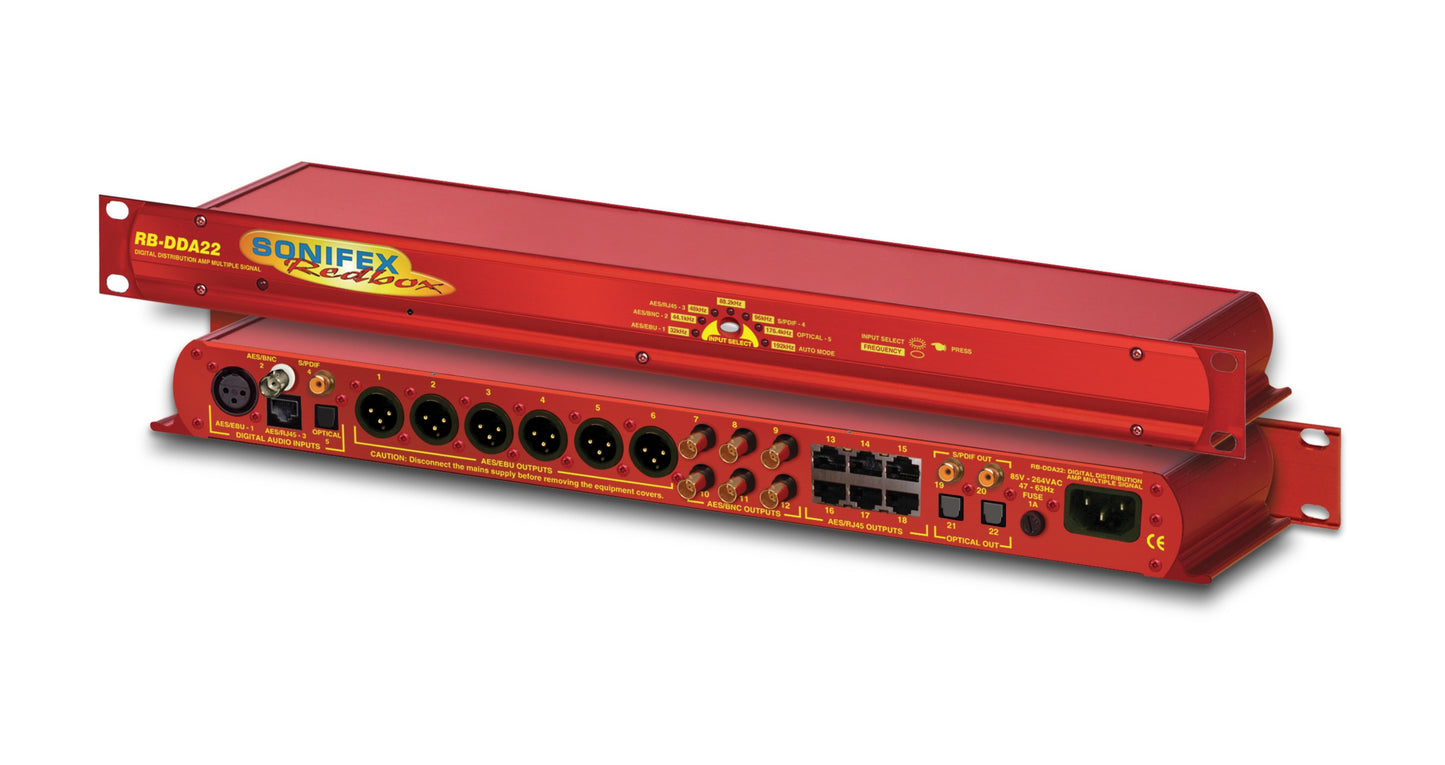

Sonifex RB-DDA22 | Digital Audio Distribution Amplifier With Multiple Outputs

The RB-DDA22 is a digital audio distribution amplifier with multiple inputs and outputs. It accepts one of five different digital input formats and provides 22 outputs across five different connector types. The unit is used for distributing digital audio data in multiple formats, repeating both the audio and the input status information while re-clocking the data and normalising it to the appropriate standard digital audio levels. 1 x XLR 3 female AES/EBU digital audio input

Product Features

• XLR AES/EBU, BNC AES-3id, RJ45 AES/EBU (StudioHub+™), RCA Phono S/PDIF, TOSLink (optical) I/O.
• 1x input selection to 22 outputs (Selection of all formats).
• Sample rates up to 192kHz.
• Outputs re-clock / re-normalised.

Typical Applications

Distribution of an AES/EBU output to many recorders with different digital inputs. General tool for studio digital audio distribution.

Product Category

Distribution Amplifiers

Technical Specifications

Audio Specification

• Input & Output Impedances: 110Ω ±20% AES/EBU balanced I/O
• Input & Output Impedances: 75Ω ±5% S/PDIF + AES-3id unbalanced I/O
• Signal Level: Balanced: 3V/10V peak to peak min/max
• Signal Level: Unbalanced: Min 0.5V±20% peak to peak
• Sample Frequencies: 32, 44.1, 48, 88.2, 96,176.4 or 192kHz
• Bit Depth: Up to and including 24 bit

Front Panel Operational Controls & Indicators

• Digital Input Select: AES/EBU (XLR), AES-3id (BNC), AES/EBU (RJ45), S/PDIF or TOSlink optical
• Indicators: Input presence indicators via tricolour LEDS around the input select button

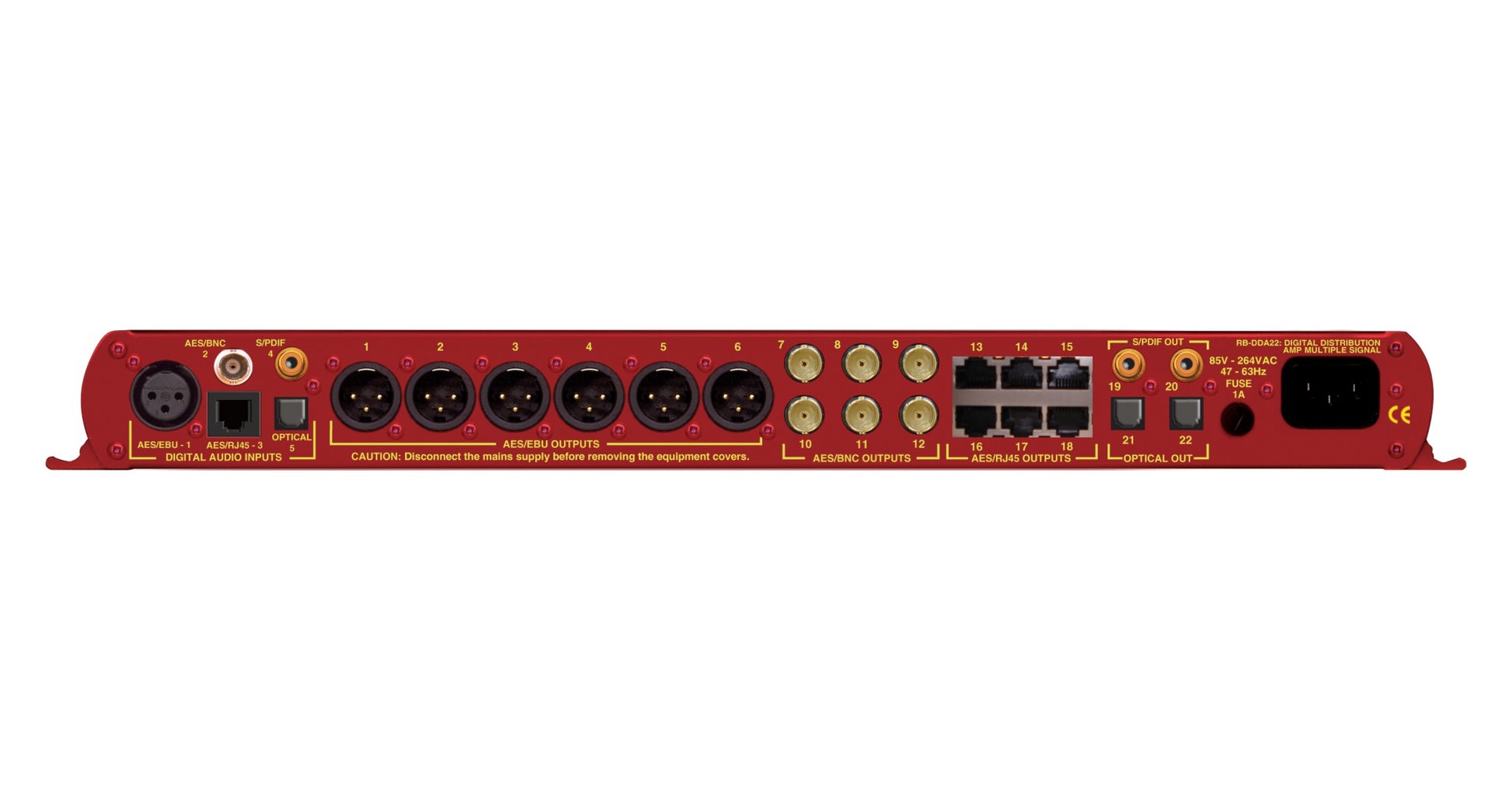

Connections

• Digital Inputs: 1 x AES/EBU XLR 3 pin socket
• Digital Inputs: 1 x AES-3id
• Digital Inputs: 1 x AES/EBU RJ45 socket (StudioHub+™)
• Digital Inputs: 1 x S/PDIF RCA phono socket
• Digital Inputs: 1 x TOSLink optical input
• Digital Outputs: 6 x AES/EBU XLR 3 pin plug
• Digital Outputs: 6 x AES-3id
• Digital Outputs: 6 x AES/EBU RJ45 socket (StudioHub+™)
• Digital Outputs: 2 x S/PDIF RCA phono socket
• Digital Outputs: 2 x TOSLink optical output
• Mains Input: Universal filtered IEC, continuously rated 85-264VAC@47- 63Hz, max 10W
• Fuse Rating: Anti-surge fuse 1A 20 x 5mm

Equipment Type

• RB-DDA22: Digital audio distribution amplifier with multiple outputs

Physical Specification

• Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
• Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
• Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
• Dimensions (Boxed): 23” (W) x 8.9” (D) x 2.75” (H)
• Weight: Nett: 1.4kg Gross: 2.0kg
• Weight: Nett: 3.0lbs Gross: 4.4lbs

Accessories

• RB-RK3: 1U Rear panel rack kit for large Redboxes
