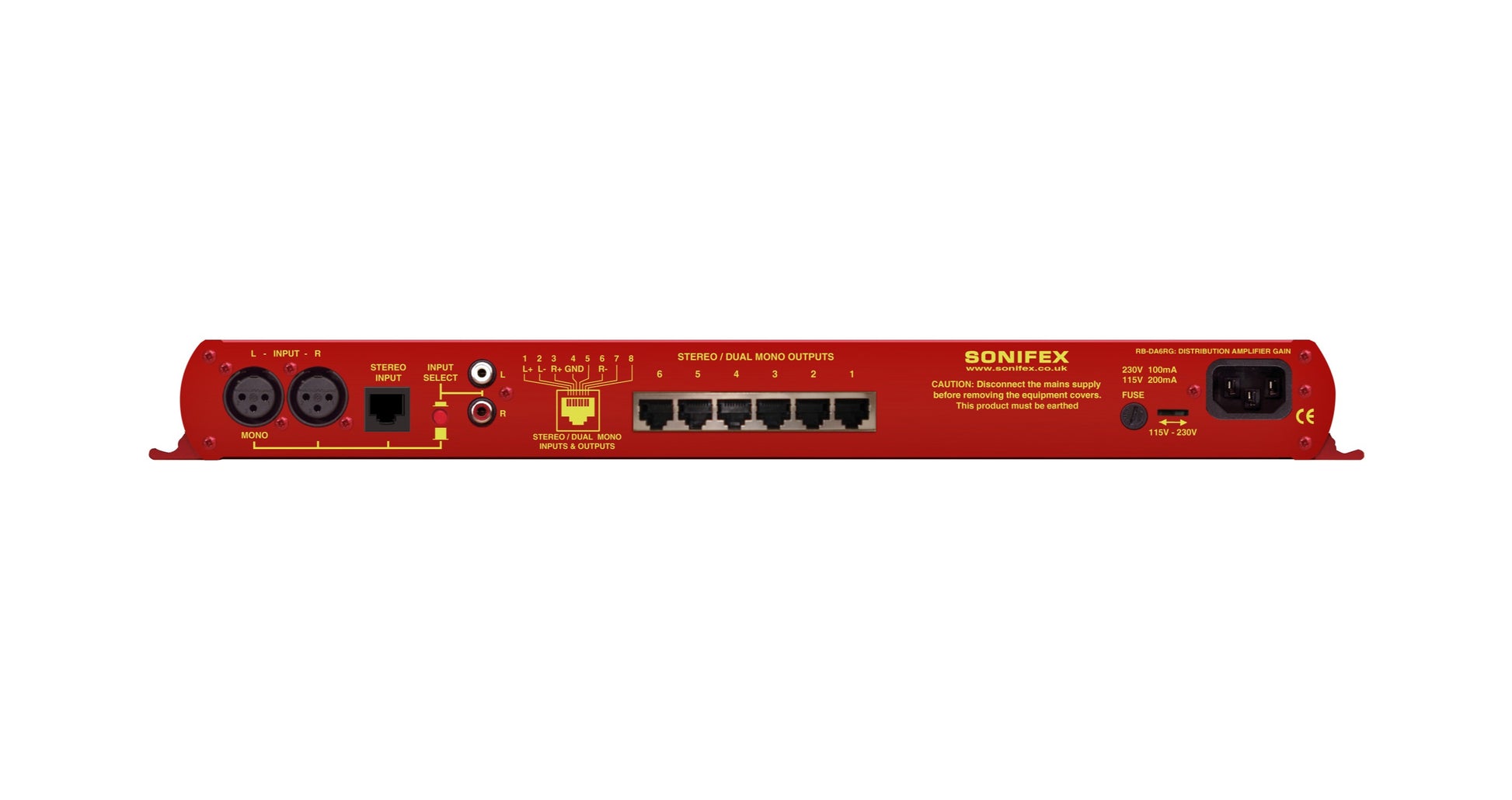

The RB-DA6RG is a 1U rack-mount high-performance 6-way stereo distribution amplifier for splitting a source into a number of different outputs. The RB-DA6RG has one stereo input and six stereo outputs on RJ45 connectors, wired to the StudioHub+™ standard. The use of RJ45 connectors allows simpler CAT5 cabling to be used to connect the amplifier to other products. The stereo input is switchable via a rear-panel push switch between paralleled balanced inputs (2 x XLR sockets or 1 x stereo input on RJ45) and unbalanced inputs (1 pair of stereo phono sockets). It can also be configured to distribute a single mono input to twelve outputs. This is enabled via a front-panel switch that is recessed to prevent unintended switching. The inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others. The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel. The output gain may be varied from -8dB to 18dB, which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively. * StudioHub+™ is a registered trademark of Radio Systems Inc. Stereo analogue inputs (2x balanced XLR, phono, RJ45 / StudioHub+™).
Distribute line levels signals to multiple reporters in a broadcast centre, distribute main programme output from a mixer to other studios using a pre-wired CAT5 infrastructure, create multiple feeds of a recorded signal.
Product Category
Distribution Amplifiers
Technical Specifications
Audio Specification
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range: Adjustable 8dB loss to 18dB gain (12 adjustable pots)
Common Mode Rejection: >66dB typically
Input impedance: >20kΩ bridging (balanced)
Input impedance: >10kΩ (ubalanced)
Output impedance: <50Ω
Distortion: 0.01% THD @ 1kHz, ref +8dBu output
Noise: -100dB unity gain, ref +8dBu output
Connections
Inputs: 2 x XLR 3 pin female, 1 x RJ45 socket balanced)
Inputs: 2 x phono sockets (unbalanced)
Outputs: 6 x RJ45 sockets (all balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-DA6R: 6 way stereo distribution amplifier with RJ45 connectors
Physical Specification
Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
Dimensions (Boxed): 23” (W) x 8.9” (D) x 2.75” (H)
