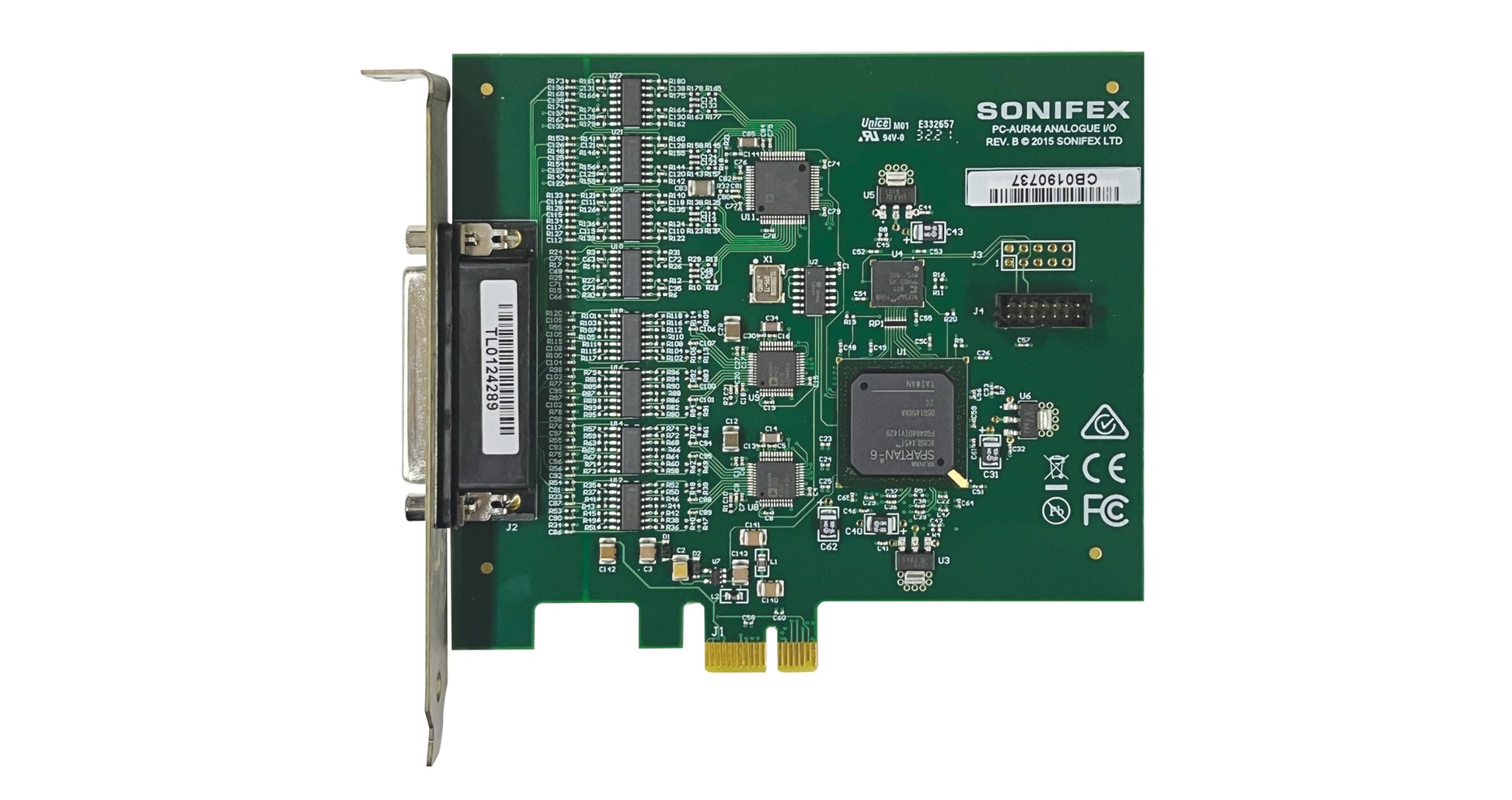

The Auricon 4.4 is a professional quality 4 stereo input and 4 stereo output analogue PCIe audio card. The inputs and outputs can be reconfigured as separate mono channels, giving eight inputs and outputs. It is supplied with a Windows WDM driver to provide full sound card functionality under Windows XP, Server 2003, Vista, Server 2008, Windows 7, Server 2008R2, Windows 8, Server 2012 & Windows 10.
Product Features
4 independent high level balanced stereo inputs and outputs.
24-bit audio resolution.
Sampling rates up to 192kHz.
32 and 64 bit drivers for Windows XP, & Windows 7/8/10.
WDM-compliant supporting Wave, DirectSound, DirectShow and Core Audio APIs.
Platform: Supports Windows - XP, Server 2003, Vista, Server 2008, Windows 7, Server 2008 R2, Windows 8, Server 2012 (32-bit and x64 versions), Windows 10, Windows Server 2019.
Audio Specification
Dynamic Range: 114dB typical (unweighted)
Input Impedance: 20k (balanced)
Output Impedance: 40Ω (balanced)
Maximum Signal: +24dBu (34.6Vp-p)
Frequency Response: Input – DC to 88kHz (DC coupling) 1Hz to 88kHz (AC coupling) Output – DC to 88kHz (192kHz hardware sampling rate)
Connector: 44-pin high-density D-type female
Equipment Type
PC-AUR44: Auricon 4.4 PCIe analogue sound card
Physical Specification
Dimensions (Raw): 14cm (L) x 12.5cm (H) x 2cm (D)
Dimensions (Raw): 5.5” (L) x 4.9” (H) x 0.8” (D)
Dimensions (Boxed): 27cm (L) x 22.5cm (H) x 6cm (D)
Dimensions (Boxed): 10.6” (L) x 8.9” (H) x 2.4” (D)
