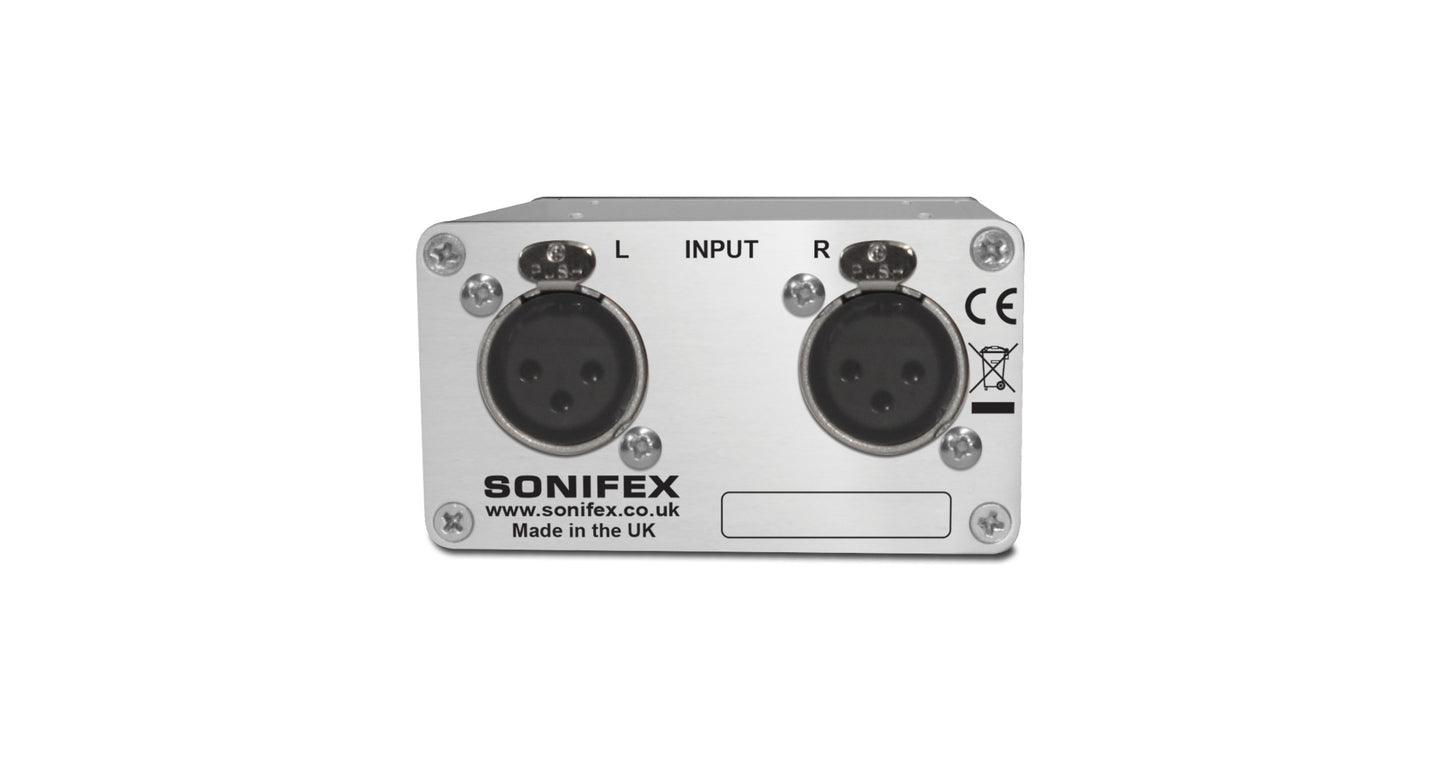

The CM-MS3 is a passive “one-to-three” splitter housed in a small but robust aluminium box. It is designed to split a single microphone or line source to up to three destinations, using Neutrik XLR connectors. The unit uses high quality audio transformers that are capable of accepting input levels up to +18dBu, making the splitter useful in both microphone and line level splitting applications. The CM-MS3 offers three methods of providing phantom power to a microphone connected to its input:
Product Features
1x balanced XLR mic input. 3x balanced XLR mic outputs.
Passive transformer design.
Ground lift switch.
External or looped phantom power inputs.
Typical Applications
To share microphones between radio/TV/production studios.
