The AVN-PM8D is a powerful audio mix engine and AES67 interface with built-in mixer matrix, assignable DSP functions, GPIO, audio playback, web-enabled control and configuration, and twin TFT meter displays. It features eight mic/line inputs with switchable phantom power, eight stereo analogue line outputs, plus a dedicated AES67 Audio over IP (AoIP) portal, available via RJ45 Ethernet connection or an SFP (small form-factor pluggable) port. Recent firmware additions include tone generation, audio file playback, DTMF generation/recognition, and optional Opus codec encoding & decoding. At the heart of this unit is a powerful mix engine with web-enabled configuration and control. Any physical audio input and AES67 stream input can be mixed or routed to any physical audio output or AES67 stream output, with gain adjustment at the input, the mix point or the output. DSP functions, such as gain and filtering, can be added at inputs, outputs and cross-points.
Product Features
Eight balanced XLR mic/line inputs and eight stereo line outputs on RJ45 connectors using StudioHub® pinout.
AES67 portal on 1Gb Ethernet (RJ45) and 1Gb SFP ports.
Gain and DSP functions available at inputs, outputs, and crosspoints.

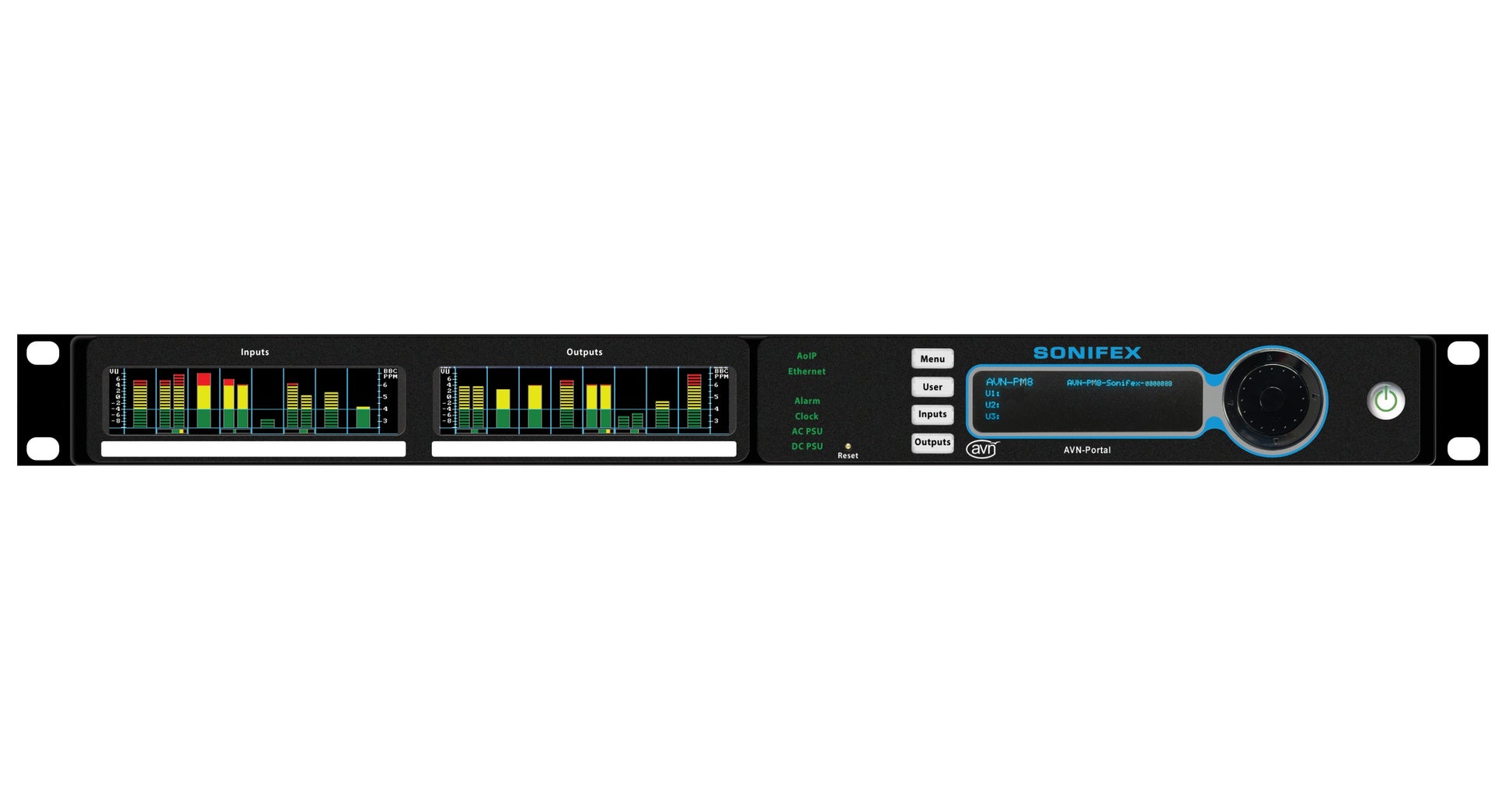

Twin TFT Meter displays with selectable ballistics, plus phase and channel ident display.
Up to eight AoIP input streams with a maximum of 16 channels to be routed.
Up to eight AoIP output streams with a maximum of eight channels each (64 channels).
Audio file playback.
DTMF tone generation/recognition
Optional multi-channel Opus codec encoding and decoding
Dual AC and DC power supply inputs.
10 user assignable GPIO ports.
Typical Applications
An eight output zone microphone mixer, an eight-channel clean-feed generator with input mixing and gain control on inputs and outputs, distribution of eight stereo channels of audio over an SFP fibre connection, an IFB generator to send 64 x AES67 streams to individual belt-packs, an eight output headphone distribution system with separate input mixes for each headphone output and individual gain control; an input mixer with input/output metering and AES67 stream generation, an 8 stereo channel Opus encoder, or decoder.
Product Category
Mix Engines
Technical Specifications
Audio-Over-IP Specification
Open Standards: RAVENNA, AES67
Device Discovery: Bonjour (mDNS / DNS-SD) or SAP
Audio Delivery: RTP/UDP over IPv4 multicast
QoS: DiffServ
Stream Management: RTSP/SDP
Control: Web server/Ember+
Format: Linear PCM 24-bit (L24)
Channels Per Stream: Up to 8
Frames Per Packet: 48
Transmit Streams: Up to 8
Sample Rate: 48kHz
Ember+ Interface Connection
Interface Type: Provider
Network Interface: Ethernet port and AoIP port
Port: 9000
Timing Synchronisation
Profile Support: Default, AES67 Media & Custom profiles
Timing Protocol: PTPv2, IEEE1588-2008
Microphone Inputs
Input Impedance: > 2.5kΩ balanced
Gain Range: 0dB to +60dB
0dBFS Line-Up: Adjustable in steps of 3dB from -58dBu to +2dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
Noise: -127dBu, 20kHz BW, Rs=200Ω ref. 76dB gain
Balanced Line Inputs
Input Impedance: > 20kΩ balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: < -110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: < -100dB
Common Mode
Rejection: > 70dB @ 1kHz
Balanced Line Outputs
Output Impedance: < 50Ω balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: < -110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω

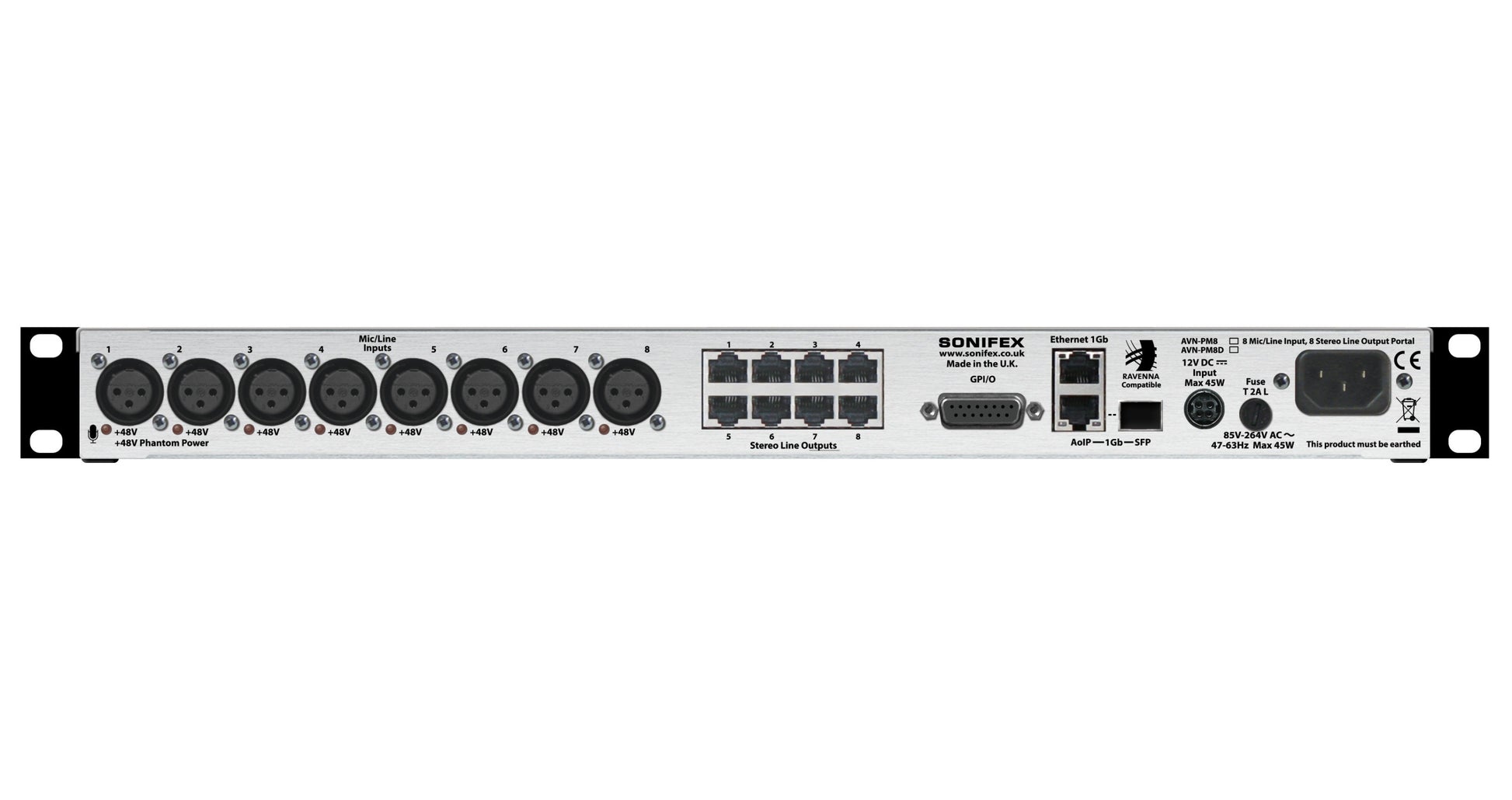

Connections
AVN-PM8/D
Inputs: XLR connectors with phantom power (toggle).
AVN-PM8D: Advanced audio routing, metering and equalisation unit with analogue mic/line inputs, analogue outputs, RAVENNA AoIP, and a detailed customisable display.
Physical Specification
Dimensions (Raw): 48.3cm (W) x 17.5cm (D) x 4.4cm (H)(1U)
Dimensions (Raw): 19” (W) x 6.9” (D) x 1.8” (H) (1U)
Dimensions (Boxed): 55.5cm (W) x 29cm (D) x 18cm (H)
Dimensions (Boxed): 22” (W) x 11.4” (D) x 7” (H)
AVN-PM8D: Weight: Nett: 2.92 kg Gross: 3.96kg
AVN-PM8D: Weight: Nett: 6.42 lbs Gross:8.71 lbs
Accessories
AVN-DC060: 60W DC power supply for AVN range with KPJX-4S plug
