SKAARHOJ RCPv2 - Universal Camera Shading Panel with Jostick and SDI
Overview

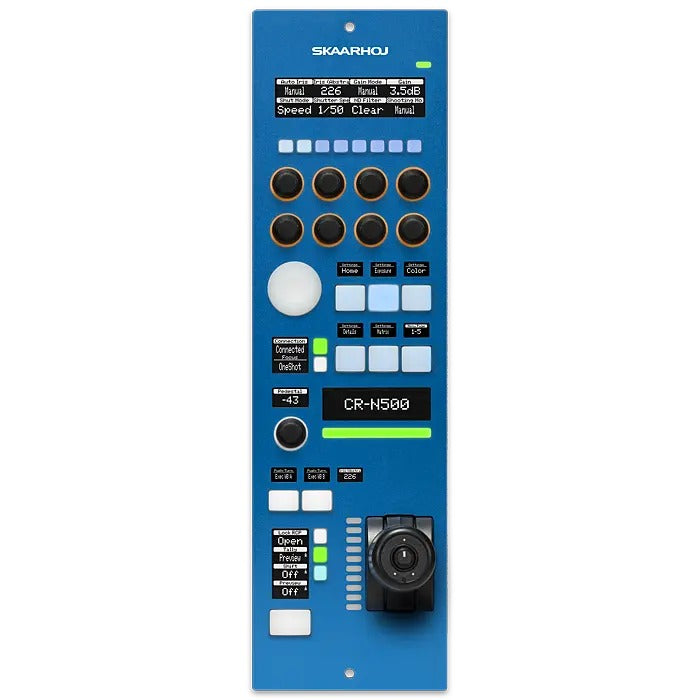

SKAARHOJ's RCPv2 Joystick is already a classic in precision camera control. It features a joystick fader with a potentiometer pedestal ring, a push-button top, and 8 LED-backlit encoders for settings. The large OLED display, segmented for each encoder, works in concert with four-way buttons for efficient navigation. Even PTZ control, zoom, and focus and be assigned to the special joystick pad. Its single-channel GPIO and DB-9 connector enhance its drop-in versatility. With the Blue Pill platform, it supports a wide array of cameras, including Sony, Panasonic, Canon, ARRI, RED, Dream Chip and many more. Additionally, the RCP features a 3G-SDI output on the back, enabling direct shading of Blackmagic cameras through their video return feed. The RCPv2 is a time-tested, reliable choice for any production setup.
Official Benefits
8 LED-backlit encoders allow for precise and easy adjustments of various camera settings.
Large segmented OLED display offers clear visual feedback for each encoder setting.
Four-way buttons paired with the display provide efficient navigation and control.
Specialized joystick pad offers versatile PTZ, zoom, and focus control, enhancing shot precision.
Single-channel GPIO and DB-9 connector contribute to the unit’s drop-in versatility, making it easy to integrate.
Compatibility with a broad range of camera brands, including Sony, Panasonic, Canon, ARRI, RED, and Dream Chip.
Official Features
Universal control of multiple 3rd party cameras
User customization with Reactor Web UI
1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
WiFi and Micro USB for service options
Blue Pill Platform w/Reactor 2.0 and Device Cores
Designed and made in Denmark
In The Box
(This Product)
12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
