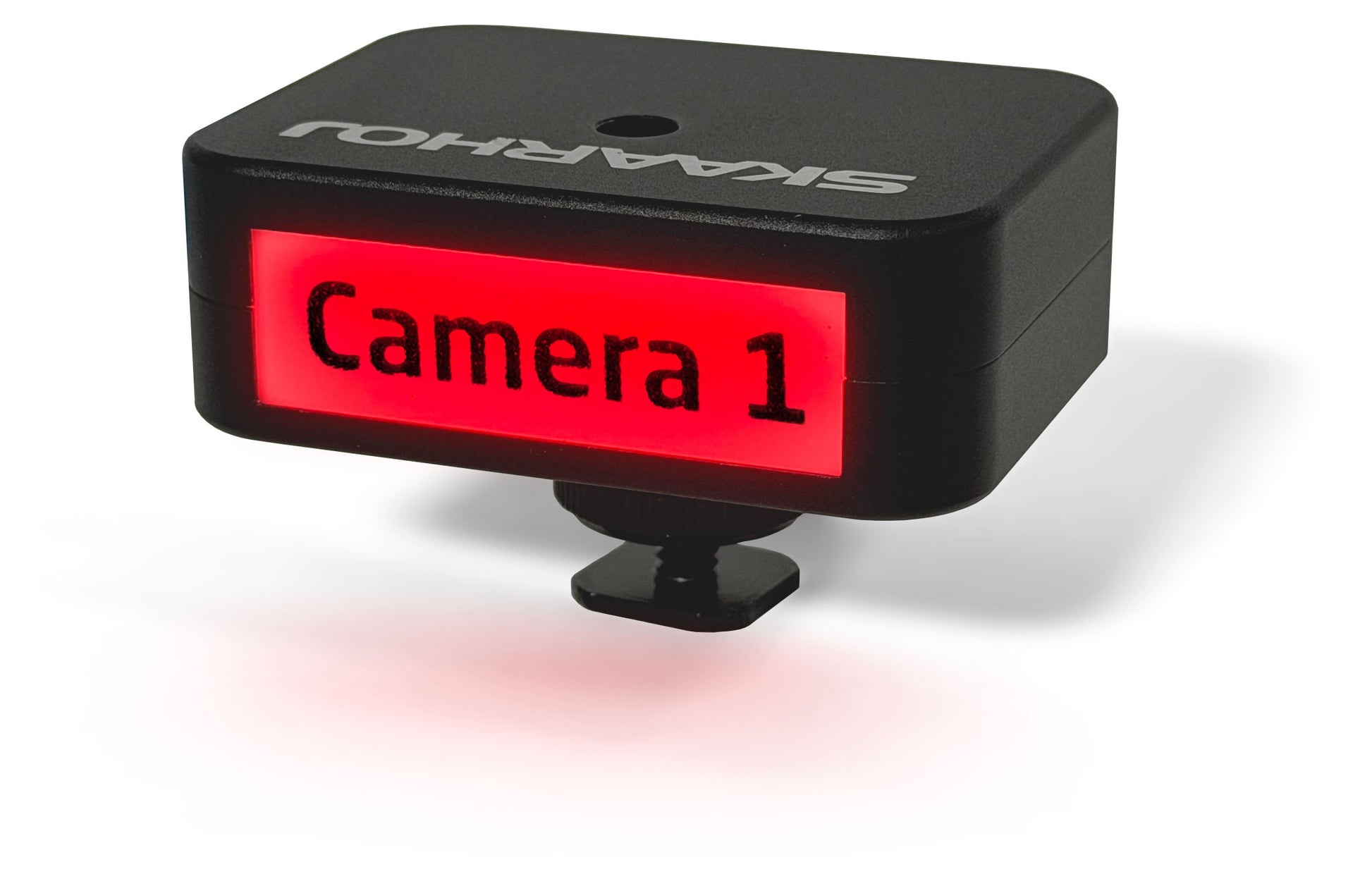

SKAARHOJ Smart Tally - PoE-powered Ethernet tally lamp with Raw Panel, TSL and HTTP control
Overview
Smart Tally is a flexible, network-connected tally lamp designed for live production. Powered via PoE, it delivers bright front and rear indicators. It connects directly to Blackmagic ATEM switchers, vMix and NewTek TriCaster for standalone tally operation, or can be controlled via SKAARHOJ Raw Panel (TCP), TSL (v3.1 and v5.0 over UDP) and a simple HTTP API. An intuitive web UI handles configuration, monitoring and quick testing.
Official Benefits
Clear on-air/preview feedback with bright front and rear indicators.
Direct connection to Blackmagic ATEM, vMix and NewTek TriCaster — no middleware required.
Single-cable deployment with Ethernet and PoE power, or USB-C (5V) as alternative.
Multiple control paths: Raw Panel (TCP), TSL 3.1/5.0 (UDP) and HTTP API.
Built-in magnetic corners and 1/4"-20 mounting for instant camera, tripod or surface attachment.
Fast, browser-based setup and seamless integration with SKAARHOJ Reactor.
Official Features
Ethernet connectivity with Power over Ethernet (PoE) or USB-C (5V).
Direct switcher connection: Blackmagic ATEM, vMix and NewTek TriCaster.
Supports SKAARHOJ Raw Panel (TCP port 9923) with mDNS discovery.
Native TSL (v3.1 and v5.0) listener for UDP tally control.
HTTP endpoints for tally, relay and button simulation.
Bright multi-colour front/rear LEDs with printable label slots.
Built-in magnetic corners for tool-free surface mounting.
1/4"-20 thread with included cold shoe adapter and tripod sandwich mount hardware.
