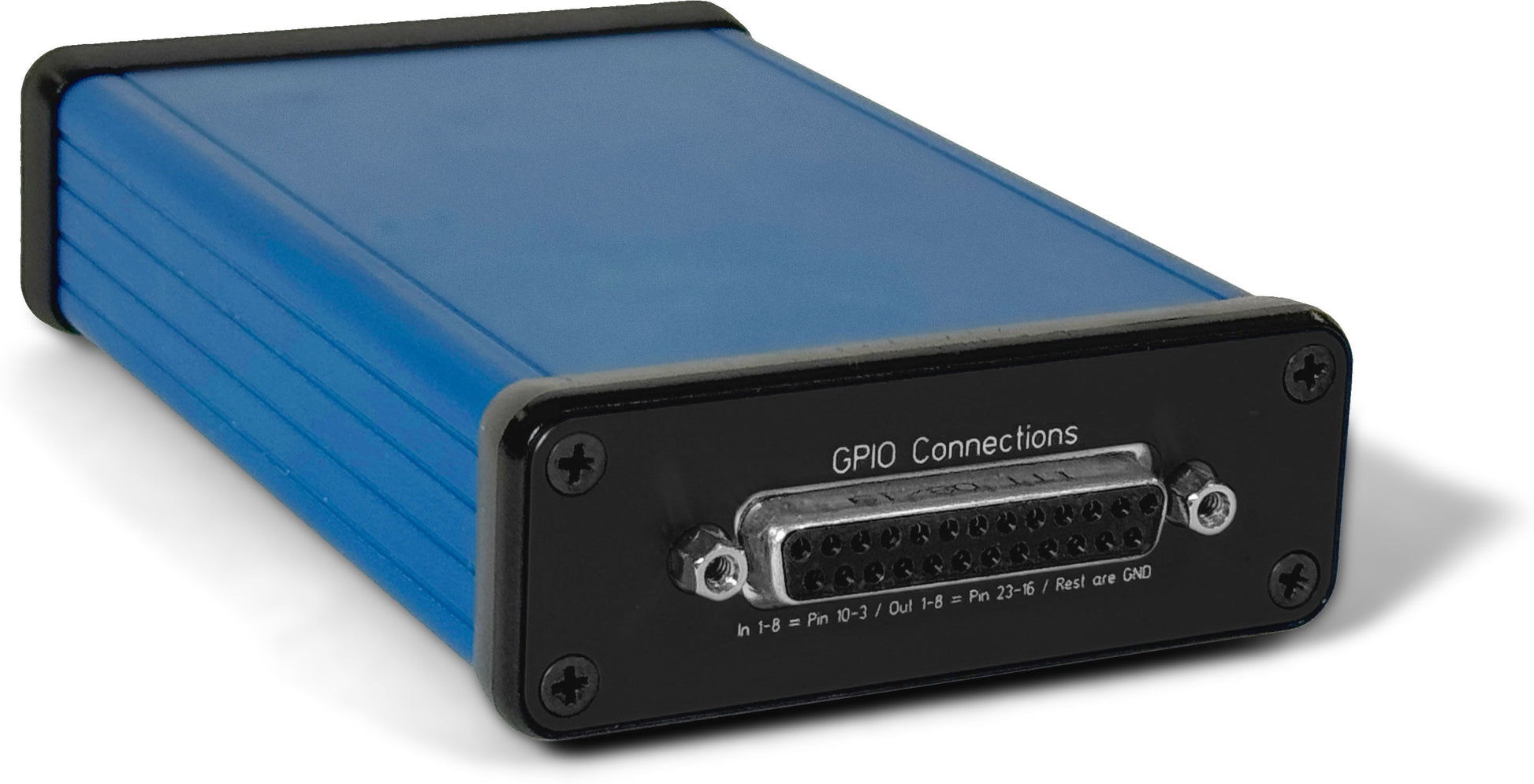

SKAARHOJ ETH-GPI Link - Networked GPIO bridge and distribution interface
Overview
A must-have in any control room and OB van/truck. Designed to seamlessly connect and control a wide range of broadcast devices. Featuring 8 general purpose inputs and 8 general purpose outputs, this versatile converter offers precise control over signal routing, tally control, switching, utility and integration with popular systems like Blackmagic ATEM switchers, AJA KUMO and Grass Valley Routers, RCP controllers, tally lamps and many more. ETH-GPI can be also used as GPIO extension and distribution over standard LAN network.
Official Benefits
2x8 channels of I/O capabilities, covering all basic needs in most situations.
Flexible control over a wide range of devices with digital I/O, enhancing production capabilities
Raw Panel protocol connects it easily to Blue Pill Inside devices, providing unlimited connectivity options.
Quick and intuitive parameter setup via UniSketch OS, saving time and effort
Electrical isolation of inputs/outputs ensures reliability and device safety
Adaptable to various production environments with open collector and relay output compatibility
Official Features
Control popular broadcast devices with ease
8 GPI and 8 GPO ports, fully isolated
User-friendly configuration
Durable build with dual DB25 connectors
Micro USB port for configuration and updates
100M Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
Designed and manufactured in Denmark
In The Box
(This Product)
12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
