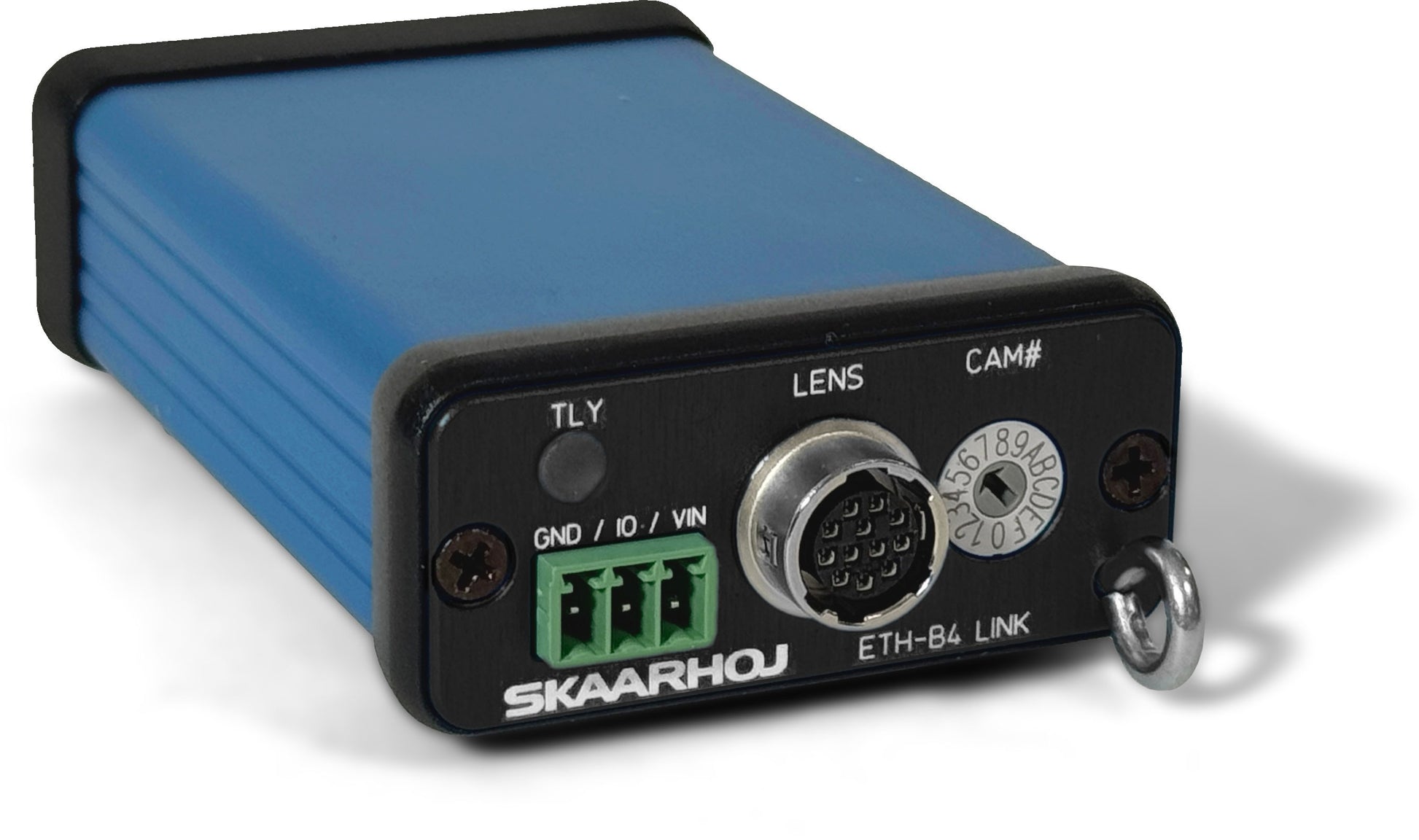

SKAARHOJ ETH-B4 Link - Network Interface to Control 12-pin Hirose lenses
Overview
The ETH-B4 Link facilitates network connection for analog B4 broadcast lenses with a Hirose-12 connector, providing lens control via Ethernet. Utilizing SKAARHOJ's device cores, operators can precisely manage the iris of B4 lenses and access a dedicated tally channel. This device stands out with its incredibly light and compact form, offering a unique solution where iris control data is transmitted separately from camera control signals. Features include a camera selector switch for ID and IP configuration, analog output via Hirose-12 connector, and a dual-color tally lamp, along with a relay output for program tally signals, ensuring a comprehensive control experience.
Official Benefits
Enables precise network-based control of B4 lens iris, enhancing production quality
Light and compact form factor ensures easy integration into existing setups
Separate iris control data transmission for increased reliability and flexibility
Built-in camera selector switch for easy ID and IP management
Features a dual-color tally lamp and relay output for comprehensive tally solutions
Official Features
Hirose-12 connector for analog broadcast lenses
Camera selector dip switch
Relay output for Tally
Tally LED integrated
100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af)
Designed and made in Denmark
In The Box
(This Product)
12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
