2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status
2-ch V-mount Super Fast Charger
Official Features

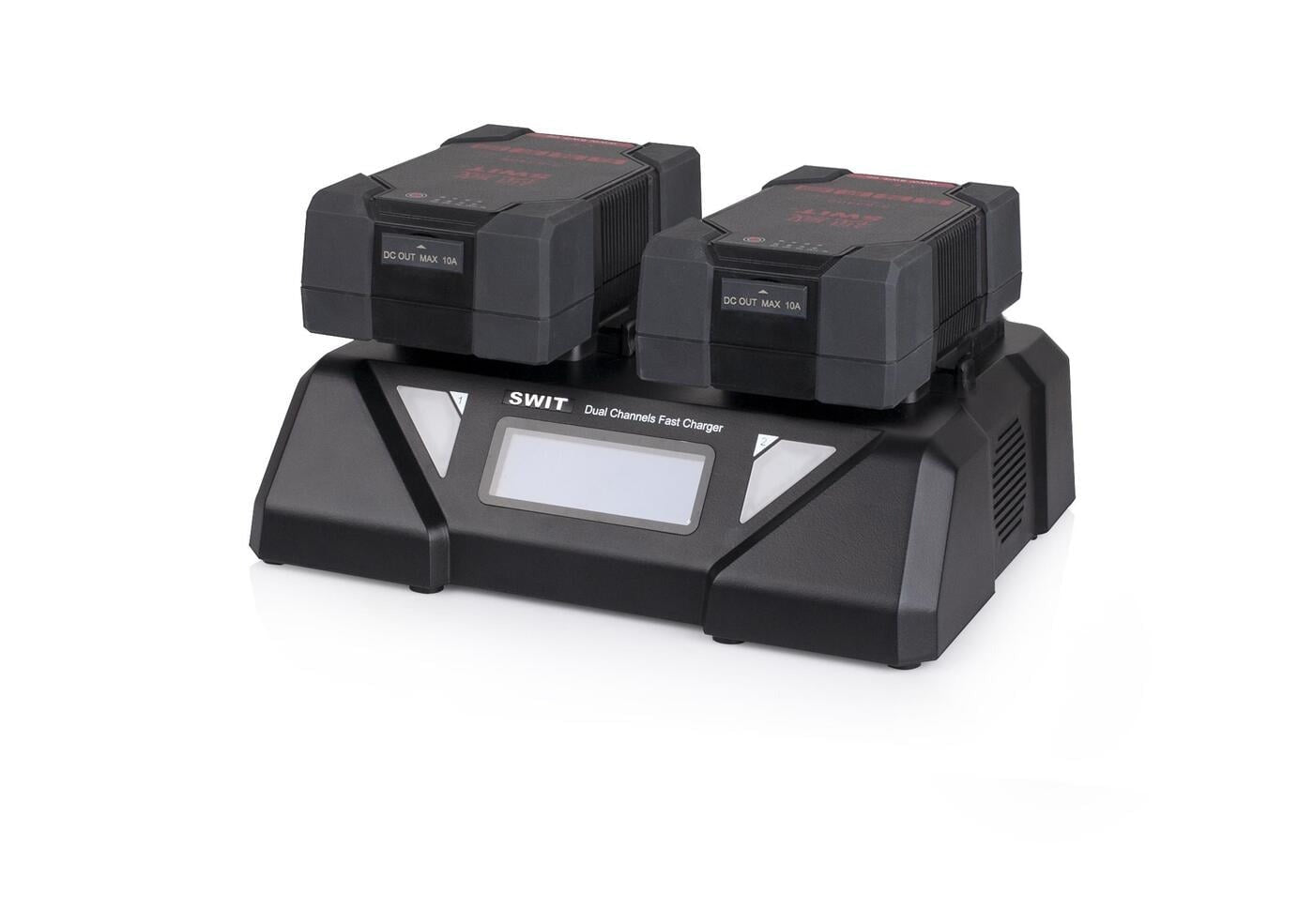

Dual-channel Fast Charger
Max charging current: 6A S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging current, to SWIT over 160Wh capacity batteries. The charging speed is quite faster than normal chargers. And for other batteries, the charging current is limited to 3A.
Charging time comparation
AC-DC Adapting Output

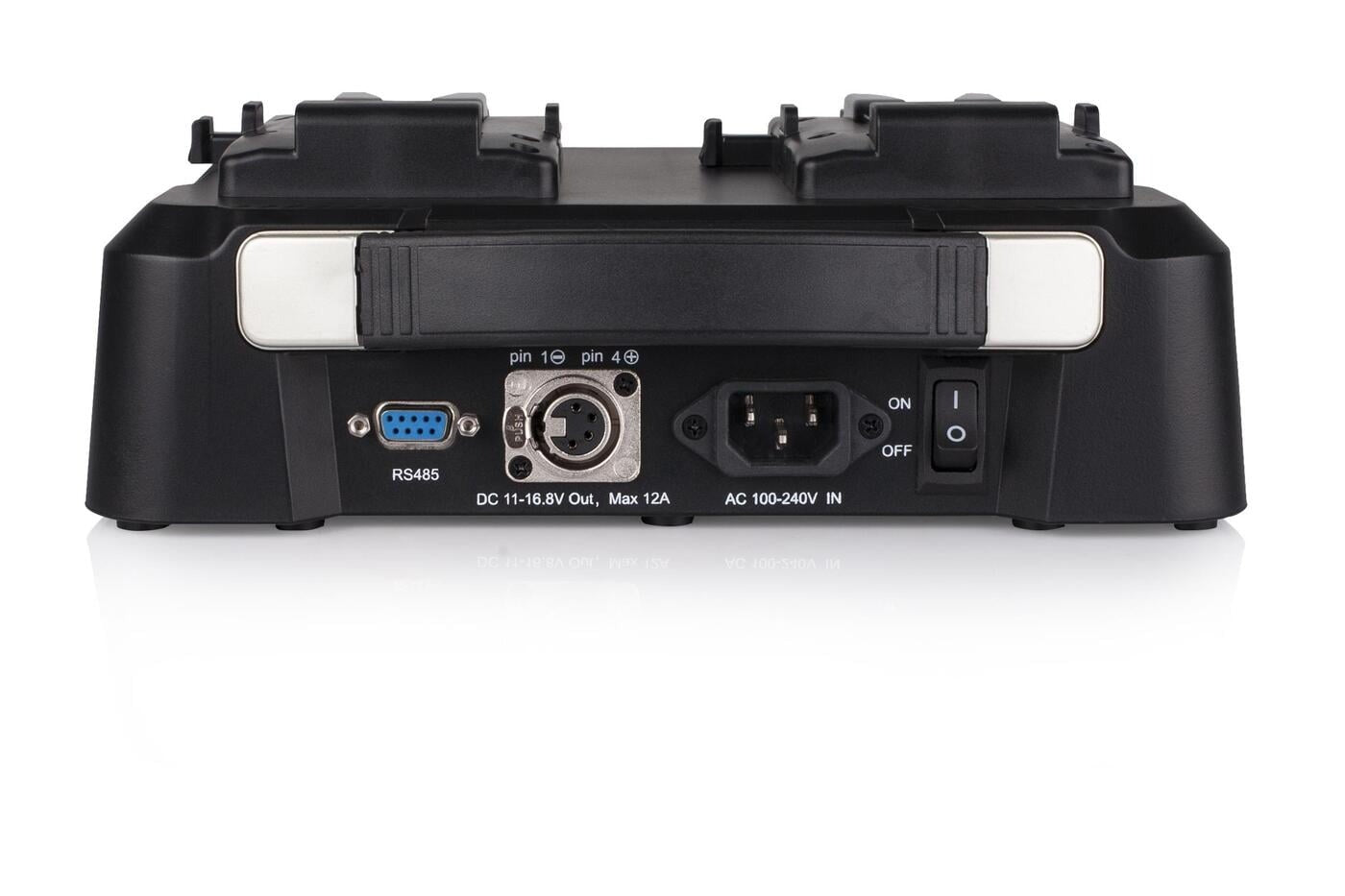

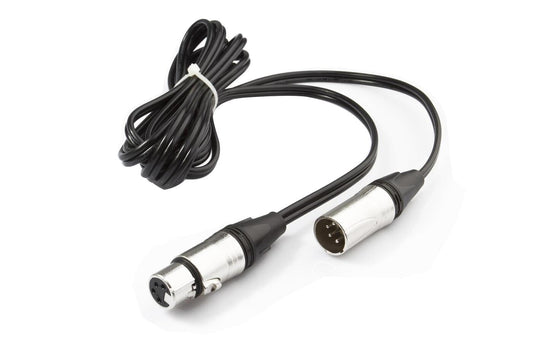

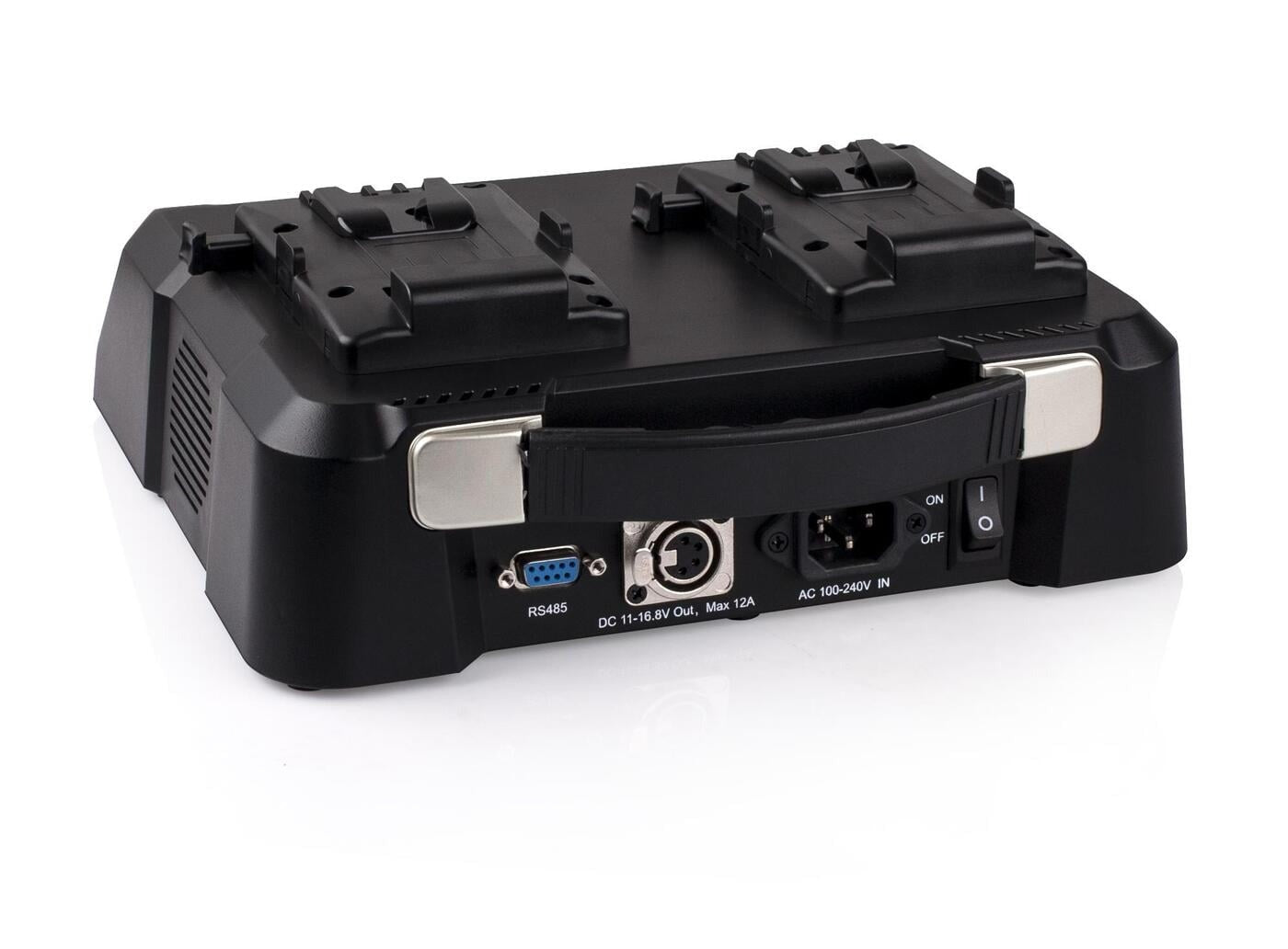

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A. When adapting load is less than 100W, S-3812S can still charge battery simultaneously. (2 batteries sequential) Remark: S-7102 cable is optional purchased.
Battery-DC Adapting Output
You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power to the other equipments, Max load 200W/12A. Remark: S-7102 cable is optional purchased.

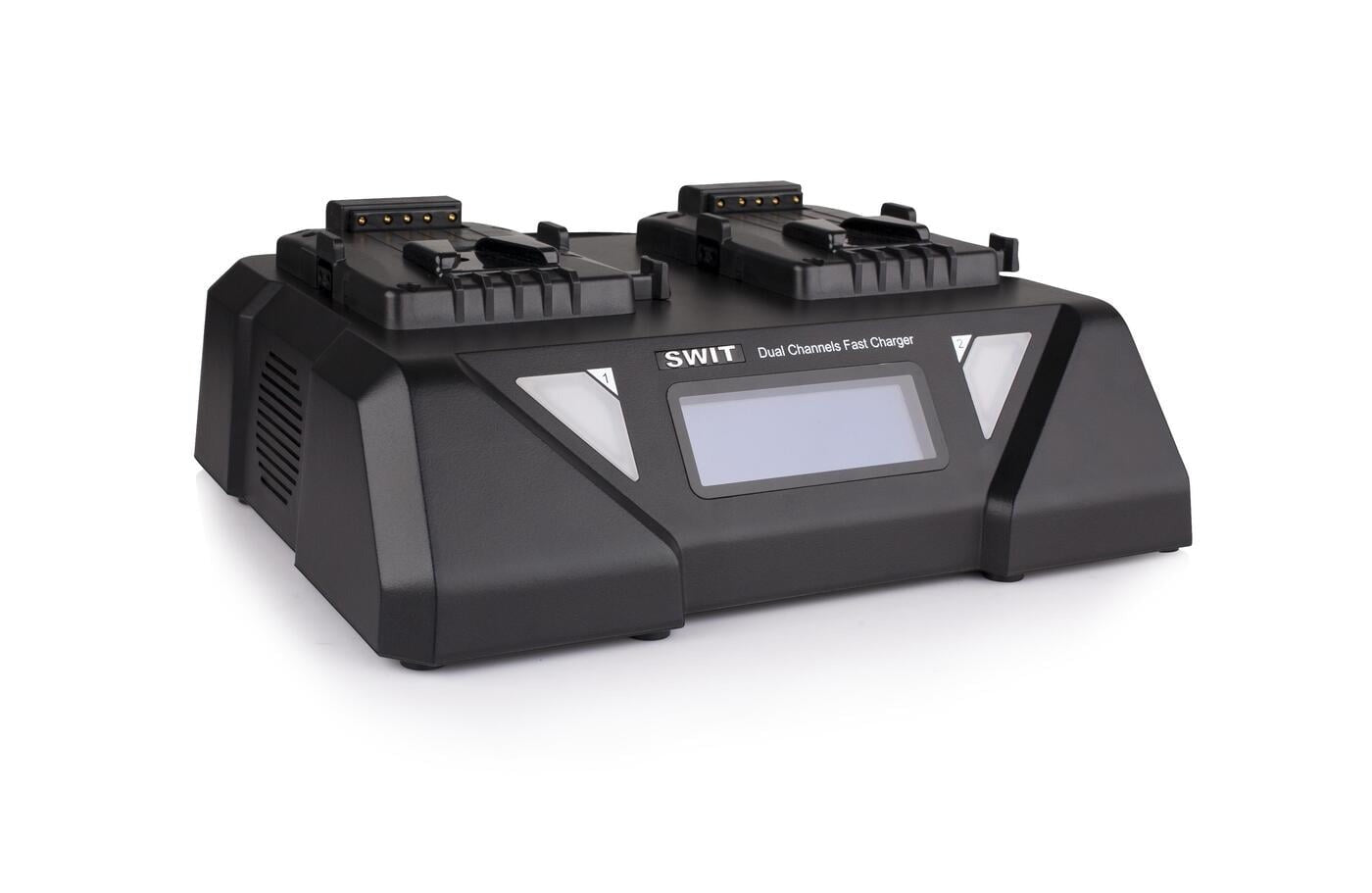

LCD Charging Info Display
S-3812S has an LCD screen to display the real time charging/adapting information, includes: Battery Charging/Discharging status Real time capacity and percentage Real time Voltage/Current Remaining time to fully charged Remaining time to fully discharged Battery cycle times Adapting output current and power Remark: The battery info display only available with digital Li-ion batteries: PB-H, PB-R, PB-S, PB-M series. For other non-digital batteries, the charger will only display real time voltage and current.
3-color LED Indicators
S-3812S has the 3-color LED indicators for both 2 channels: Red light slowly flashes: The battery is charging Red light fast flashes: The battery is about to fully charged Green light constant: The battery is fully charged Green light flashes: The battery is adapting output Orange light flashes: Battery or Charger abnormal alert
Official Product Data
-
Model SPU: S-3812
-
Division: Power
-
Big Category: Charger/Adaptor
-
Small Category: Power Charger
-
Power: 3x6A
-
Voltage: 14.4V
-
Weight (kg): 2.45
-
Spec 1: 6A Ultra fast
-
Plate Type: V-Mount
-
Accessory Options: S-7102
