USB-C 65W, OLED remaining time display, 200W/16A high load, D-tap×2, 1.2m drop proof
160Wh USB-C OLED info Cine V-mount Battery
Official Features

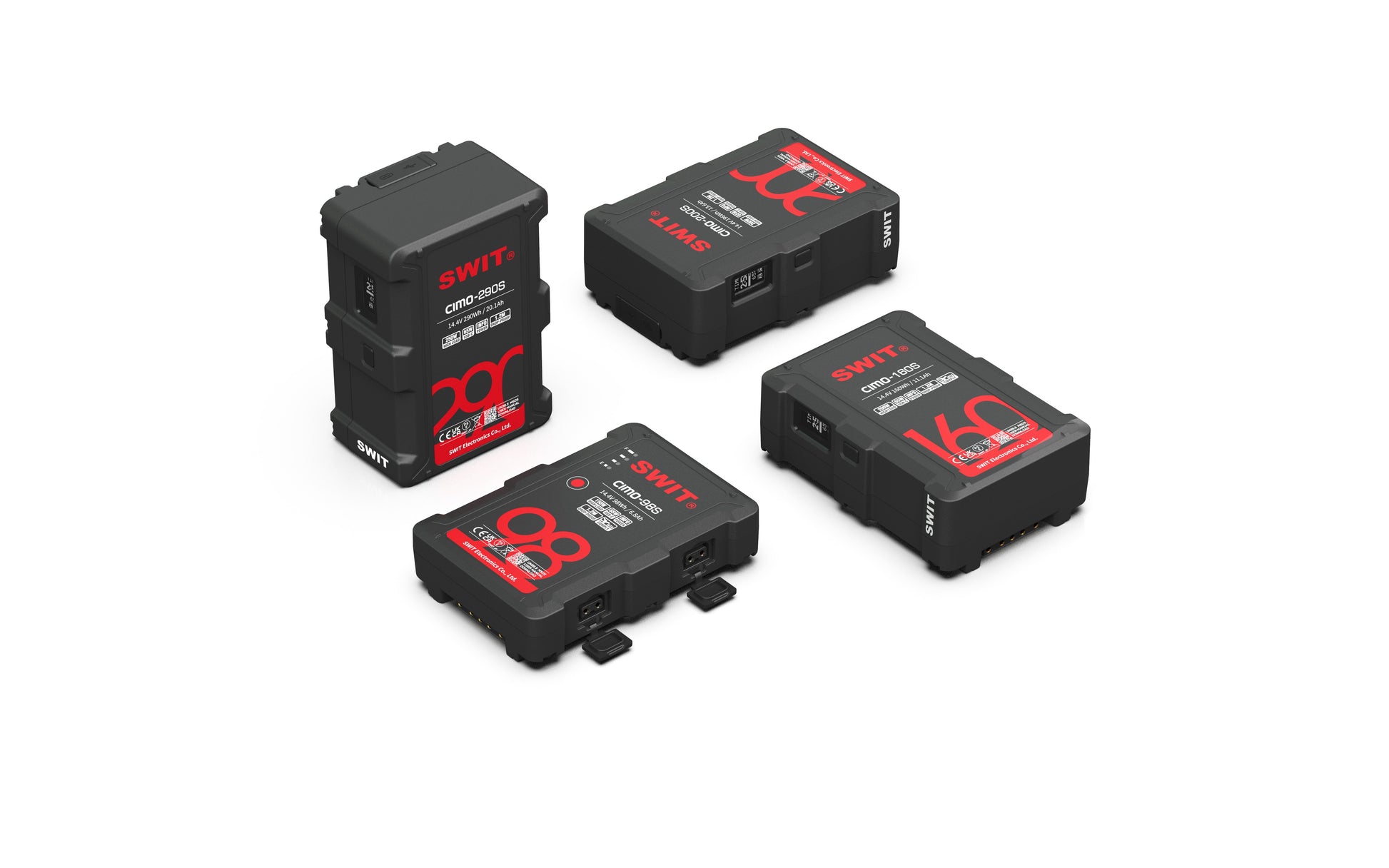

CINE V-Mount Battery
The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.
14.4V, 160Wh Capacity
CIMO-160S consists of 16pcs ternary lithium cells, 14.4V nominal voltage, 160Wh, 11.1Ah large capacity. The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.
200W Constant / 270W Peak High Load Output
CIMO-160S outputs at least 200W/16A high load even at 1% capacity (Peak load up to 270W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
100W 6A Fast Charging

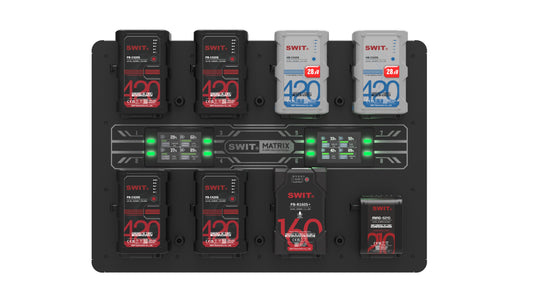

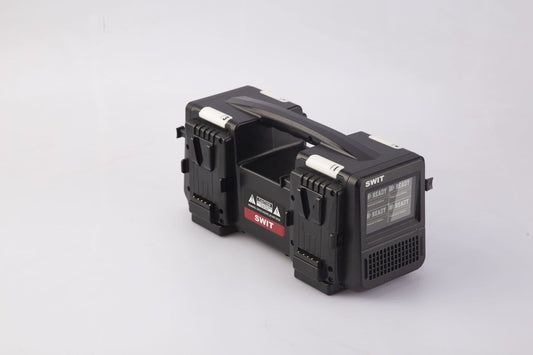

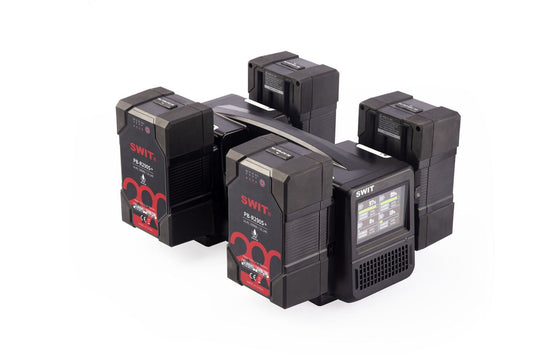

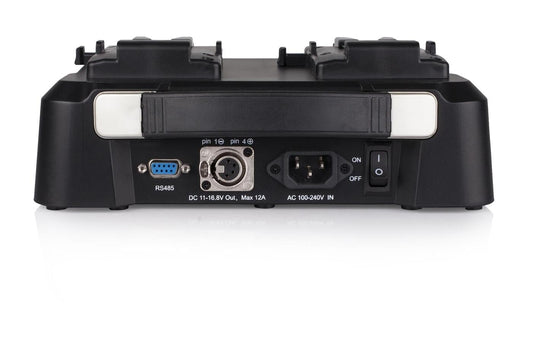

CIMO-160S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells. The 160Wh battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

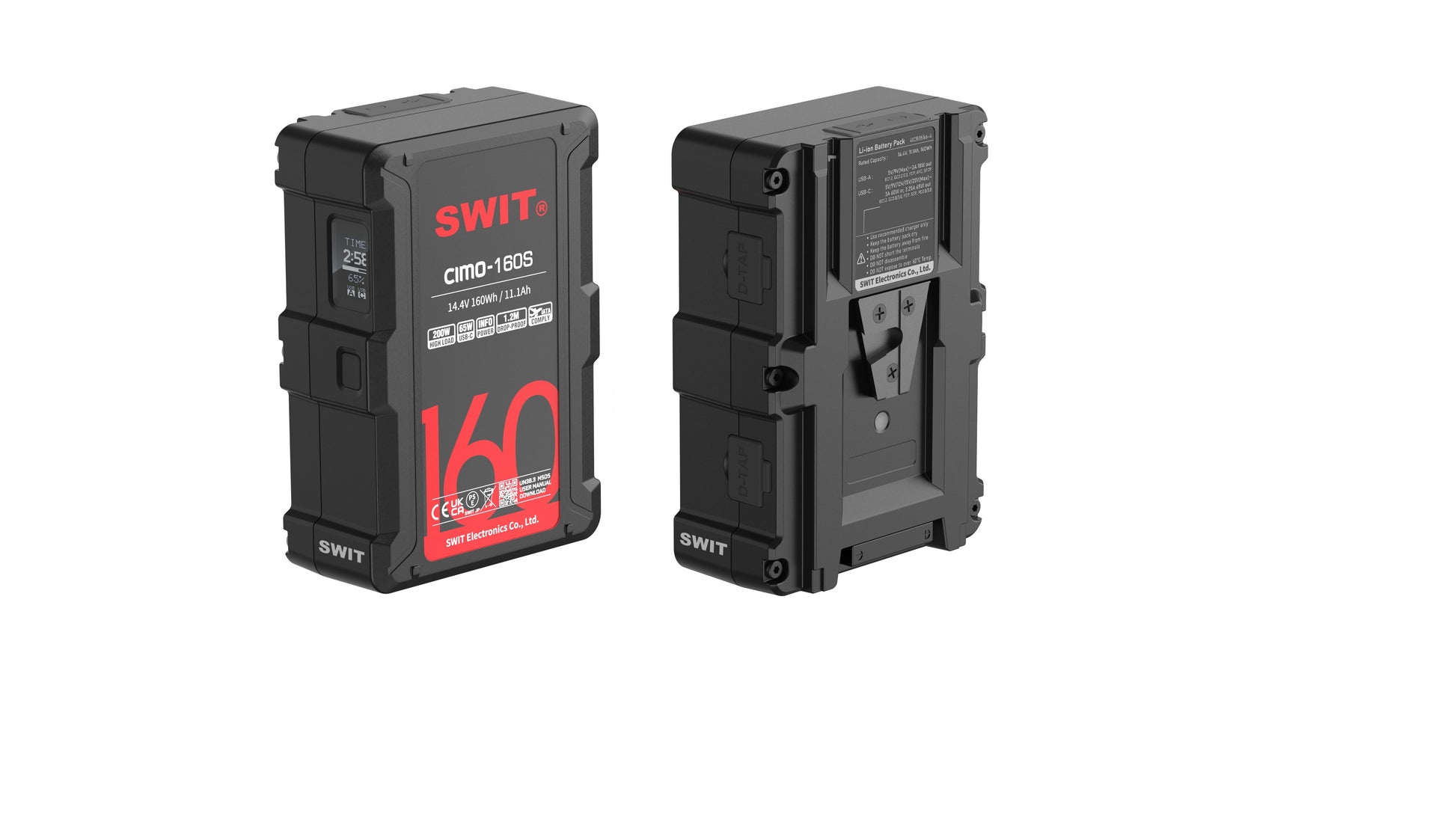

OLED Power Info / Health Level Display
CIMO-160S battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, and long press the power check button to display battery cycle times, health level for battery management.

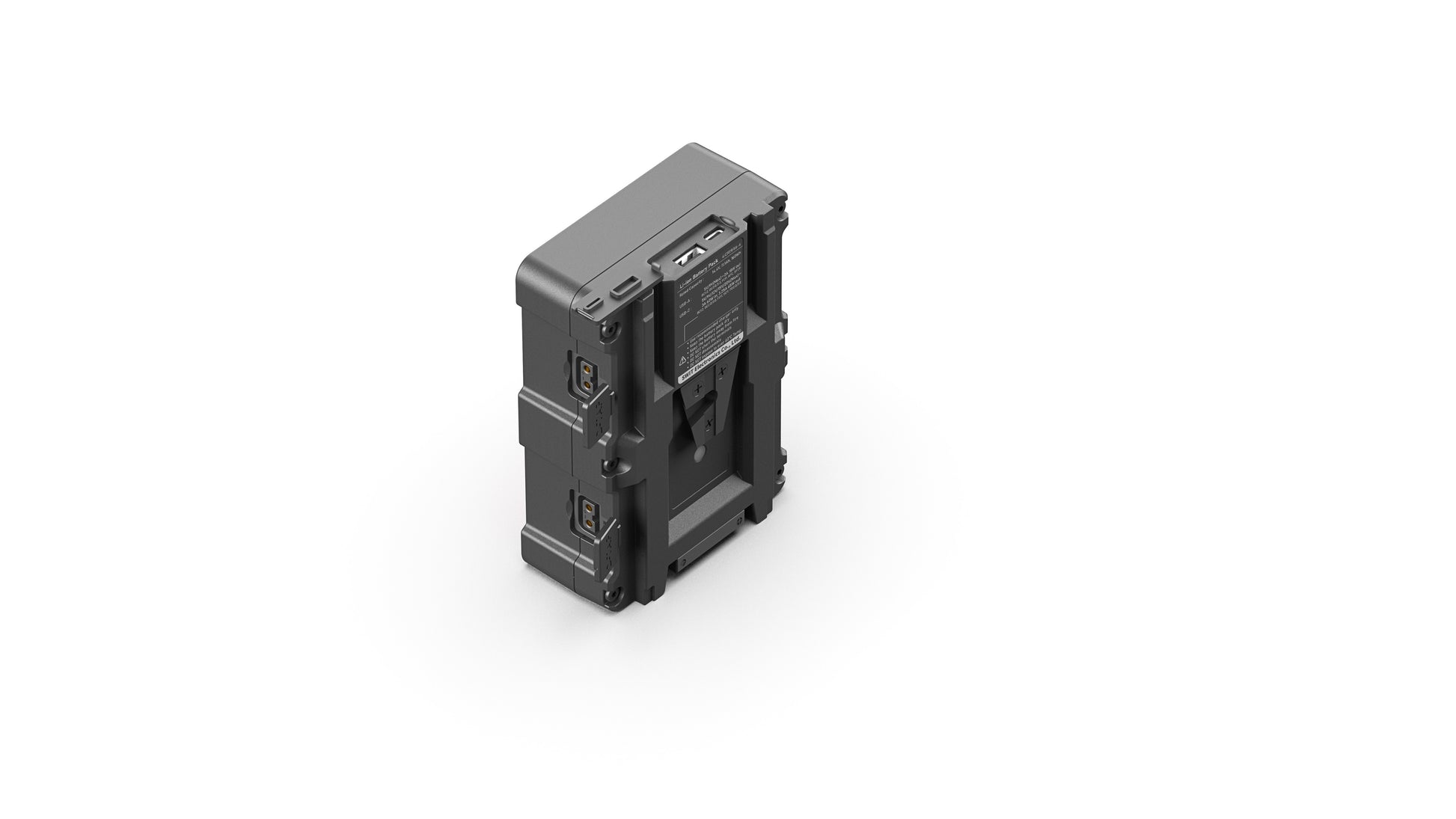

2×D-tap, USB-A & USB-C
CIMO-160S provides with 2x D-tap 200W in total; 1x USB-A 5V/9V 2A out; 1x USB-C 60W input and 65W output for various on-camera devices.

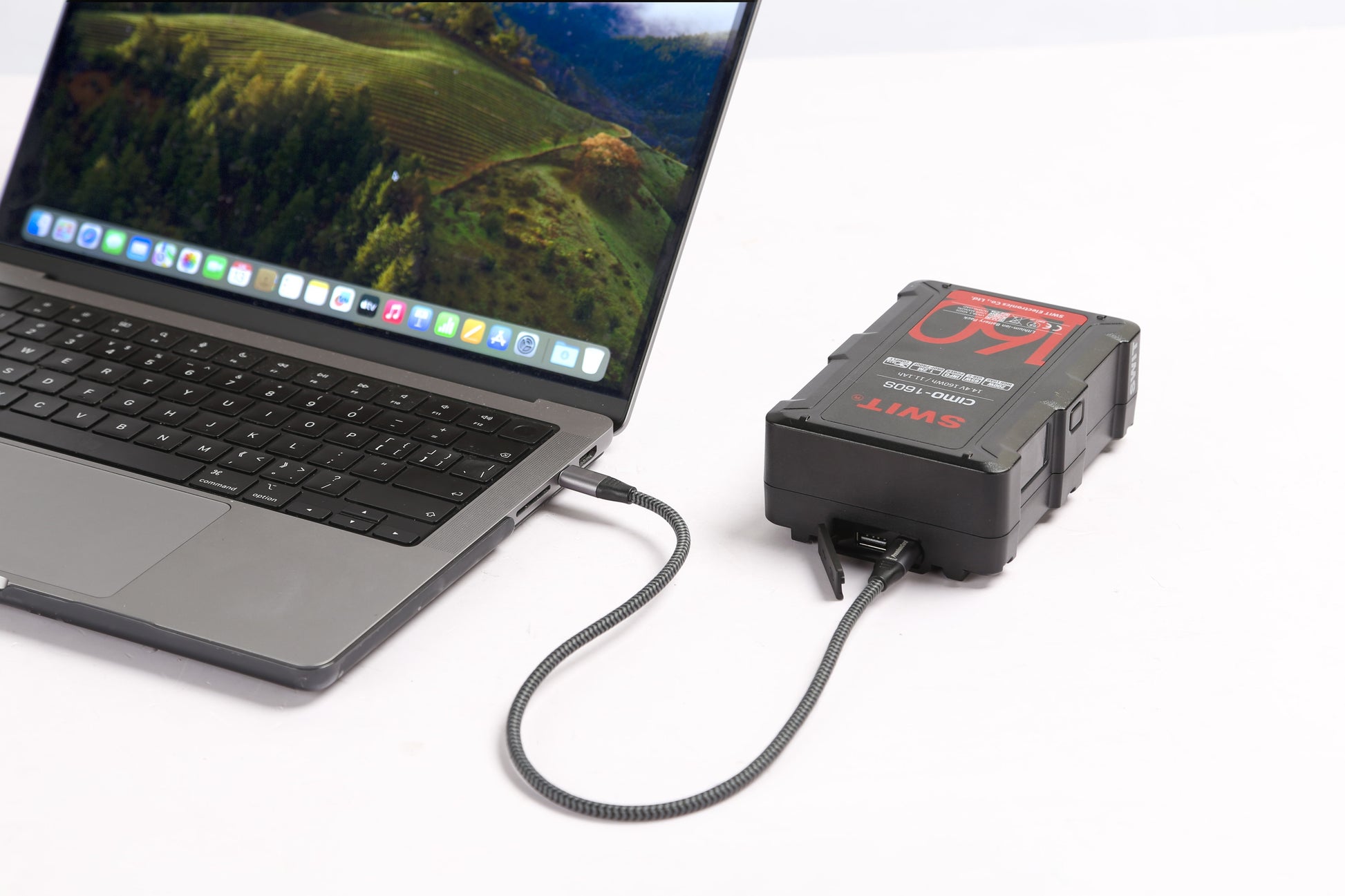

USB-C 65W Output
The USB-C port of CIMO-160S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 universally compatible protocols.
USB-C 60W Charging Input
The battery can also be charged by USB-C charger of PD2.0/3.0 ≥60W power, fully charged within 4 hours. * Please note that<60W low power USB-C chargers are unable to charge this battery.
Official Product Data
-
Model SPU: CIMO-160
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 160Wh
-
Voltage: 14.4V
-
Weight (kg): 1.1
-
Spec 1: USB-C
-
Plate Type: V-Mount
-
Lifecycle: 2024New, available
-
Accessory Options: UC-2065
