1920×1200 full HD, 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring; Waveform/Vector scope, 16-ch embedded audio meters, focus assist, etc

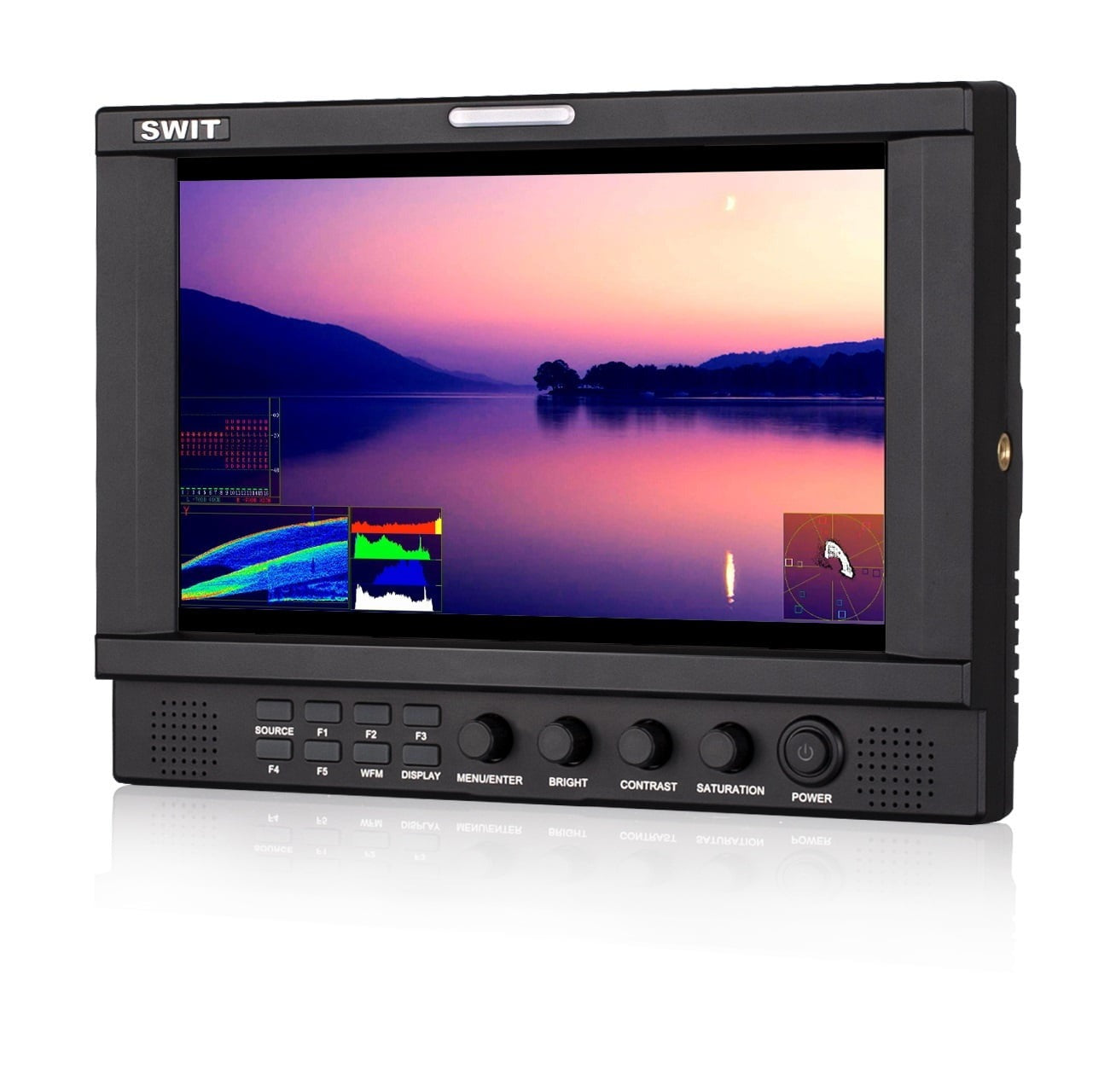

9-inch Full HD Reference LCD Monitor
Official Features
9-inch Full HD LCD
IPS panel with LED backlight The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
LCD Protective Glass
The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.
Dual Monitors 19-inch Rack Install
You can Install 2× S-1093F monitors onto standard 19-inch rack by optional accessory MA-RT93. The hanging structure allows for quick removal and adjustment of video cables.

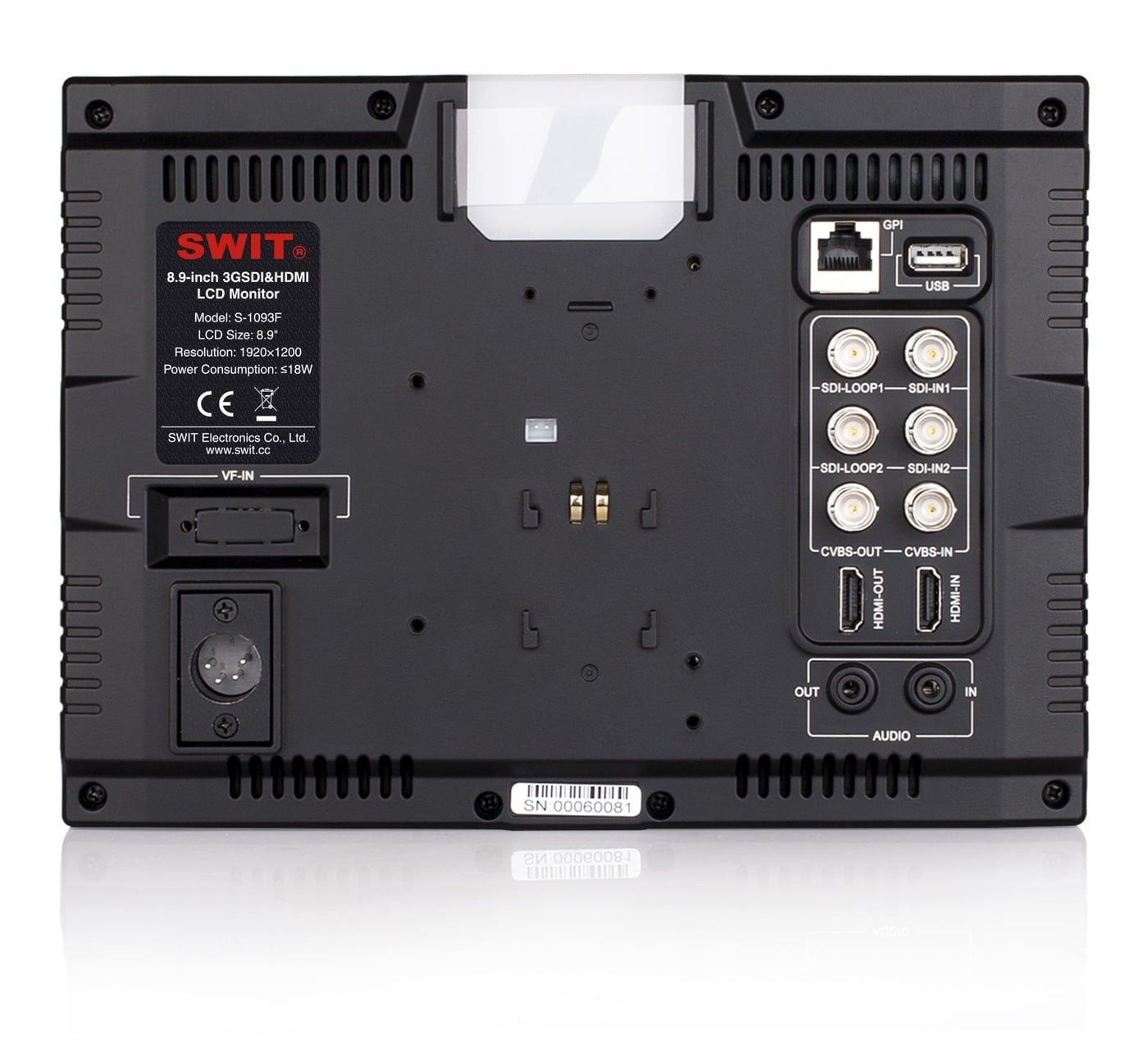

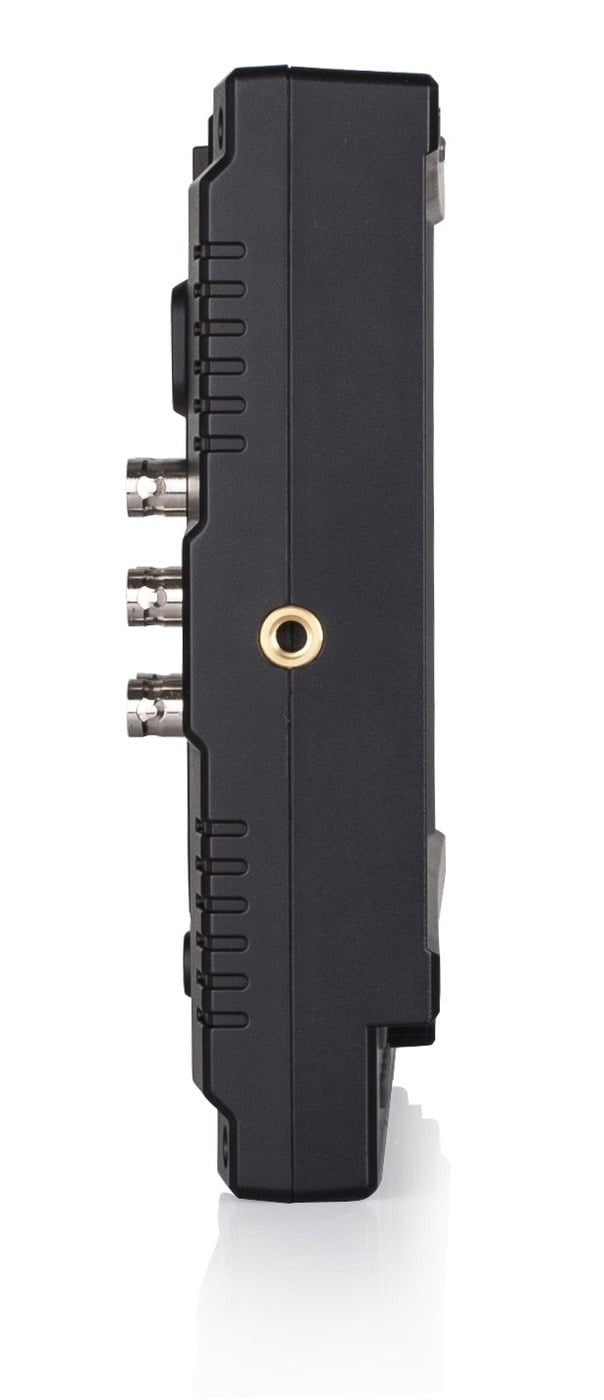

Input/Output Interfaces
SDI / HDMI® / CVBS / Analog Audio S-1093F monitor supports: 2K/3G/HD/SD-SDI input × 2 2K/3G/HD/SD-SDI loop output × 2 HDMI® input × 1 HDMI® loop output × 1 CVBS input × 1 CVBS loop output × 1 3.5mm analog audio input × 1 3.5mm analog audio output × 1
Video Analysis Assistant Pattern

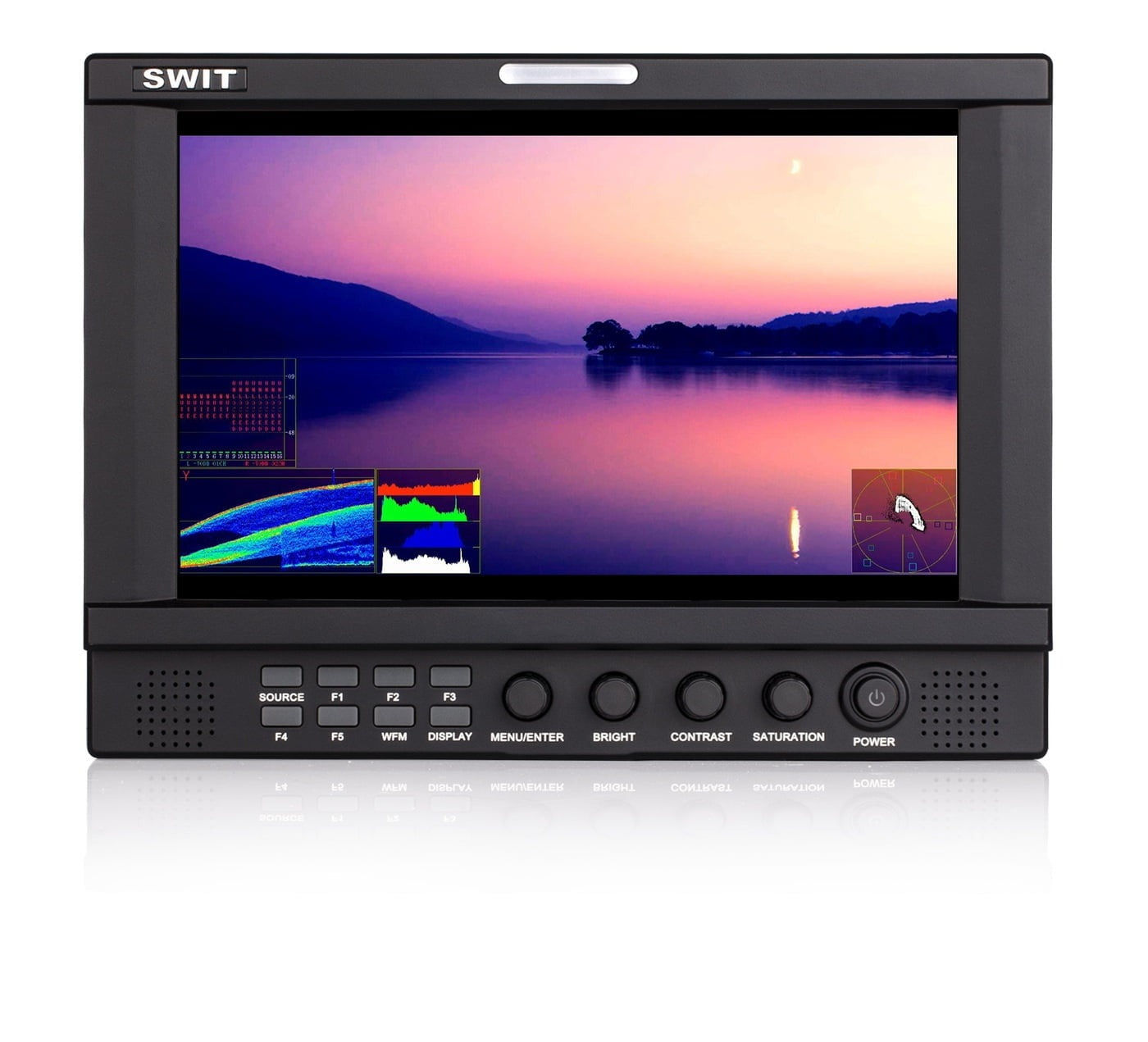

Waveform / Vector scope / Histogram S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output S-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.
Official Product Data
-
Model SPU: S-1093
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: On-camera Monitor
-
Power: 12W
-
Voltage: 12V
-
Weight (kg): 2.4
-
Spec 1: F
-
Plate Type: No Plate
-
Spec 4: ~9"
-
Accessory Options: S-7004S/A/F/U/E/D/C/V/I/B
Official Specifications
LCD Performance
| Size |
9 inches |
| Display area |
191.52×119.70mm |
| Resolution |
1920×1200 |
| Aspect ratio |
16:9 (4:3 adjustable) |
| Brightness |
450cd/m2 |
| Contrast |
1000:1 |
| Color |
16.77 million colors |
| Viewing angle |
Horizontal: 170°; Vertical: 170° |
Input
| BNC ×2 |
2K/3G/HD/SD-SDI input×2 |
| BNC ×1 |
Composite input |
| HDMI® ×1 |
HDMI® input |
| 3.5mm ×1 |
Analog audio input |
Output
| BNC ×2 |
2K/3G/HD/SD-SDI loop output ×2 |
| BNC ×1 |
Composite loop output |
| HDMI® ×1 |
HDMI® loop output |
| 3.5mm ×1 |
SDI, HDMI®, Analog audio output |
Video Format
| SDI |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94) |
| 576i (50) |
| HDMI® |
480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| CVBS |
PAL / NTSC |
General

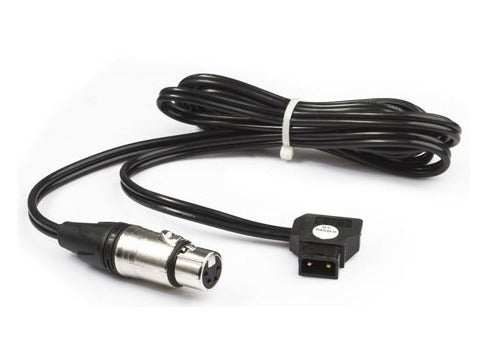

| Input voltage |
DC / battery 6.5V-24V |
| Power consumption |
≤18W |
| Working temperature |
0°C～+40°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
241×178×50mm |
| Net weight (main body) |
Net 960g simple vesion with pakcage 2.4kg luxury version with package 4.05kg |
