1920×1200 Full HD 19" 4U; 2K/3G/HD/SD-SDI, HDMI®, CVBS, 16-ch audio meters, TSL UMD, Peaking, Time code, Zebra

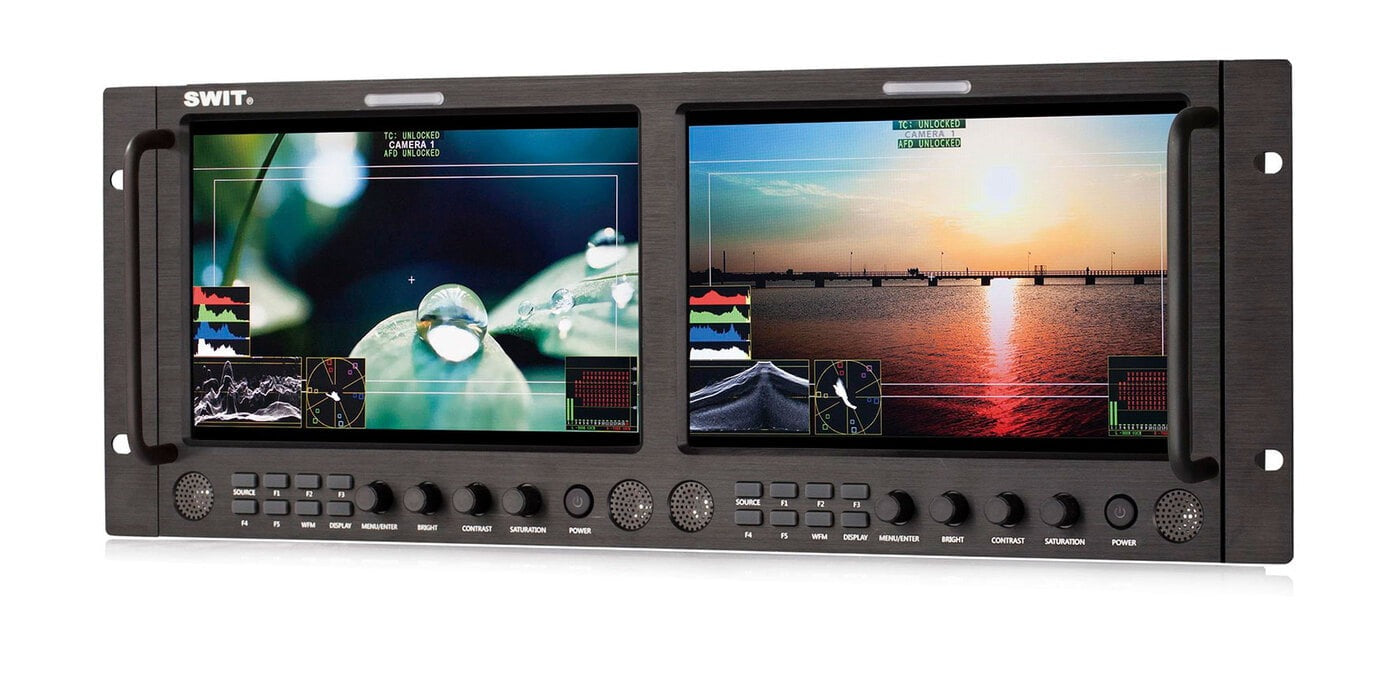

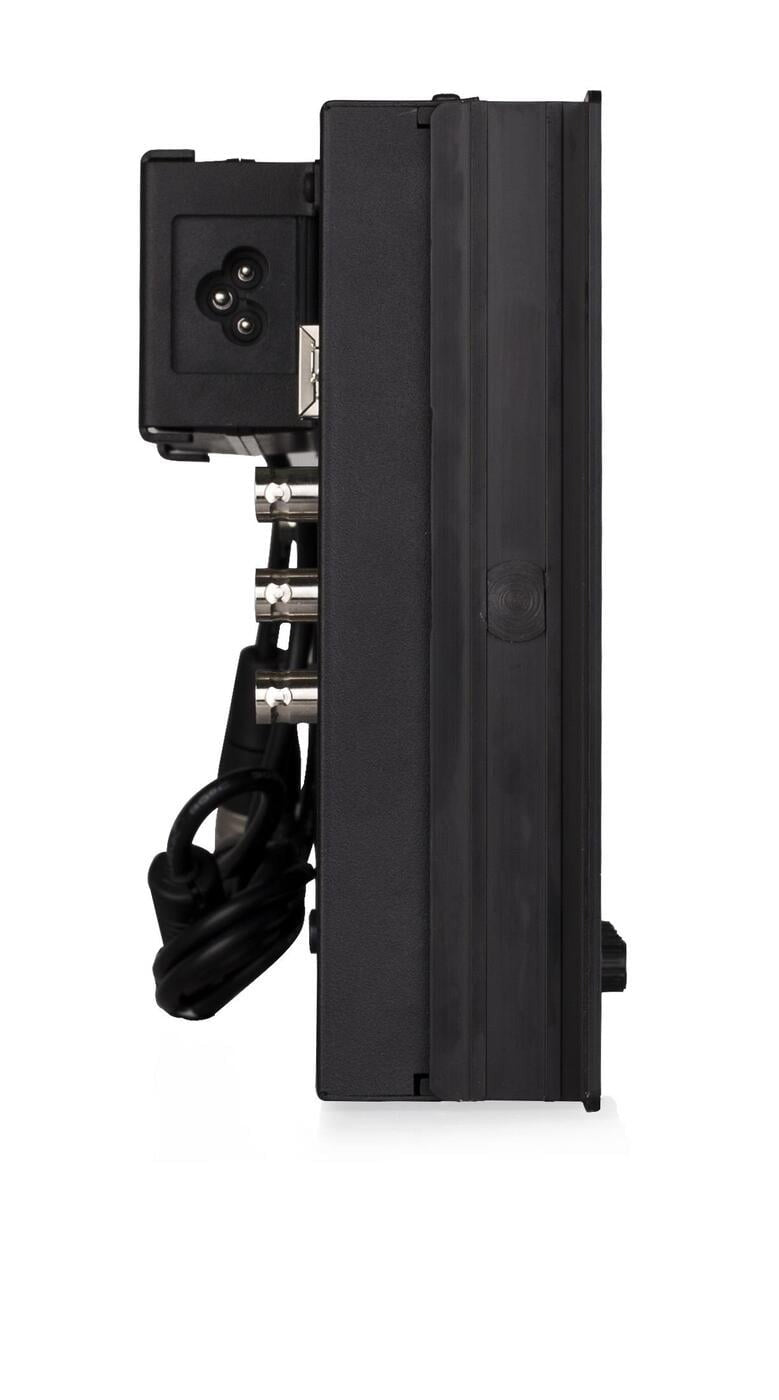

Dual 9-inch FHD Waveform Rack LCD Monitor
Official Features
9-inch IPS LCD
IPS panel with LED backlight The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
Input/Output Interfaces
SDI / HDMI® / CVBS / Analog Audio Each LCD of M-1093F supports: 2K/3G/HD/SD-SDI input × 2 2K/3G/HD/SD-SDI loop output × 2 HDMI® 1.3 input × 1 HDMI® 1.3 loop output × 1 CVBS input × 1 CVBS loop output × 1 3.5mm analog audio input × 1 3.5mm analog audio output × 1
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output M-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
Peaking, R/G/B/Mono only, Zebra, False color
Timecode, H/V delay, AFD, Scale Markers

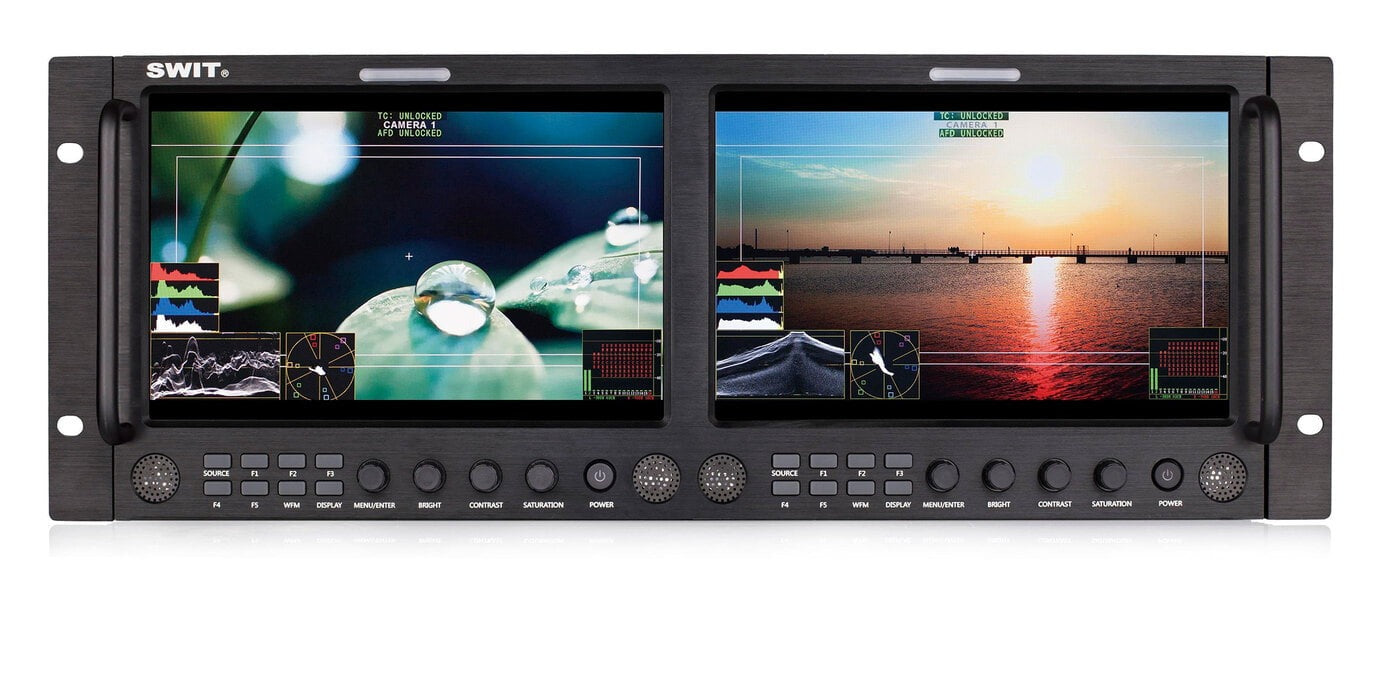

3-color TALLY Light
RJ45(RS485) input signal There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.
USB Firmware Upgrade

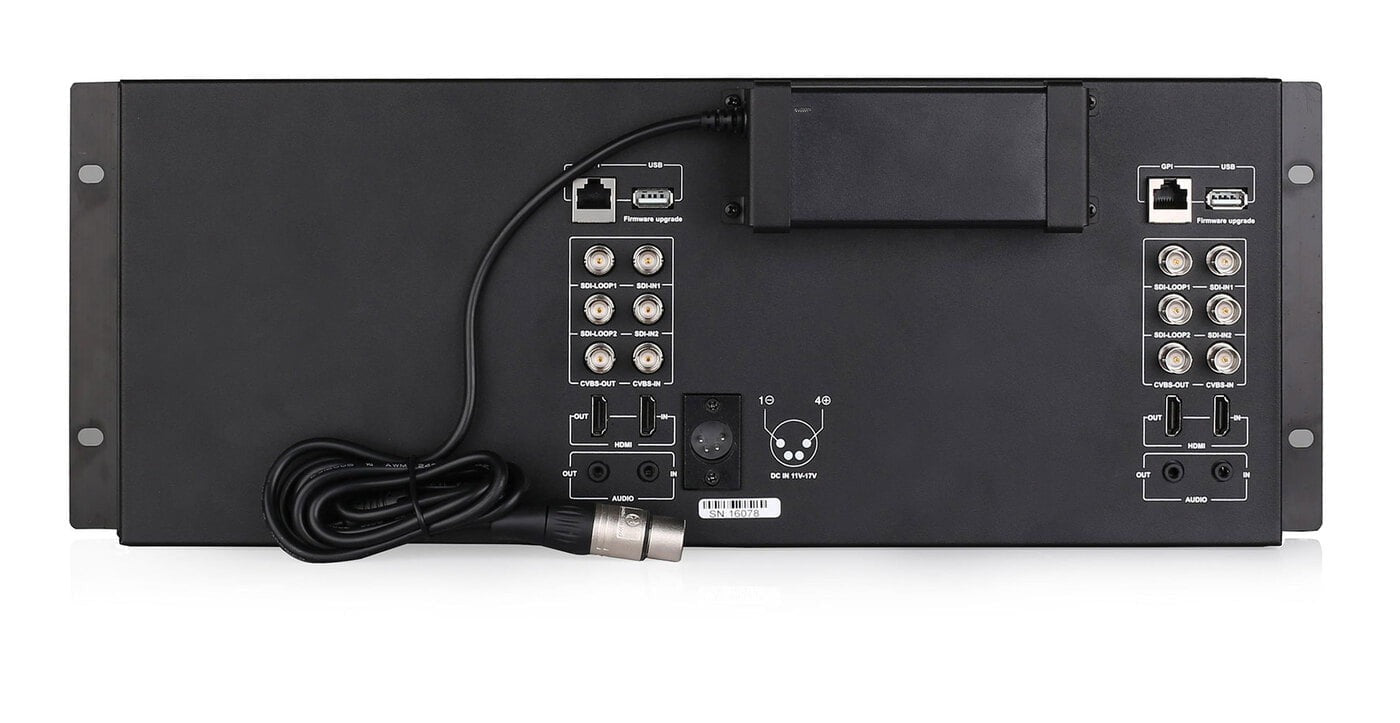

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.
Official Product Data
-
Model SPU: M-1093
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Rack Install Monitor
-
Power: 20W
-
Voltage: 12V
-
Weight (kg): 3.6
-
Spec 1: F
-
Spec 4: 2x9"
-
Lifecycle: over 1month after your order if no stock
Official Specifications
LCD Performance
| Size |
9 inches ×2 |
| Display area |
191.52×119.70mm |
| Resolution |
1920×1200 |
| Aspect ratio |
16:9 (4:3 adjustable) |
| Brightness |
450cd/m2 |
| Contrast |
1000:1 |
| Color |
16.77 million colors |
| Viewing angle |
Horizontal: 170°; Vertical: 170° |
Input(Each LCD)
| BNC ×2 |
2K/3G/HD/SD-SDI input×2 |
| BNC ×1 |
Composite input |
| HDMI® ×1 |
HDMI® input |
| 3.5mm ×1 |
Analog audio input |
Output(Each LCD)
| BNC ×2 |
2K/3G/HD/SD-SDI loop output |
| BNC ×1 |
Composite loop output |
| HDMI® ×1 |
HDMI® loop output |
| 3.5mm ×1 |
SDI, HDMI®, Analog audio output |
Video Format
| SDI |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50) |
| 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94) |
| 576i (50) |
| HDMI® |
480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| CVBS |
NTSC / PAL |
General
| Input voltage |
DC 6.5V-24V |
| Power consumption |
≤36W |
| Working temperature |
0°C～+40°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
484×177×112.8mm |
| Net weight (main body) |
Net 2.8kg; With package 3.6kg |
