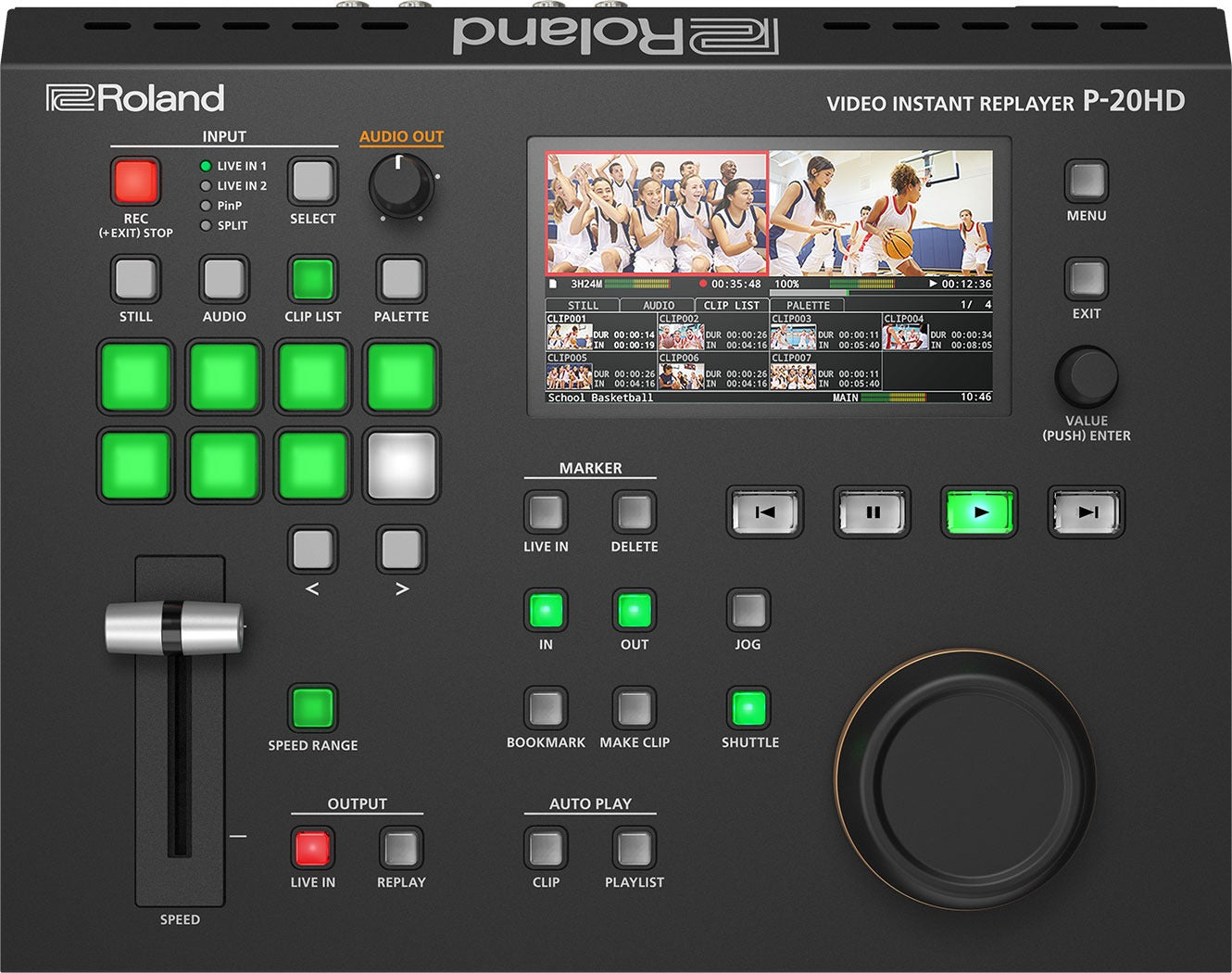

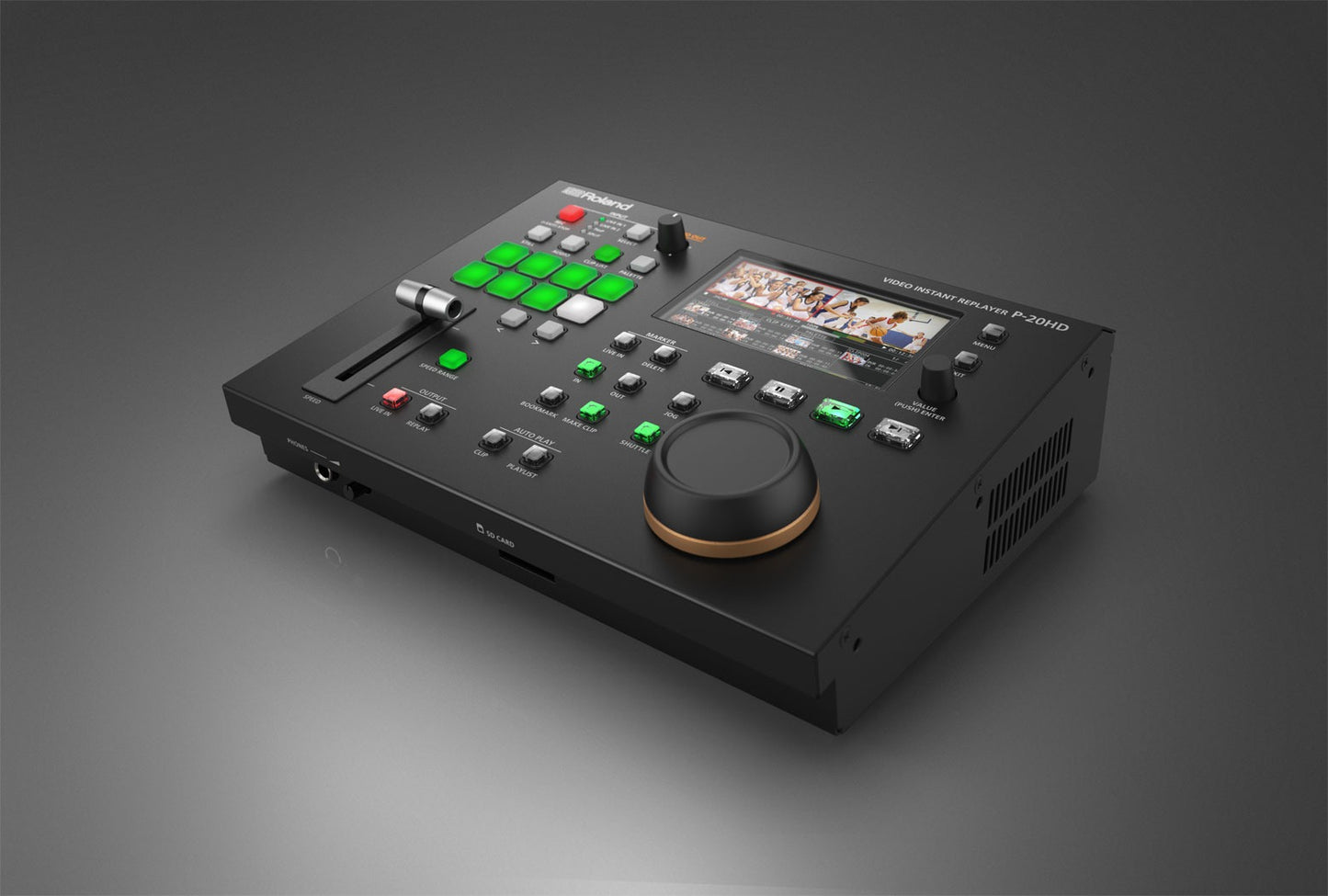

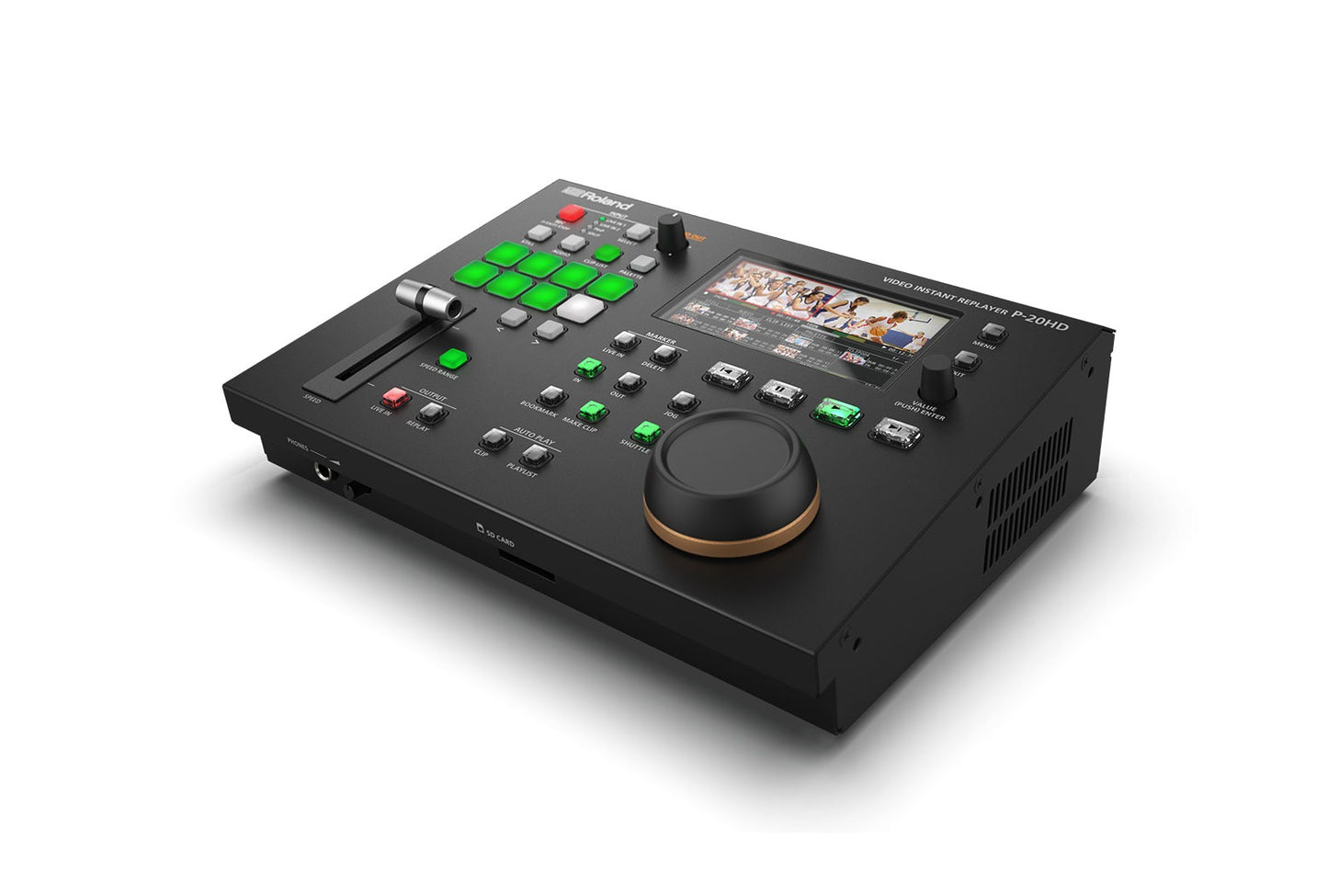

| Video Processing |
4:2:2 (Y/Pb/Pr), 8-bit |
| Input Connectors |
INPUT 1--2: HDMI type A x 2
* Multi-format Supported |
| Output Connectors |
MAIN: HDMI type A
* Multi-format Supported
PREIVEW: HDMI type A |
| Input Formats |
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz),
WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz),
SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz),
UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
* 1920 x 1200/60 Hz: Reduced blanking |
| Output Formats |
MAIN:
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
PREVIEW:
1080/59.94p, 1080/50p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Still Image:
Bitmap File (.bmp) 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) 1920 x 1080 pixels (480 x 270 pixels for title image), 24-bit color, 8-bits alpha channel.
* It can be stored up to 16 files in each Projects.
* It can be stored one title image each for LIVE IN and REPLAY bus. |
| Recording mode |
Instant Replay Mode
file format: MPEG2-TS
CODEC: H.264 High@L.4.1 10Mbps 8bit 4:2:0
AAC LC 128kbps, 48kHz, 16bit stereo
recording mode: resolution priority, framerate priority
* It can be selected at project settings. |
| Recording media |
SD/SDHC/SDXC card |
| Video Effects |
Composition: PinP, SPLIT
Transition: CUT, MIX, WIPE
Other: Flip horizontal, Still Image Playback, Test pattern output, Annotation |
| Audio Processing |
Sample rate: 24 bits/48 kHz |
| Audio formats |
Linear PCM, 24 bits/48 kHz, 2ch |
| Input Connectors |
INPUT 1--2: HDMI Type A x 2
AUDIO IN: RCA phono type |
| Output Connectors |
MAIN OUT: HDMI Type A
PREVIEW OUT: HDMI Type A
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type |
| Input Level |
AUDIO IN: -10 dBu (Maximum: +8 dBu) |
| Input Impedance |
AUDIO IN: 15 k ohms |
| Output Level |
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms) |
| Output Impedance |
AUDIO OUT: 1 k ohm
PHONES: 10 ohms |
| Audio Effects |
Delay, High pass filter, Compressor, Noise gate, Equalizer, Limiter, Test tone output |
| Audio Player |
File format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo
* It can be stored up to 16 files in each Projects. |
| Other Connectors |
USB HOST port: USB A type (For USB flash drive, Wacom tablet, USB keyboard)
LAN port: RJ-45, 1000BASE-T (For remote control, FTP)
RS-232 connector: DB-9 type (Male, for remote control, switcher control)
CTL/EXP 1, 2: 1/4-inch TRS phone type
DC IN |
| Other Functions |
Panel lock function
EDID Emulator
Export recording files (mp4)
Export and Import project archive files |
| Display |
4.3 inches TFT Color LCD: 480 x 272 dots |
| Power Supply |
AC adaptor |
| Current Draw |
3 A |
| Power Consumption |
36 W |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Dimensions |
265 (W) x 216 (D) x 87 (H) mm
10-7/16 (W) x 8-9/16 (D) x 3-7/16 (H) inches |
| Weight (excluding AC adaptor) |
2.1 kg
4 lbs 11 oz |
| Accessories |
Owner's Manual
AC adaptor
Power cord
* 0 dBu = 0.775 Vrms |
