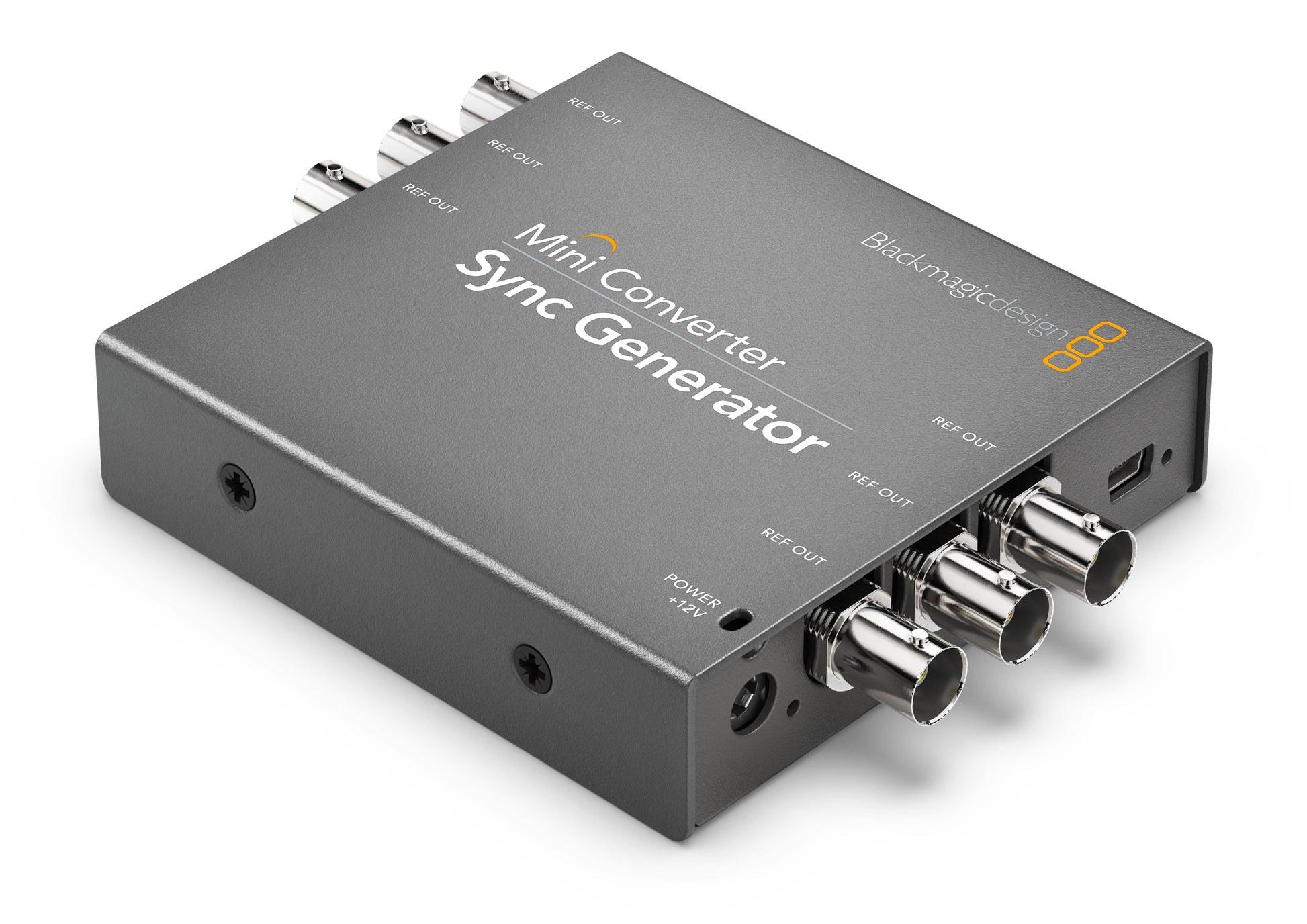

Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri‑Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
Official Technical Details
Connections

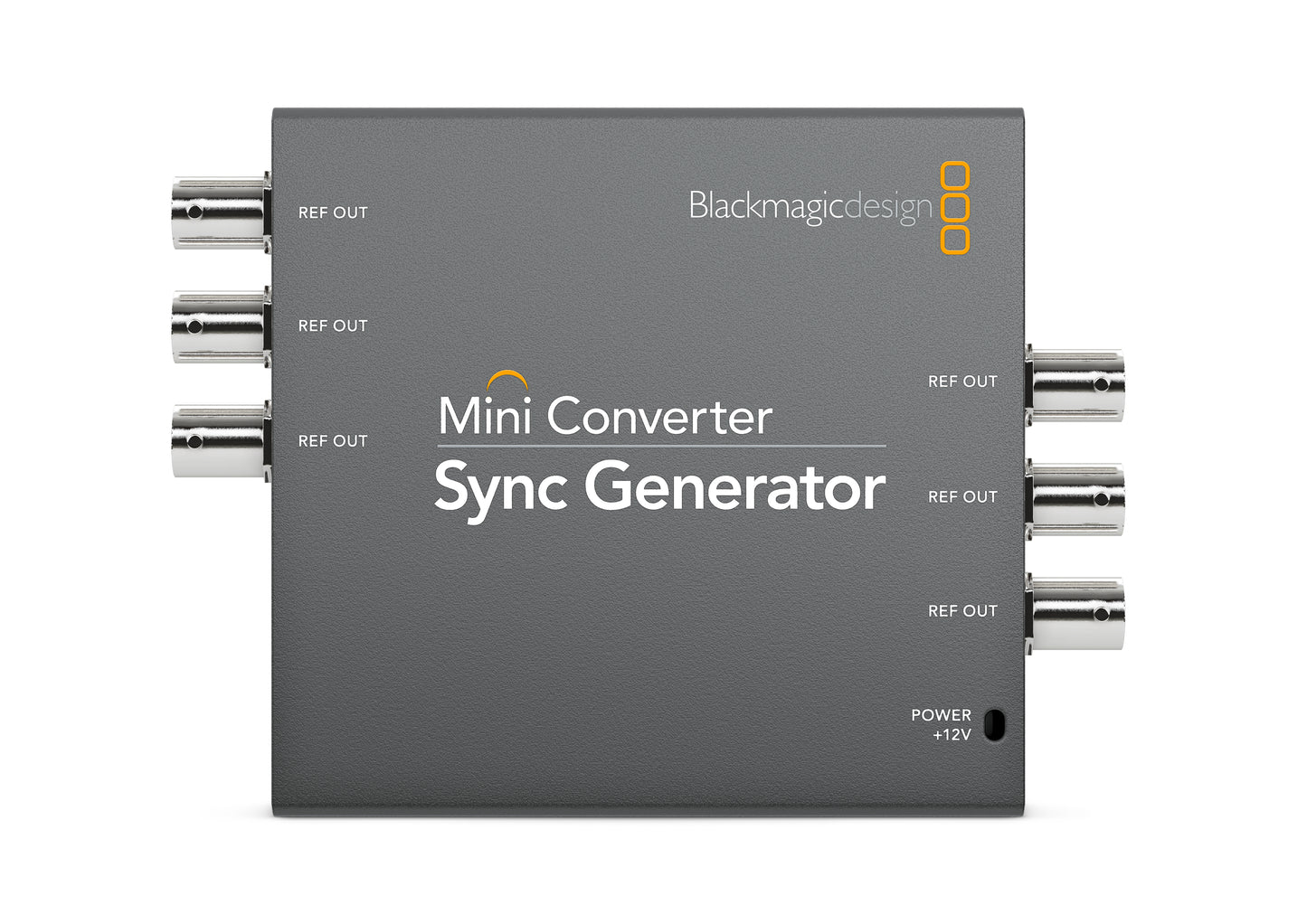

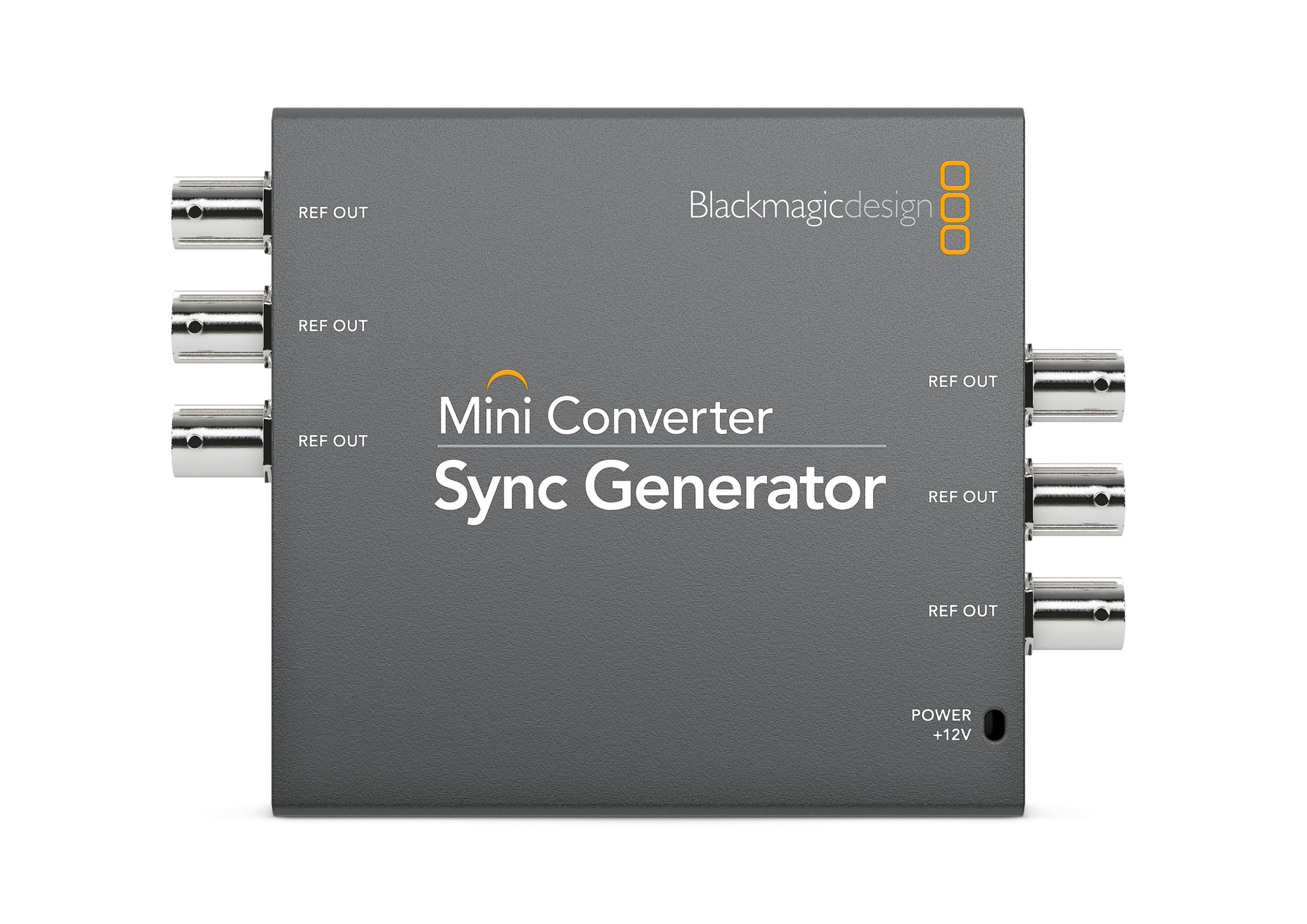

Analog Video Outputs: 6 x common Blackburst or Tri Level reference outputs.
SDI Rates: 270Mb, 1.5G.

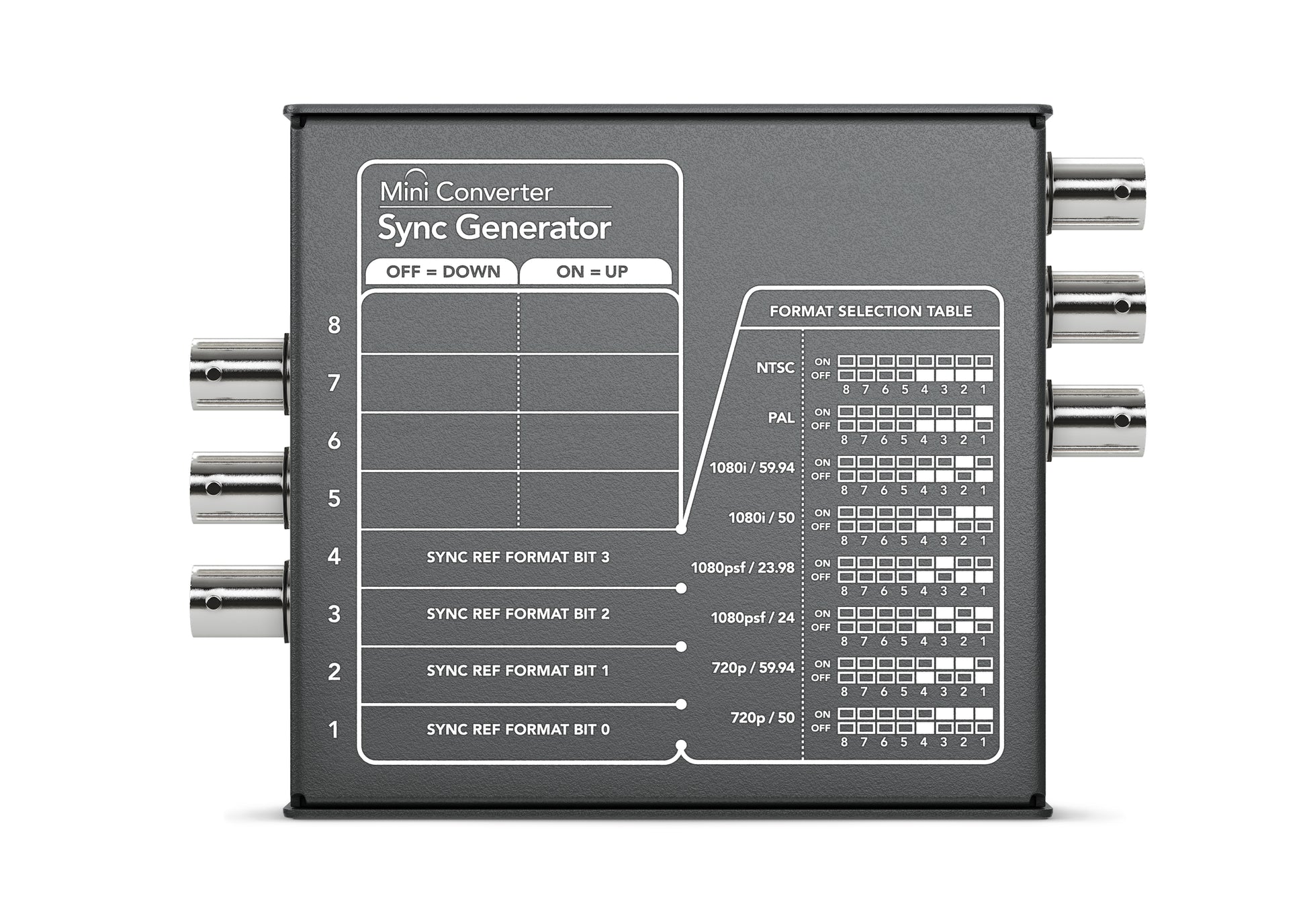

Multi Rate Support: Via mini switches
Updates and Configuration: USB
Standards
Analog Format Support: 525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software
Software Control: Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade: Via included updater application.
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption: 3.00 Watts
Operational Voltage Range: 12V DC
Environmental Specifications
Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non‑condensing
What's Included
Mini Converter Sync Generator
12V universal power supply with international socket adapters
