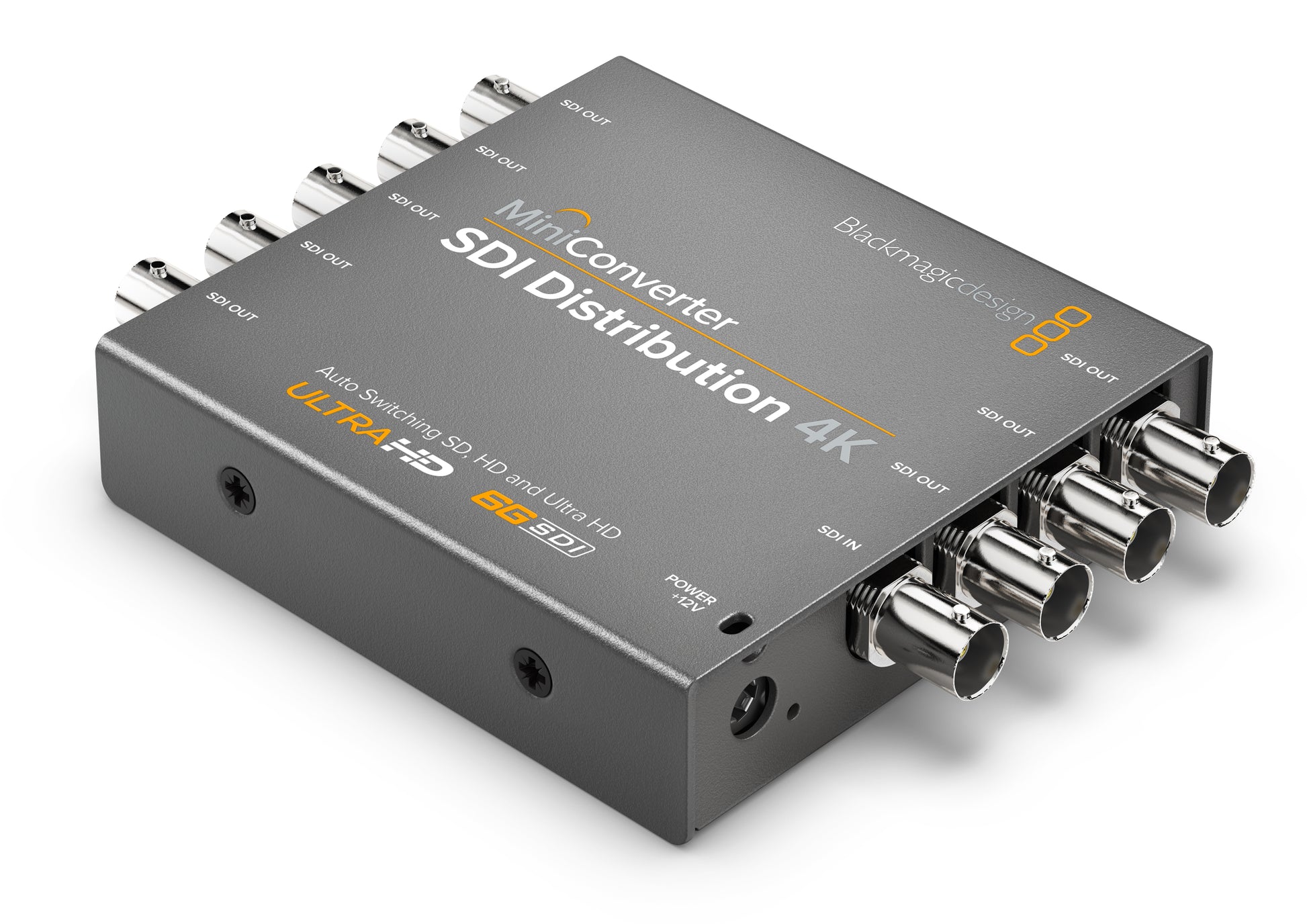

• MiniConverter SDIDistribution4K Angle rgb

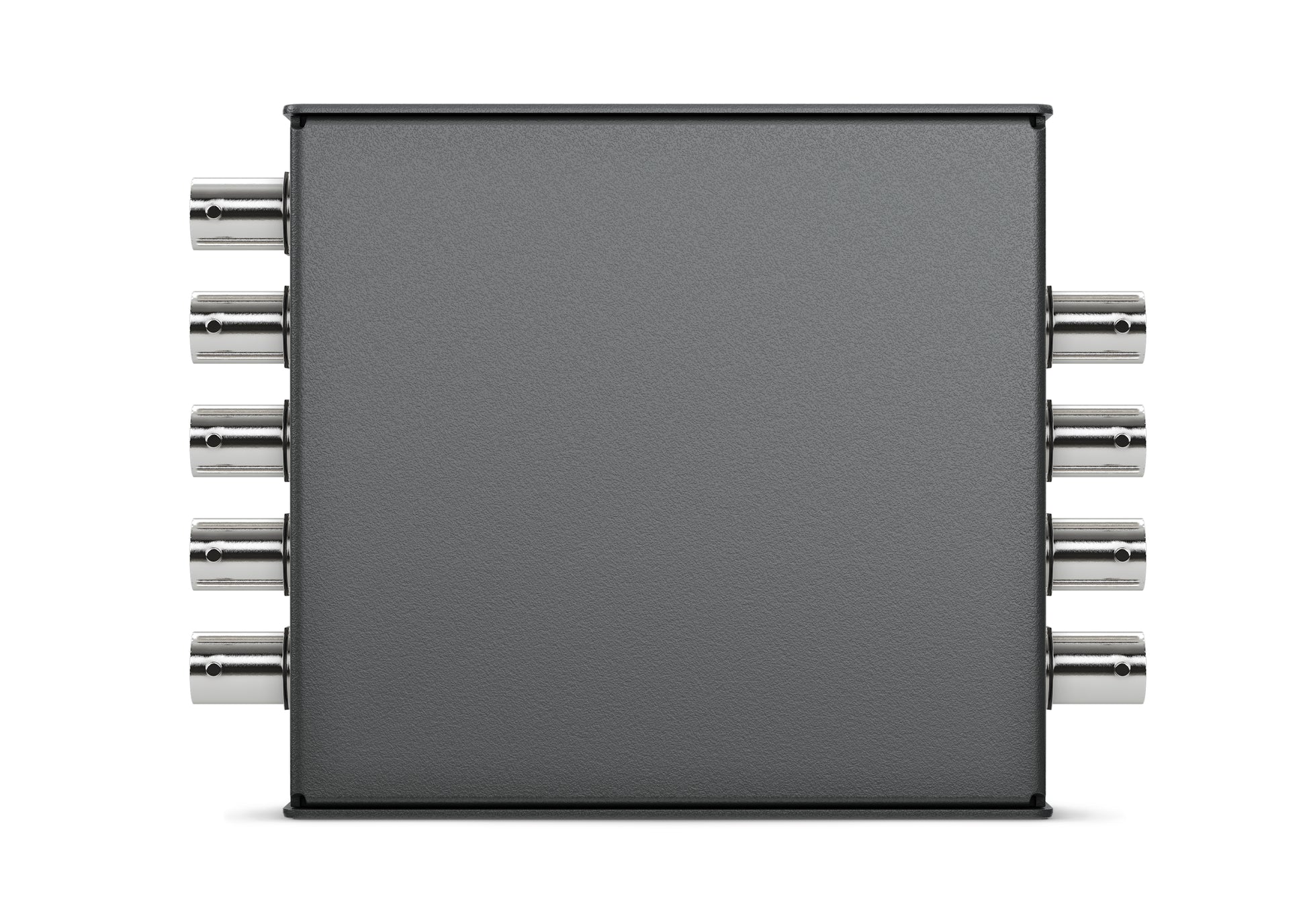

  • MiniConverter SDIDistribution4K Back rgb

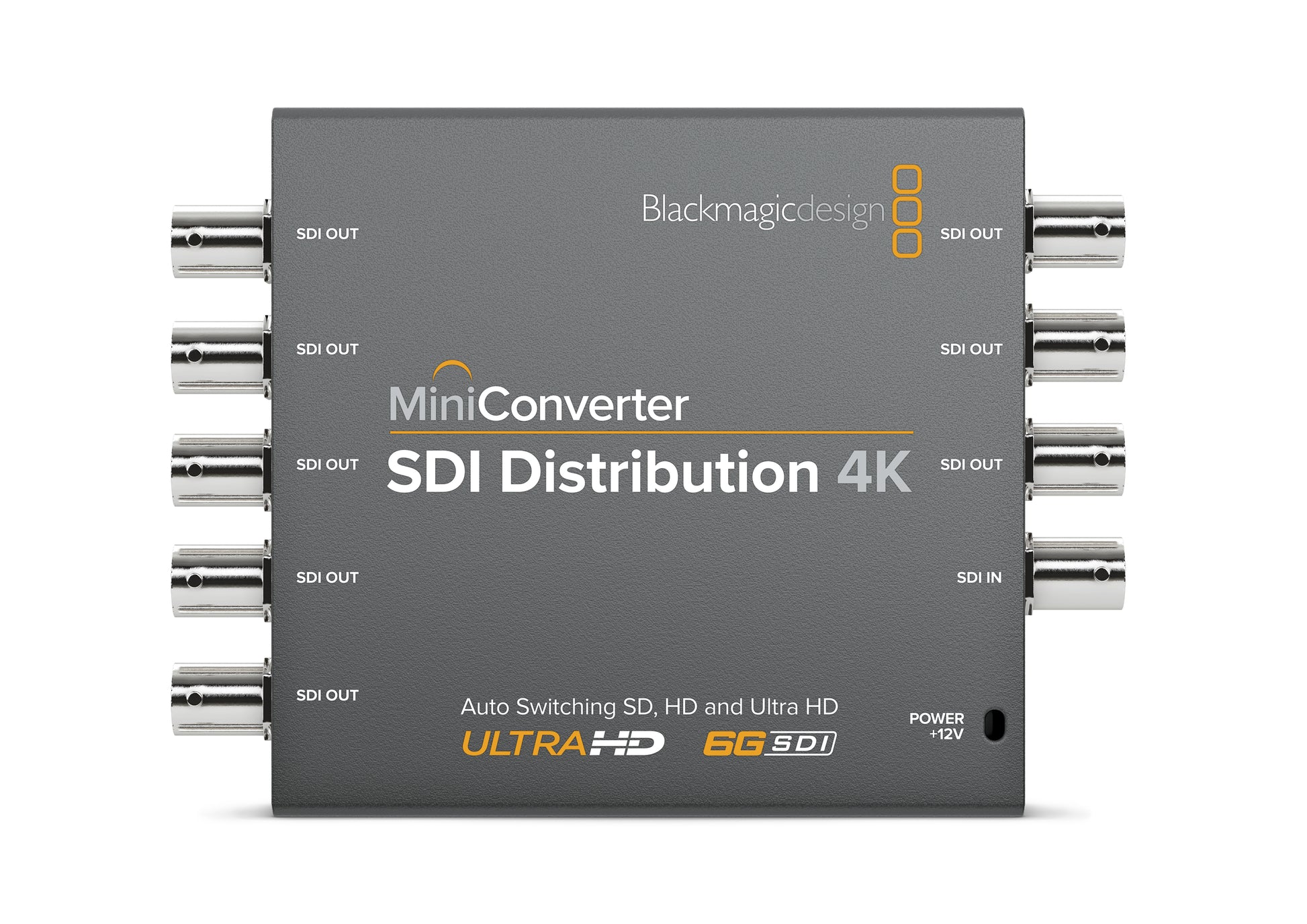

  • MiniConverter SDIDistribution4K Front rgb
1 3

Blackmagic Design

Blackmagic Design Mini Converter - SDI Distribution 4K

Blackmagic Design Mini Converter - SDI Distribution 4K

€335,00 be PVM
€335,00 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

When you need to connect to multiple SDI devices, then Mini Converter SDI Distribution 4K is the perfect solution! Connect a single SDI source to 8 re‑clocked SDI outputs with automatic switching between all SD‑SDI, HD‑SDI, 3G‑SDI and 6G‑SDI video formats, plus all ASI, ancillary and embedded audio formats.

Official Technical Details

Connections

  • SDI Video Inputs: Switchable between SD, HD and 6G‑SDI.
  • Reclocking: Yes
  • SDI Video Outputs: 8 outputs automatically match the SDI video input.
  • Multi Rate Support: Auto detection of SD, HD or 6G‑SDI.

Standards

  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
  • SDI Video Rates: SDI video inputs are automatically detected between standard definition and high definition.
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2 and 4:4:4
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects SD, HD or 6G‑SDI.
  • ASI Support: Yes

Power Requirements

  • Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
  • Power Consumption: 4.80 Watts
  • Operational Voltage Range: 12 ‑ 31V DC

Operating Systems

  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
  • Windows 10, 64-bit.

Environmental Specifications

  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing

What's Included

  • Mini Converter SDI Distribution 4K
  • 12V universal power supply with international socket adapters

Warranty

  • 3 Year Limited Manufacturer’s Warranty.

Official Documentation
