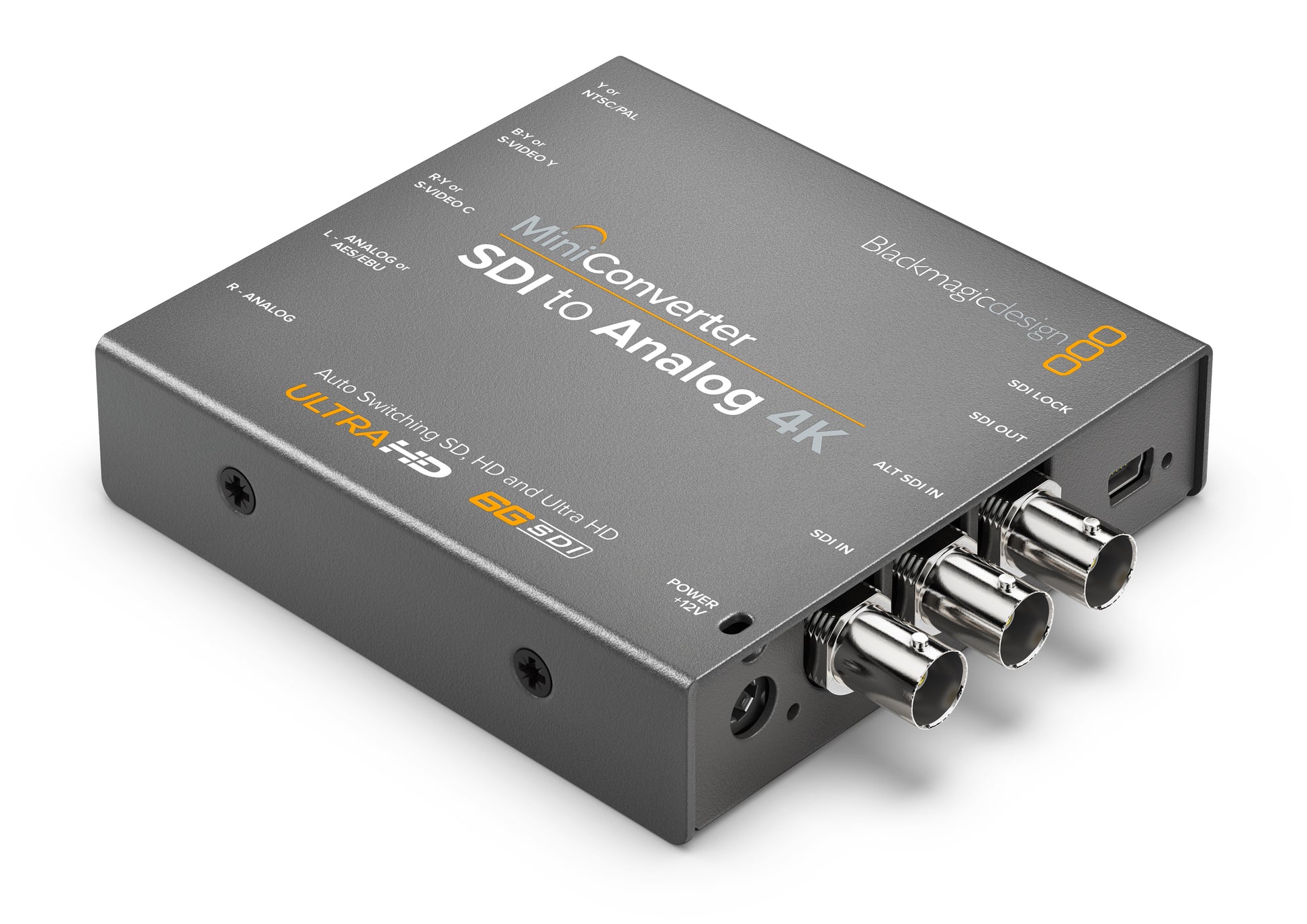

Blackmagic Design Mini Converter - SDI to Analog 4K

Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G‑SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!

Official Technical Details

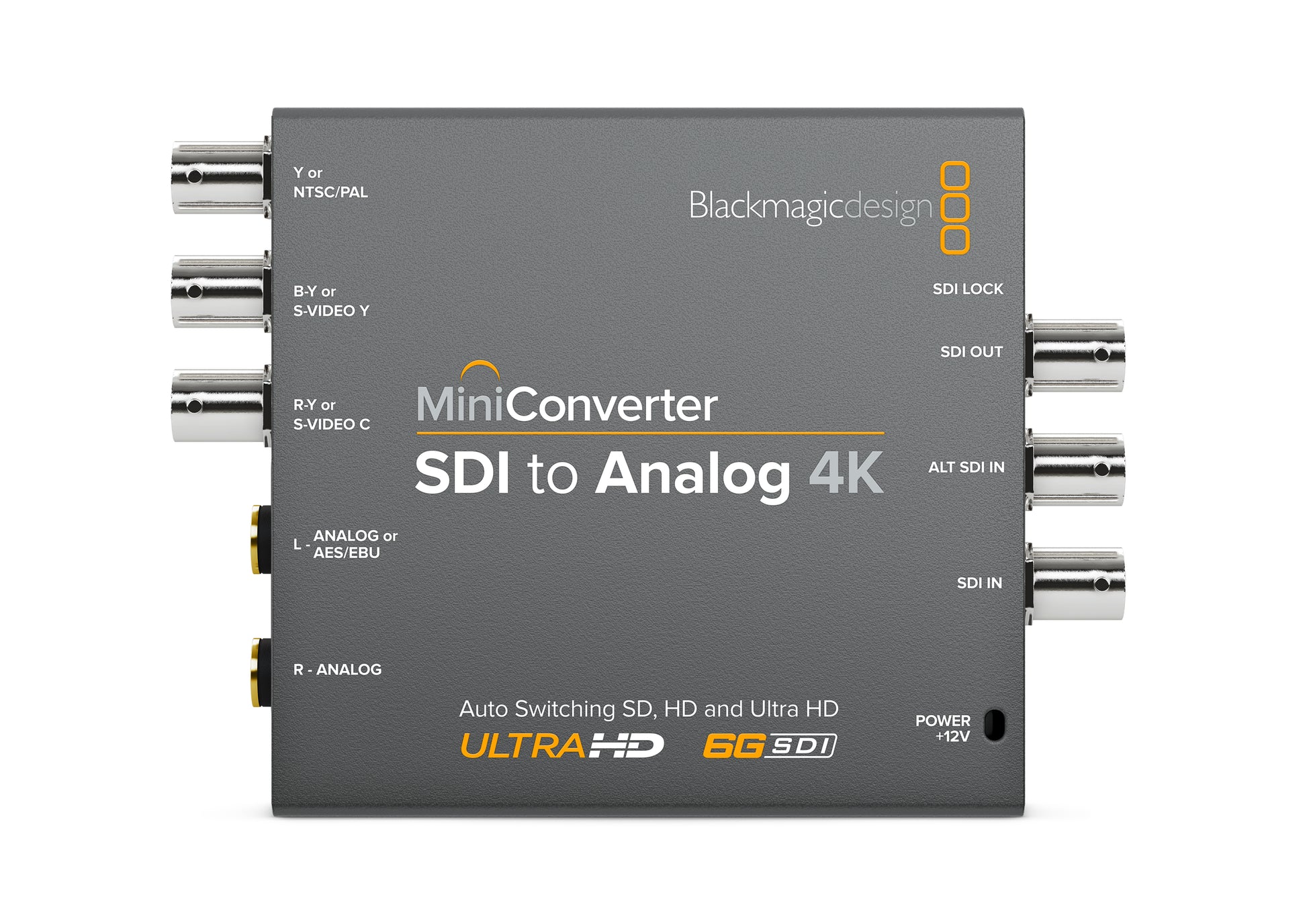

Connections

• SDI Video Inputs: 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
• SDI Video Outputs: 1 x SDI Video Loop Output.
• Analog Video Outputs: NTSC, PAL, S‑Video and component SD/HD from 6G‑SDI input.
• Analog Audio Outputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• Digital Audio Outputs: 2 channels of professional balanced digital with standard 1/4 inch jack connections.
• SDI Redundant Input: Automatically switches over if main SDI input is lost.
• Multi Rate Support: Auto detection of SD, HD or 6G‑SDI.
• Updates and Configuration: USB
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601
• SDI Video Rates: SDI video inputs are automatically detected between standard definition and high definition.
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD and HD.
• Analog Format Support: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
• Analog Color Space: YUV
• Analog Color Precision: 4:2:2

Format Conversion

• HD down conversion

Software

• Software Control: Mac™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.

Operating Systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

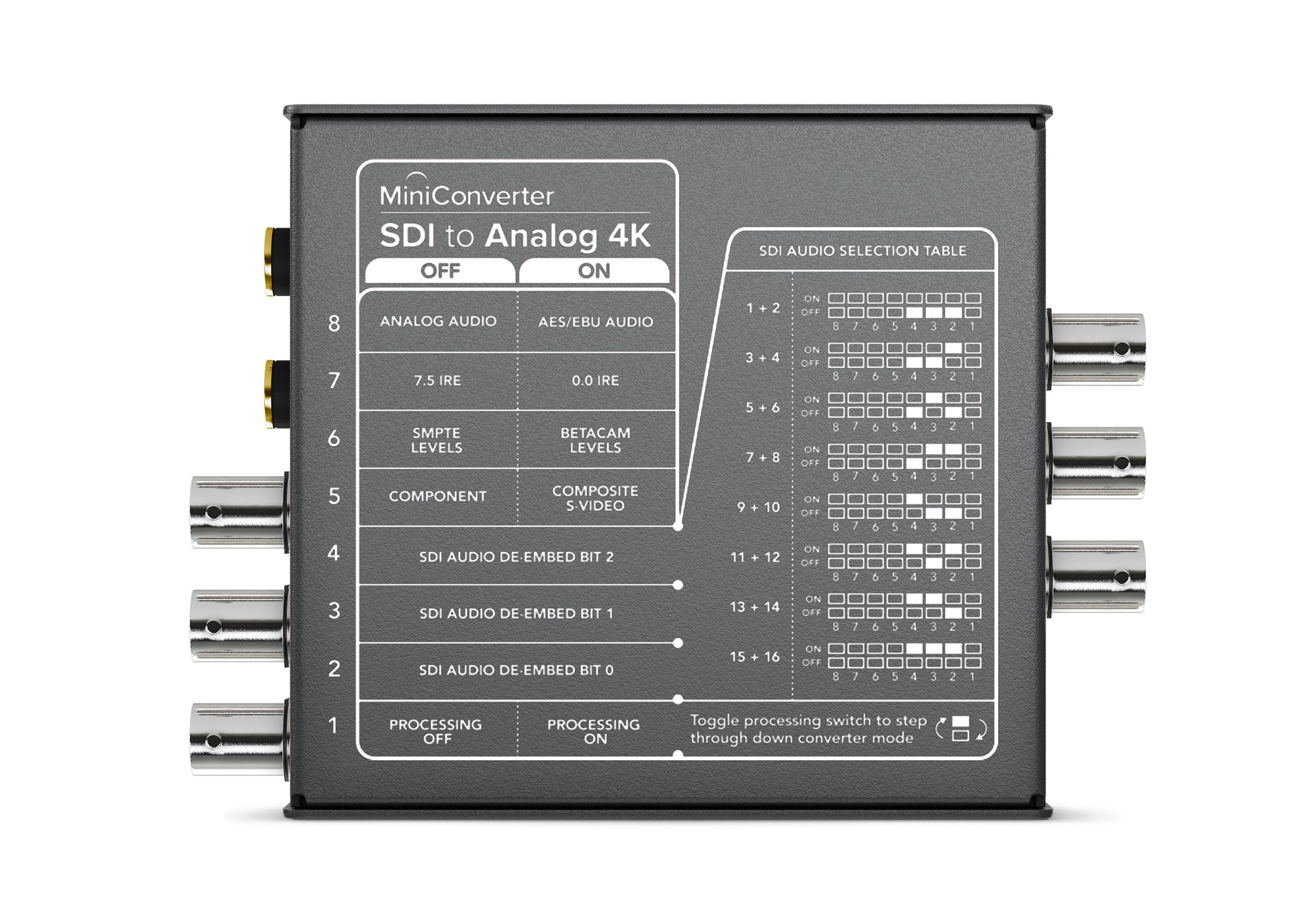

Settings Control

• Mini Switches or USB software.

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
• Power Consumption: 8.04 Watts
• Operational Voltage Range: 12 ‑ 31V DC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing

What's Included

• Mini Converter SDI to Analog 4K
• Software CD
• 12V universal power supply with international socket adapters

Warranty

• 3 Year Limited Manufacturer’s Warranty.
