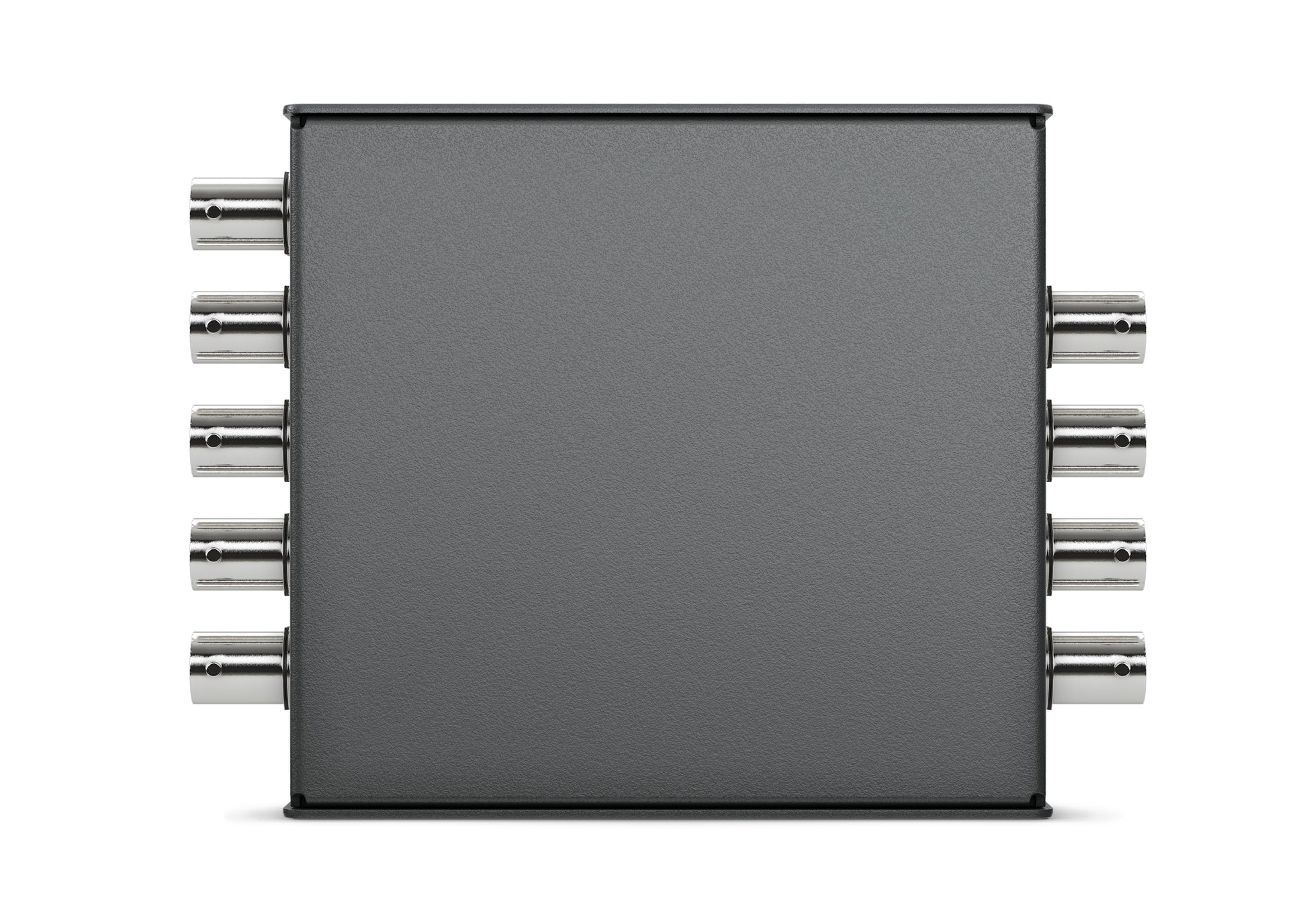

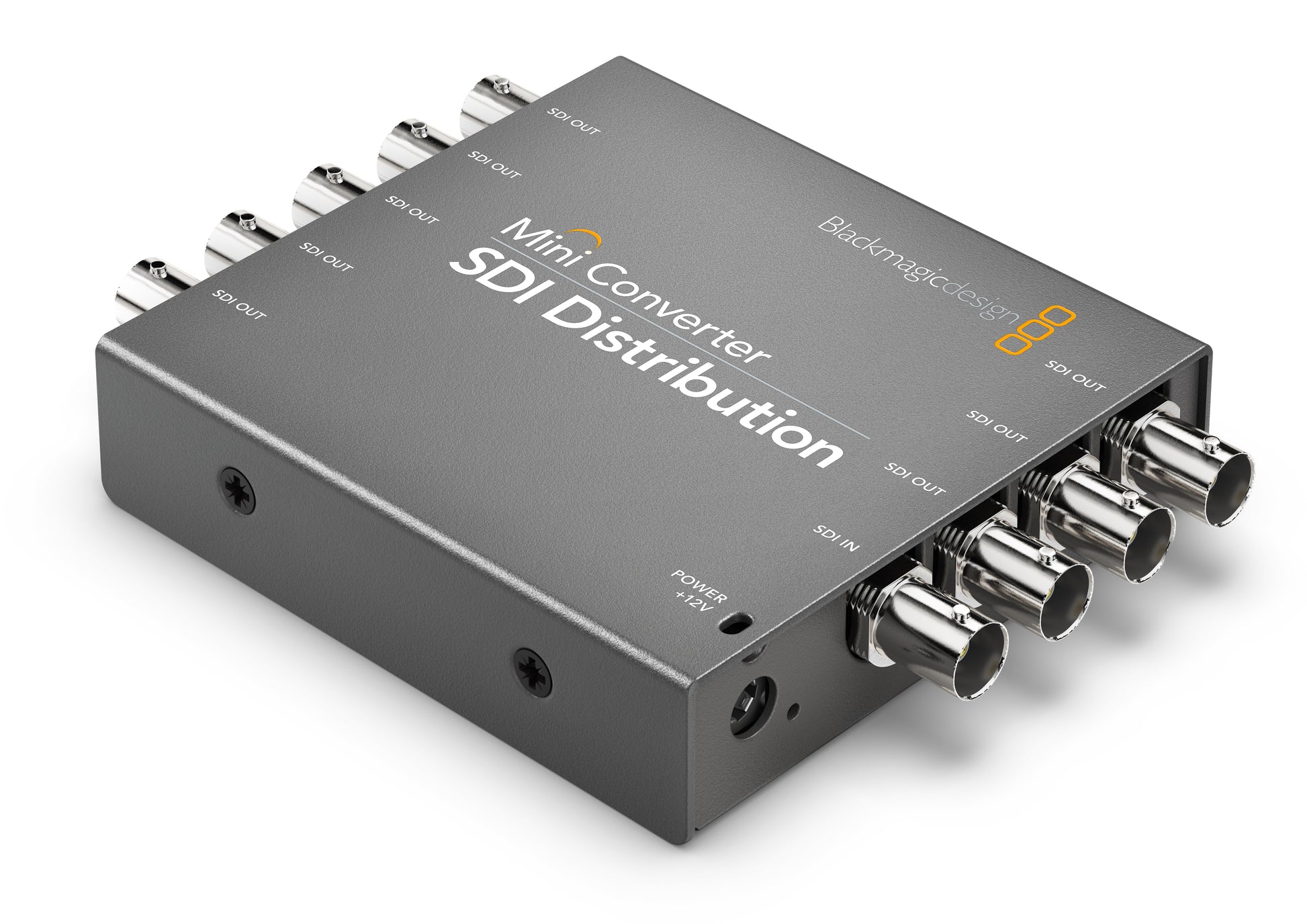

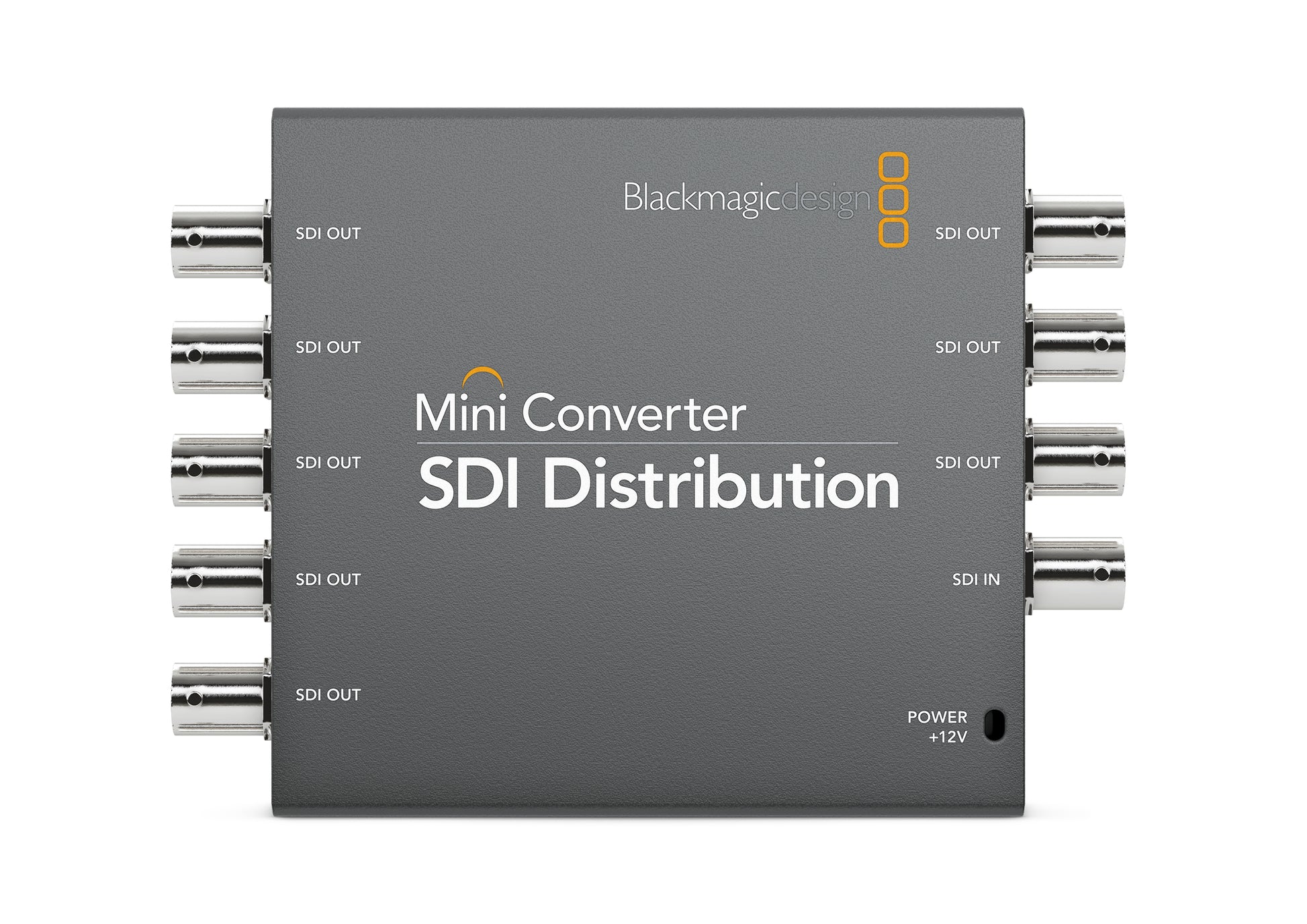

Blackmagic Design Mini Converter - SDI Distribution

Name: Blackmagic Design Mini Converter - SDI Distribution
Brand: Blackmagic Design
SKU: CONVMSDIDA
Price: 165.0 EUR
Availability: InStock

€165,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Now you can distribute a single SD or HD‑SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G‑SDI design with fully re‑clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you don’t need the cost of the Ultra HD model!

Official Technical Details

Connections

SDI Video Inputs: 1 x SDI Video Input. Switchable between SD, HD and 3G‑SDI.
SDI Video Outputs: 8 outputs automatically match the SDI video input.
Multi Rate Support: Auto detection of SD, HD or 3G‑SDI.
Reclocking: Yes

Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.
2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Rates: SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD or 3G‑SDI.
ASI Support: Yes

Operating Systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
Windows 10, 64-bit.

Power Requirements

Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption: 4.80 Watts
Operational Voltage Range: 12 ‑ 31V DC
