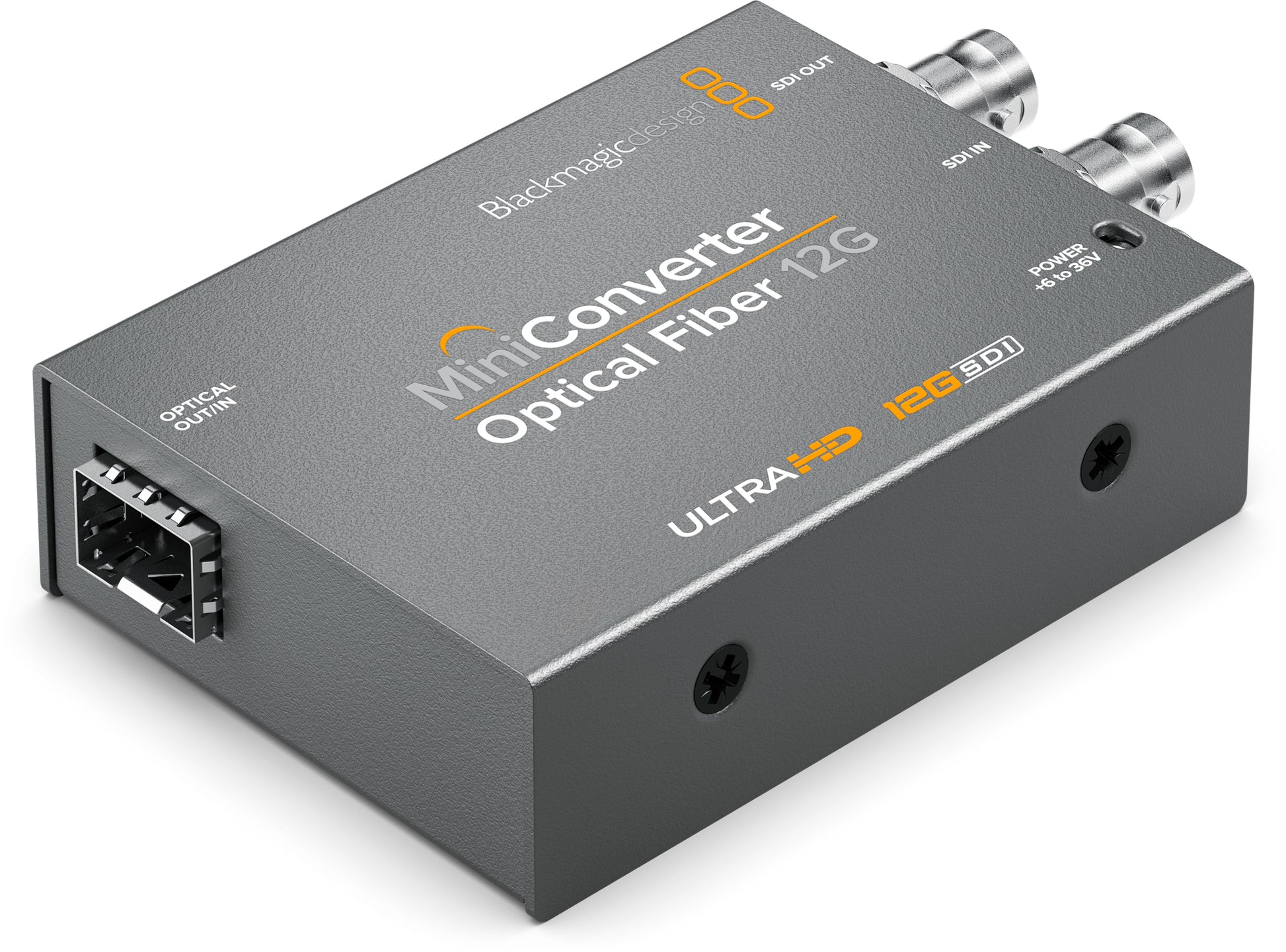

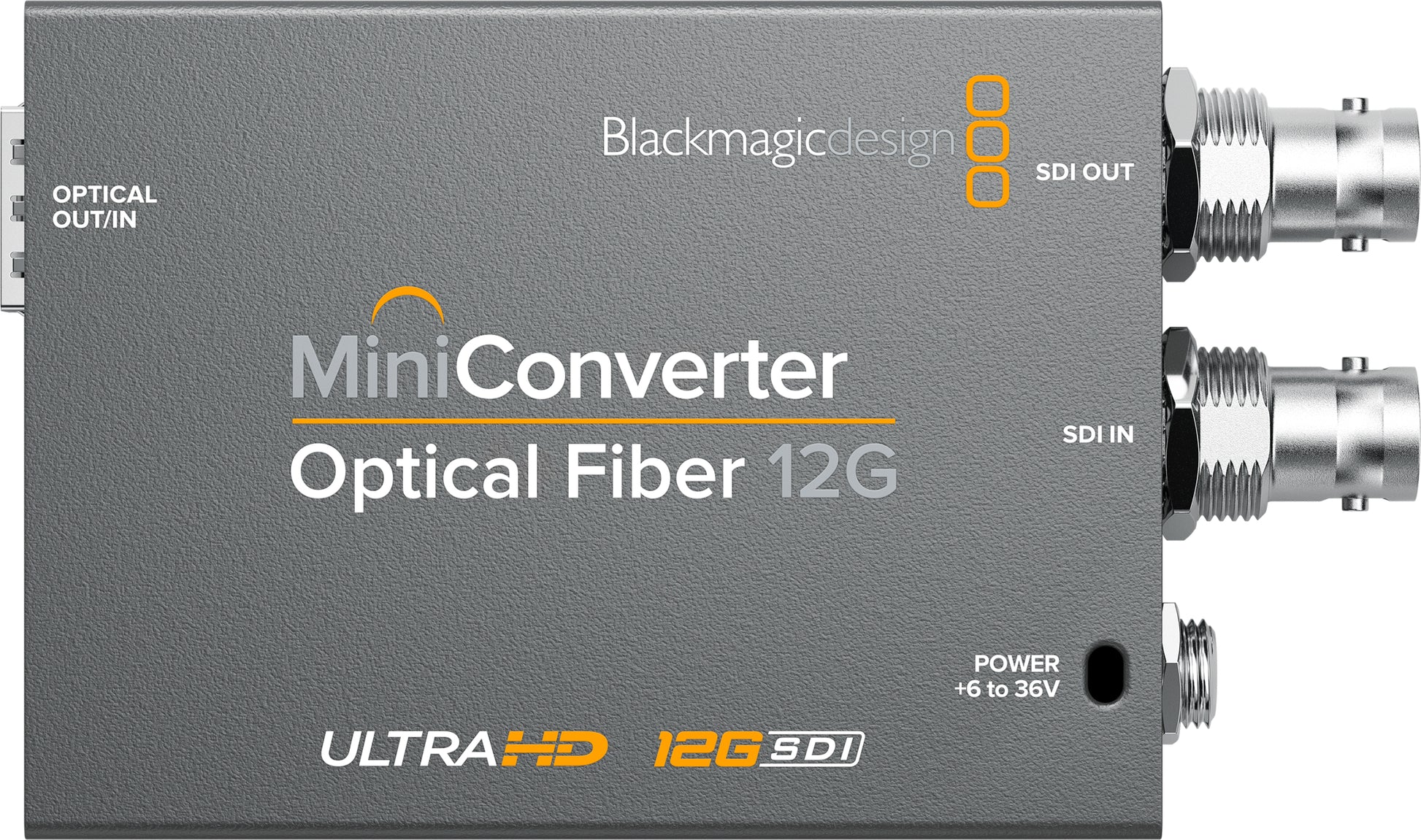

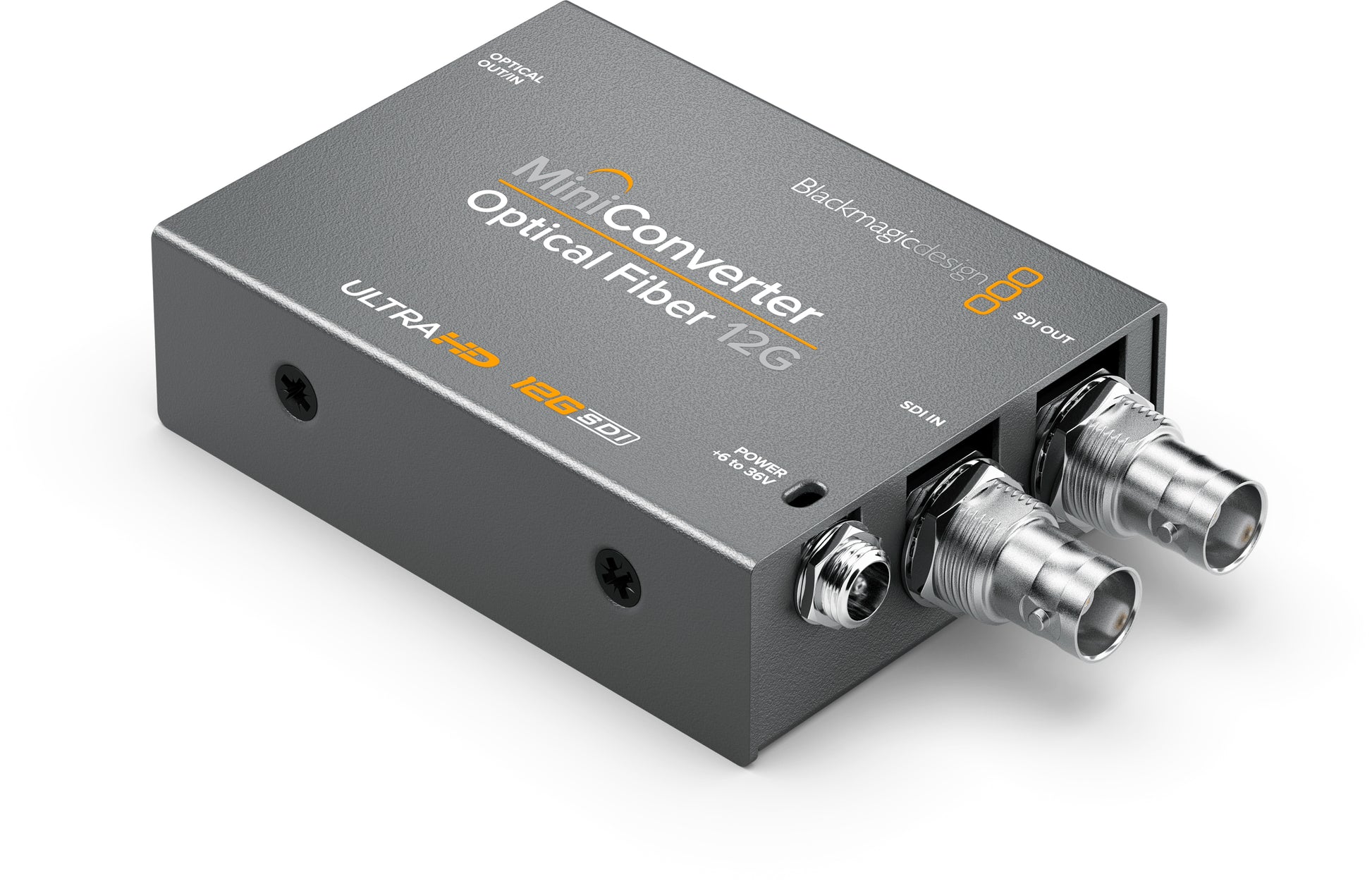

Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G‑SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
Official Technical Details
Connections
SDI Video Inputs: 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
SDI Video Outputs: Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
Optical Fiber Connection (optional): 1 x SMPTE optical fiber SFP socket. Optical fiber SFP module sold separately.
Optical Fiber Video Inputs: 1 x 10 bit SD/HD/12G-SDI switchable.
Optical Fiber Video Outputs: Automatically matches the SD, HD and 12G-SDI video input.
Optical Fiber Audio Inputs: 16 channel embedded.
Optical Fiber Audio Outputs: 16 channel embedded.
Multi Rate Support: Auto detection of SD, HD or 12G-SDI.
SDI Video Rates: SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision: 4:2:2 and 4:4:4
SDI Color Space: YUV and RGB
SDI Auto Switching: Automatically detects SD, HD or 12G-SDI.
ASI Support: Yes
Operating Systems
Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
No user controls.
Power Requirements
Power Supply: +12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption: 2 Watts
Operational Voltage Range: 6 - 36V DC
Environmental Specifications
Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included
Mini Converter Optical Fiber 12G
+12V universal power supply with international socket adapters
