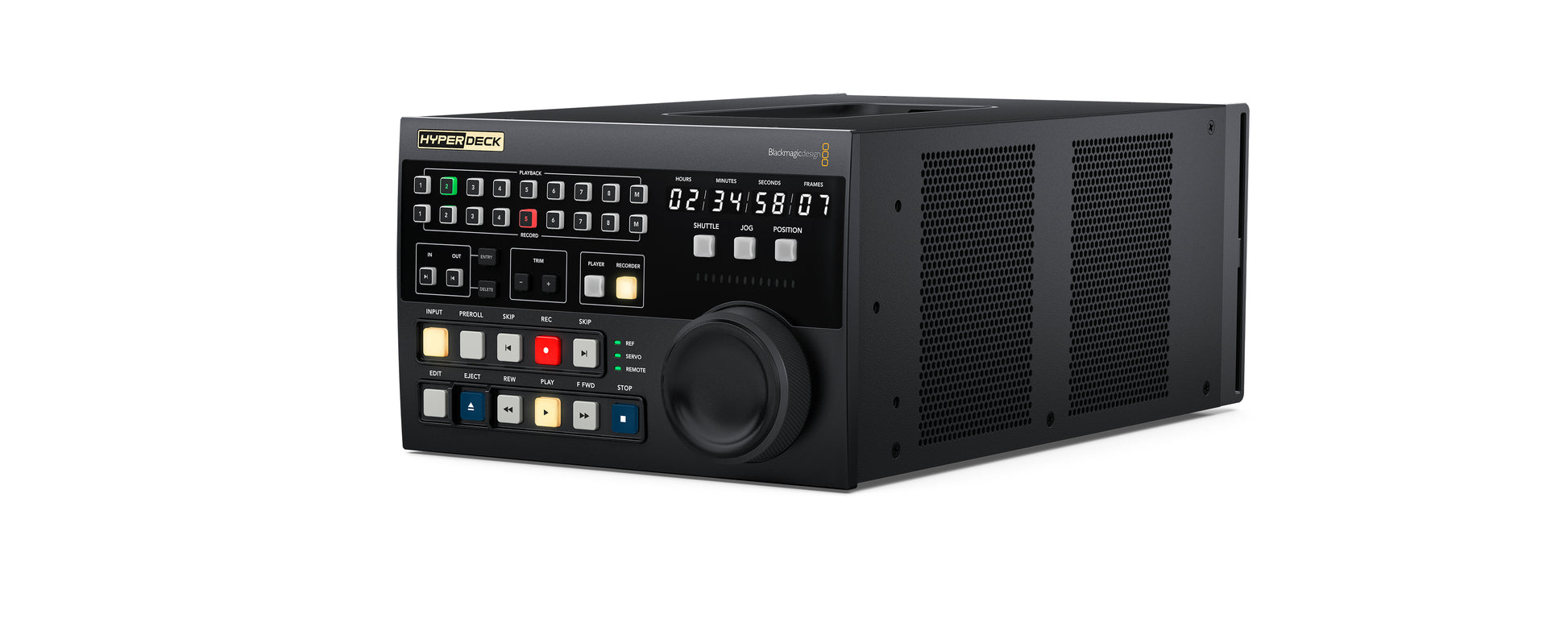

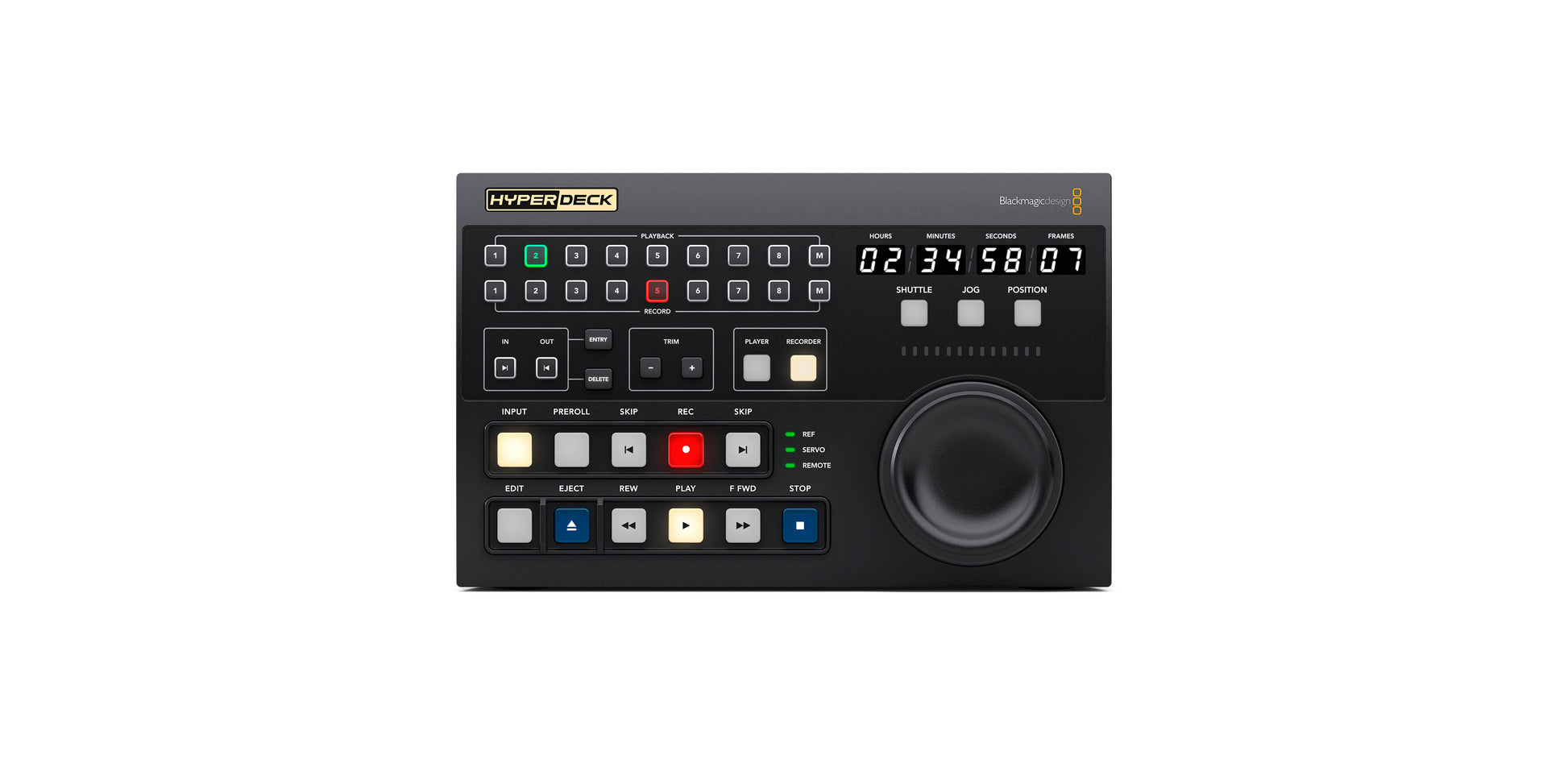

HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standard RS-422 control.
Official Technical Details

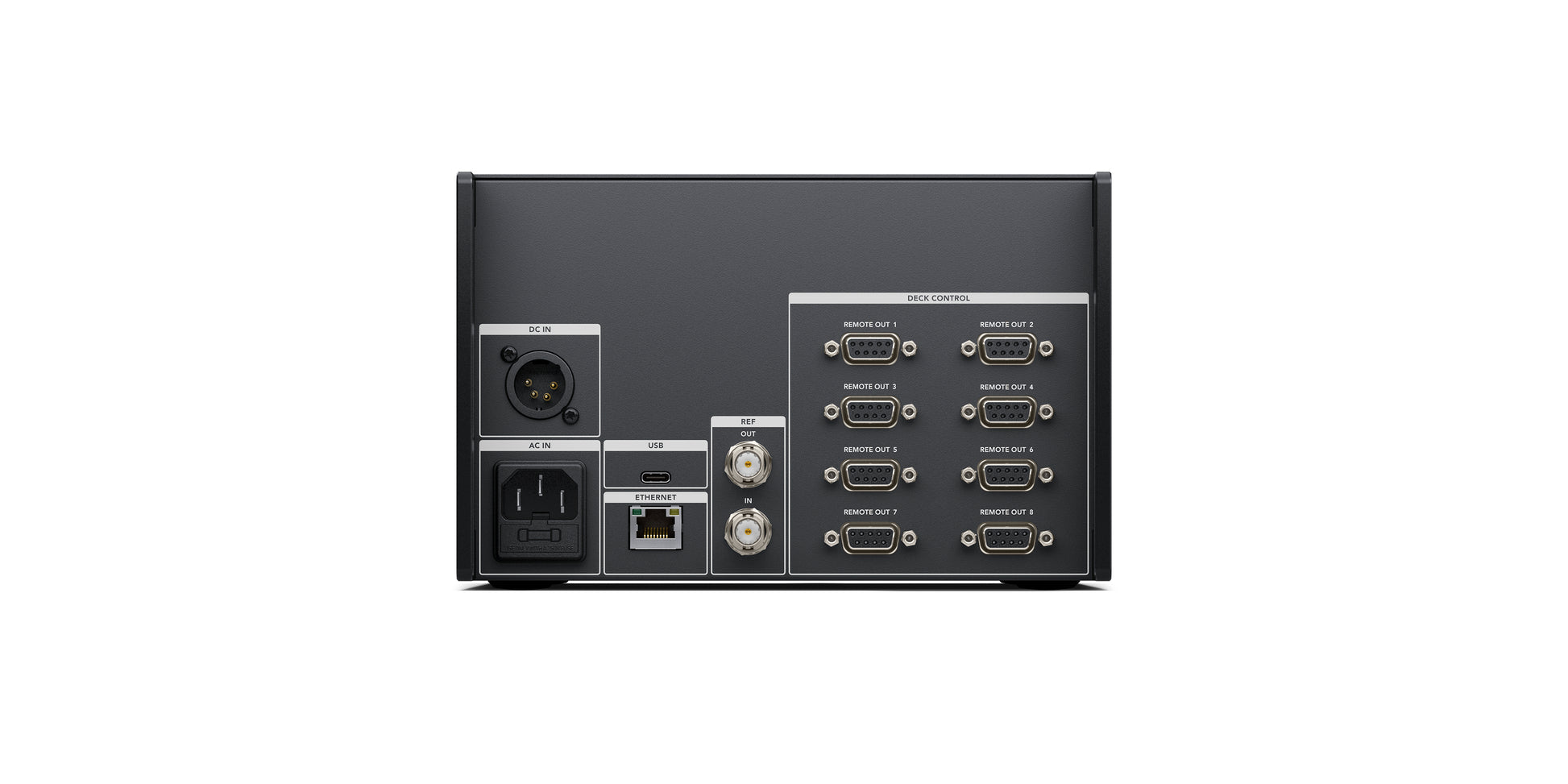

Connections
Deck Control Outputs: 8 x RS-422
Reference Input: Tri-Sync or Black Burst.
Reference Output: Follows reference input.
Ethernet: 1Gb/s
Computer Interface: 1 x USB-C for software updates.
Supported Protocols
Control Protocols: Sony
Software
Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
Windows 11
Displays
8 digit, 7 segment LED timecode display.
Power Requirements
Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
Power Usage: 20W max.
Physical Installation
3 rack units height, half rack width.
Environmental Specifications
Operating Temperature: 0° to 40° C (32°to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
