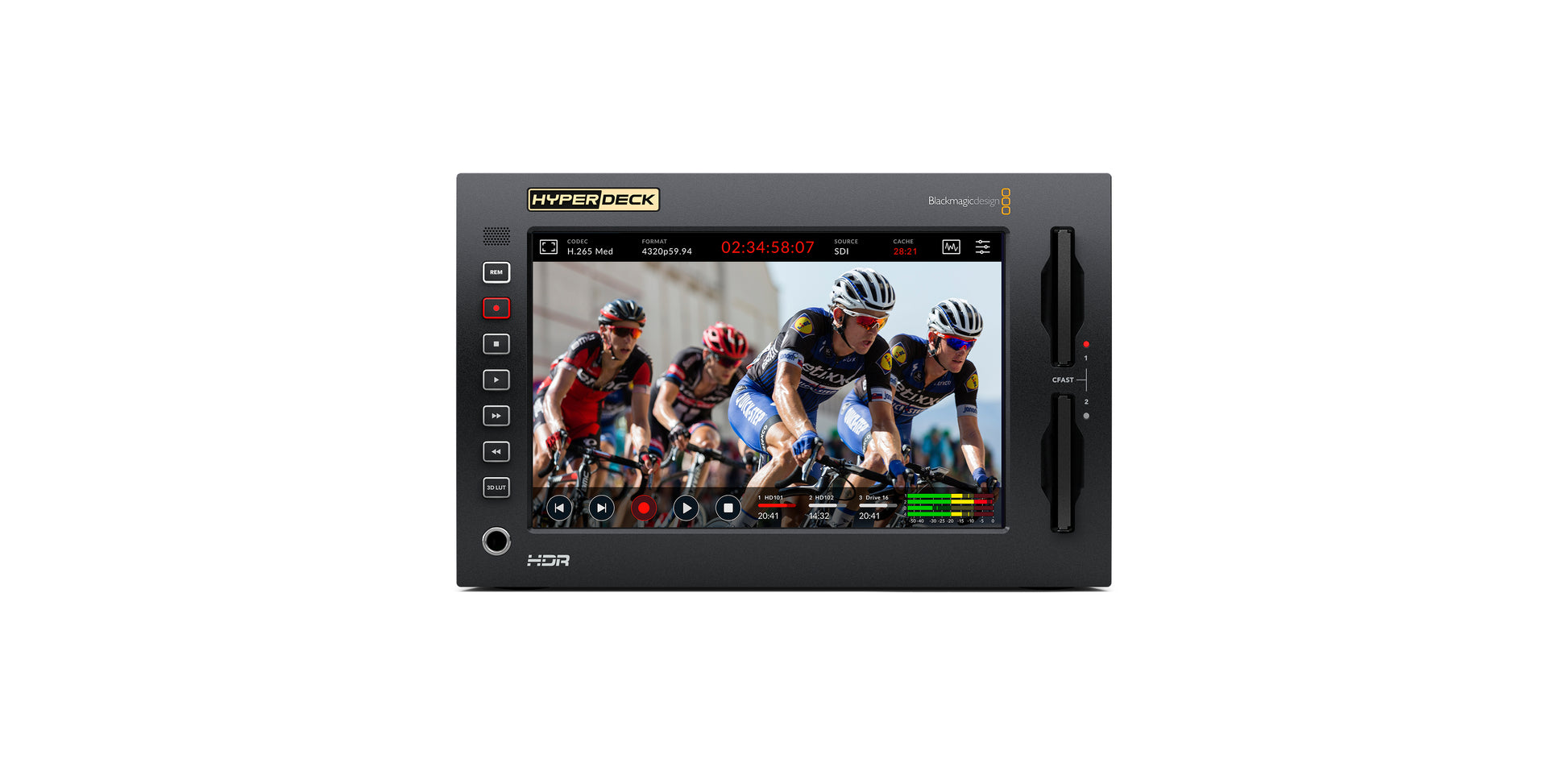

8K broadcast deck with the trusted reliability of HyperDeck combined with advanced H.265 recording, internal cache, 3D LUTs, native 8K and HDR support. Large touch screen to view your recording with dedicated buttons for play, stop and record, plus a mini timeline for scrolling through your recordings. You can even image swipe to jog! The LCD includes a heads up display of timecode, video standard, media status and audio meters and more!
Official Technical Details

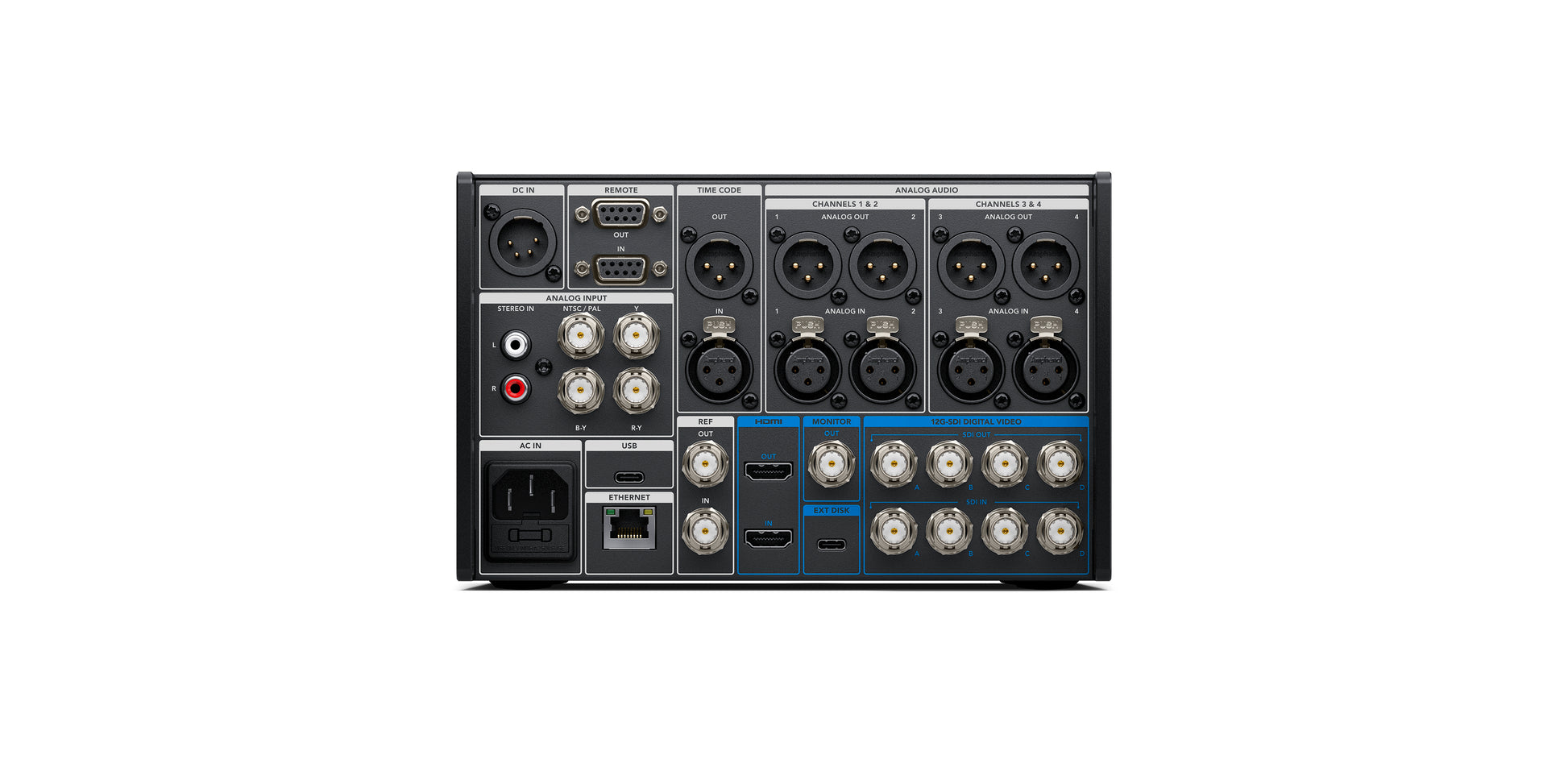

Connections
SDI Video Inputs: 4
SDI Video Outputs: 5 (12G-SDI A, B, C, D and 3G-SDI Monitor Out)
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0 Video Inputs: 1
HDMI 2.0 Video Outputs: 1
Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
Analog Video Outputs: None
Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Built in Speaker: Mono
Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode Connections: 1 x XLR in and 1 x XLR out.
Reference Input: Tri-Sync or Black Burst.
SDI Audio Inputs: 64 channels embedded audio.
SDI Audio Outputs: 64 channels embedded audio.
HDMI Audio Inputs: 8 channels embedded audio.
HDMI Audio Outputs: 8 channels embedded audio.
Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet: 10Gb/s
External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer Interface: 1 x USB-C for software updates.
8K DCI Video Standards: 4320p23.98 DCI, 4320p24 DCI, 4320p25 DCI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
SDI Metadata Support: HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
Video Sampling: 4:2:2 YUV
Color Precision: 10-bit
Color Space: REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
Multi Rate Support: Auto detection of SD, HD, 6G‑SDI, 12G-SDI, 2SI Quad Link 12G-SDI.
Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Cache or Internal Recording: Slot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s.
Media: 2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, Ultra HD and 8K.
Media Type: CFast card and external USB-C flash drives.
Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Recording
Source: Input options include SDI, 4 x SDI (simultaneously records 4 SDI inputs up to 2160p60 as separate files), HDMI, Component, Composite.
Supported Codecs
Video Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 4320p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit .
Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Computer Capture
None
Control
Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
