Musicians twin monitoring mixer & mic amp Musicians' Monitoring & Microphone Amplifier
The Symphony is designed to be mounted on a microphone stand and placed between 2 musicians.

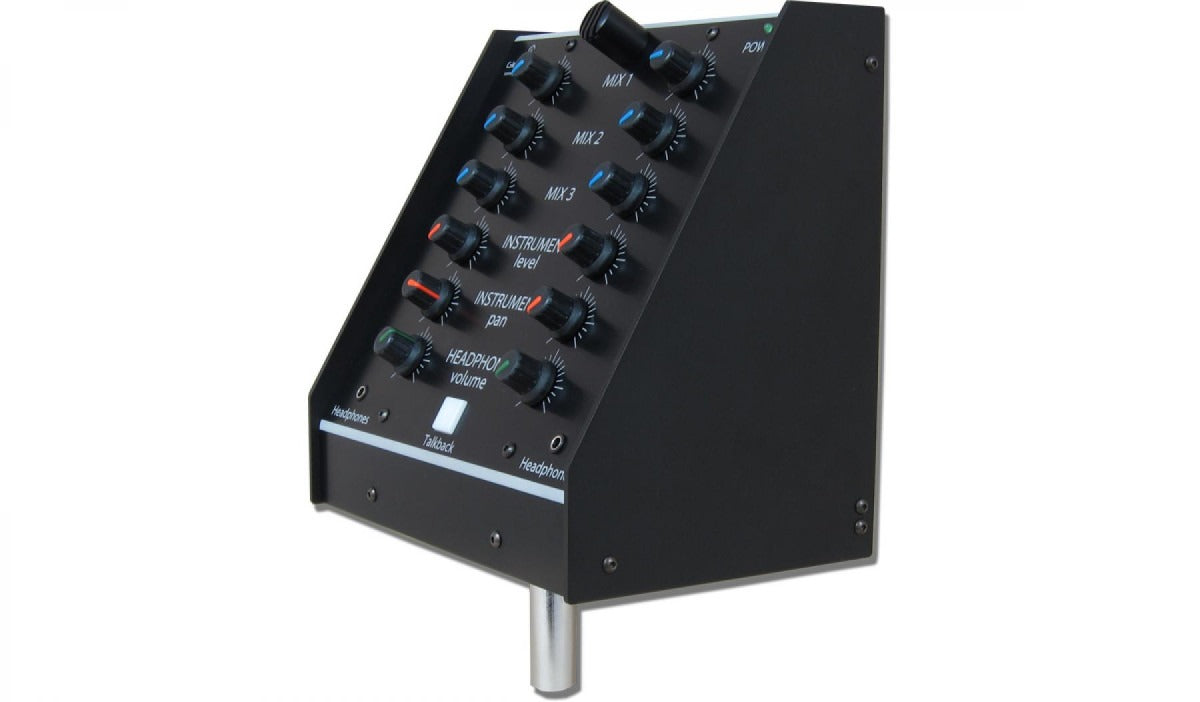

Each musician has a set of monitoring controls on an ergonomically shaped sloping front panel, with a headphone monitoring output jack conveniently placed at the bottom of the controls. The monitoring controls allow each musician to adjust the volume of 3 incoming stereo audio mixes from the Dante network, allowing them to monitor their preferred mix at a level that they are happy with. Each musician is also provided with an instrument headphone volume control, so they can adjust the level of their own instrument in their own ears. A panning control is also provided for the instrument in case they only wish to monitor their own instrument in one ear or ofF centre. Finally an overall volume control is provided for each musician to allow one single control to adjust the overall volume of the whole mix.
On the front panel mounted centrally between the 2 sets of monitoring controls and at the top of the panel is a talkback microphone, at the bottom of the panel and within easy reach of each musician is a push to talk (PTT) switch that turns the talkback microphone on. This talkback circuit is very useful for communications between the musicians and sound control room.
The bottom panel contains the 2 microphone inputs, 1 on each side of the unit allowing the microphone cable to enter the box in a tidy and organised way. The panel also contains simple engineering setup controls to adjust the microphone input gain, turn phantom power on/ off and also turn the internal compressor limiter circuit on/off. Connections to the Dante/ AES67 network are also located on the bottom panel, so like the microphone cables the network cables can easily be routed safely down the microphone stand.
There are 2 Dante network interfaces allowing a fully redundant network to be set up with primary and secondary Dante networks. Both of these interfaces are on Neutrik Ethercon connectors and both accept Power Over Ethernet (PoE).
AUDIO INPUT
No of Inputs: 2
Input Type: Neutrik 3 pin XLR
Input Impedance: Mic: 2k4
Equivalent Input Noise: 127dBu (22Hz-22KHz) RMS A weighted Terminated with 300 Ohms)
Frequency response: -2dBu @25Hz flat @50Hz till 22kHz (+/- 0.25dBu).
Distortion at +8dBu: 100Hz = 0.023%
1kHz =0.012%
10kHz = 0.014%
Line Up Gains: Dynamic Mic: 58dB
Mic + Phantom Power: 35dB
Gain Range: Mic: -30 to +15dB
Max Input Before Clipping (@line up with compressor turned on):
Dynamic Mic: +10dBU,
Mic+phantom: +18dBu
Line: +18dBu
HEADPHONES
Headphone Impedance: 16-1000 Ohm (auto output level to match impedance)
Headphone Noise: -76.6dB @ line up (residual noise)
Headphone Frequency Response: >-0.1dB 22Hz to 22kHz
Headphone THD + Noise (Ref +8dB): 0.008% @ 1kHz
Connection: 3.5mm stereo jack plugs
Headphone Volume Pot Range: +10dB to Off
Maximum Headphone Output: +16.8dB into 600 Ohms
DANTE/AES67 NETWORK INTERFACE
Physical: 2 x Neutrik Ethercons Cat6 RJ45s
Type: Fully redundant Primary & Secondary circuits
Sample Frequency: 48k
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
POWER
PoE: Can be powered by PoE on either Copper network interface
Consumption: 12 Watts
Front Panel Power On LED: Blue
External DC input: 2.5mm Barrel, Centre +Ve, 9- 15Volts, 1 Amp
PHYSICAL
Size: 185 x 122 x 182mm (WxDxH)
Weight: 1.84Kg
Mechanics: All aluminium construction, anodised and laser etched, powder coated sides
Shipping Carton: Rugged Export Quality cardboard carton 610 x 420 x 170mm (WxDxH)
INCLUDED ITEMS
Handbook: Available via download
RJ45 Network Cable: 1 off 2 Metre
