Glensound ADC 1 | Stereo Analogue To Digital Converter

Glensound ADC 1 | Stereo Analogue To Digital Converter

€696,15 be PVM
€696,15 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Stereo analogue to digital converter

Key Features

  • Modern high quality Analogue to Digital Audio converter
  • Analogue input on 2 x 3 pin XLR sockets
  • Analogue input also available on 2 x RCA phono sockets
  • Digital output available on 1 x AES on 3 pin XLR plug
  • Digital output also available on 1 x S/PDIF on a phono socket
  • Digital output also available on optical TOSLINK
  • Front panel headphone connection for monitoring
  • Output Sample frequencies up to 192kHz
  • Word clock & AES3 sync input
  • Front panel display for easy setup

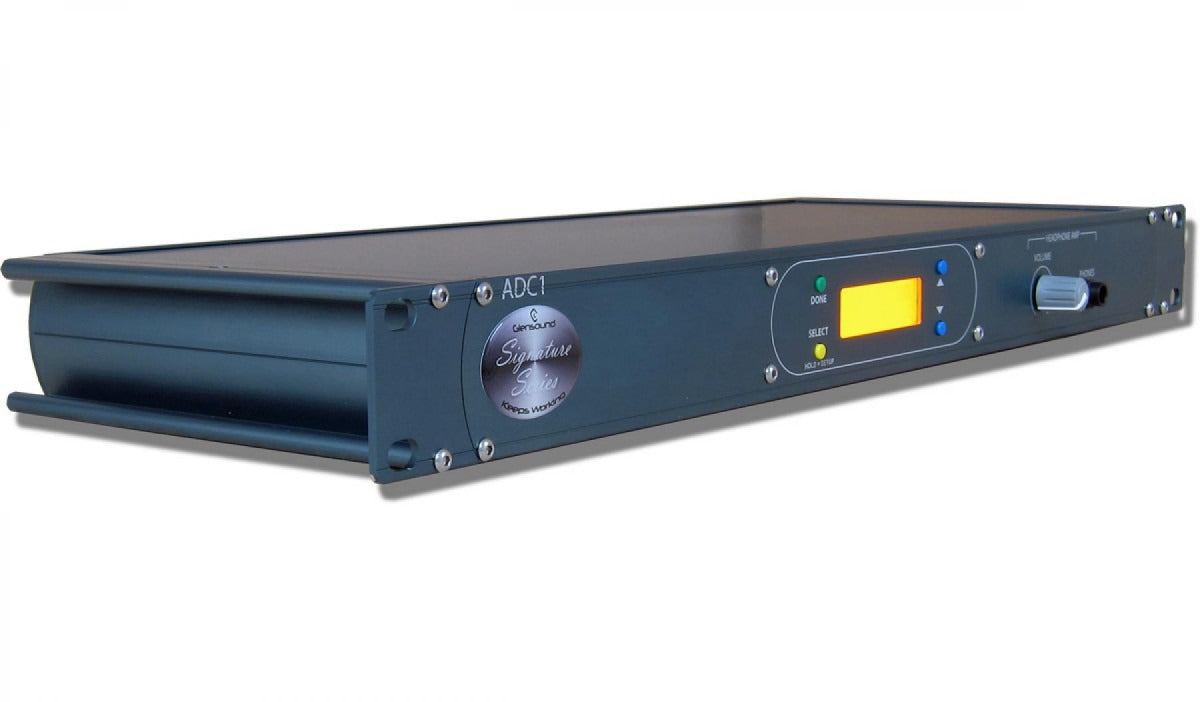

The Signature ADC 1 is a broadcast specification, stereo analogue to digital audio converter.

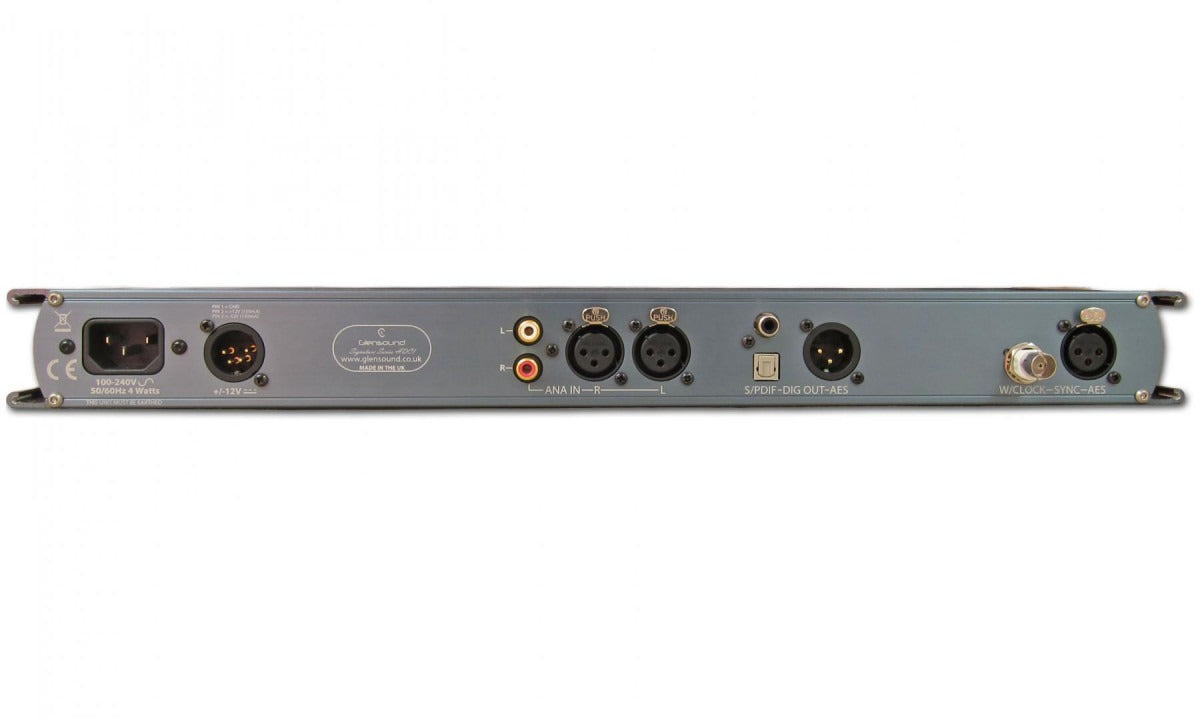

The analogue inputs are available separately on balanced XLR connections, or unbalanced RCA phono connections.

The digital outputs are available separately in three formats:
- 3 pin XLRs using AES
- RCA phono plug using S/PDIF
- optical connectors using TOSlink

The digital output is 24 bit and can be selected to be from 44.1kHz to 192 kHz.
The DARS (Digital Audio Reference Signal) can also be input on a separate 3 pin XLR input, or via the word clock input on a BNC connection.

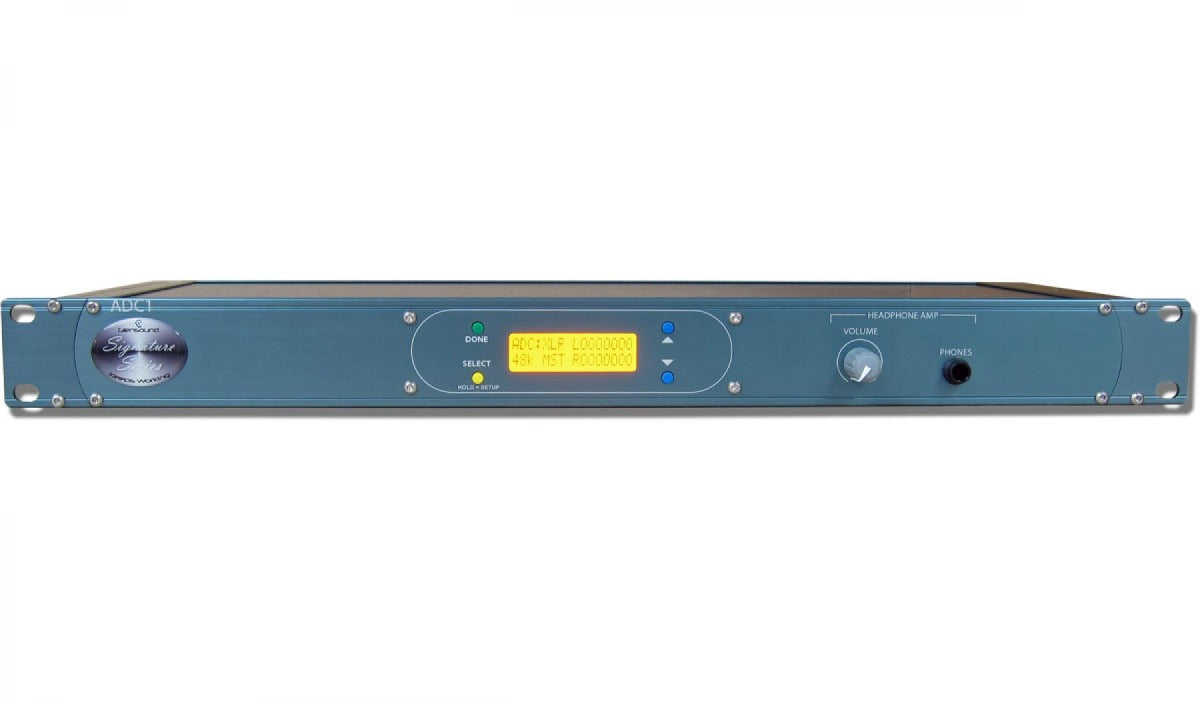

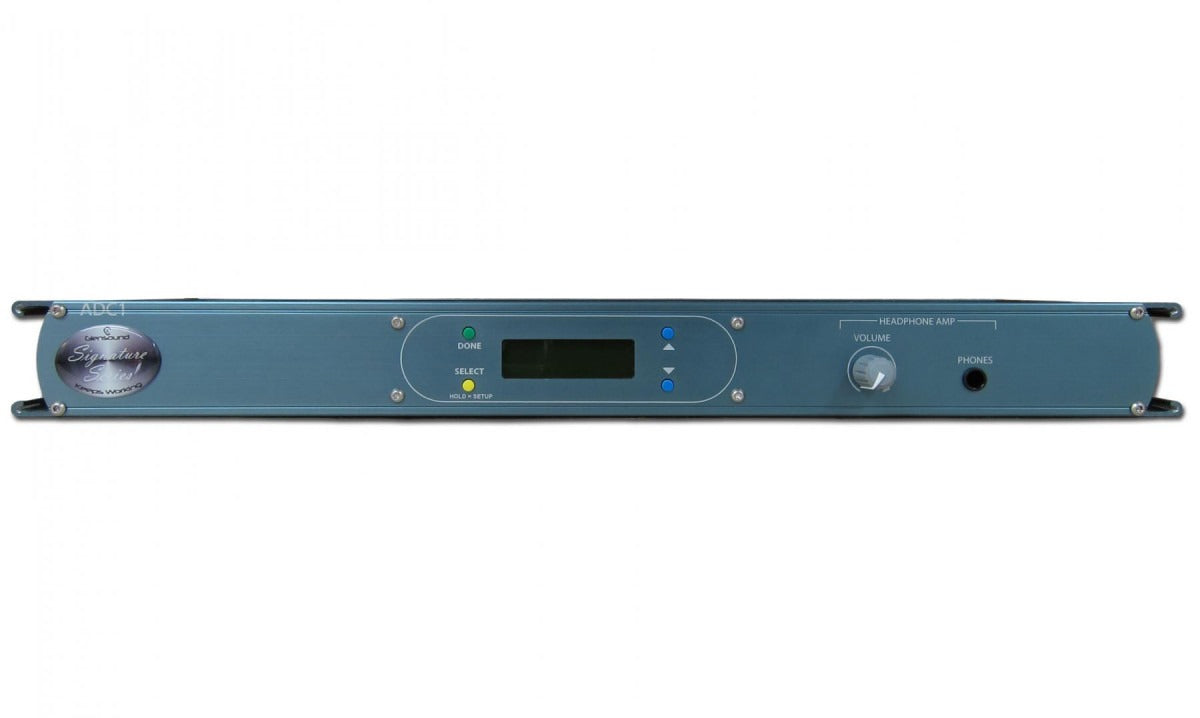

The front panel features a 6.35mm stereo jack socket for headphones monitoring, with a full size pot to adjust the volume level. A front panel screen shows current operation mode and allows configuration of all unit parameters.

Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.

May be delivered with a black finish

Technical Information

AUDIO

Digital Outputs
Internal Clock Sample Frequency Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Resolution: 24 Bit
0dBFs equivalents: +18dBu, +12dBu, +6dBu, 0dBu
Noise: -108dBFs
Frequency Response: >-0.5dB 15Hz to 20kHz
THD + Noise (ref +8dBu):

  • 100Hz = 0.008%
  • 1kHz = 0.006%
  • 10kHz = 0.009%

Physical Outputs: AES/EBU Balanced XLR
                          S/PDIF RCA Phono
                          TOSlink optical

Digital Sync
Input 1: Word Clock TTL on BNC
Input 2: DARS (AES/EBU) Neutrik XLR 3 pin sockets

Analogue Inputs
Input impedance: Balanced 20k Ohms
                          Unbalanced 10k Ohms
Balanced Input Connectors: Neutrik XLR 3 pin sockets
Unbalanced Input Connectors: Gold Plated RCA Phono sockets

Headphone Output
Output Gain Range: +10dB to Off
Headphone Impedance: 100 - 1000 Ohms
Maximum Output Level: +18dB into 600 Ohms

POWER

Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
Internal Mains Fuse:  20mm 1A Anti Surge
DC Input:  4 Pin Neutrik XLR plug +/- 12V
DC Consumption:  +12V 175mA, -12V 75mA
AC Consumption: 3.5 Watts

PHYSICAL

Size:  445 x 163 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight:  1.35kg
Shipping Weight: 2.8kg
Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics:  All aluminium construction, anodised and laser etched

INCLUDED ITEMS

Mains Lead: 2 metre long (UK & Europe only)
Rack Bolts: 4 off Pozi head M6
Feet: 4 off rubber stick on feet
Handbook: Full A4 handbook available to download and linked by QR code on device
