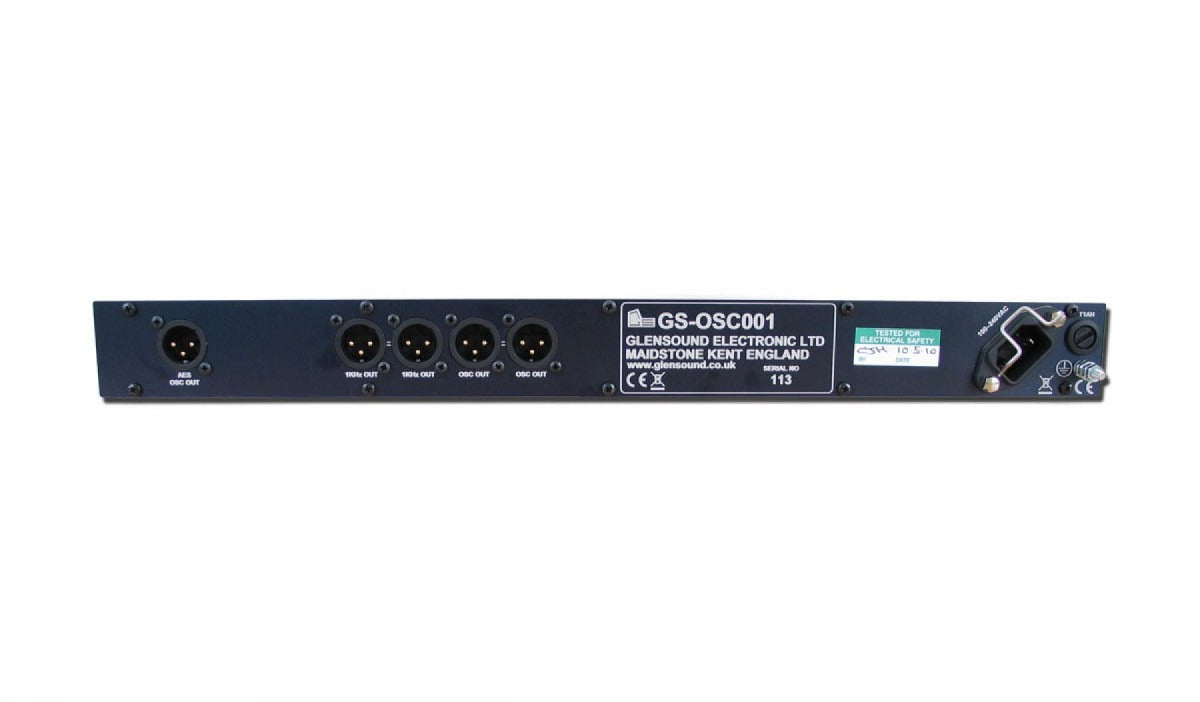

A variable frequency tone generator for ident and general line up use. There are 2 fixed 1kHz analogue reference outputs, and 2 analogue outputs of the selected frequency. There is also a digital AES output of the selected frequency.
Oscillator Frequencies: 40, 100, 1000, 2000, 6000, 10000, 12000, 15000 Hz
Oscillator Frequency Deviation: < +/- 0.05Hz
Oscillator Frequency Distortion: <0.01% @ all frequencies
Audio Output Levels (Oscillator Out): OFF, -50dBu, -18dBu to +18dBu in 1dB steps
Audio Output Fine Level Adjustment: +/- 0.4dB (x 4 for the 4 outputs)
AES Output Reference: 0dBFs = +18dBu
AES Output Frequency: 48k
AES Output Resolution: 24bit
Analogue Output Impedance: 50 Ohms
Digital Output Impedance: 110 Ohms
AC Input: 100-240VAC
AC Consumption: 3.5 Watts
Size: 1RU 19", 208mm deep (excluding connectors)
Weight: 1.62Kg
Recommended Working Temperature: -5 to +40 Degrees Celcius
