AUDIO - General
Input Impedance >30K Ohms
Input Type: Electronically balanced (can be wired unbalanced)

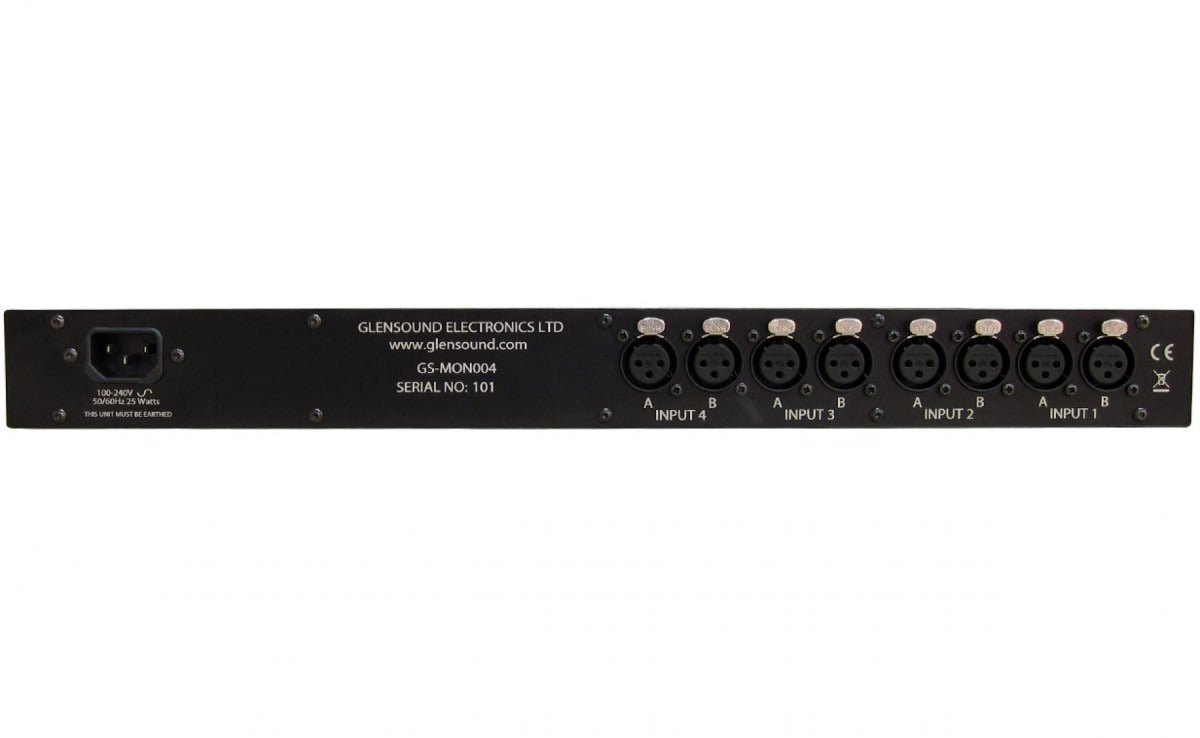

Input Connector: Female 3 pin XLR (Neutrik)
Maximum Input Before Clipping: +27dB
Volume Control Range: +10dB/ Off
Present Indicator Threshold: -18dB
Present Indicator Hold Time: 3 Seconds
Peak LED Threshold: +10dB
A + B Mixers: 0dB + odB = +6dB
AUDIO - Loudspeaker
Maximum Power RMS: 4 Watts (per loudspeaker)
Peak Power (Per loudspeaker): 5 Watts (limited by compressor)
Amplifier Type: Class D
Noise @ Lineup (measured at input to Loudspeaker): >-61.5dB
THD + N (measured at input to Loudspeaker): > 0.18% @ 1kHz ref +8dB

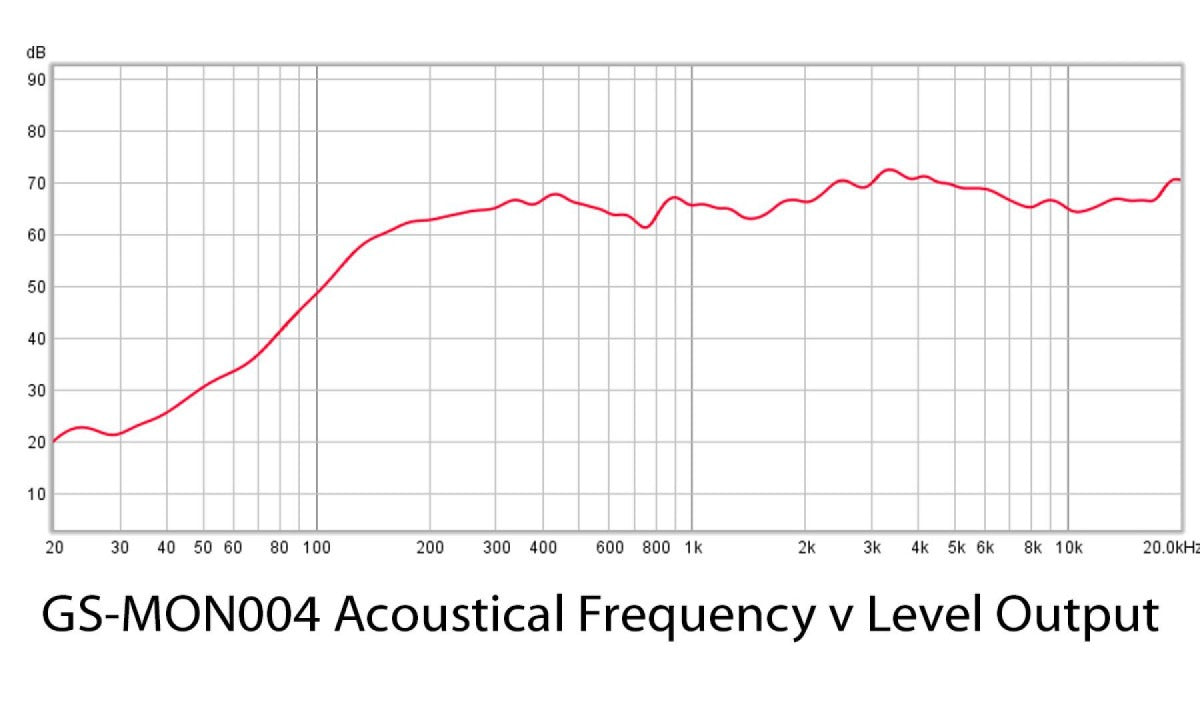

Acoustical Frequency Response: 120Hz to 22kHz +/-9dB
Maximum Acoustic Level (1 Loudspeaker): 88dB SPL @ 0.6 Meters (2 feet)
Maximum Acoustic Level (4 Loudspeakers driven coherently): 98dB SPL ' 0.6 Meters (2 feet)
Loudspeaker Magnet Type: Neodymium
Magnetic Induction: 1.15T (per loudspeaker)
AUDIO - HEADPHONES
Connector: 6.35mm (1/4") TRS Jack Socket
Maximum Output Before Clipping: +18dB into 600 Ohms
Noise @ Lineup (22Hz to 22kHz RMS): >-88dB
THD + N: > 0.0025% @ 1kHz ref + 8dB
Headphone Impedance: 32 - 1000 Ohms
POWER
Input Voltage: 100 - 240 VAC (+/- 10%)
Frequency: 50/ 60 Hz
Input Connector: Filtered IEC (Internally fused)
Consumption: 25 Watts (Maximum)
PHYSICAL

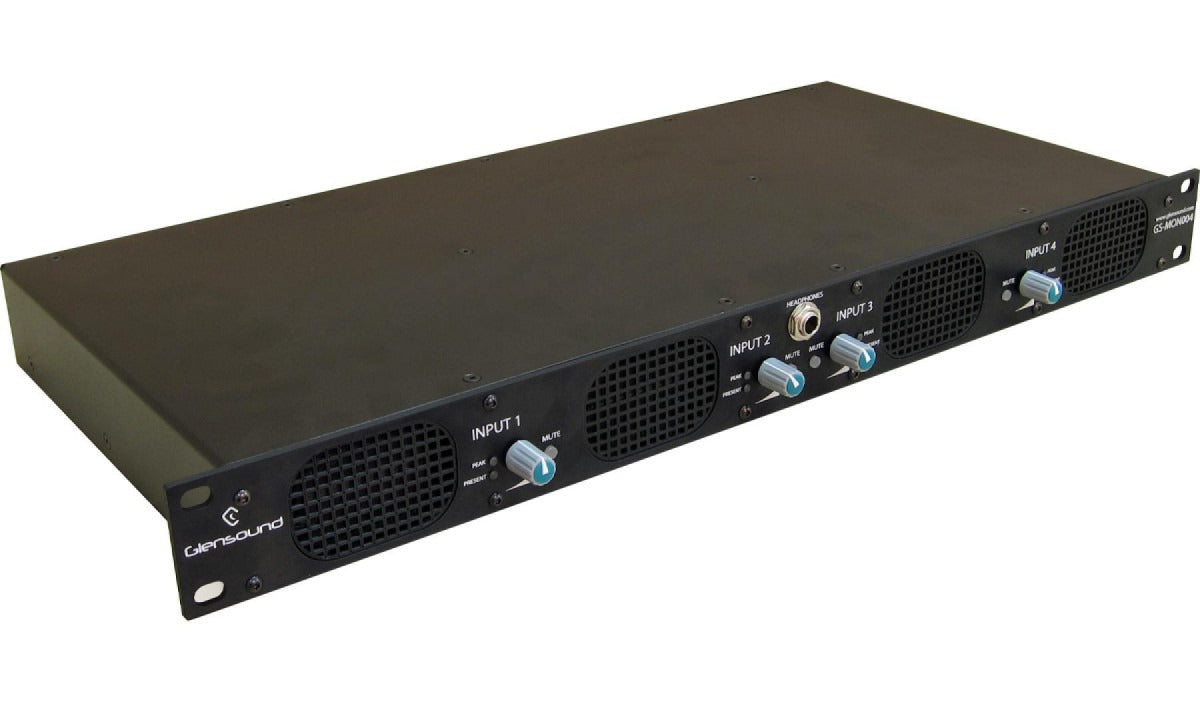

Mechanics: All aluminium construction with laser etched panels and light textured black powder coated lid/ base
Size: 19" 1RU 221mm deep
Weight: 1.9Kg (4.2lbs)
Shipping Weight: 3.5Kg (7.8lbs)
Shipping Size: 62 x 41 x 12 cms
Shipping Carton: Rugged export quality cardboard
INCLUDED ITEMS
Handbook: Physical A4 (download also available)
Mains Cable: 2 metre IEC (UK & Europe only)
