Analogue input only version of DARK1616 16 Analogue Inputs To DANTE/ AES67 networks

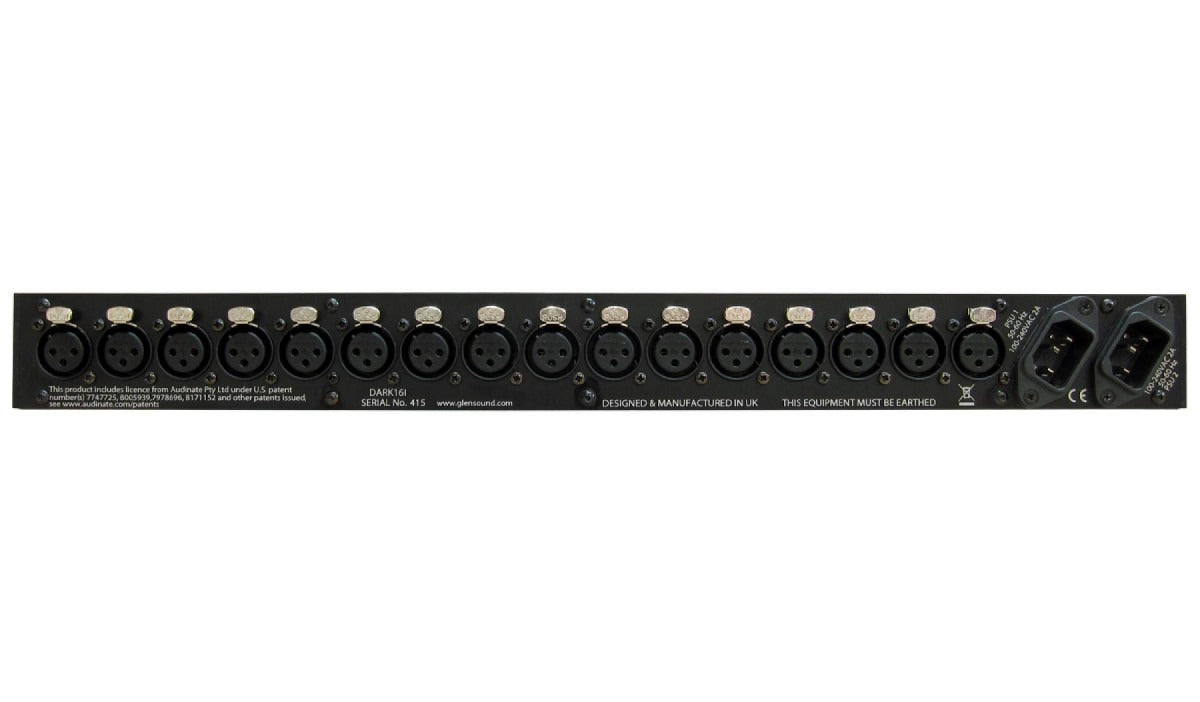

The DARK16I is a 19” 1RU subrack that provides 16 high quality analogue audio inputs to a Dante/ AES67 AoIP network. These audio inputs are balanced line level signals and for ease of installation are presented on rear panel XLRs. Being designed originally for broadcast the DARK16I has inbuilt resilience for both its network connections and power supplies. It is also suitable for Theatre, Installation and Pro Audio use. The DARK16I is a versatile box for converting analogue audio inputs to an AoIP system utilising the Dante and AES67 audio over IP (AoIP) protocols. In total there are 16 audio input channels, all being simultaneously converted to the AoIP network via high quality low noise analogue to digital converters. For ease of cabling audio inputs are balanced circuits on Neutrik XLRs. Being designed for resilient broadcast applications, the DARK16I features both redundant power supplies and redundant Dante network links with link status GPOs (general purpose outputs (solid state relays)). Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. The Dante system itself provides a completely transparent redundant link system which means that if the DARK16I lost its primary link circuit the secondary link would automatically take over with no loss of audio. The primary and secondary network interfaces are routed internally via a network switch. It is possible to set this switch to work as a traditional network switch instead of the default redundant mode. This means that there would be just one link to the Dante/ AES67 network and the other connections of the switch could have other Dante or network devices connected to them. As with all Dante devices, once set up, DARK16I units can be directly connected with each other with no external network hardware. The unit is part of our very popular DARK range of AoIP audio interfaces that have a proven reliable provenance, meaning that it is a safe fit and forget choice for your engineer. Your accountant will also be happy as it has a very long expected life span and a very competitive initial. Also Available in AES67/Ravenna Version
Specification for Both Dante and Ravenna Versions. Scroll Down for Details.
ANALOGUE AUDIO
Frequency Response: +/-0.25dB 20Hz to 22kHz
Full Scale:
0dBFs = +18dBu (Factory default)
0dBFs = +20dBu
0dBFs = +24dBu
Full scale levels set by internal links. Links can be changed by end user or can be factory preset to order.
Input Impedance:
>=20k Ohms (Factory default)
600 Ohms - set by internal link
Distortion:
0.0013% @ 100Hz
0.0022%@1kHz
0.00094% @ 10kHz
Reference to +8dBu output
Noise: -93dB@line up A weighted RMS
Interchannel Cross Talk: >101dB @ lineup with 1kHz Tone
Input Type: Electronically balanced (can be wired unbalanced)
POWER
Connections: 2 x mains inputs filtered IEC, 100 to 240 VAC 47-63Hz
AC Consumption: 18 Watts@230VAC
Internal Mains Fuse: 20mm 1A anti surge.
PHYSICAL
Audio Connectors: Neutrik 3 pin XLR sockets
Alarm Connector: 9 way D socket
Alarm Type: solid state relay
Size: 1RU 19” 300mm deep excluding connectors
Nett Weight: 2.8kg
Shipping Carton: Rugged export quality cardboard 610x420x130mm LxDxH
Shipping Weight: 4.3kg.
ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
INCLUDED ITEMS
Handbook: Available via download
RJ45 Network Cable: 1 off 2 metre CAT5 RJ45 plug/ plug cable
Mains Cable: 1 off 2 metre IEC socket cable (UK & EU only)
NETWORK OPTIONS:
DANTE/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Aneman
