32/32 Fixed Format Mixer for Intercoms & General Audio Mixing Mixing, Mix Minus and Priority Override For Beatrice Intercom

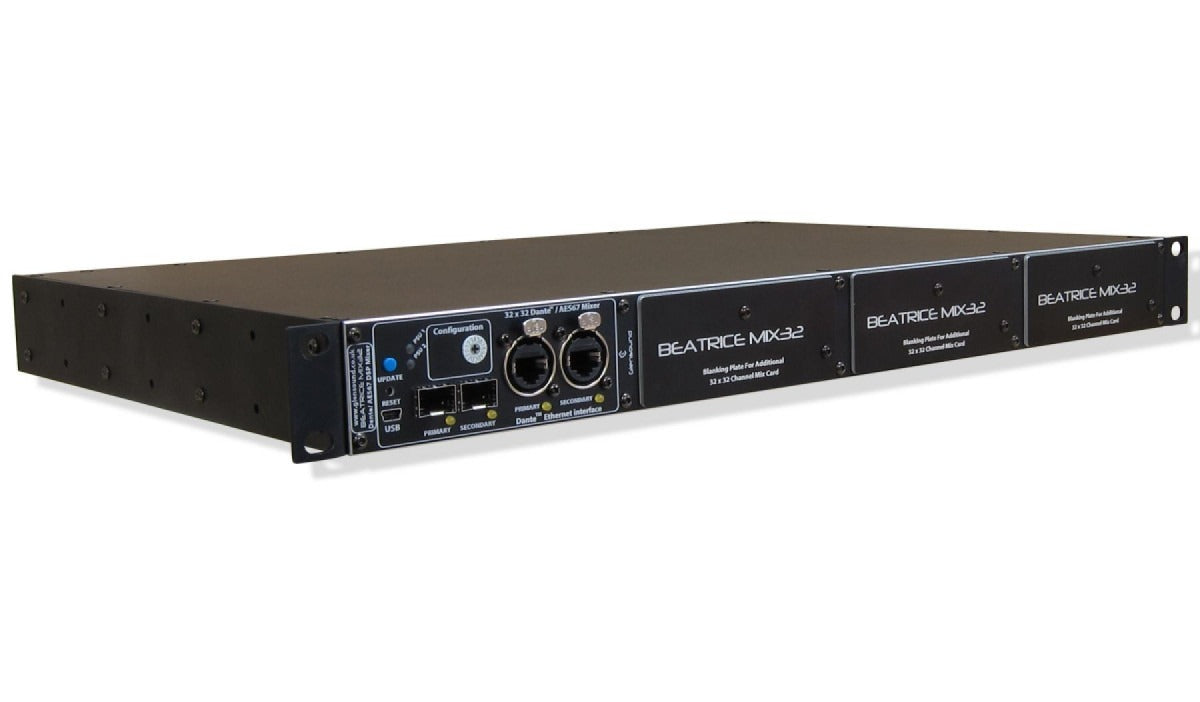

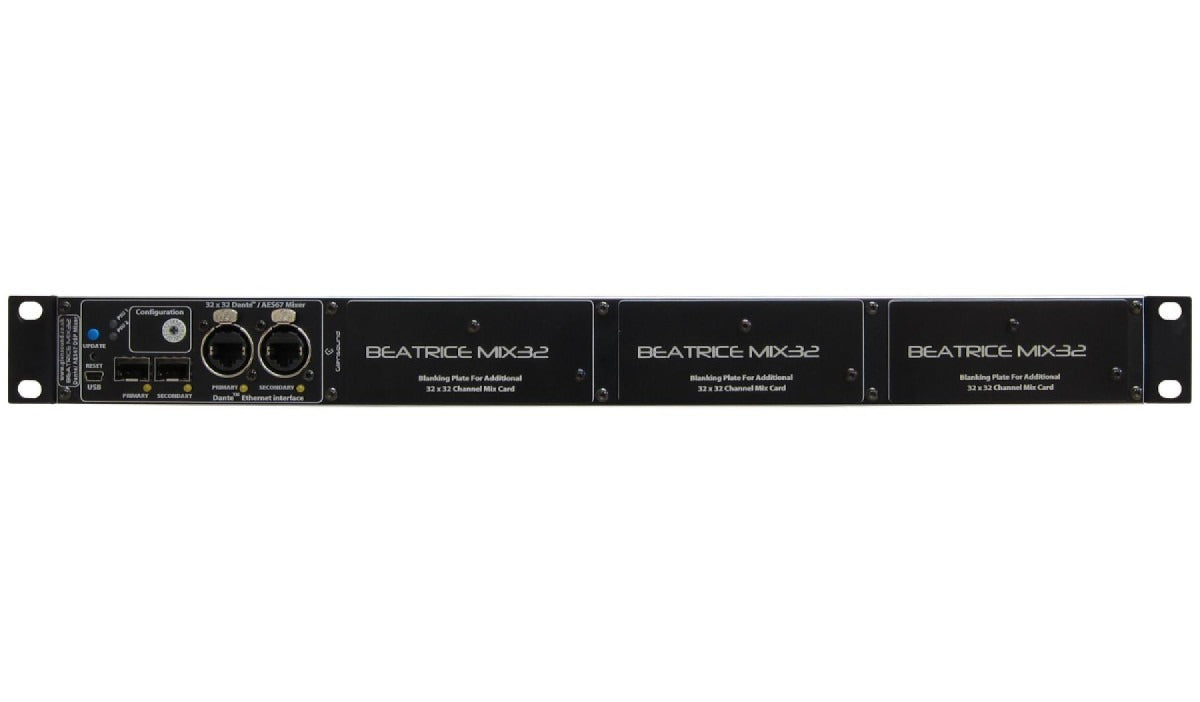

The Glensound BEATRICE MIX32 is a high density audio mixer for producing fixed ratio audio mixes from/ to Dante and AES67 audio networks. It can be fitted with a maximum of 4 independent mixer cards, each with their own redundant network interface. Each of these mixer cards provides 32 audio inputs and 32 audio outputs from the network, with the 32 outputs being mixes derived from different sets of input channels.
A number of different mix-minus mixes can be set on each of 32 x 32 mixer cards. These make it very practical to use as a central intercom mixing hub.
Audio limiter/ compressor circuits are also provided for each output.
The fixed ratio mixes in the Beatrice MIX32 were originally designed to allow network audio intercom systems to generate multiple listening circuits, however the high quality, low noise, digital mixers can be also be used for many other applications.
A priority mode can be used, and when a signal is present on a priority input, all other inputs are dimmed.

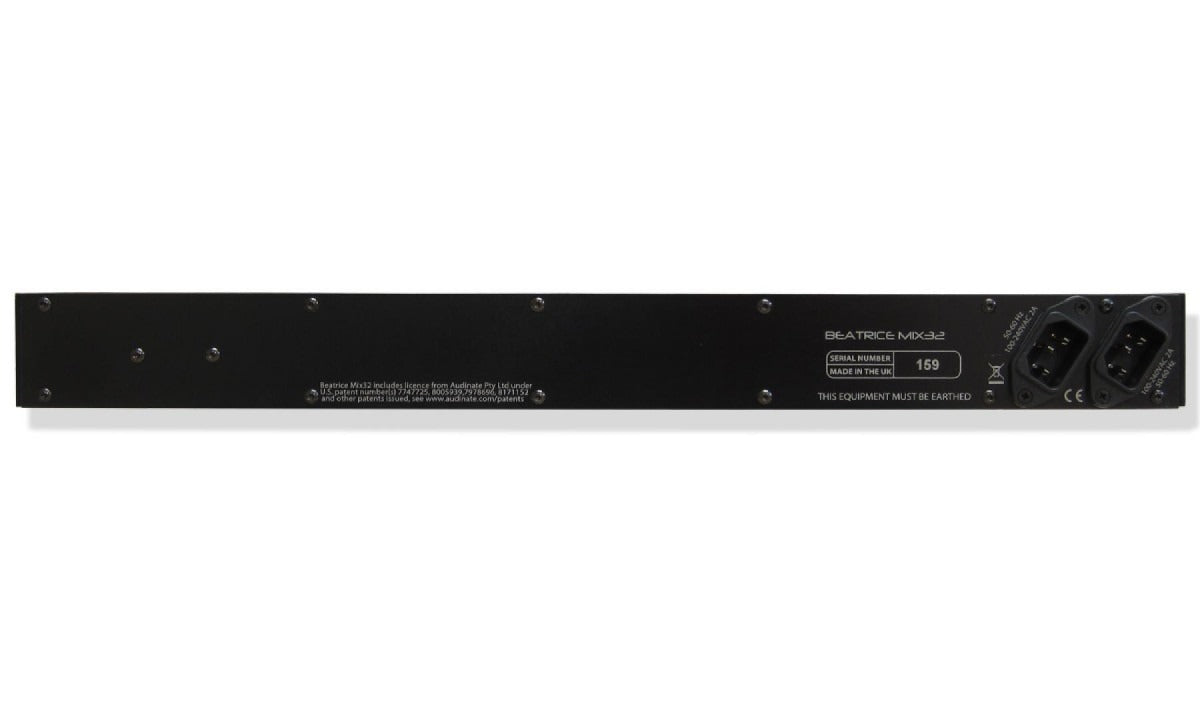

Being designed for 24/7 broadcast operation, the Beatrice MIX32 features both redundant power supplies and also redundant network interfaces.
Dante network audio is a common protocol for distributing high quality linear audio over standard IP networks and it is widely used by many audio equipment manufacturers. The Glensound Beatrice Mix32 Dante audio interface will be compatible with any other manufacturers' Dante audio interface. Further details of Dante network audio can be found at www.audinate.com
Also Available in AES67/Ravenna version
Specifications for both Dante and Ravenna. Scroll down for details
NETWORK:
Physical Interface: 2 x Copper Neutrik Ethercon
2 x SFP (Fibre GBIC) Slots (SFP modules not included)
Audio Sample Frequency: Up to 48k
Transfer Rate: 1000 Mbps
AUDIO:
Audio inputs & outputs are entirely digital fed via the digital network. Internally audio is processed in a DSP with 32 bit resolution. Performance is expected to be completely flat and noise free. We cannot measure it as its performance exceeds the range of our test equipment.
PHYSICAL:
Size: 19” 1RU, 30cm deep
Weight: 2.8Kg (1 mix card fitted)
Shipping Carton: Rugged export quality cardboard
Shipping Size: 62 x 42 x 12 cms
Shipping Weight: 4.5Kg
POWER:
Quantity of Inputs: 2
Physical Inputs: IEC plug
Type of Input: Fully redundant
Voltage Range: 100 – 240 VAC +/-10%
Frequency: 50 – 60 Hz
Consumption: 14 Watts (1 x mix card fitted) then add 2 Watts for each extra mix card
ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
INCLUDED ITEMS:
RJ45 Cable: 2 of per mix card fitted
Mains Cable: 2 of (UK & Europe only)
NETWORK OPTIONS:
DANTE/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Anem
