Glensound AoIP-4I MkII | 4 Input Mic Amp for Dante/ AES67

Name: Glensound AoIP-4I MkII | 4 Input Mic Amp for Dante/ AES67
Brand: Glensound
SKU: AoIP-4I MkII
Price: 514.8 EUR
Availability: InStock

€514,80 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

4 x analogue inputs via a Dante interface on CAT5 4 Input Mic Amp for Dante/ AES67

Key Features

Four Audio Inputs The DARK4MAI MKII has 4 audio inputs. Each input is on its own Neutrik 3 pin XLR socket and each input can be set to accept line or mic level inputs. Clever internal circuitry even changes the input impedance to correctly match the input type. Low Noise Mic Amps The very best low noise & distortion microphone amplifier chipsets by Profusion are used in our very carefully designed pre-amp. The design of the pre-amp took our Chief Design Engineer over 3 months to develop and tailor to provide crystal clear sound unaltered by unwanted characteristics. Mic/Line/Phantom Power Each of the eight inputs can be individually switched to accept either a mic or line level input. The mic input can also have 48 Volt phantom power turned on/ off. Input selection and phantom power settings are enabled on the Windows 10 app. High Quality Analogue To Digital Converters As well as the best microphone amplifiers, the very best widest range analogue to digital converters (ADC) currently available are used to make sure the digital audio on your network is as good as it possibly can be. The filter settings of the ADC can even be changed via the app. Windows 11 App For Remote Control GlenController, our free Windows 11 app, provides full remote control of the DARK8MAI MKII. It allows switching of input types, gain control, level monitoring and more. Network Interface There are 4 network interfaces on the DARK4MAI MKII. There are 2 x Neutrik Ethercon (RJ45) connectors and there are also 2 x SFP slots for customers to fit their own preferred fibre interfaces. Redundant Network Interface When using the Dante protocol it is possible to set the DARK4MAI MKII to have a fully redundant network interface whereby a completely glitch free automatic redundant audio network link is provided across 2 of the network interfaces. Power DARK4MAI MKII can be powered from independent sources to provide a redundant power option. Each copper RJ45 network socket can accept PoE (this means that just 1 cable can carry power and audio data to/ from the unit). A 12V DC input on 4 Pin XLR is also provided for powering the unit from an external DC source if no PoE is available.

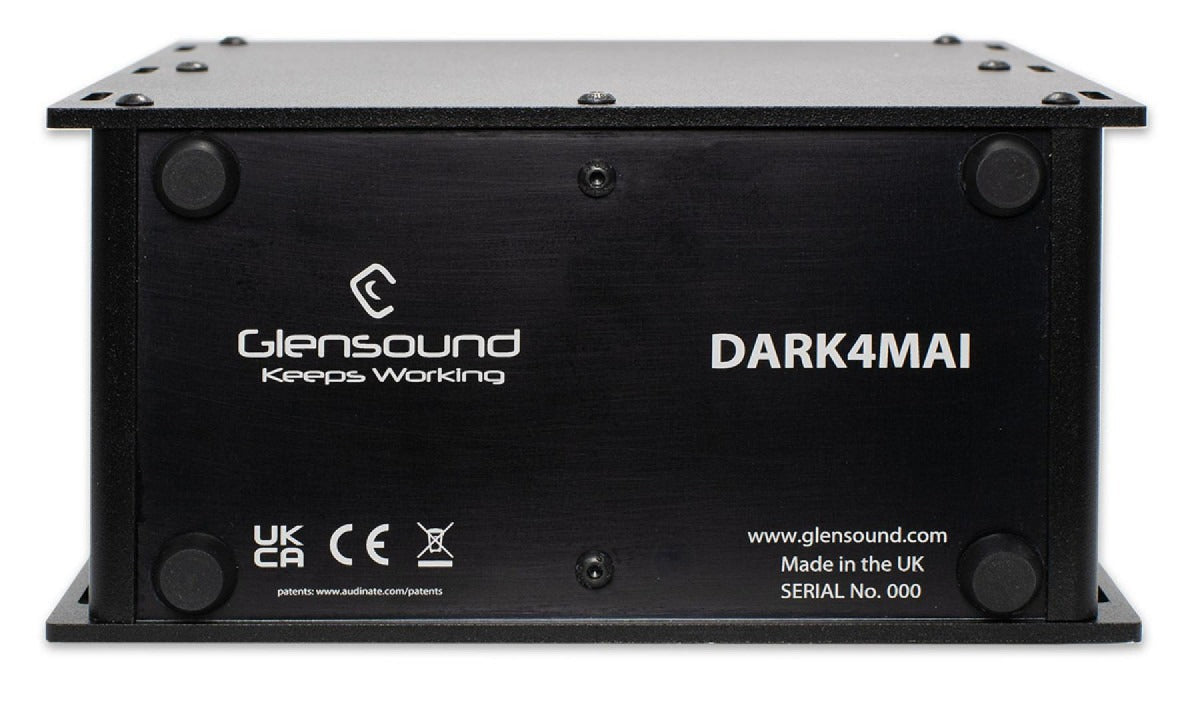

The DARK4MAI MKII (Microphone Analogue Input) is a very powerful compact Dante/ AES67 network audio interface, in a robust stage box/ throw down style. It has 4 off low noise mic/line inputs which are remotely controlled by a Windows 11 app. The outputs of the microphone amplifiers are transmitted on a fully redundant Dante/ AES67 network interface.

Having 4 off low noise high quality microphone inputs makes the DARK4MAI MKII perfect for transporting audio circuits from a stage or a pitch side position to a mixer or other location within an audio network.

The rugged design, PoE powering & remote control facility of the unit means that it can easily be placed and left unattended wherever audio sources are required.

Technical Information

LINE INPUTS

Frequency Response: +/-0.25dB 20Hz to 22kHz
Maximum Input Level: +18dB
Input Impedance: >20k Ohm
Distortion: 0.0013% @ 100Hz
0.0022% @ 1kHz
0.00094% @ 10kHz
All reference to +8dBu output
Noise: -93dB @ Line up A weighted RMS (22Hz to 22kHz)
Interchannel Crosstalk: >101dB @ 0dB with 1kHz Tone
Dynamic Range: >111dB
Input Type: Electronically balanced (can be wired unbalanced)

MIC INPUTS

Frequency Response: +/-0.25dB 40Hz to 22kHz
Input Range: -67 to -15dB (for -24dBFs line up)
-61 to -7dB (for -18dBFs line up)
Input Gain Resolution: 3dB Steps
Input Impedance: >2k4 Ohm
Equivalent Input Noise: 127dB (22Hz to 22kHz Terminated 300 Ohms)
Distortion: 0.013% @ 100Hz
0.002% @ 1kHz
0.003% @ 10kHz
All Reference to +8dBu output
Phantom Power: +48 Volts

NETWORK INTERFACE

Physical: 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots
Protocol: Dante & AES67
Audio Sample Rates: 32 - 192 kS/s

POWER

PoE Inputs: 2 of standard 48V.
One on each network RJ45
PoE Consumption: Total unit consumption <15Watts

DC Power: +12v, 4PIN XLR

PHYSICAL

Size: 83x 153 x 156mm (H x D x W)
Weight: 1.20Kg
Mechanics: All aluminium construction, anodized panels and laser etched front & rear panels
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm (L x D x H)
Shipping Weight: 2.5Kg

ENVIRONMENTAL

Operating Temperature: 0 to +50°C (32 to 122°F)

Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing

INCLUDED ITEMS

Network Cable: 1 of 2 metre RJ45 Cable
Handbook: Available as download

REMOTE CONTROL

General: Windows 11 application. Direct install on PC (not App store download)
