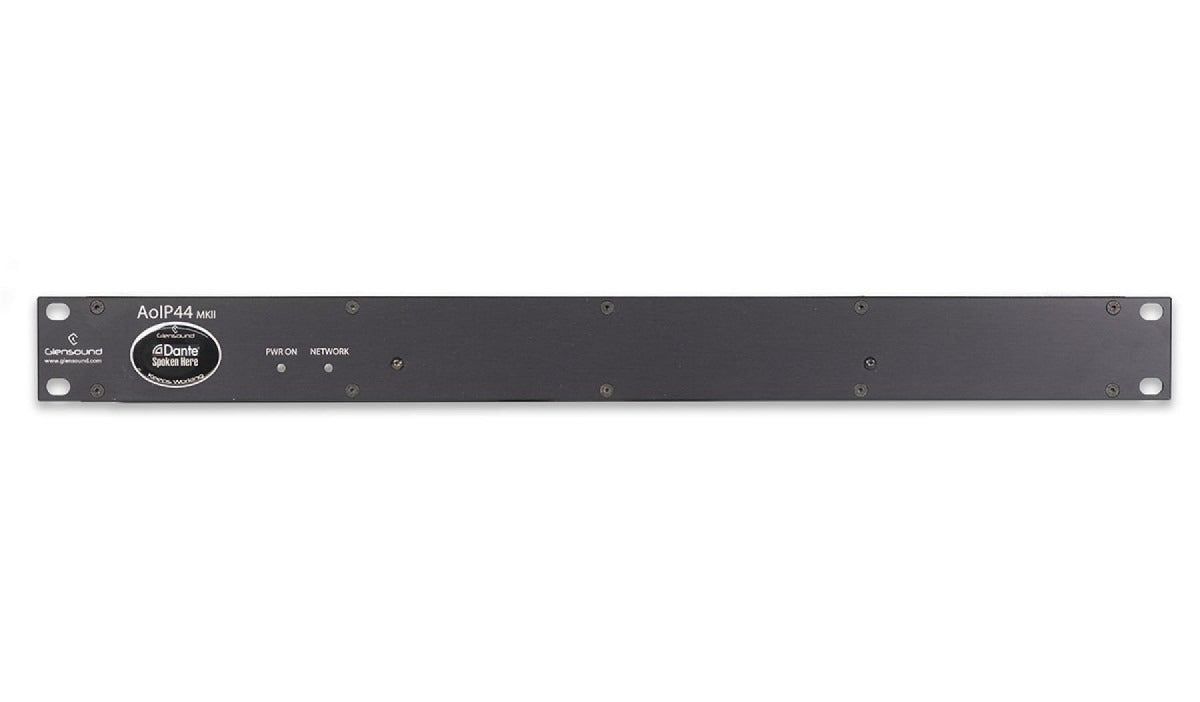

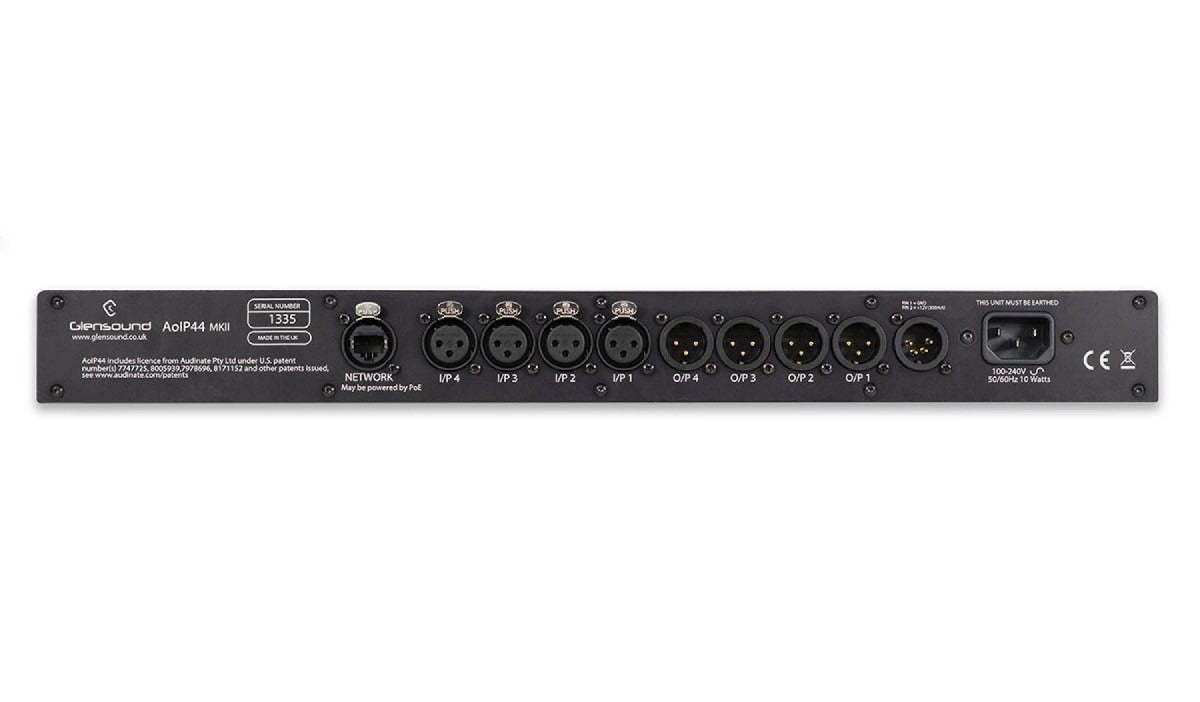

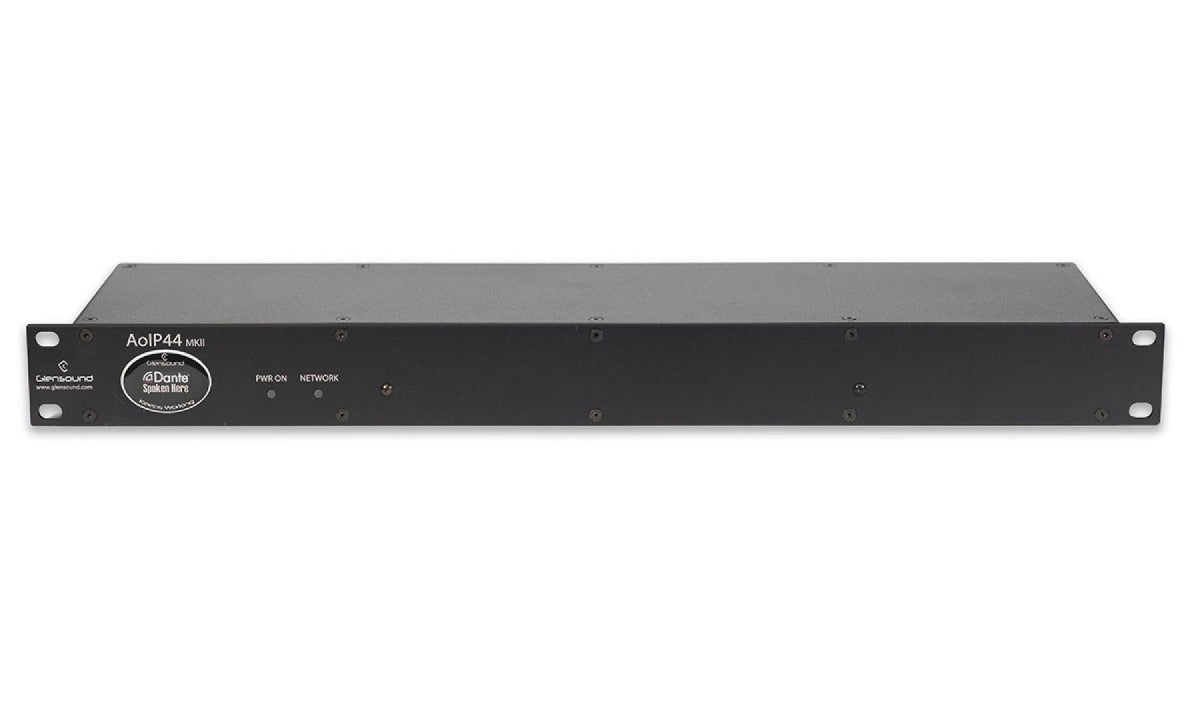

4 x analogue inputs and outputs via a Dante interface on CAT5 Audio Network 4 Input, 4 Output Analogue Break Out Box
The AoIP44 is an economical subrack designed to interface balanced analogue audio circuits to and from a Network audio system featuring Dante. It provides 4 audio inputs to the network and also 4 audio outputs from the network on balanced 3 pin XLRs. As well as being mains powered with the standard signature backup DC powering option, the AoIP44 can be powered from an external PoE source via its network interface.
The AoIP can be used as a simple low cost audio I/O break out unit on a large Dante audio network where it can be integrated extremely easily using the Dante controller and is fully compatible with any manufacturers Dante equipment. It can also be used in very simple audio over IP scenarios where just 4 bi-directional audio circuits are needed to be distributed across a building's network infrastructure, in which case 2 x AoIP44 units can be used connected together across the network. The AoIP44 is equally suited for high integrity broadcast purposes, intercom, just simple paging facilities or simple distribution of non-critical audio.
AUDIO
Input Type: Electronically balanced (can be wired unbalanced) Neutrik 3 pin XLR Socket
Input Impedance: >20k
Output Impedance: 50 ohms
Output Type: Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Plug
Max Input before clip: +18dBu
Max output: +18dbu
Frequency Response: (+-0.25dB): Flat until 22kHz
Noise Residual: -94.6dBu
THD+N Relative (1k +8dBu): 0.00134%
Dynamic Range: 112.6dBs
Crosstalk (0dBu input to output 1kHz tone): -94.7dBu
NETWORK AUDIO
Compatible Audio Network: Dante uncompressed, low latency audio. For full details visit www.audinate.com
AES67 Compliant: The Audinate Ultimo chipset that we use in this product is AES67 compliant
Network Connection: Neutrik RJ45 EtherCON
Dante Network resolution: 24bit
Dante Network sample rate:
- 4 Bi-directional channels @ 44.1/ 48kHz
- 2 Bi-directional channels @ 88.2/96kHz
POWER
DC Power: +12v 240mA, -12v N/A
Mains Input: Filtered IEC 100 - 240VAC 47-63Hz
PoE: Can be powered by PoE
AC Consumption: 4.3 Watts
Internal Mains Fuse: 20mm 1A Anti Surge
PHYSICAL
Size: 123 x 44mm(19" 1RU)
Weight: 1.2Kg
Shipping Weight: 2.7Kg
ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
