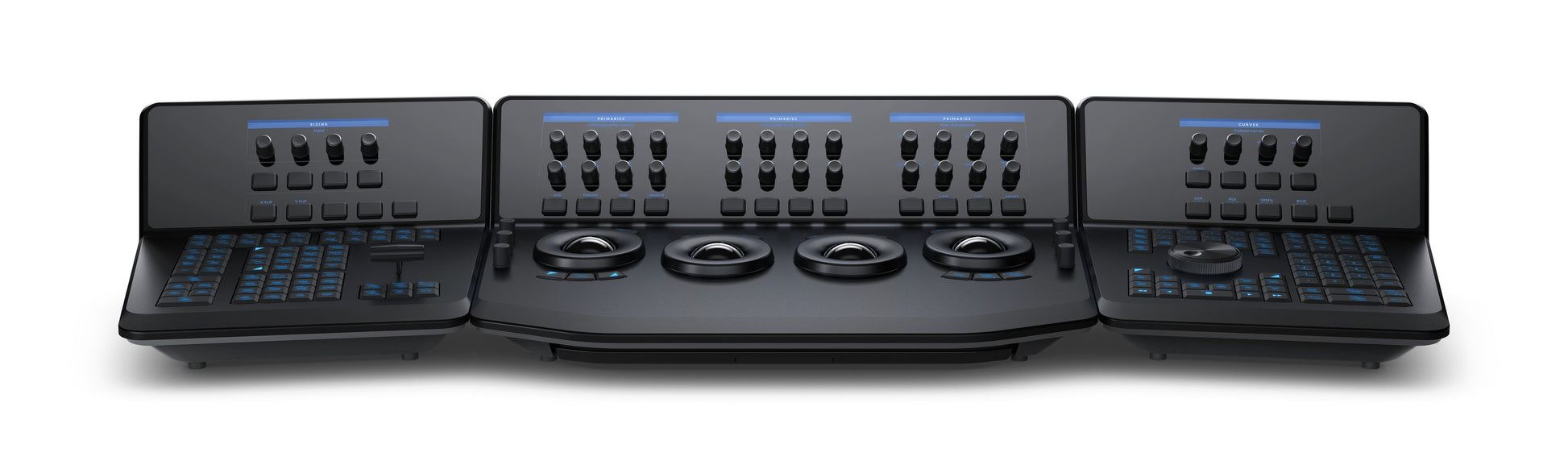

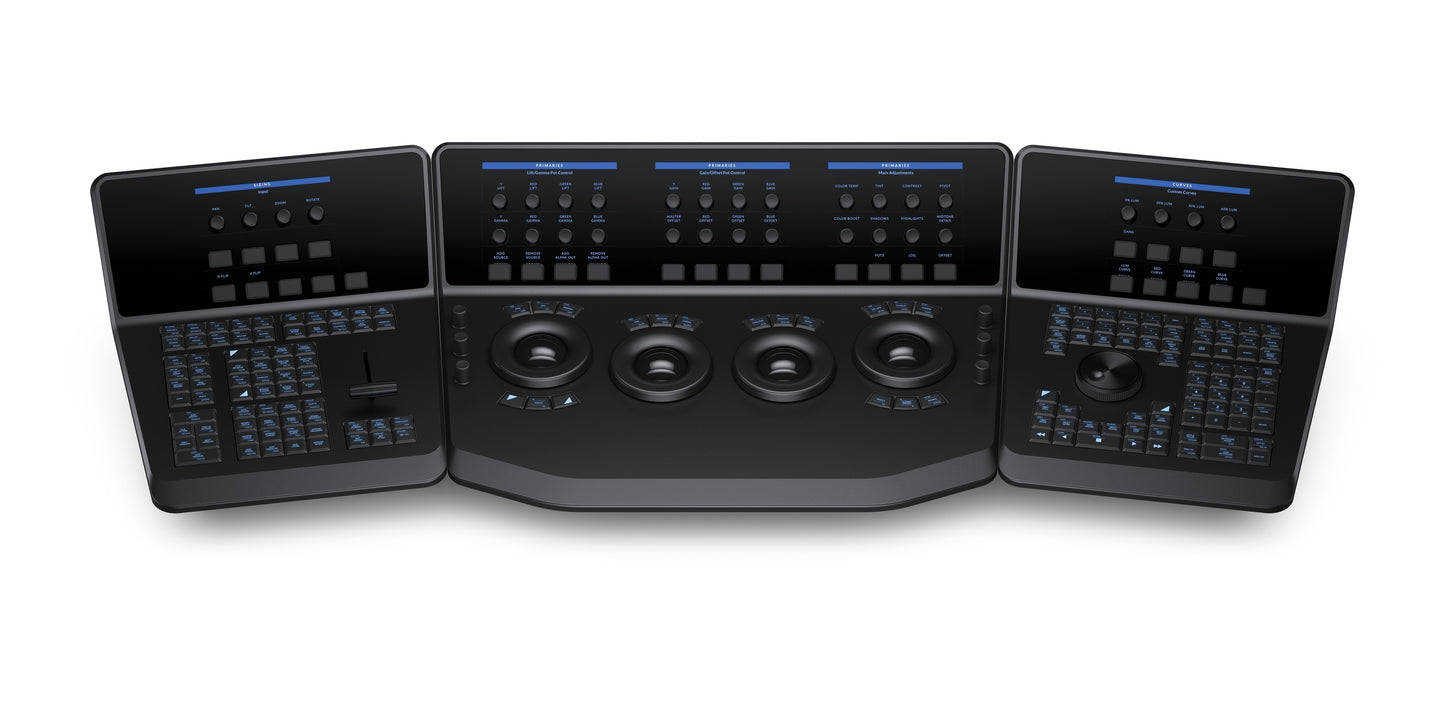

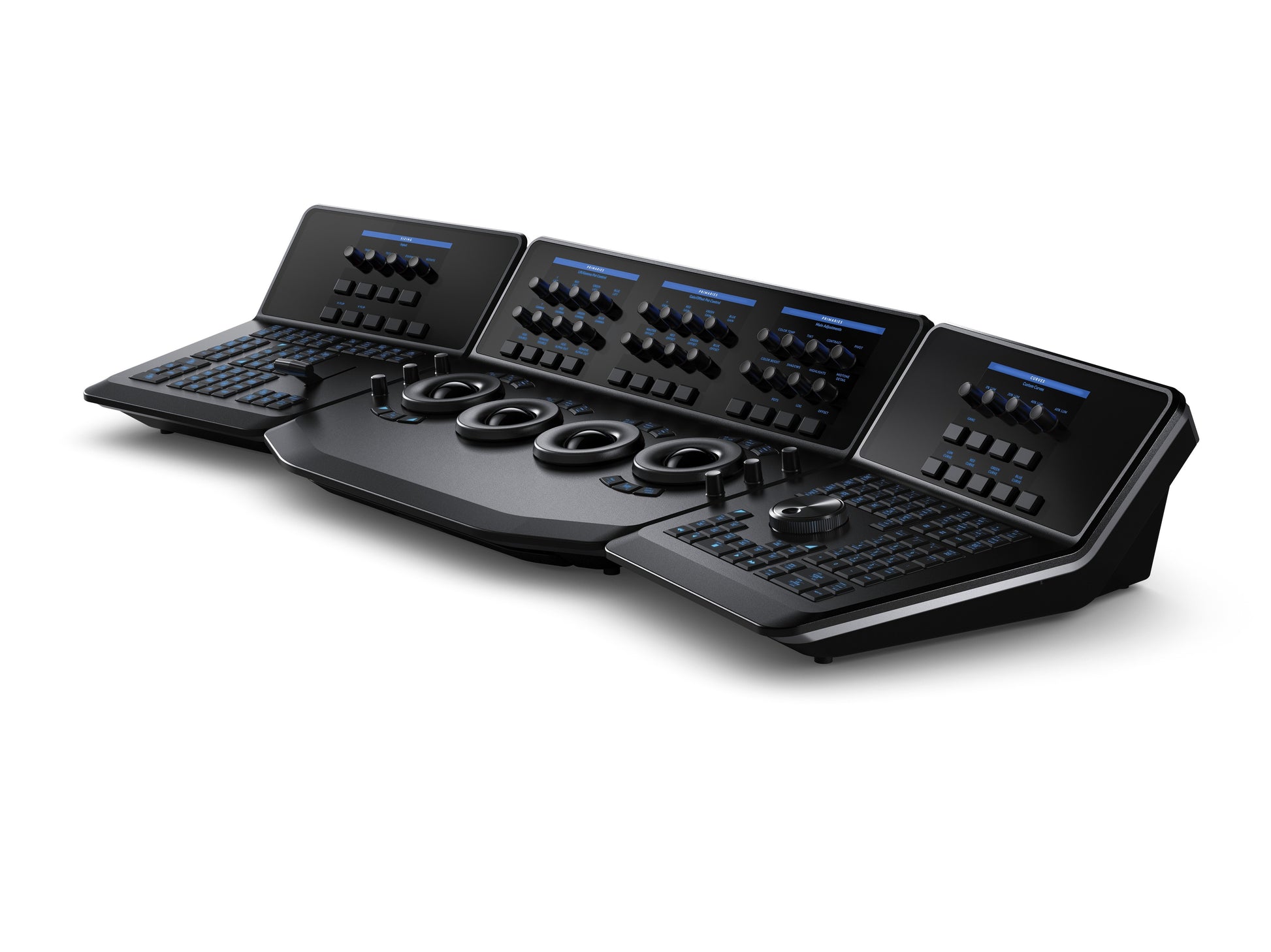

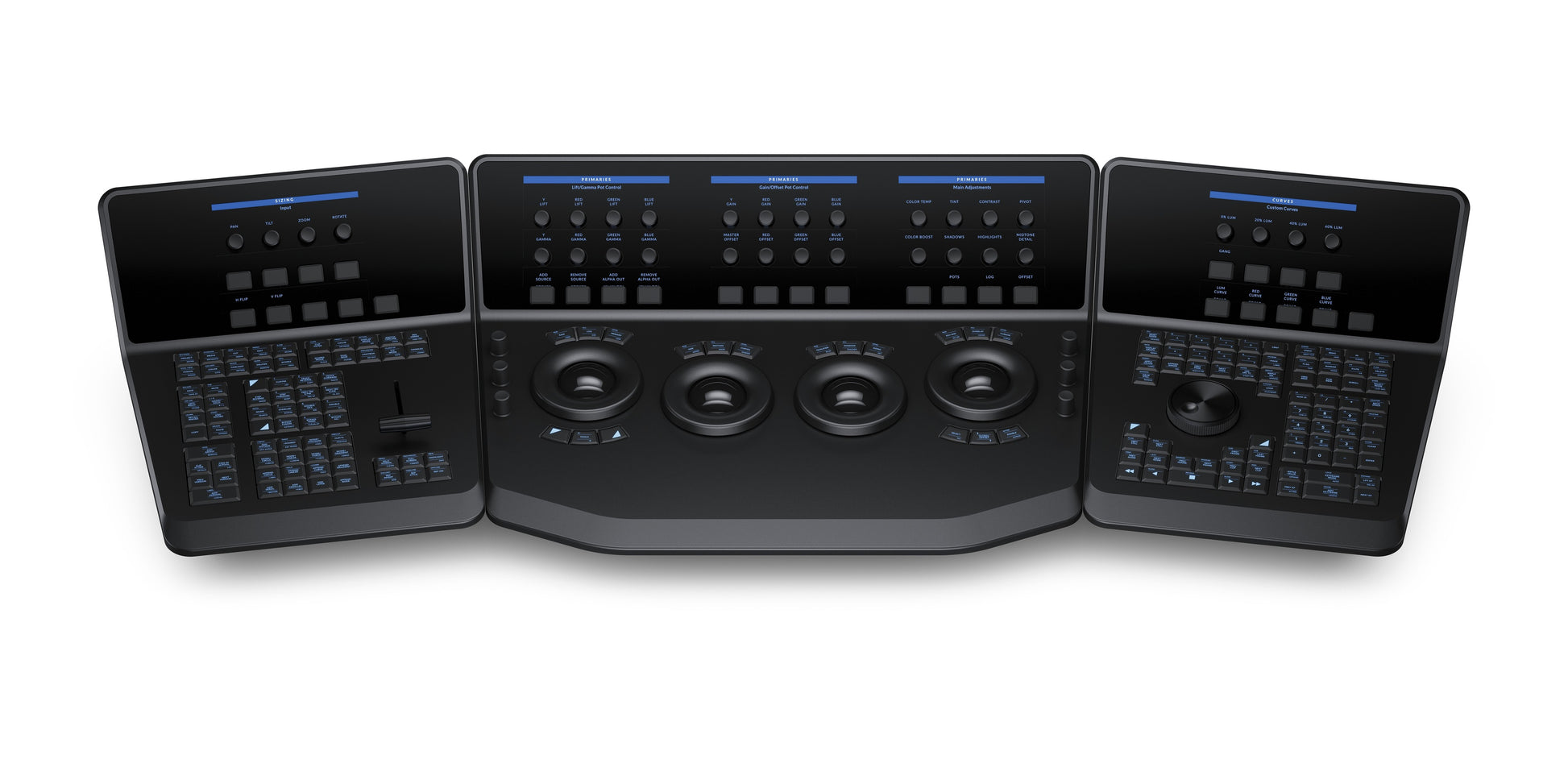

Designed with three ergonomically connected control surfaces and a pull out keyboard, DaVinci Resolve Advanced Panel gives you complete command of every color grading session! Each correction control has a separate soft key, knob, high resolution weighted trackball or ring so you can experiment quicker to create a wider range of looks!
Official Technical Details
Connections
Computer Interface: USB Type‑B connector on each panel.
USB Loop Out: 2 x loop out USB Type‑A connectors for side panels.
USB Hub: 2 x USB Type‑A connectors for a mouse and other USB devices.
Software Updates: USB Type Mini‑B connectors on each panel for factory software updates.
12V Power Input: Centre 3‑pin 3W3 D‑Sub connector on Trackball Panel. 3‑pin 3W3 D‑Sub connector on the Search Dial and T‑bar Panels.
12V Power Output: Left and right 3‑pin 3W3 D‑Sub connectors on Trackball Panel.
Power Requirements
Power Supply: External 100 - 240V AC 1.5A 50/60Hz with IEC C14 mains input.
Power Usage: 80W max.
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10 Creators Update Windows 11
Rocky Linux 8.6
Environmental Specifications
Operating Temperature: 0° to 40°C (32° to 104°F)
Storage Temperature: -20° to 60°C (-4° to 140°F)
Relative Humidity: 0% to 90% non-condensing
What's Included
DaVinci Resolve Advanced Trackball Panel DaVinci Resolve Advanced Search Dial Panel DaVinci Resolve Advanced T-bar Panel DaVinci Resolve Advanced Panel Dongle DaVinci Resolve Studio Activation Key 12V Power Supply with IEC C14 Mains Inlet 2 x 1m 3‑pin Inter Panel Power Cables 3 x 2m USB Type‑A to Type‑B Cables
