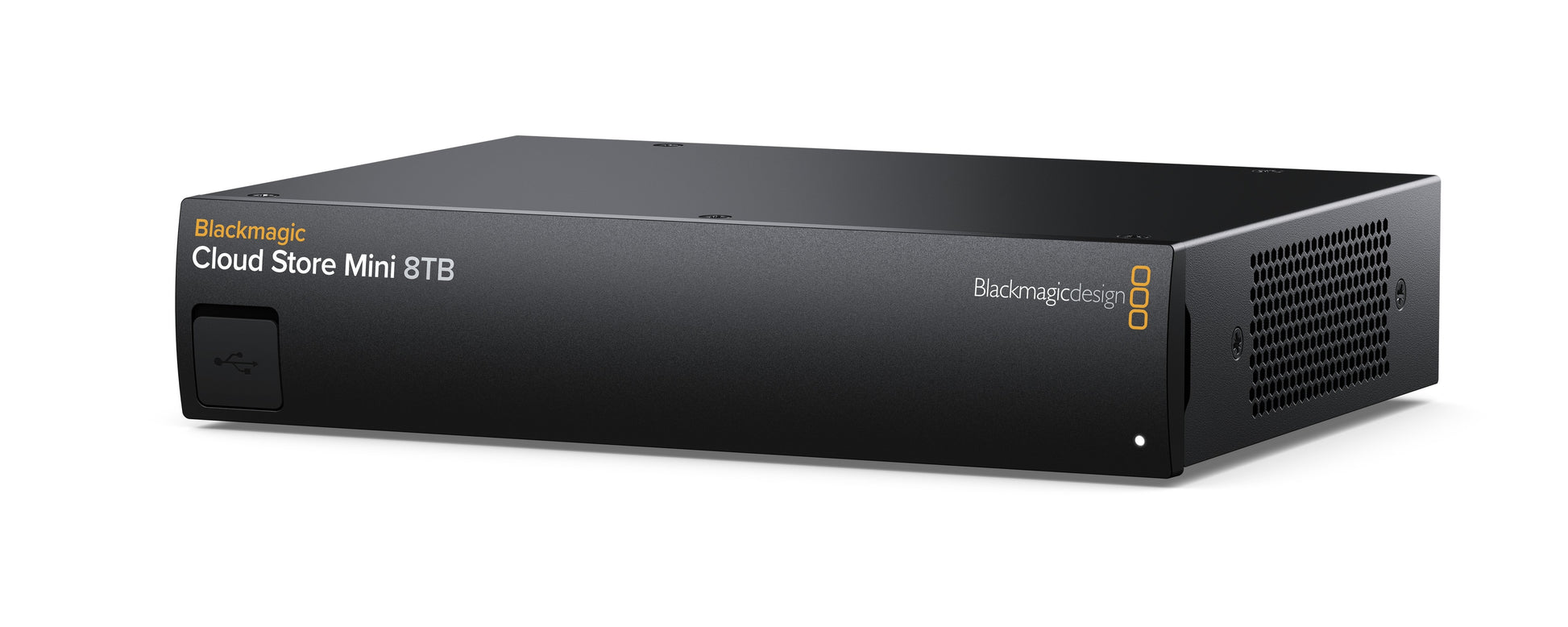

The Blackmagic Cloud Store Mini is a fast network storage solution in a compact rack mount design. It features a high speed 10G Ethernet connection and four internal M.2 flash memory cards operating in parallel RAID 0 for extremely fast file access. It’s fast, even with lots of simultaneous users all accessing files at the same time!
Official Technical Details

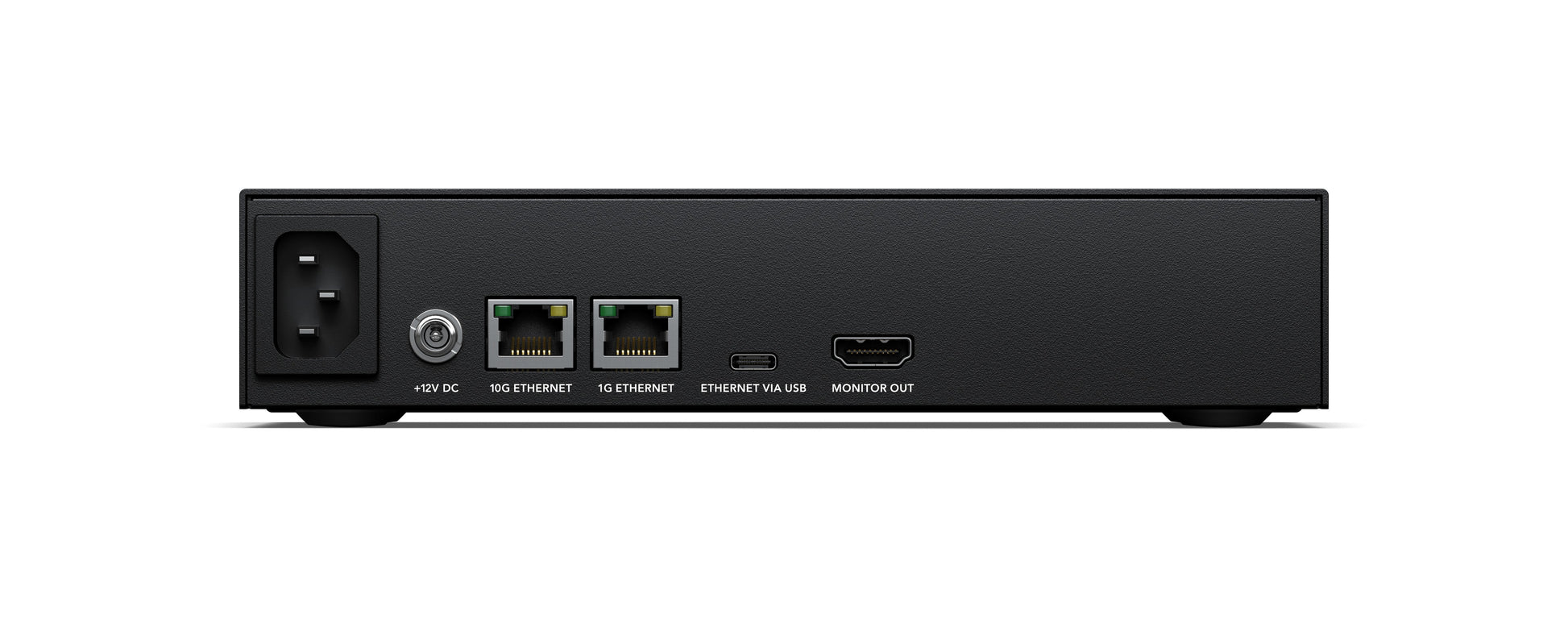

Connections
10G Ethernet Ports: 1 x Ethernet 100/1000/10G BASE-T
1G Ethernet Ports: 1 x 100/1000 BASE-T
USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
HDMI Monitor Outputs: 1
Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol: NFS SMB
Computer Connections: 50 max.
Storage
Storage Type: M.2 NVMe SSD
Total Capacity: 8TB
Displays
HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

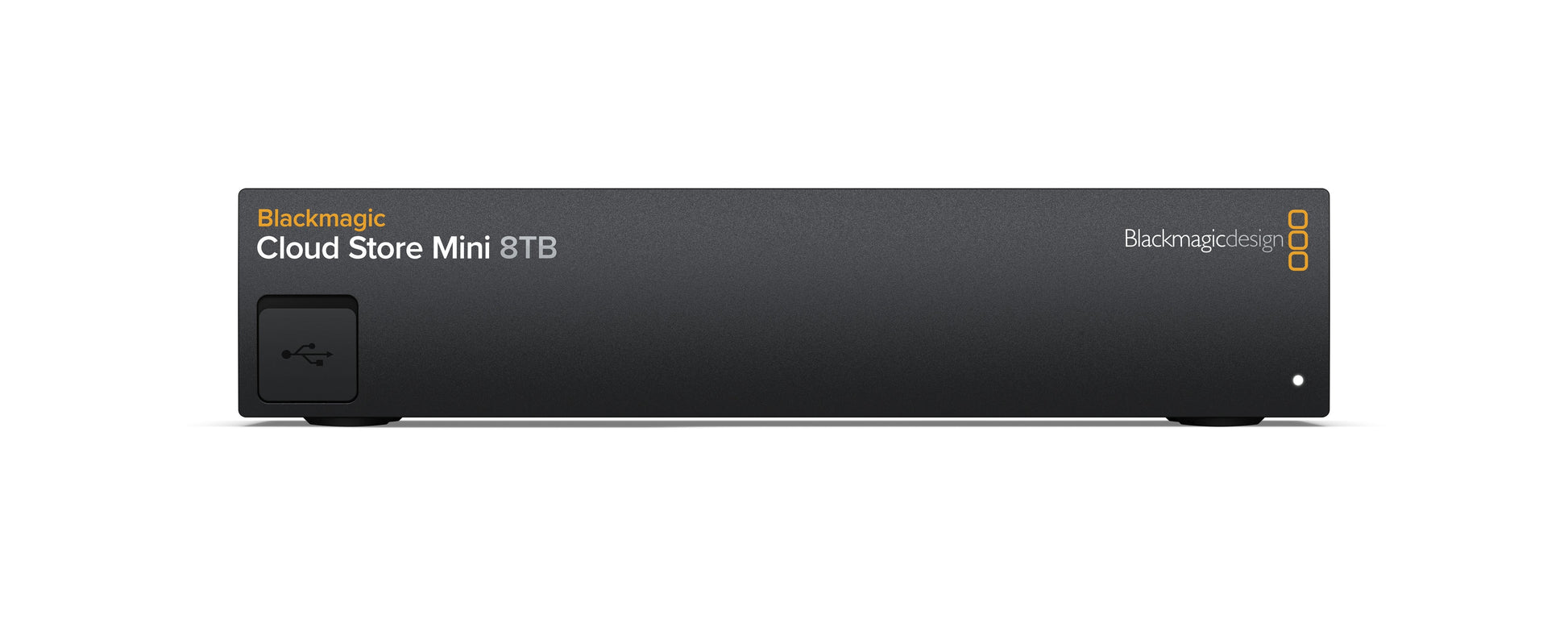

Status Indicator: Front panel LED illuminates white indicating normal operation or red indicating disk fault.
Device Control
External Control: USB-C or Ethernet for configuration and software updates.
Software
Software Included: Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
Windows 10, 64-bit. Windows 11.
Power Requirements
Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs: 1 x IEC C14 mains input. 1 x 12V DC locking 5.5 mm barrel connector.
Power Usage: 35W
Environmental Specifications
Operating Temperature: 0° to 40° C (32°to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
