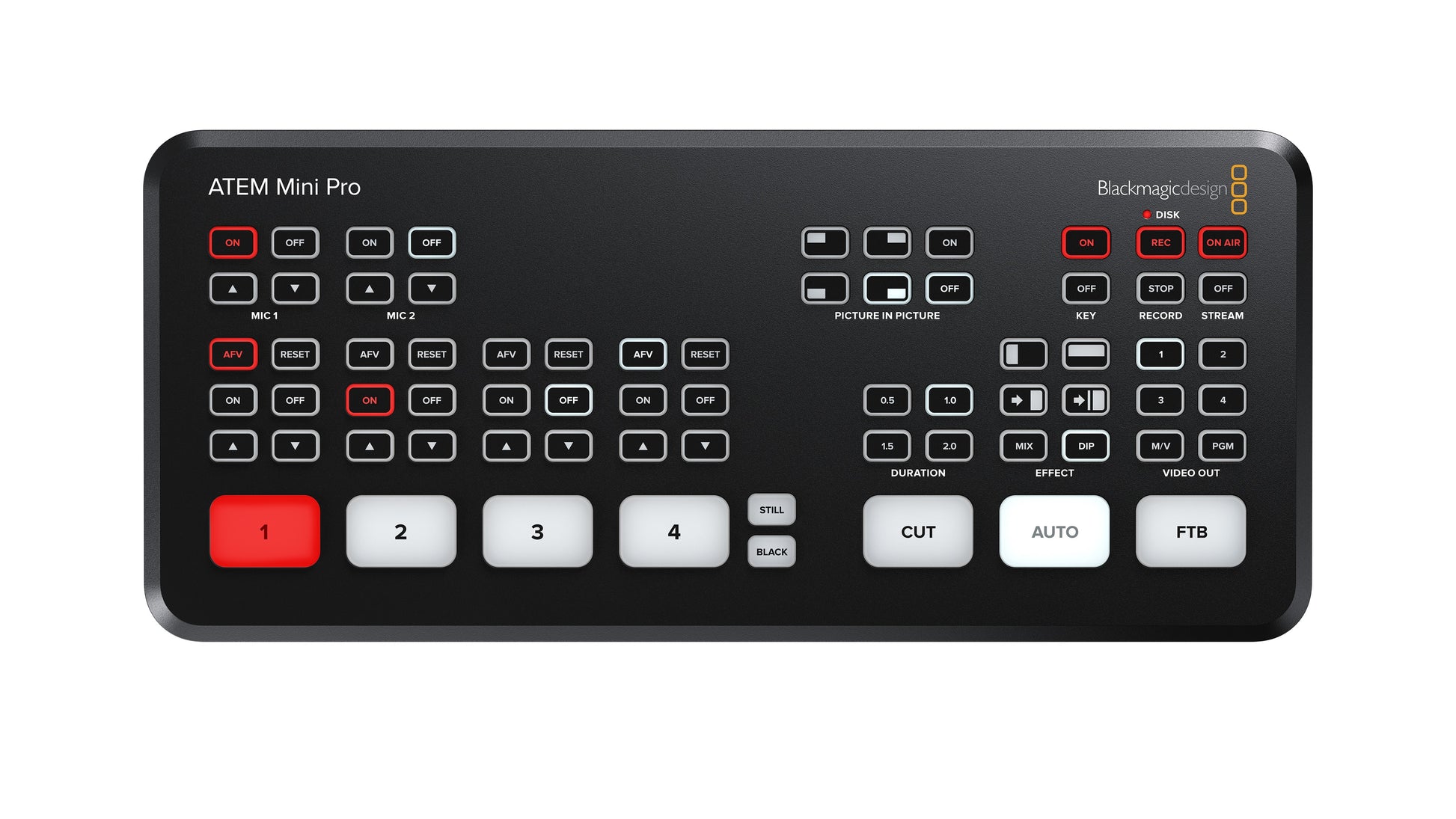

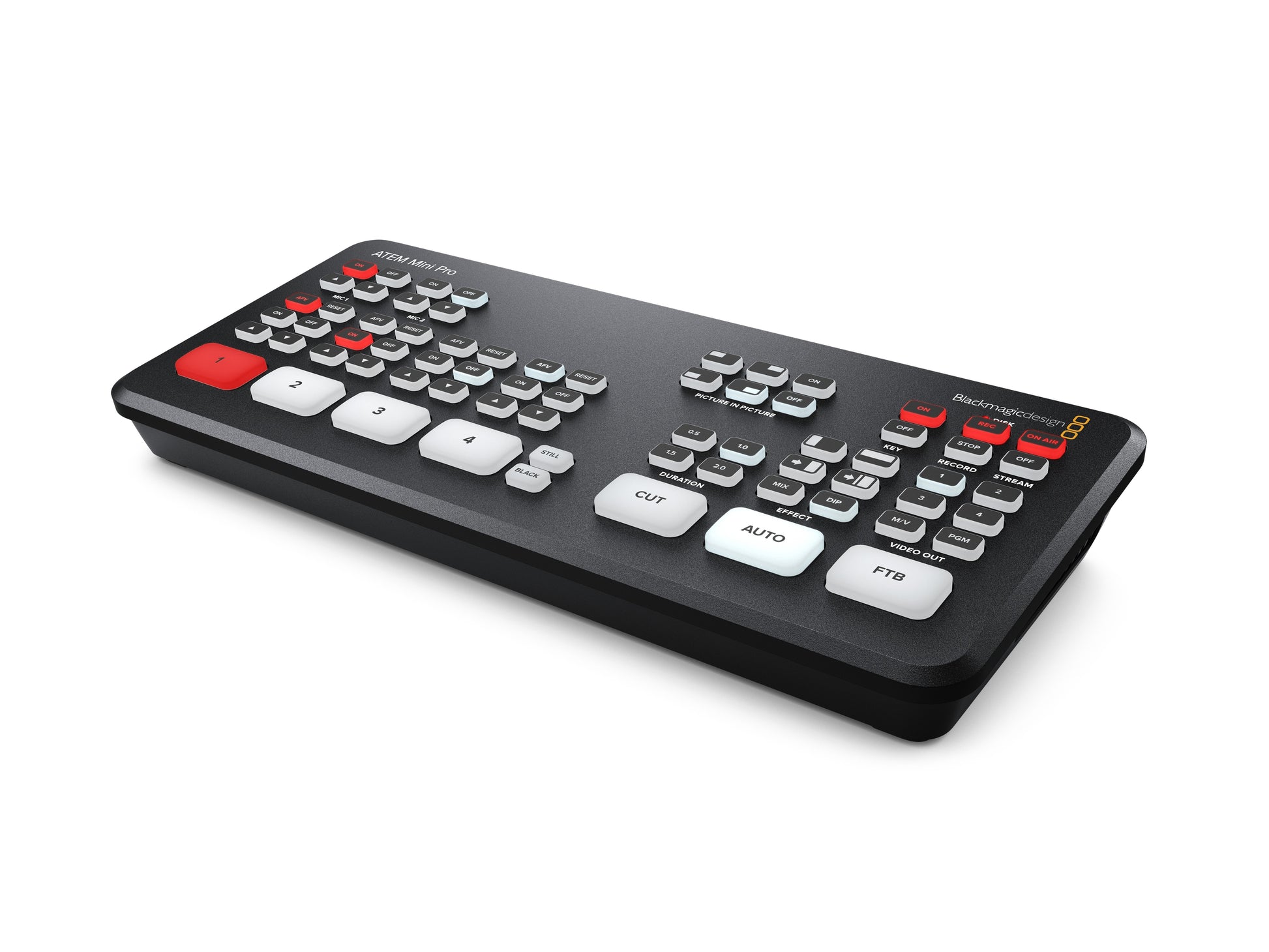

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Official Technical Details

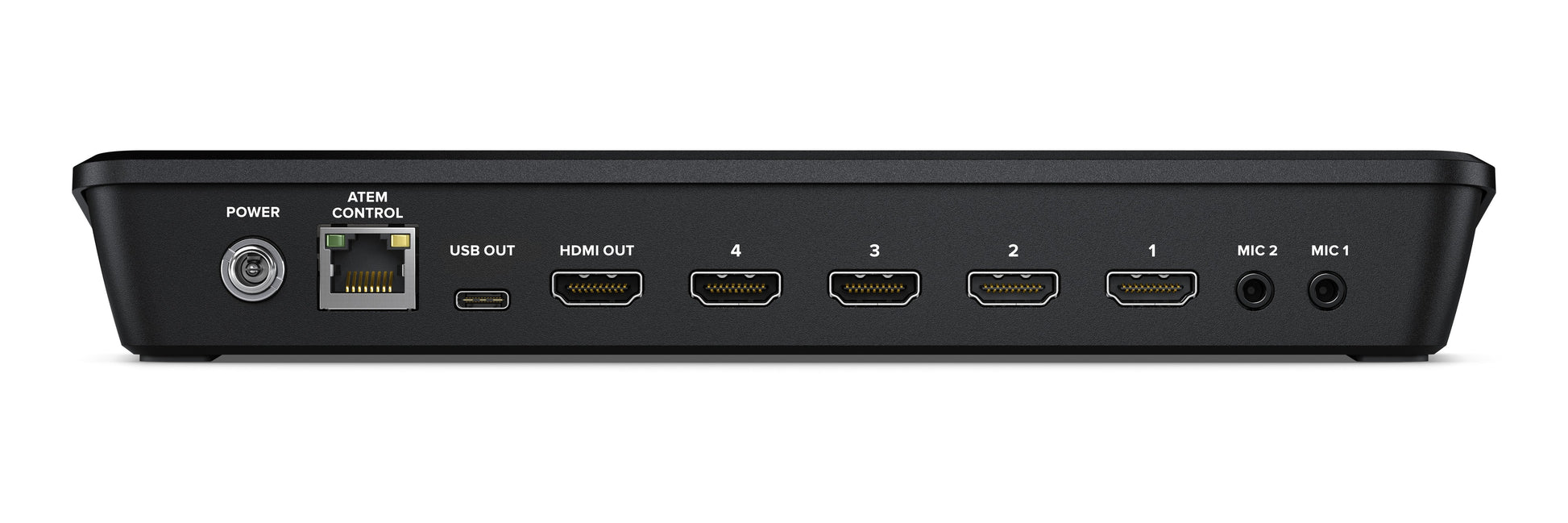

Connections
Total Video Inputs: 4
Total Outputs: 2
Total Aux Outputs: 1
Total Audio Inputs: 2 x 3.5mm stereo mini jack.
Total Audio Outputs: None, embedded audio only.
Timecode Connection: None
HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
Video Input Re-Sync: On all 4 HDMI inputs.
Frame Rate and Format Converters: On all 4 HDMI inputs.
HDMI Program Outputs: 1
Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace Conversion: Hardware based real time.
Product Specifics
Upstream Keyers: 1
Downstream Keyers: 1
Advanced Chroma Keyers: 1
Linear/Luma Keyers: 2
Transition Keyer: DVE only.
Total Number of Layers: 5
Pattern Generators: 1
Color Generators: 2
DVE with Borders and Drop Shadow: 1
Interface: Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input: Unbalanced stereo
Analog Input Delay: Up to 8 frames
Input Impedance: 1.8k
Max Input Level: +6dBV
Mic Plug In Power: Available on both 3.5mm mini jack connections.
Streaming
Direct Streaming: ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
Recording
Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
Multi View Monitoring
Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard: HD
Media Player
Media Players: 1
Channels: Fill and key for each Media Player.
Media Pool Still Image Capacity: 20 with fill and key.
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel: Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free.
Control Panel Compatibility: Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Software
Software Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Power Supply: 1 x External 12V power supply.
Power Usage: 30W
Environmental Specifications
Operating Temperature: 5° C to 40° C (41° - 104° F)
Storage Temperature: -10° to 60° C (14° to 140° F)
Relative Humidity: 0% to 90% non-condensing
What's Included
ATEM Mini Pro
External 12V DC power supply with international socket adapters
