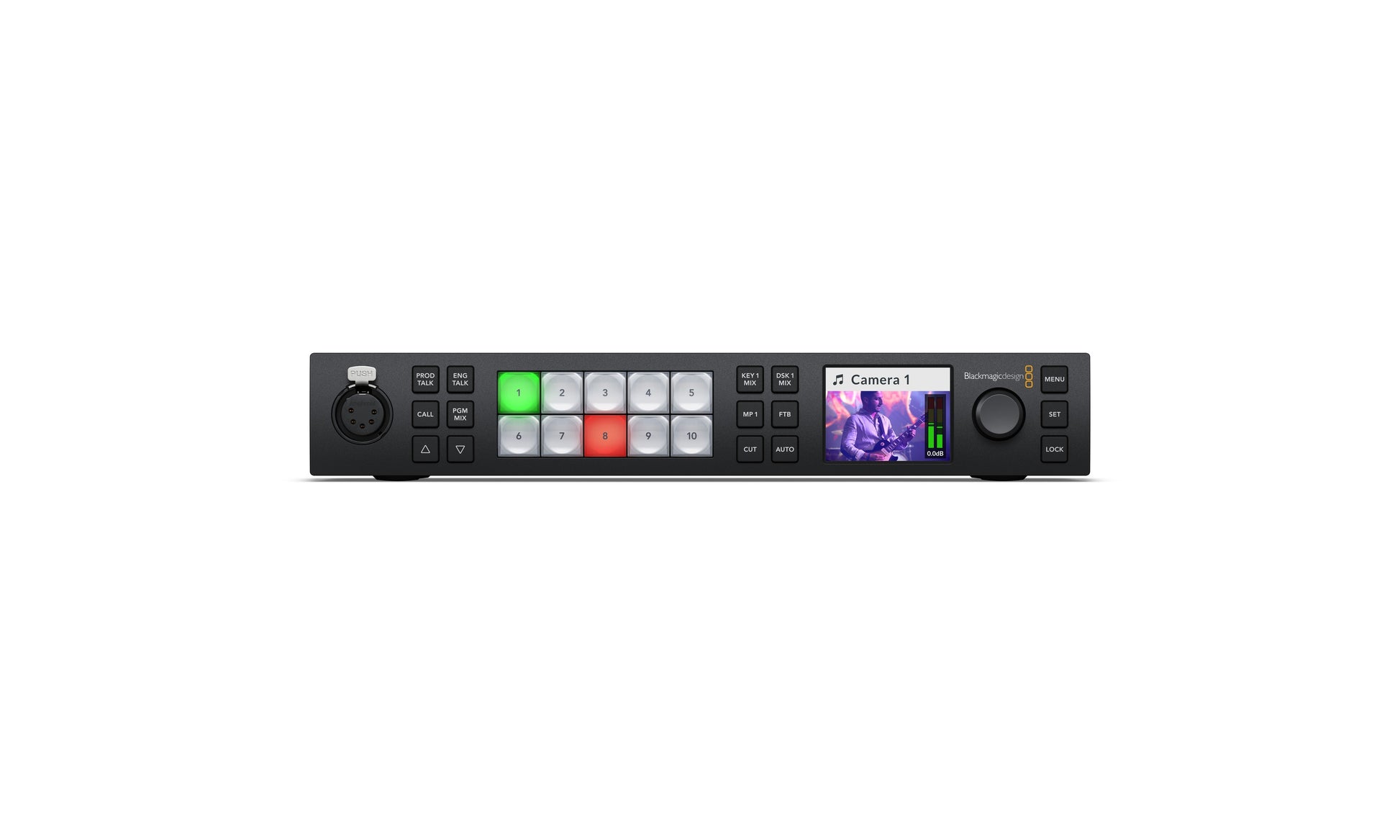

ATEM 1 M/E Constellation 4K is a powerful 1 M/E Ultra HD live production switcher. It features 10 standards converted 12G-SDI inputs, 6 12G-SDI aux outputs, DVE, 4 ATEM Advanced Keyers, a 16 way multiview, media players and USB webcam output. You even get built in talkback and a professional 28 channel Fairlight audio mixer with EQ and dynamics!
Official Technical Details

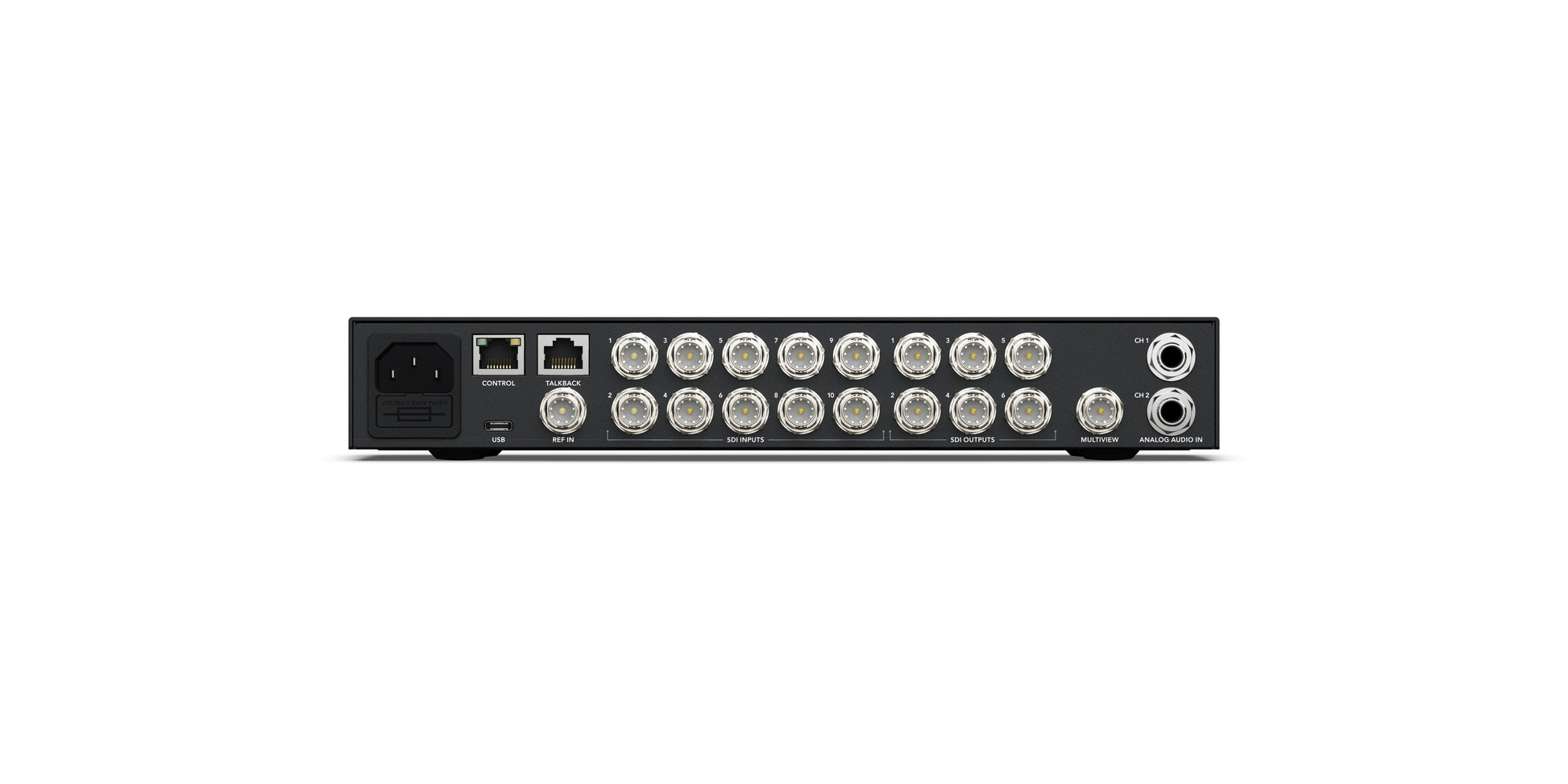

Connections
Total Video Inputs: 10
Total Video Outputs: 6
SDI Rates: 1.5G, 3G, 6G, 12G
Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
Total Audio Outputs: 1 x 5 pin XLR Talkback.
SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs.
SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
Timecode Connections: None
Reference Input: Tri-Sync or Black Burst.
Video Input Re-Sync: On all 10 inputs.
Frame Rate and Format Converters: On all 10 inputs.
SDI Aux Outputs: Any of the 6 SDI outputs.
SDI Preview Outputs: Any of the 6 SDI outputs.
SDI Program Outputs: Any of the 6 SDI outputs.
Down Converted SDI Program Output: 1
Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views: 1 x 12G-SDI
Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
Ethernet: Supports 10/100/1000 BASE-T.
Computer Interface: 1 x USB-C supports USB 2.0
Standards
SD Video Standards: None
HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
Video Sampling: 4:2:2
Color Precision: 10-bit.
Color Space: Rec. 709, Rec. 2020
SDI Auto Switching: Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.
Product Specifics
Upstream Keyers: 4
Downstream Keyers: 1
Advanced Chroma Keyers: 4
DVEs: 1
Linear/Luma Keyers: 5
Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE.
Total Number of Layers: 7
Pattern Generators: 5
Color Generators: 2
Control Panel: Front fascia emergency switching, software or optional hardware panel.
Routable Windows: 16
Windows Source Labels: Yes
Tally: Red for program and green for preview indication.
Talkback Support: Yes
Mix Minus Support: Yes
Multi View Monitoring
Multi View Monitoring: 1 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, Key Masks, Clean Feed with optional labels and audio meters.
Multi View Video Standard: HD or Ultra HD
Media Player
Media Players: 2
Channels: Fill and key for each media player.
Media Pool Still Image Capacity: 20
Media Player Clip Length in 720 HD: 1600 frames.
Media Player Clip Length in 1080 HD: 800 frames.
Media Player Clip Length in 2160 UHD: 200 frames.
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format: TGA Sequence.
Media Pool Audio File Format: WAV, MP3 and AIFF.
Display

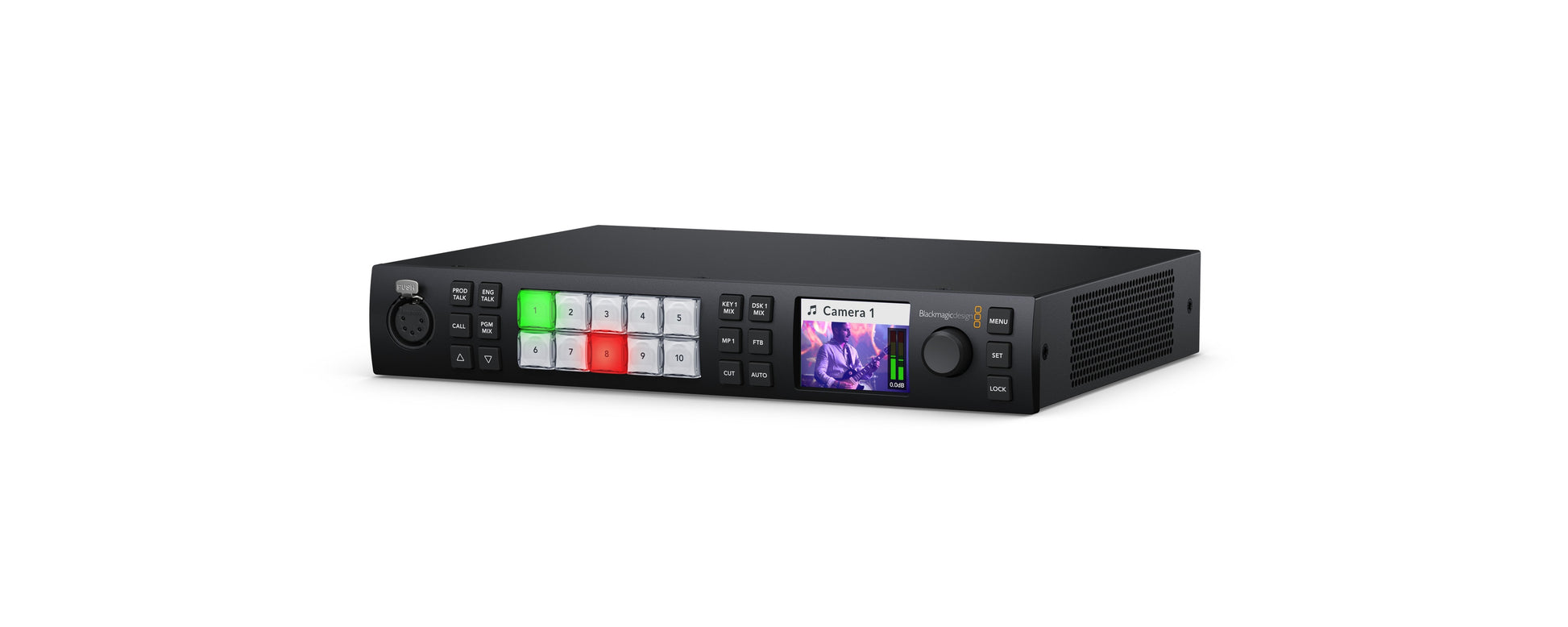

Front panel: Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Processing
Processing Delay: < 10 lines.
Audio Mixer: 28 Channel mixer Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Down Conversion: 1 x selectable HD down converted output
Software
Control Panel Included: ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11.
Software Updates: Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility.
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Power Usage: 90 W
Physical Installation
Physical Installation: 2/3 rack unit width, 1 rack unit height.
