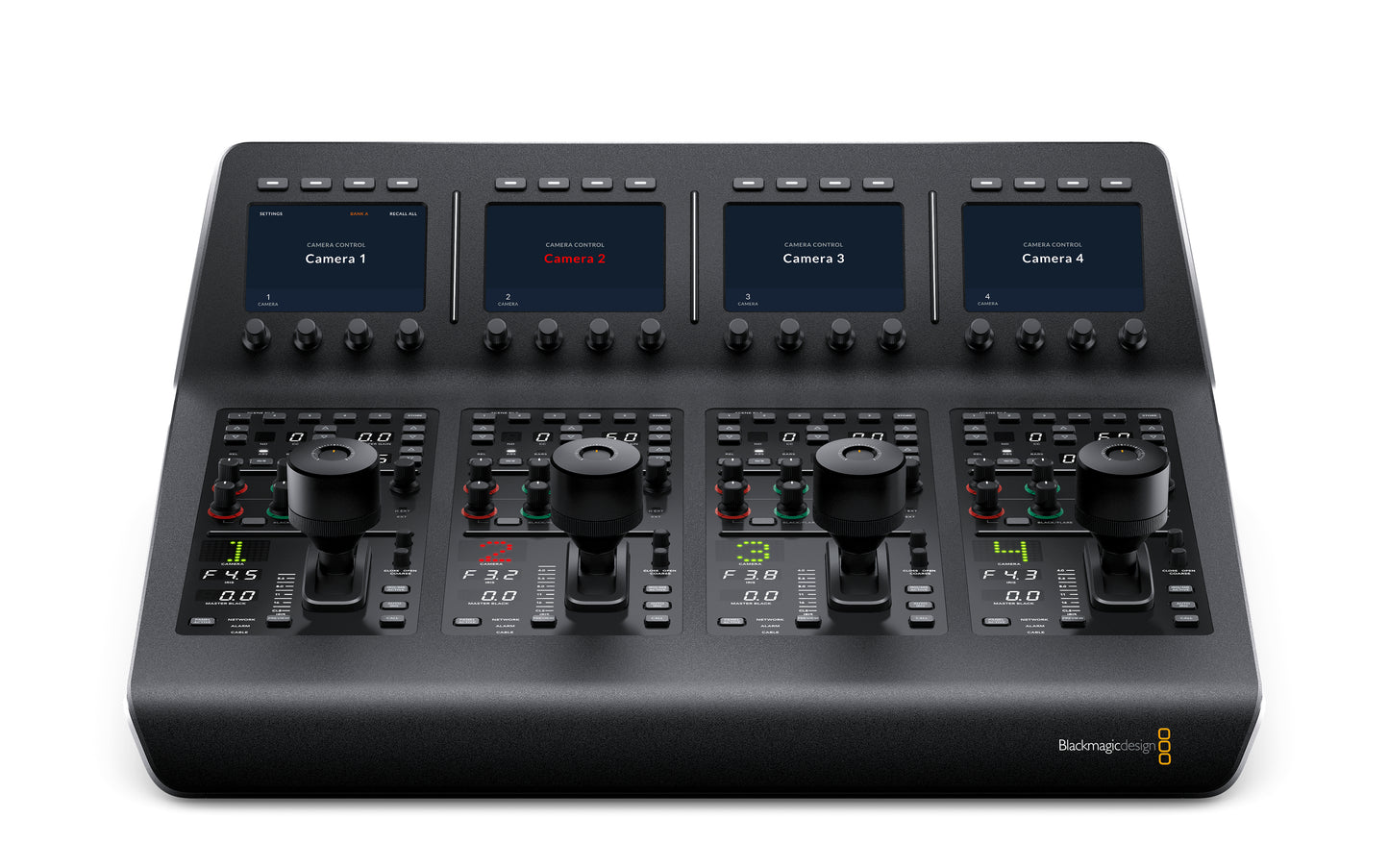

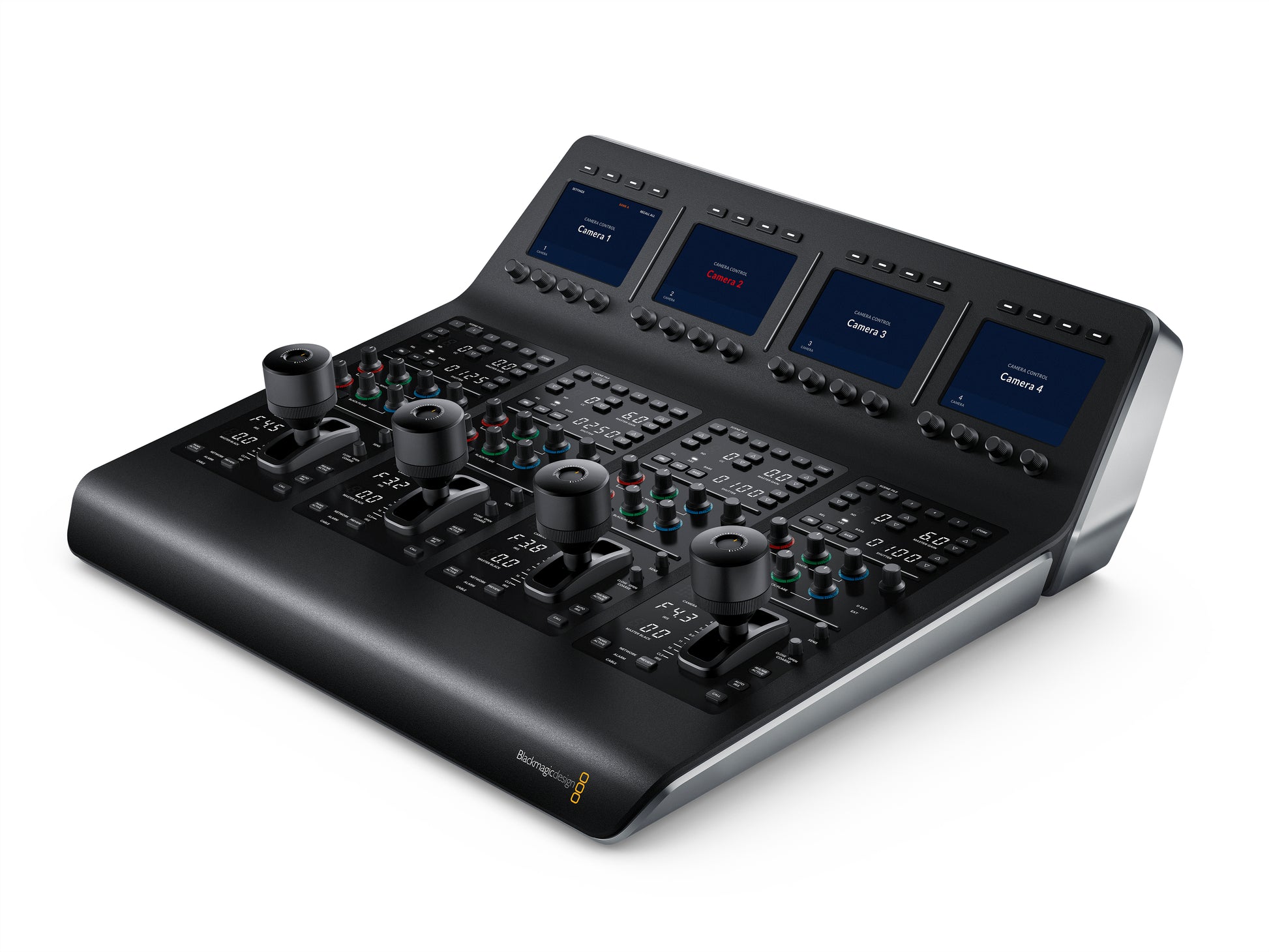

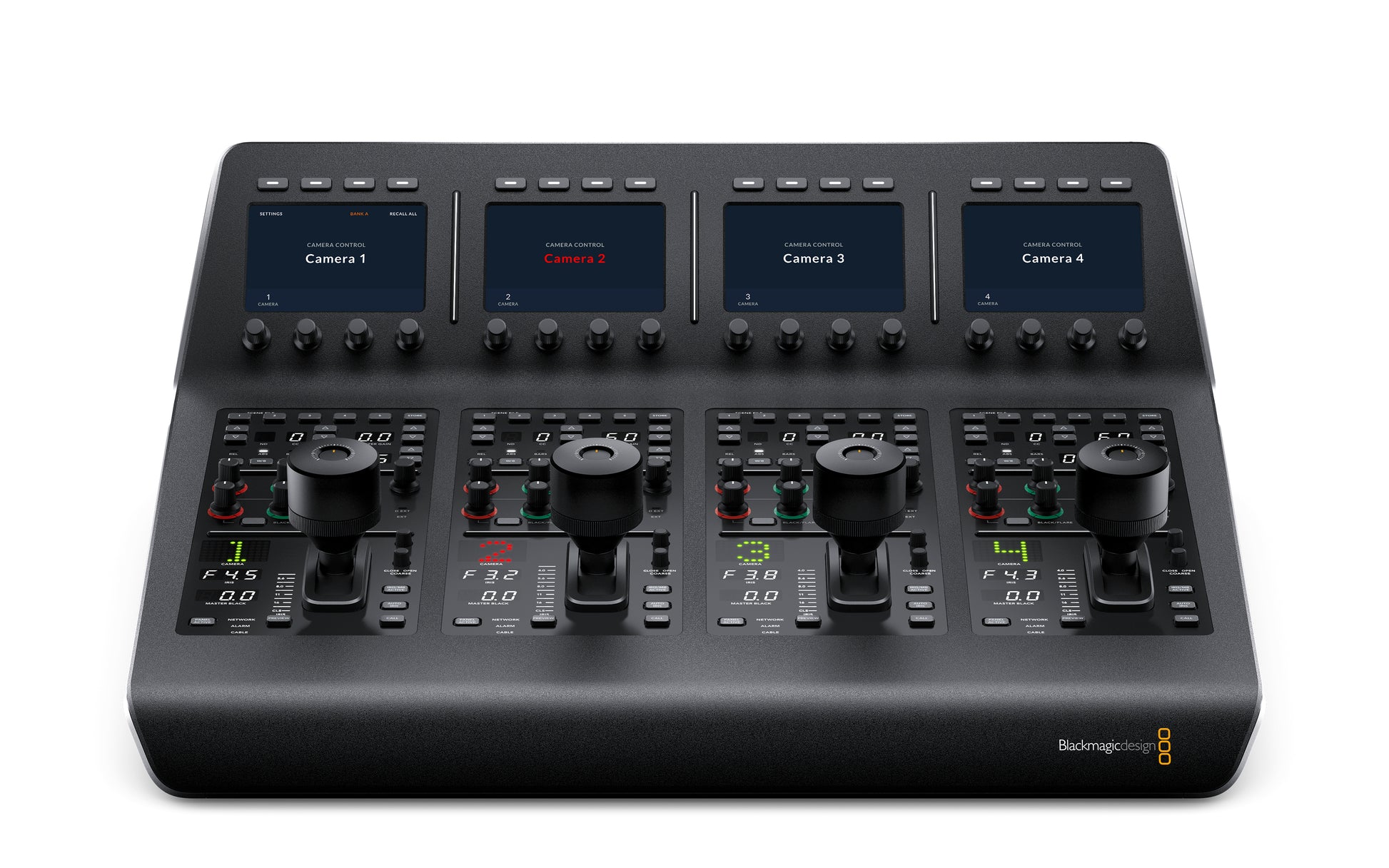

The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.
Official Technical Details

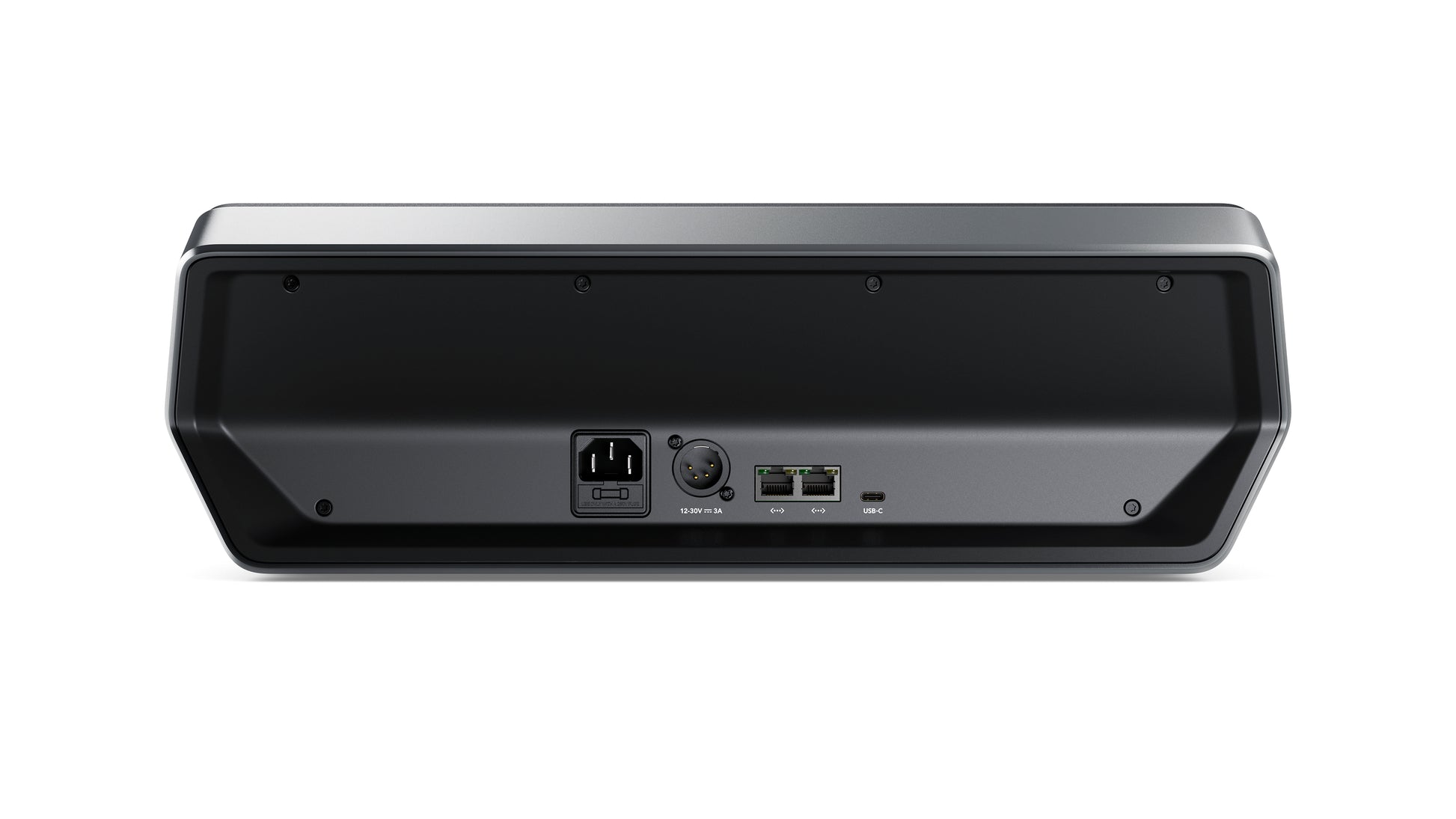

Connections
Ethernet: 2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software Updates: 1 x USB-C for firmware updates.
Product Specifics
LCD Menu Displays: 4
Camera Number Display: Green off air, red on air.
Setup: White and black balance setup.
3 Axis Joystick: 4
Preview Button: 4
Iris Control: Auto Iris On, Coarse control.
Panel Active: Protects settings.
Software
Software Applications: ATEM Software Control Panel.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Input Voltage: 1 x Internal 100 - 240V AC.
DC Power: 12-30V 3A.
Redundant Power: Yes
Power Usage: 30W
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
