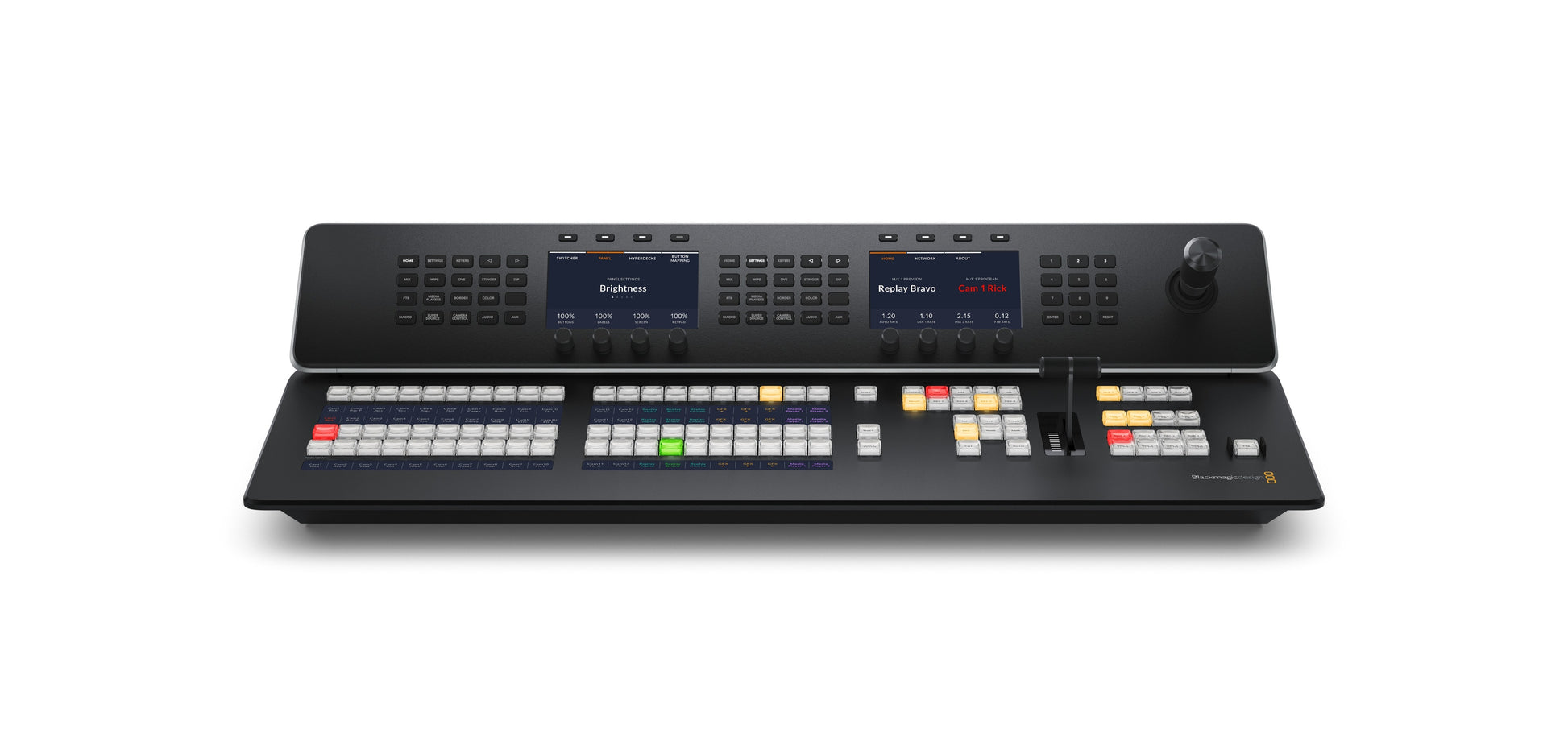

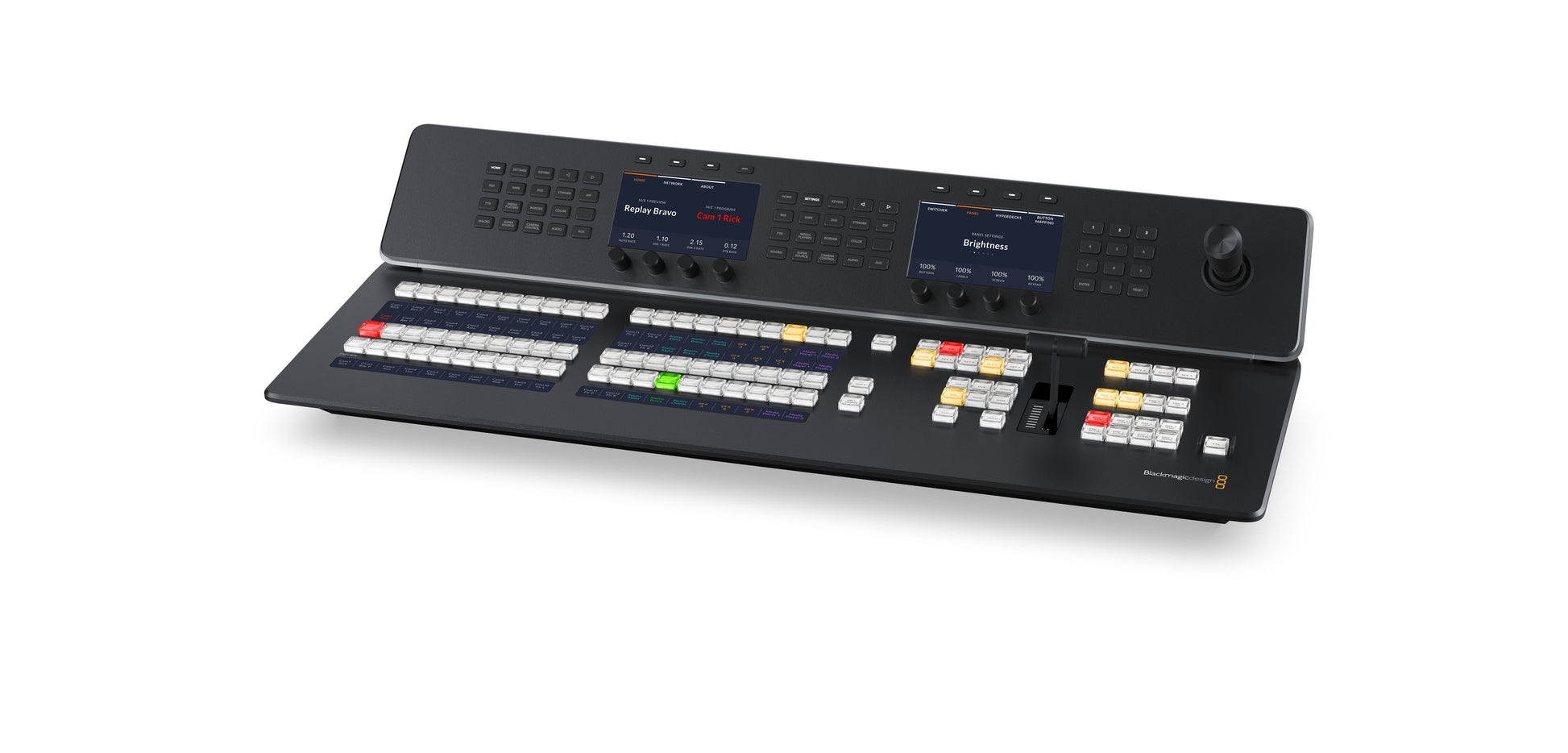

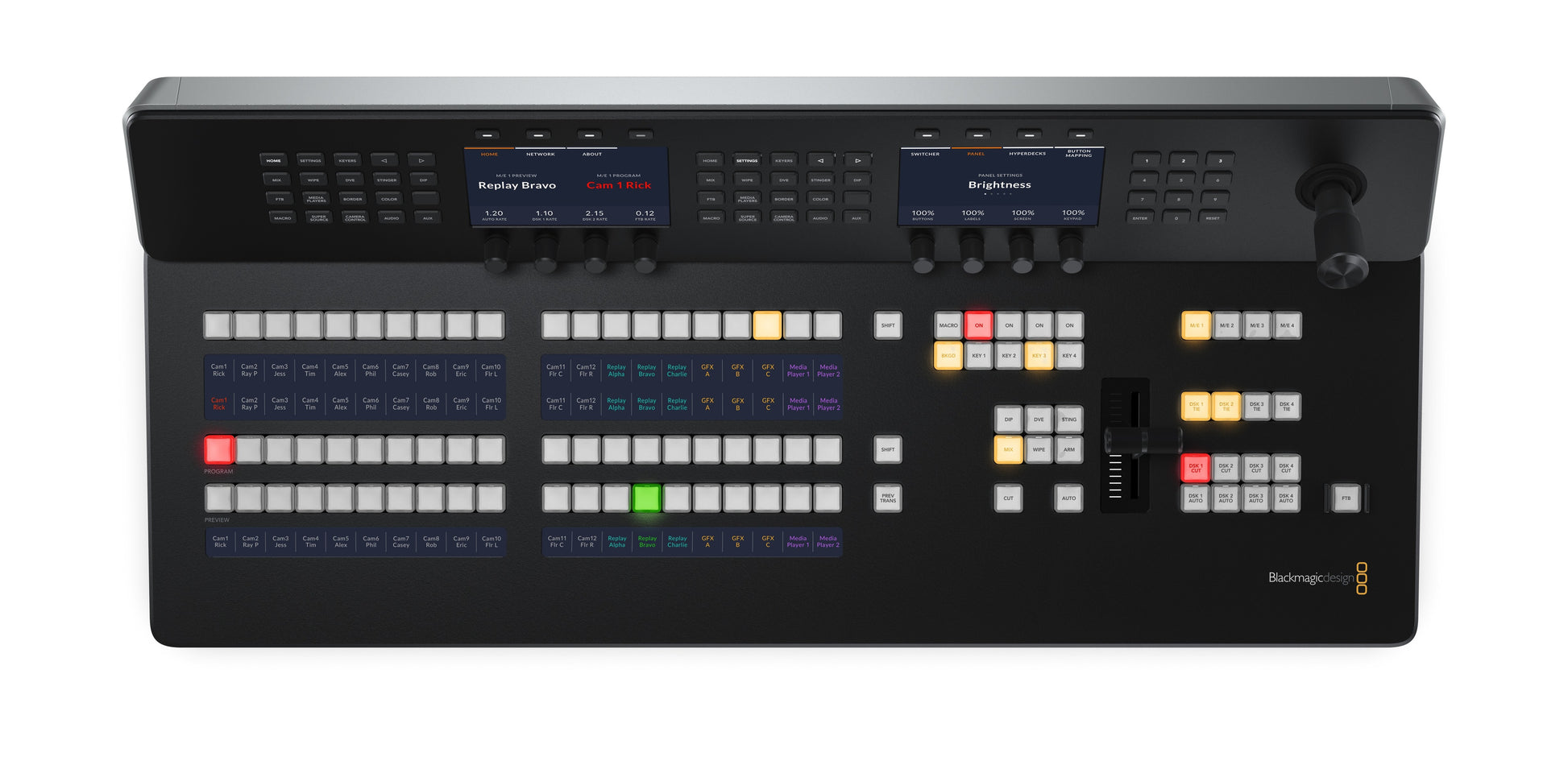

The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!
Official Technical Details
Connections
Ethernet: 4 x 10/100/1000 BASE-T with loop output for additional control panels or computers.
Software Updates: 1 x USB-C for firmware updates.
Product Specifics
Number of Mix Effects Rows: 1
Direct Cross Points: 20
Shifted Cross Points: 40
Crosspoint Button Type: Tri-Color LED
Preview Transition: 1
Transition Rate Displays: Via main menu
LCD Menu Displays: 2
Menu Control: 2 x 20 buttons
Dedicated Macro Buttons: 1 x 20
Transport Control Buttons: 8
Destination Bus: 1
Source Select Bus: 1
Fader Bar: 1
3 Axis Joystick: 1
Numeric Keypad: 1
Software
Software Applications: ATEM Software Control Panel.
Operating Systems
Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows 10 and 11.
Power Requirements
Input Voltage: 2 x Internal 100 - 240V AC.
Redundant Power: Yes
Power Usage: 75W
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
