2 Tx; 1 Rx; 2.4G wireless, 500ft anti-interference, zero latency, 8 hours battery.
Dual Channel Wireless Microphone
Official Features
Dual Channel Wireless Microphone
WAVE500 is a compact size 2.4G wireless microphone with dual channel Transmitters and 1 stereo Receiver, to simultaneously record two sound sources in livestreaming.

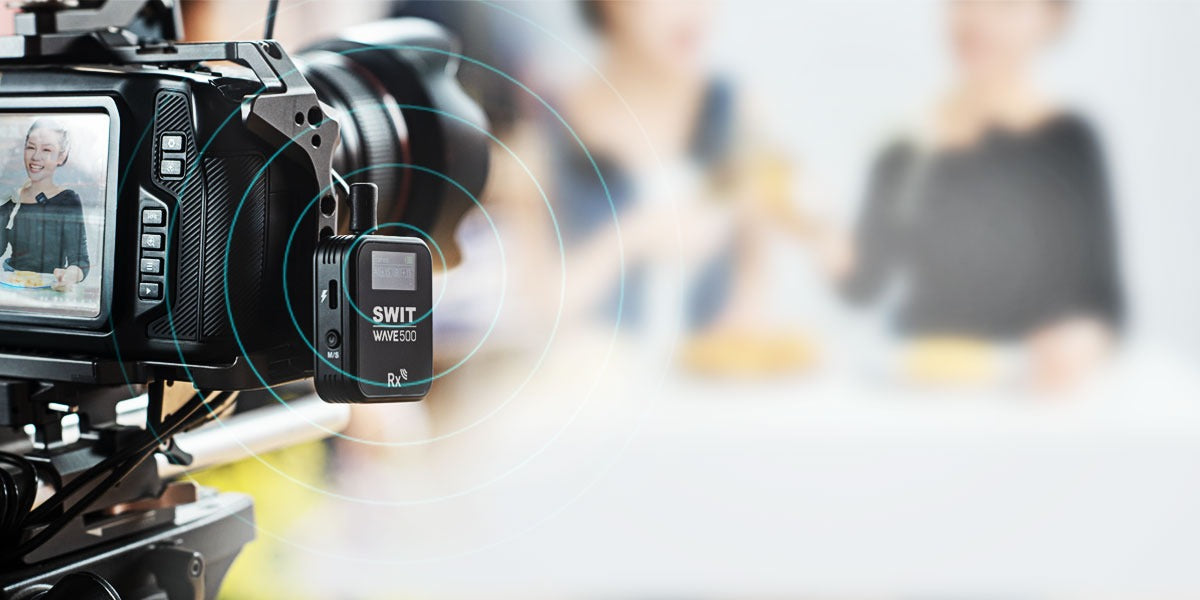

500ft Wireless Receiving
The Receiver could be mounted to cameras by code shoe, output 3.5mm stereo audio of crystal clear broadcast quality to the camera to record with video. The wireless transmits up to 500ft range, zero latency and full synchronization.

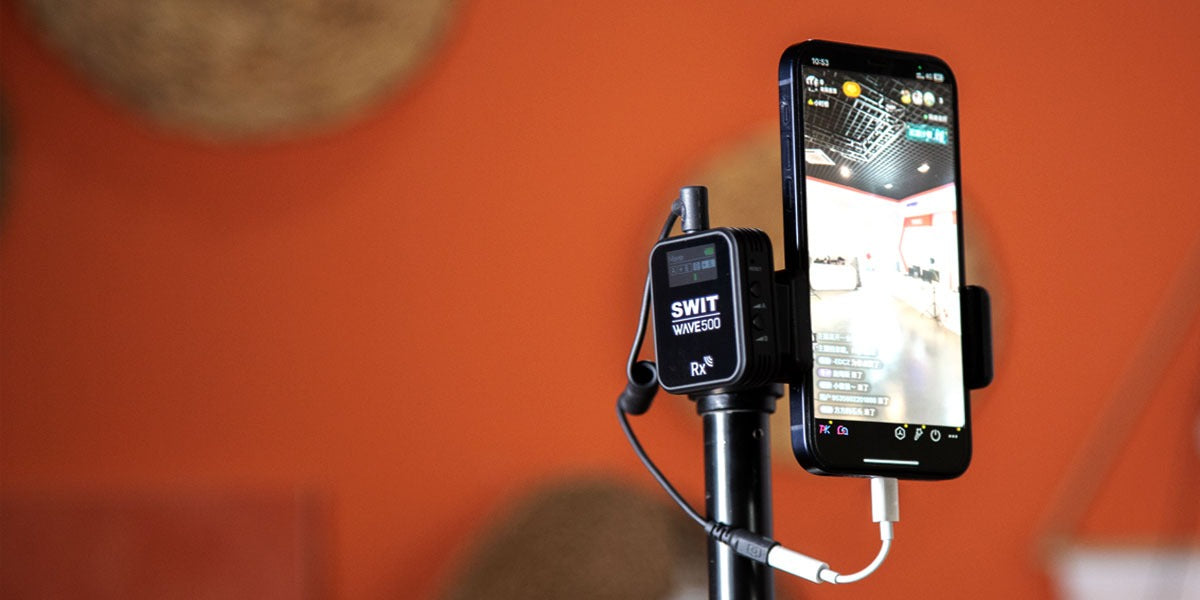

Smart Phone Recording
You can also connect the Receiver 3.5mm audio output to smart phones to make livestreaming. Please use IMF certificated 3.5mm to lightning adaptor, and use 4-section 3.5mm jack to the adaptor, and 3-section 3.5mm jack to the Receiver.

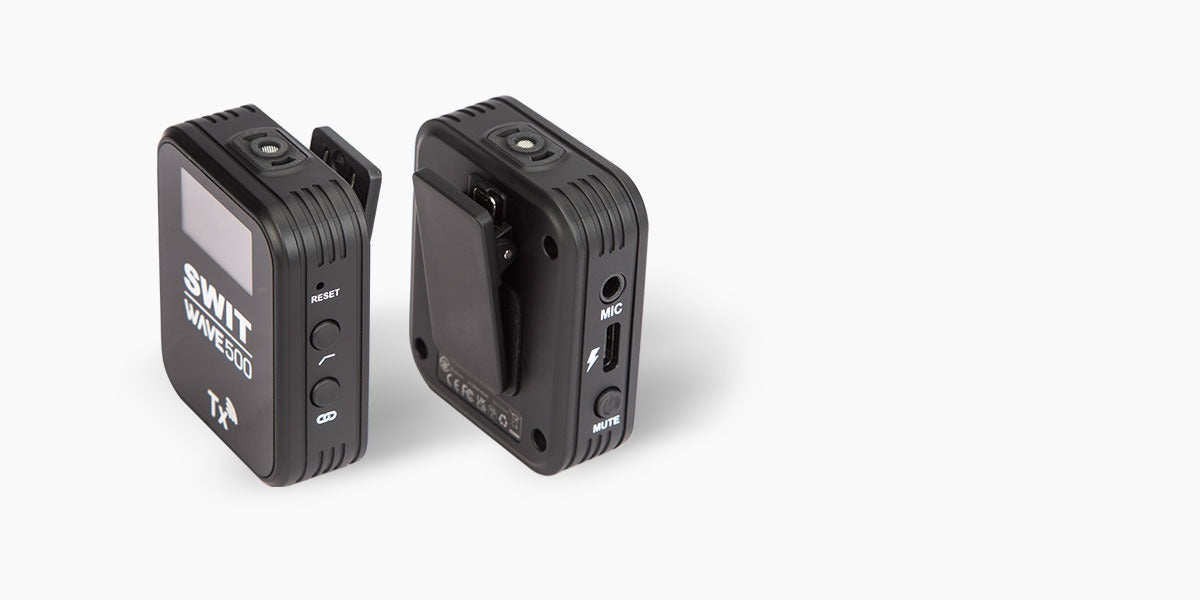

The Transmitter
The Transmitter has a built-in Mic on the top side, and could connect external Mic input. Support one-key mute and one-key low cut function, to filter out ＜180Hz background noise, like air conditioner or computer fans.

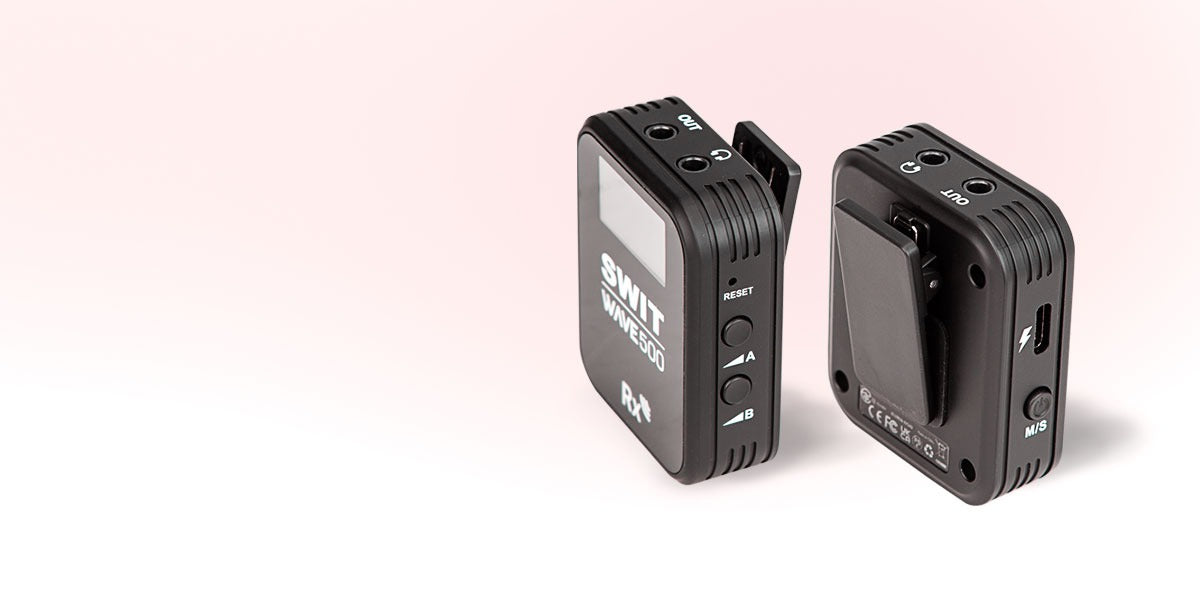

The Receiver
The Receiver has a 3.5mm audio output socket and a 3.5mm headphone monitoring socket on the top side; supports audio Gain adjustment for each channel, and Mono / Stereo switching.

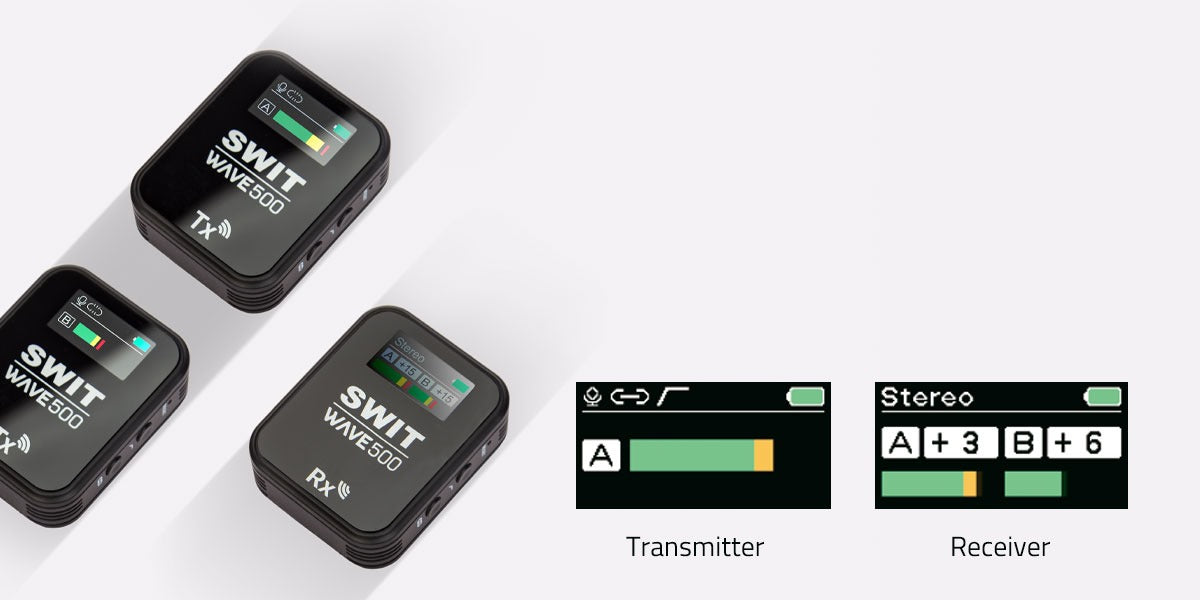

Display Screen on Both Tx and Rx
The Transmitter screen displays channel (A or B), audio meter, mute status, low cut status, and battery status. The Receiver screen displays audio meters and gain value for both 2 transmitter channels, stereo or mono modes, and battery status.

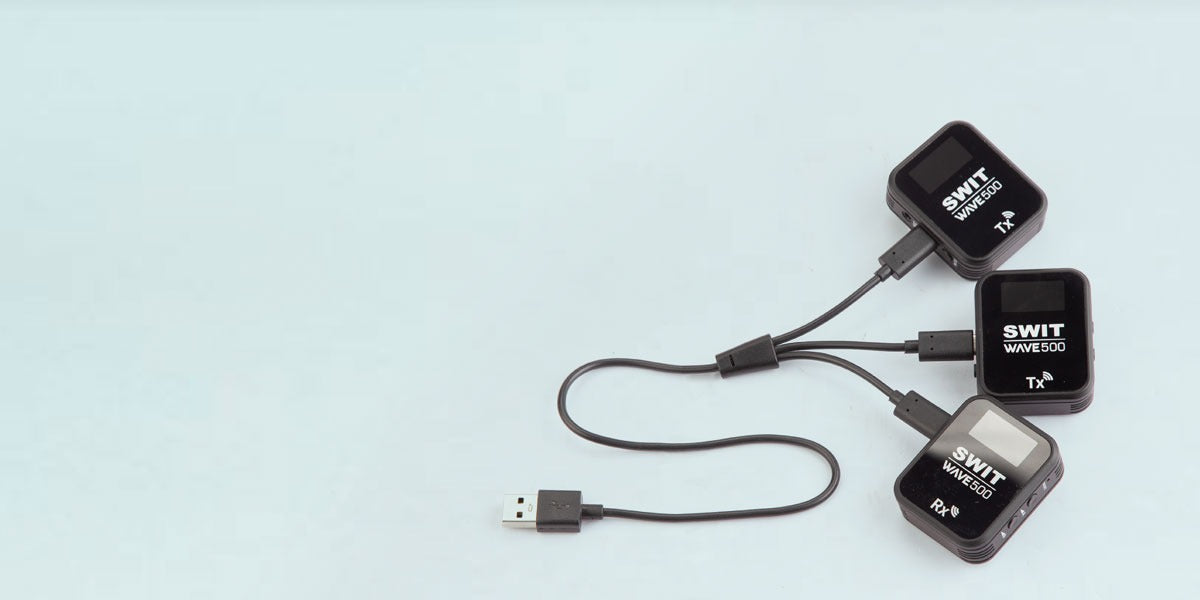

8 hours Battery, 3-in-1 Charging
Both the WAVE500 Tx and Rx have internal battery, could ensure 8 hours continued working. The package provides a 3-in-1 USB-C charging cable to charge 2x Tx and 1x Rx simultaneously. It takes 1 hours to charge to 80%, and 1.5 hours to fully charged.

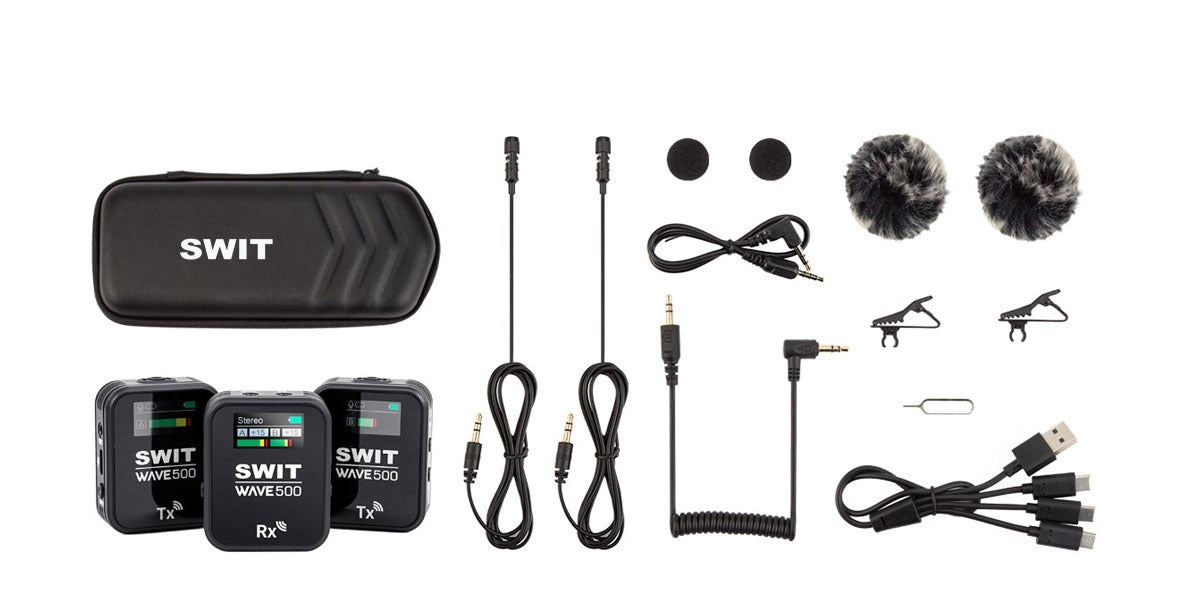

Standard Package
Official Product Data
-
Model SPU: WAVE500
-
Division: Wireless
-
Big Category: Wireless Audio
-
Small Category: Wireless Microphone
-
Weight (kg): 0.35
-
Spec 1: Tx+2Rx
-
Lifecycle: Stopped
Official Specifications
The Transmitter
| Wireless Transmission |
Digital 2.4GHz |
| RF Frequency Band |
2400-2483.5MHz |
| Frequency Response |
20Hz-20KHz |
| Working Distance |
500ft/150m (LOS) |
| Mounting |
Pocket clip and Cold shoe |
| Audio Input |
1/8" / 3.5mm TRS Mic input |
| Audio Input Level |
1V (0dBV) |
| Power Consumption |
3.3V-4.7V |
| Inner Battery |
400mAh, 8 hours run time |
| Charging Port |
USB Type C |
| Charging Time |
1.5 hours |
| Dimensions |
52x42x17mm |
| Weight |
39g |
The Receiver
| Wireless Transmission |
Digital 2.4GHz |
| RF Frequency Band |
2400-2483.5MHz |
| RF Sensitivity |
-81dBm |
| Working Distance |
500ft/150m (LOS) |
| Mounting |
Pocket clip and Cold shoe |
| Audio Channels |
2 channels |
| Audio Output |
1/8" / 3.5mm TRS Mic output 1/8" / 3.5mm TRS Headphone output |
| Gain |
0-5 level |
| Audio Output Level |
Line out: 1V; Headphone out: 25-30mW |
| Power Consumption |
3.3V-4.7V |
| Inner Battery |
400mAh, 8 hours run time |
| Charging Port |
USB Type C |
| Charging Time |
1.5 hours |
| Dimensions |
52x42x17mm |
| Weight |
39g |
Microphone
| Form Factor |
Built-in / External Mic |
| Sound Field |
Mono |
| Polar Pattern |
Omnidirectional |
| Frequency Range |
50Hz-20KHz |
| Sensitivity |
-40dB (±3dB, re 1V/Pa at 1KHz) |
| Maximum SPL |
135dB SPL (at 1KHz) |
