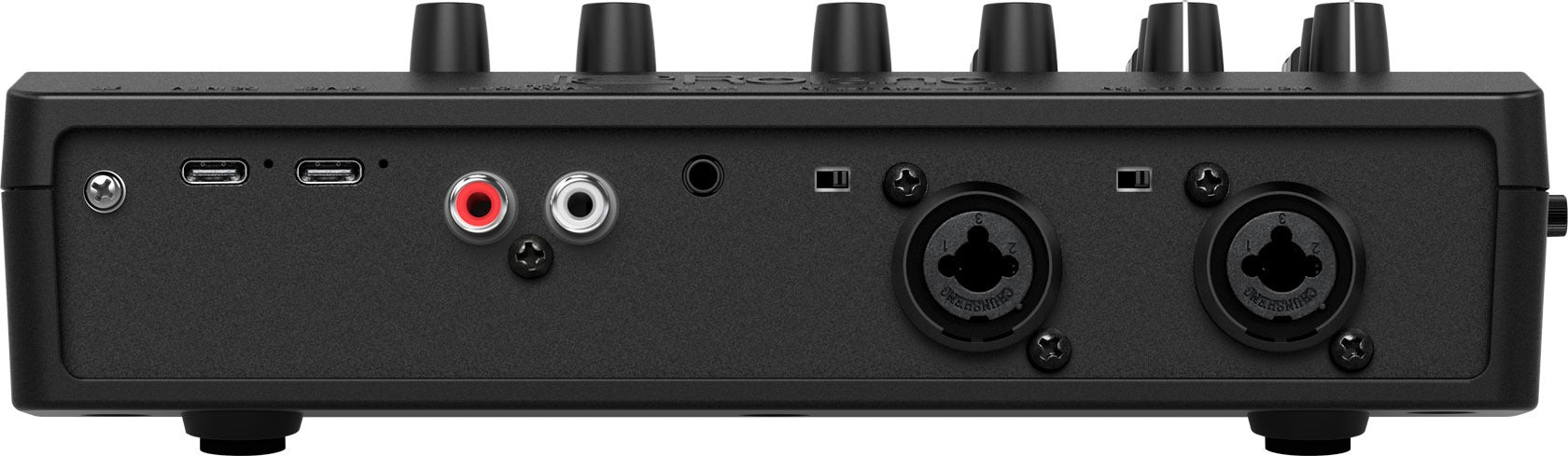

| Connectors |
MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type

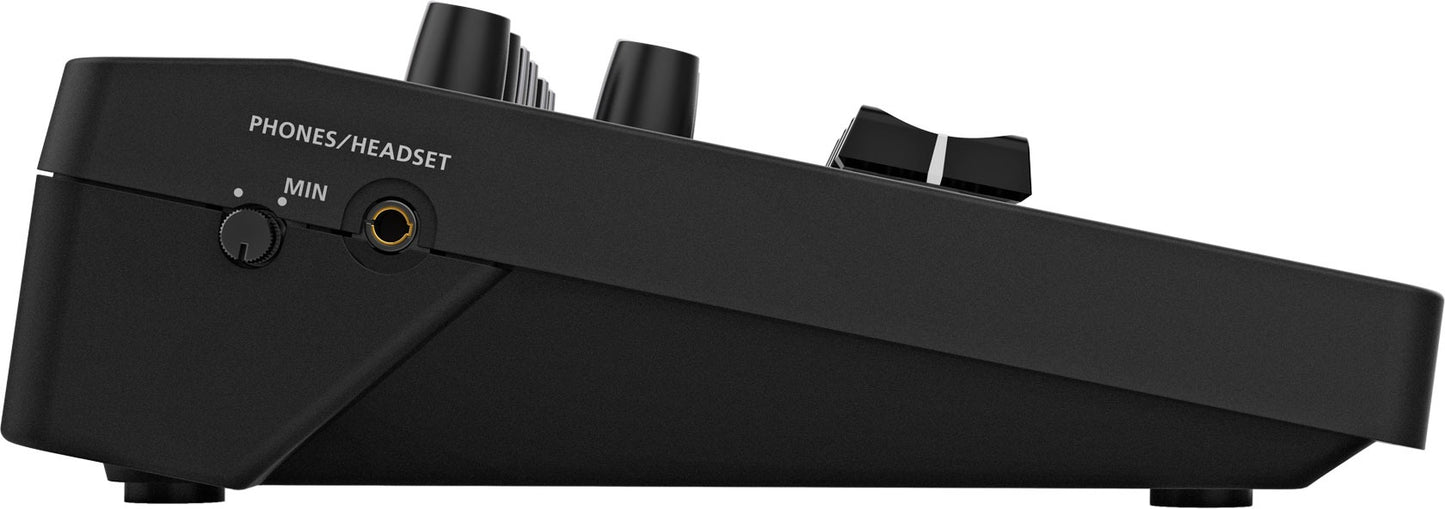

PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type)
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R) |

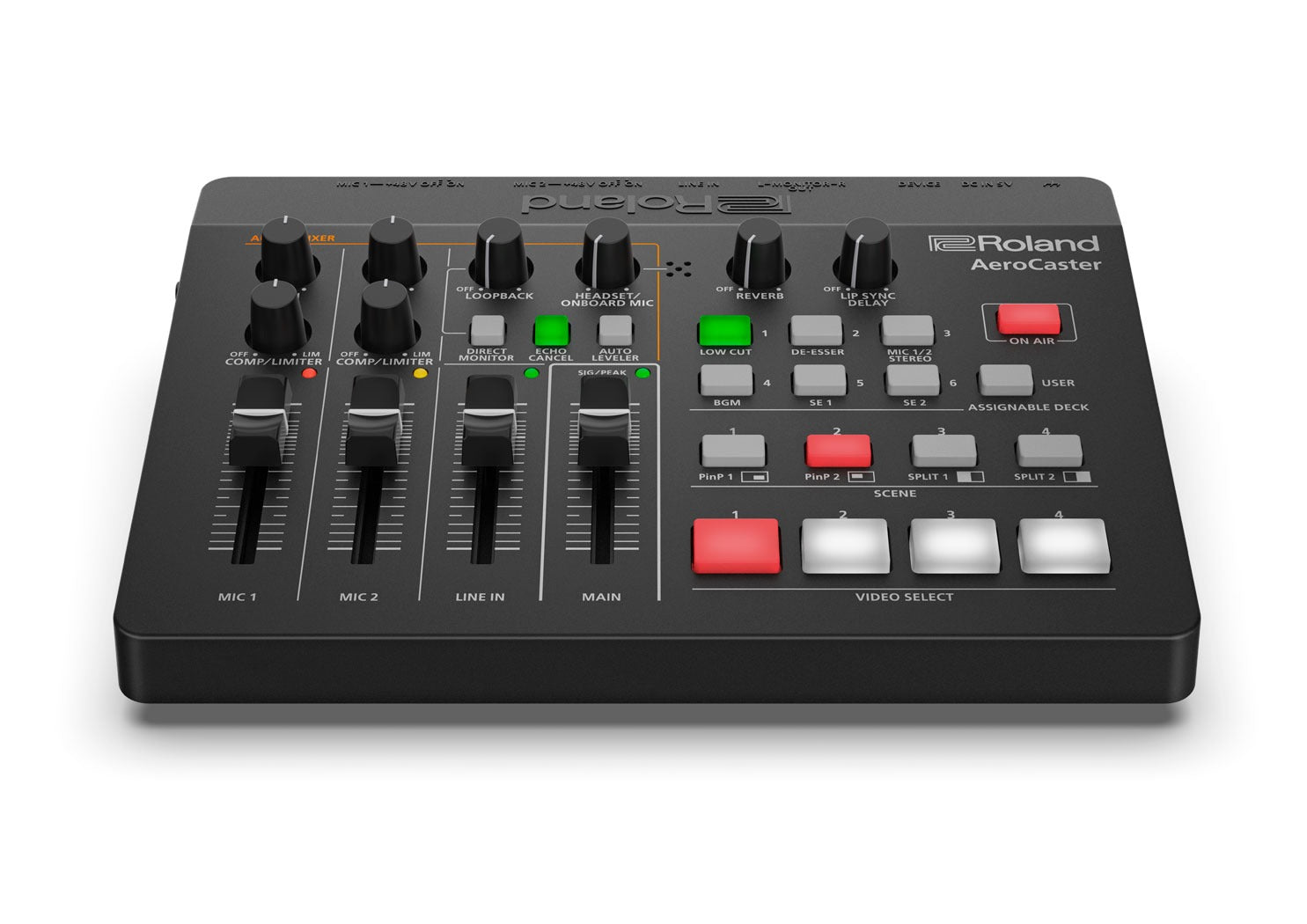

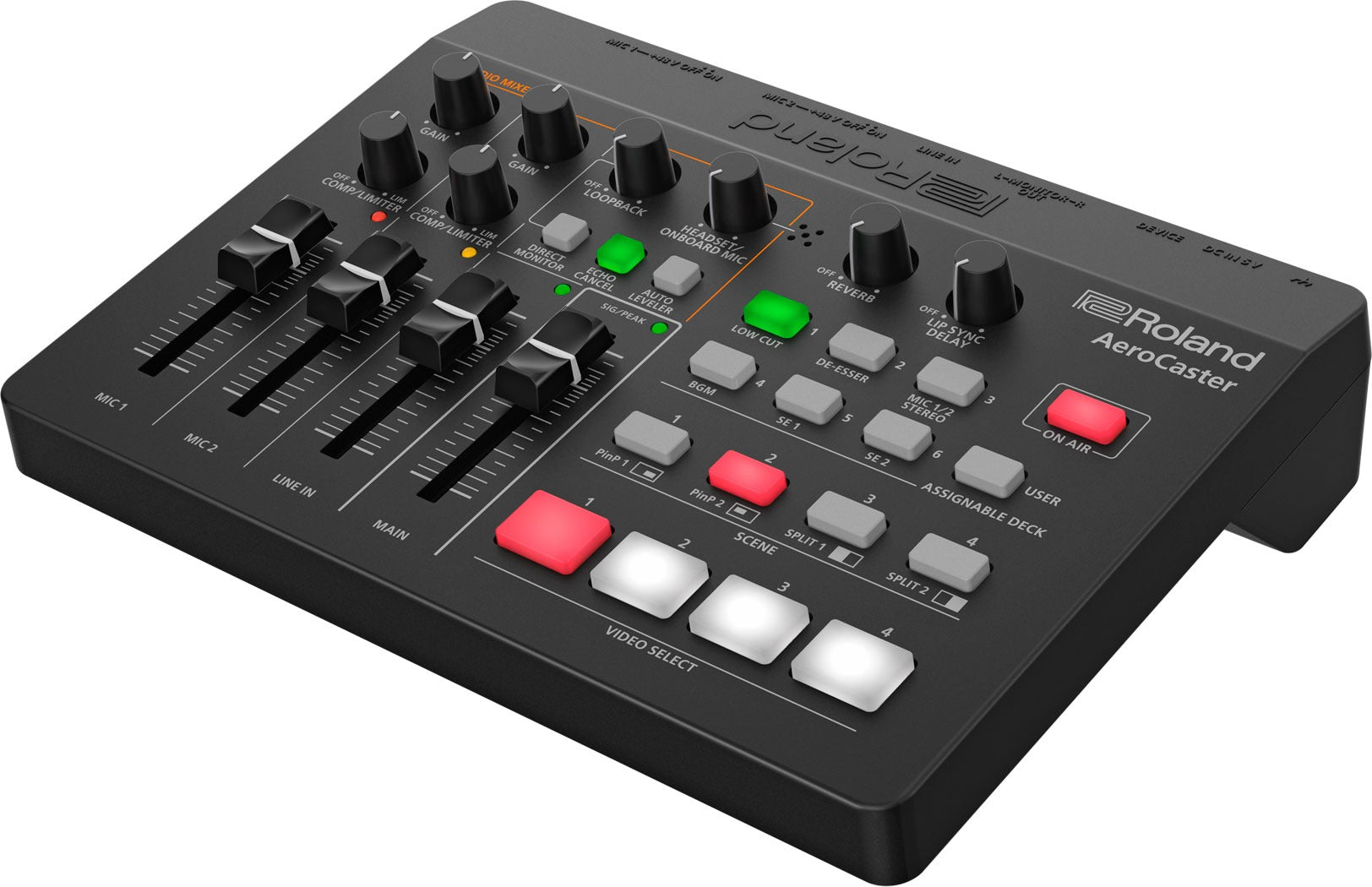

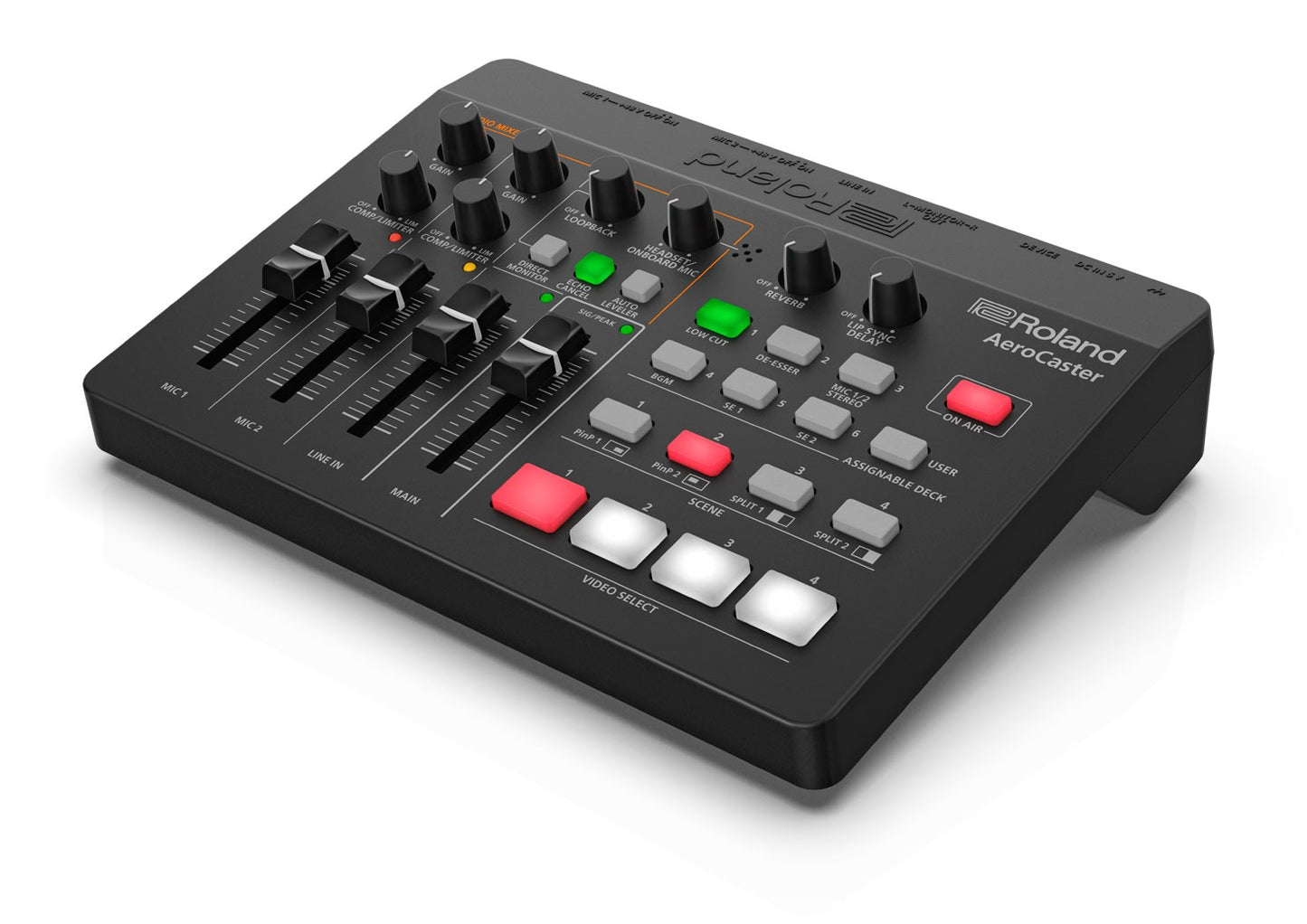

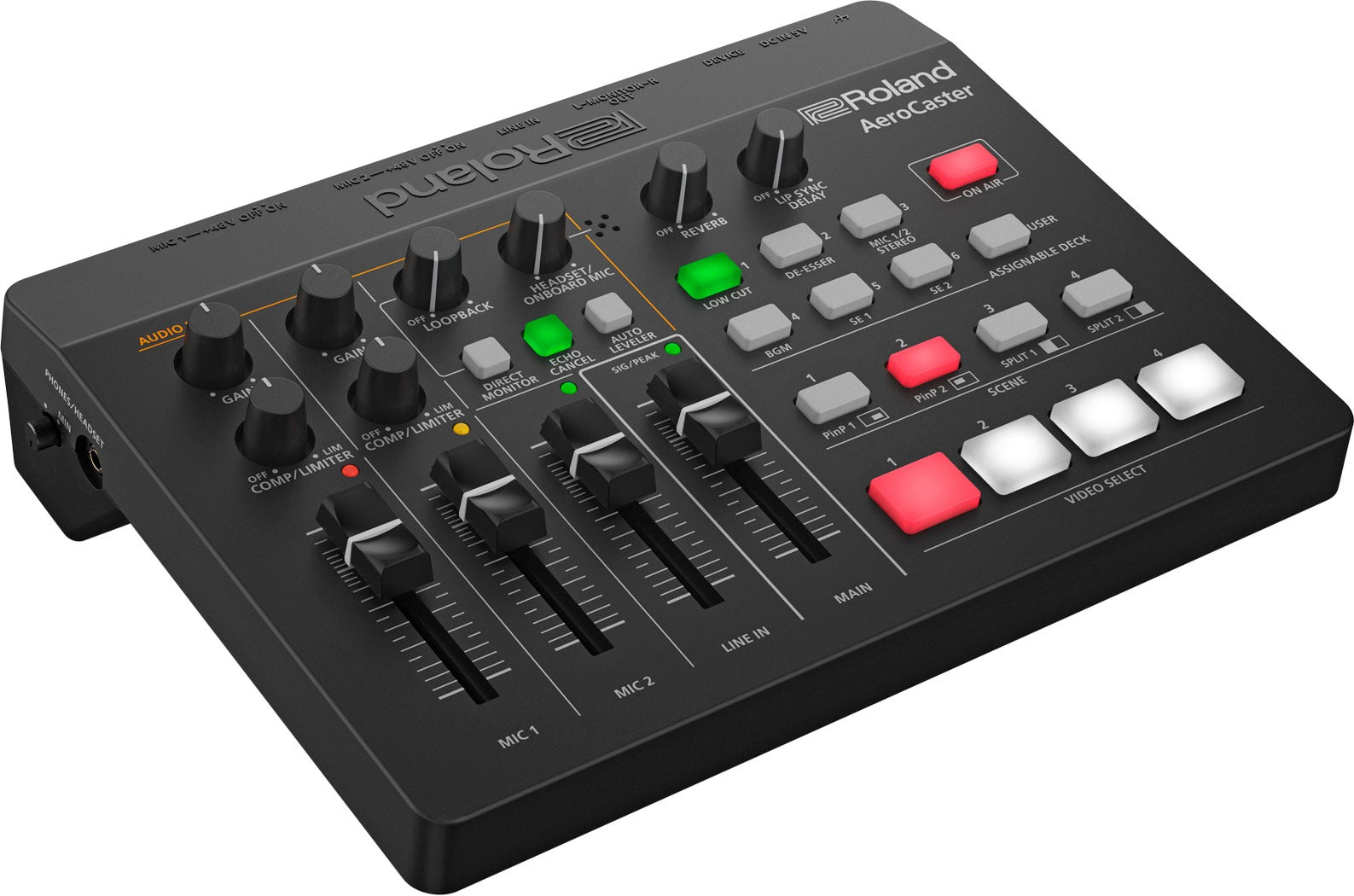

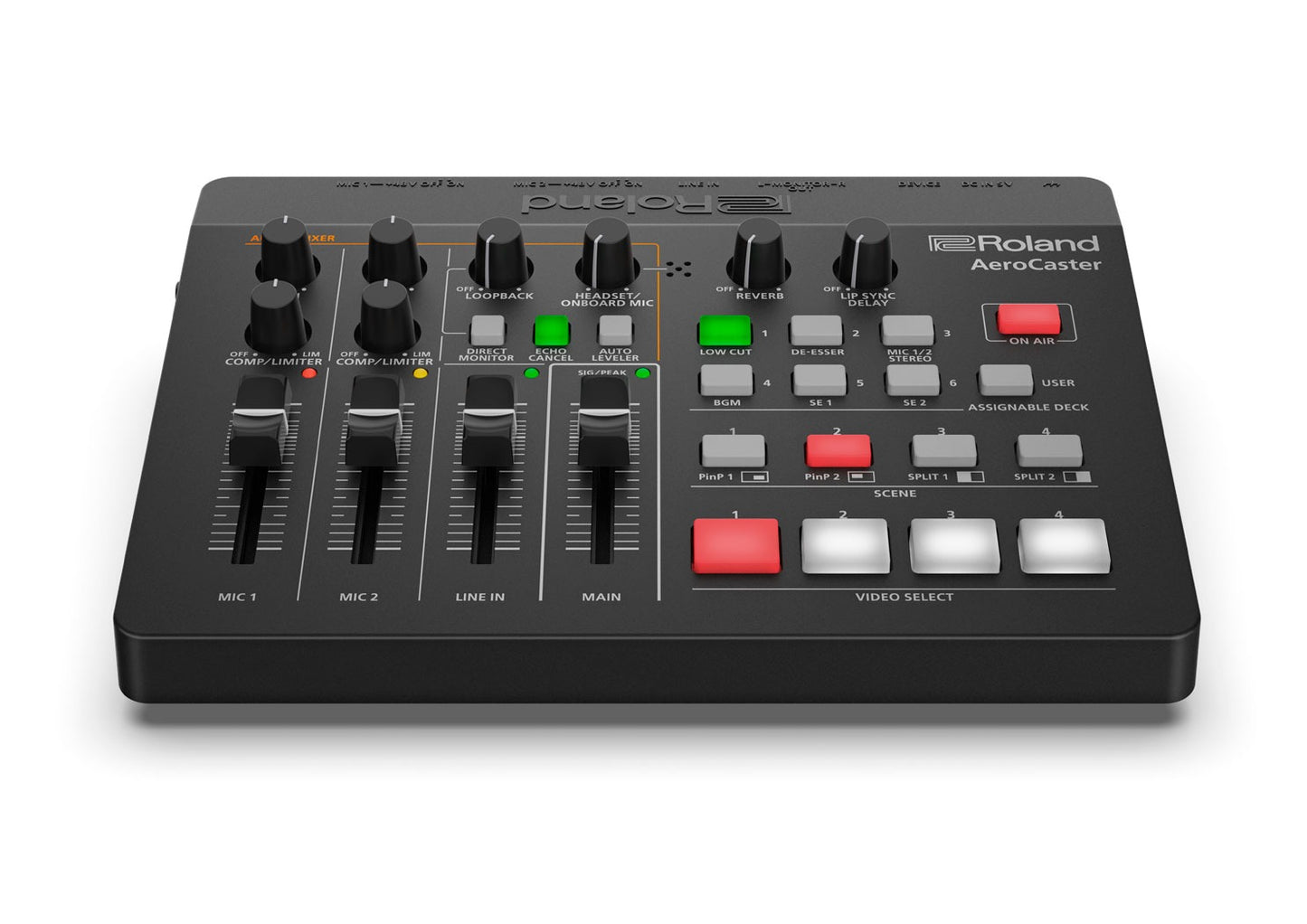

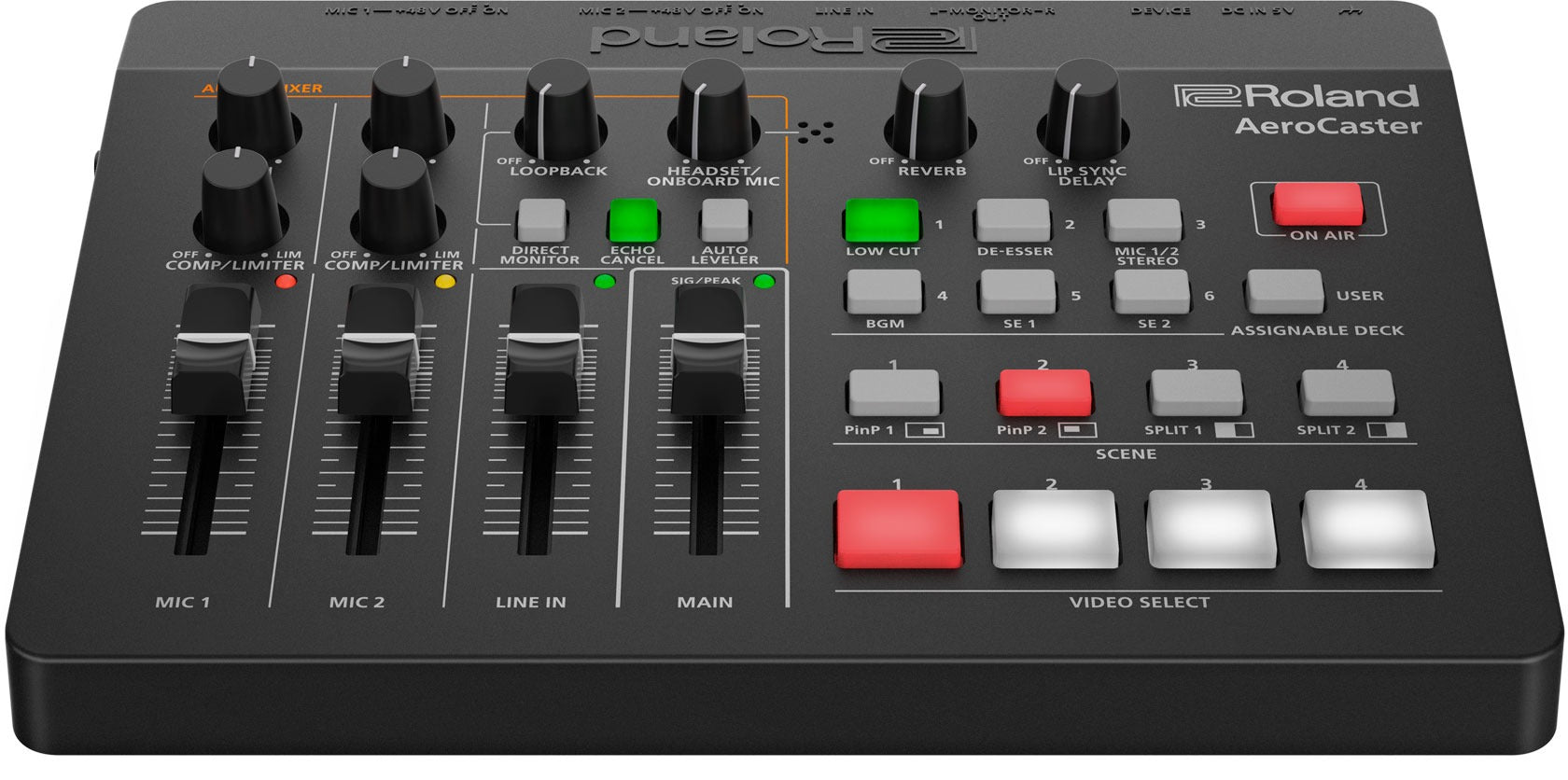

| Controller |
MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob
MIC 1 +48V switch
MIC 2 +48V switch |
| Indicator |
POWER
DEVICE
SIG/PEAK |
| Nominal Input Level |
MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu) |
| Input Impedance |
MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms |
| Nominal Output Level |
MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load) |
| Output Impedance |
MONITOR OUT jacks: 1 k ohms |
| Audio Effects |
Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter |
| Power Supply |
USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power |
| Current Draw |
700 mA (AC adaptor)
500 mA (USB bus power) |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |

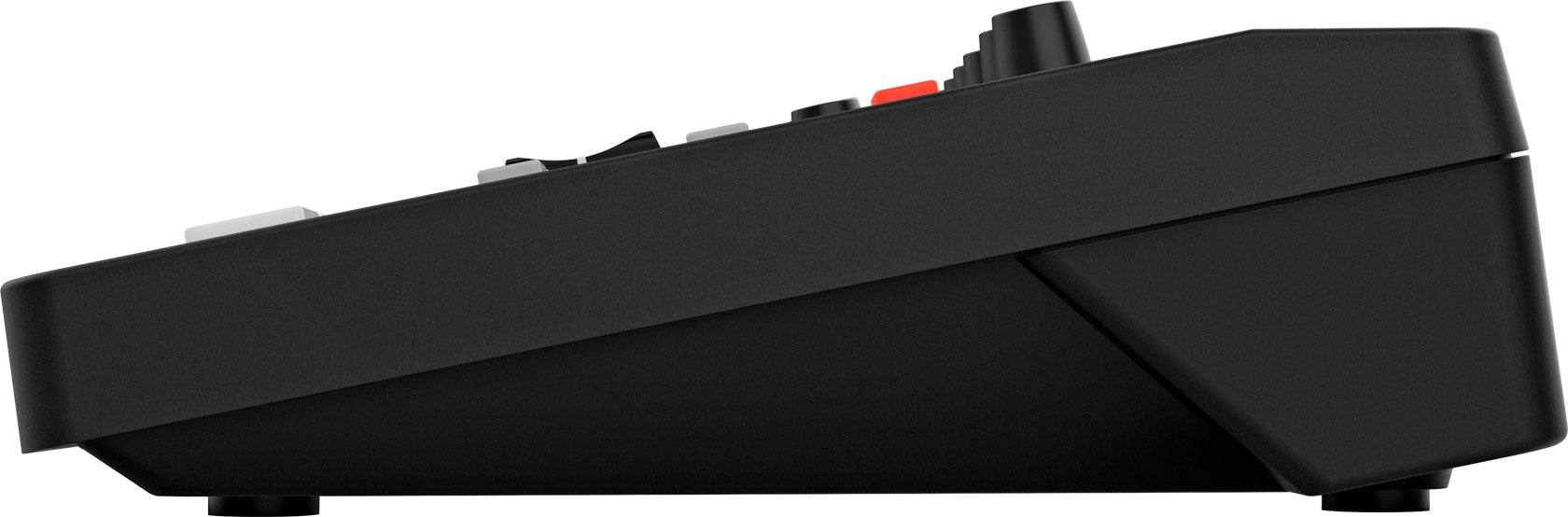

| Dimensions |
220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches |
| Weight (without cables) |
600 g
1 lb 6 oz |
| Accessories |
Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable |
|
* 0 dBu = 0.775 Vrms |
| Video Input |
Satellite camera
Browser source
Built-in camera (iPad).
* 5 inputs in total
* Satellite cameras can be used with Roland Satellite Camera or Web browser.
* Need to install the "Roland Satellite Camera" App on your iPhone and Android Phone.
* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.
* Codec:H.264 Bitrate:Up to 20Mbps |
| Video Processing |
RGB 4:4:4, 8-bit
1080/60p
* Depends on iPad internal processing
* Video input will be converted automatically. |
| Input Formats |
Up to 1080/30p
* Automatically adjusts resolution and frame rate according to network bandwidth. |
| Output Formats |
Up to 1080/60p
* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter. |
| Still image and video and audio playback |
Up to 100.
* Use still images and videos saved in the iPad.
* File format conforms to iOS Photo Library.
* PNG alpha channel supported.
* Support mp4(aac), m4a(aac), mp3, wav as audio source. |
| Scene |
Up to 30.
* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered. |
| Video Effects |
Transition: CUT, MIX (DISSOLVE), WIPE
DSK (overlay): Text, Media
Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function
* PNG alpha channel composition supported |
| Audio Processing |
Sampling Rate: 24 bits, 48 kHz |
| Streaming Platform |
YouTube Live
Facebook Live
Twitch
* Custom RTMP supported |
| Recording |
Format : MP4 (H.264/AAC)
Bitrate : 1Mbps〜10Mbps |
| Other Functions |
(Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)
* Depends on smart phone or tablet |
| AeroCaster LIVE (for iPad) |
Operating System:
iOS 16 or later
CPU:
Apple A12 processor or better (A12Z or better is recommended) |
| Roland Satellite Camera (for iPhone, iPad) |
Operating System:
iOS 13 or later
CPU:
Apple A10 processor or better (iPhone 7 or higher recommended) |
| Roland Satellite Camera (for Android) |
Operating System:
Android 13 or later
CPU:
Models with H.264 hardware encoder
Others:
Screen resolution 1280x720 or higher
Equipped with two or more cameras in front and rear |
