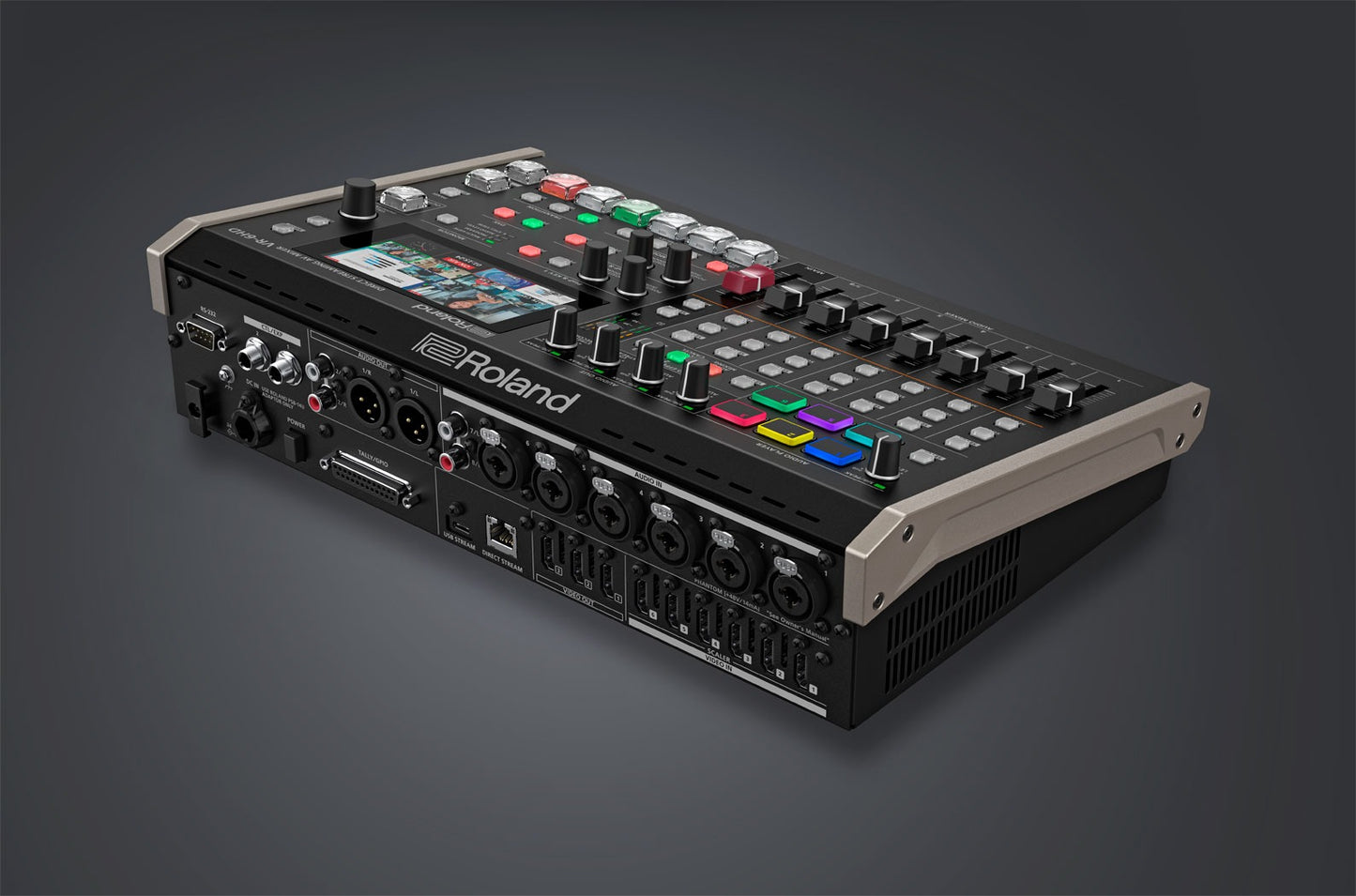

VR-6HD Direct Streaming AV Mixer

Name: VR-6HD Direct Streaming AV Mixer
Brand: Roland ProAV
SKU: VR-6HD
Price: 3332.5 EUR
Availability: InStock

€3.332,50 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

VR-6HD: Direct Streaming AV Mixer - Portable All-in-One Hub for Business Livestreaming

High-Quality Presentations Made Easy

The powerful video capabilities in the VR-6HD make it simple to bring professional production values to business streaming productions. Connect multiple cameras and computers via HDMI for different views, and incorporate robotic PTZ cameras to change angles at the touch of a button. Quickly assign and switch among sources on the fly, including live HDMI inputs, presentation decks, still images, and video clips. You can also create custom feeds for live and online viewers by assigning composition layers to multiple buses.

Multiple HDMI Inputs

The VR-6HD supports HDMI—the most common video connector in the world—and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

Integrated Playback of Stills and Video Clips

Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.

Layers and Keyers

Video effects and graphics are must-haves to bring polish and excitement to productions. The VR-6HD’s newly updated chroma key engine features upgraded keyer algorithms and five layers that can be assigned to the Program, Sub-Program, and Aux outs, so you’ll always keep audiences engaged. With up to two picture-in-picture windows and one downstream key layer with transparent PNG and external key support, you can manage any creative need. For example: Layers 1-2 —Start with mixable live background video layers. Layers 3-4 —Place two picture-in-picture layers or chroma/luminance key effects. Layer 5 —Add a downstream keyer with support for fill and key inputs.

Professional Graphics Made Easy

The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the VR-6HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.

Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

Assignable Video Outputs

The VR-6HD puts a high-end video matrix at your fingers with three HDMI outputs, a USB-C streaming output, and an ethernet streaming output. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audiences at once, complete with a clean output left over for recording the presentation to an SDXC card.

Technical Specifications

Video Processing	4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels	6 channels
Video Input Formats	VIDEO IN 1--6 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p 1080/23.98p, 1080/24p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz. * VIDEO IN 6 support Roland FILL+KEY signal
Video Output Formats	VIDEO OUT 1--3: 720/59.94p 1, 4, 720/60p 1, 5, 720/50p 1, 8, 1080/59.94i 2, 4, 1080/60i 2, 5, 1080/50i 2, 8, 1080/59.94p 3, 4, 1080/60p 3, 5, 1080/29.97p 3, 6, 1080/30p 3, 7, 1080/50p 3, 8, 1080/25p 3, 9 1080/23.98p 3, 10, 1080/24p 3, 11 1 Output Format = 720p 2 Output Format = 1080i 3 Output Format = 1080p 4 Frame Rate = 59.94 Hz 5 Frame Rate = 60 Hz 6 Frame Rate = 29.97 Hz 7 Frame Rate = 30 Hz 8 Frame Rate = 50 Hz 9 Frame Rate = 25 Hz 10 Frame Rate = 23.98 Hz 11 Frame Rate = 24 Hz USB STREAM: 1080/59.94p, 720/59.94p, 640 x 480/59.94p 1 1080/60p, 720/60p, 640 x 480/60p 2 1080/29.97p, 720/29.97p, 640 x 480/29.97p 3 1080/30p, 720/30p, 640 x 480/30p 4 1080/50p, 720/50p, 640 x 480/50p 5 1080/25p, 720/25p､640 x 480/25p 6 1080/23.98p, 720/23.98p､640 x 480/23.98p 7 1080/24p, 720/24p､640 x 480/24p 8 To output in 1080p, the system format need to be set to 1080p. * When connected with USB 2.0, the resolution will be 640x480. * Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported. 1 Frame Rate(USB Out) = 59.94 Hz 2 Frame Rate(USB Out) = 60 Hz 3 Frame Rate(USB Out) = 29.97 Hz 4 Frame Rate(USB Out) = 30 Hz 5 Frame Rate(USB Out) = 50 Hz 6 Frame Rate(USB Out) = 25 Hz 7 Frame Rate(USB Out) = 23.98 Hz 8 Frame Rate(USB Out) = 24 Hz DIRECT STREAM: 1080/59.94p､720/59.94p 1 1080/60p､720/60p 2 1080/29.97p､720/29.97p 3 1080/30p､720/30p 4 1080/50p､720/50p 5 1080/25p､720/25p 6 1080/23.98p､720/23.98p 7 1080/24p､720/24p 8 * To output in 1080p, the system format need to be set to 1080p. 1 Frame Rate(Stream/Record) = 59.94 Hz 2 Frame Rate(Stream/Record) = 60 Hz 3 Frame Rate(Stream/Record) = 29.97 Hz 4 Frame Rate(Stream/Record) = 30 Hz 5 Frame Rate(Stream/Record) = 50 Hz 6 Frame Rate(Stream/Record) = 25 Hz 7 Frame Rate(Stream/Record) = 23.98 Hz 8 Frame Rate(Stream/Record) = 24 Hz
Stream & Record	Audio Video Protocols: RTMP, RTMPS, SRT (Caller, Listener) Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT) Recording File Format: MP4 Codec: H.264, target bitrate up to 20,000 kbps AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 256 kbps * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously. * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously. Audio Recording File Format: WAV Codec: Linear PCM, 16 bits, 48 kHz, stereo
Video Player/SRT In	Video Player File Format: MP4 Codec: H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo SRT In Protocol: SRT (Caller, Listener) Container: MPEG2-TS Codec: H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously. * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Still Image:	Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color * It can be stored up to 16 files in the internal memory. * It can be exported in the SD Card and USB flash drive. * PNG alpha channel supported.
Video Effects	Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types) Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode Others: Multi-View (2 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
Audio Processing	Sample rate: 24 bits, 48 kHz
Number of Audio Channels	28 channels
Audio Formats	USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch VIDEO IN: Linear PCM, 24 bits, 48 kHz, 2 ch VIDEO OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
Audio Player	File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo) * It can be stored up to 16 tracks in the internal memory.
Audio Effects	Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-Esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay Others: Output fade, Test tone output
Recording Media	SDHC/SDXC card (commercially available) USB flash drive (commercially available) * SDXC card is required for video recording.
Other Functions	Scene Memory (32 types) Macro Control (100 types) Sequencer Control (1000 types) Panel lock function EDID Emulator Auto Switching Auto Input Detect Smart Tally Remote Camera Control (Up to 6 units) External Rec Control Menu language (English, Japanese, Simplified Chinese)
Video Input Connectors	VIDEO IN 1--6: HDMI type A x 6 * HDCP Supported * Multi-format Supported
Video Output Connectors	VIDEO OUT 1--3: HDMI type A x 3 * HDCP Supported USB STREAM: USB Type-C (R)
Audio Input Connectors	Analog: AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load) AUDIO IN 7/L, 8/R: RCA phono type Digital: USB STREAM: USB Type-C (R) Bluetooth VIDEO IN 1--6: HDMI type A x 6
Audio Output Connectors	Analog: AUDIO OUT 1/L, 2/R: XLR type AUDIO OUT 3/L, 4/R: RCA phono type PHONES: Stereo miniature phone type Digital: USB STREAM: USB Type-C (R) VIDEO OUT 1--3: HDMI type A x 3
Other Connectors	USB HOST: USB A (for USB flash drive, for remote control from USB numeric keypad) USB STREAM: USB Type-C (R) (for remote control from PC and iPad) Bluetooth: for remote control from iPad CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal) TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8) RS-232: DB-9 type (Male) (for Remote Control) DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control)
Input Level	AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu) AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu)
Input Impedance	AUDIO IN 1--6: 8.4 k ohms AUDIO IN 7/L, 8/R: 10 k ohms
Output Level	AUDIO OUT 1/L, 2/R (XLR): +4 dBu (Maximum: +24 dBu) AUDIO OUT 3/L, 4/R (RCA): -10 dBu (Maximum: +10 dBu) PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance	AUDIO OUT 1/L, 2/R (XLR): 600 ohms AUDIO OUT 3/L, 4/R (RCA): 1 k ohm PHONES: 33 ohms
Bluetooth	Ver 5.0 Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy) Codec: SBC (Support to the content protection of the SCMS-T method)
Display	Graphic Type, 4.3", Wide QVGA (480 x 272 dots), backlite LCD (Color/Touch screen)
Power Supply	AC adaptor
Current Draw	2.3 A
Power Consumption	55 W * Power consumption when in OFF mode (when the power automatically turns off): 0.3 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	370 (W) x 242 (D) x 100 (H) mm 14-5/8 (W) x 9-9/16 (D) x 3-15/16 (H) inches
Weight (excluding AC adaptor)	3.4 kg 7 lbs 8 oz
Accessories	Startup Guide Leaflet "USING THE UNIT SAFELY" AC adaptor Power cord
Options (sold separately)	Footswitch: BOSS FS-5U, FS-6, FS-7 Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
