Roland ProAV

VR-400UHD 4K Streaming AV Mixer

Name: VR-400UHD 4K Streaming AV Mixer
Brand: Roland ProAV
SKU: VR-400UHD
Price: 8708.33 EUR
Availability: InStock

€8.708,33 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

VR-400UHD: 4K Streaming AV Mixer - Intuitive 4K Workflow with Dual Touchscreens

Ultra-Smooth Workflow

With its dual touchscreens, smart panel design, and professional features, the VR-400UHD enables anyone to deliver flawless hybrid presentations with top production values.

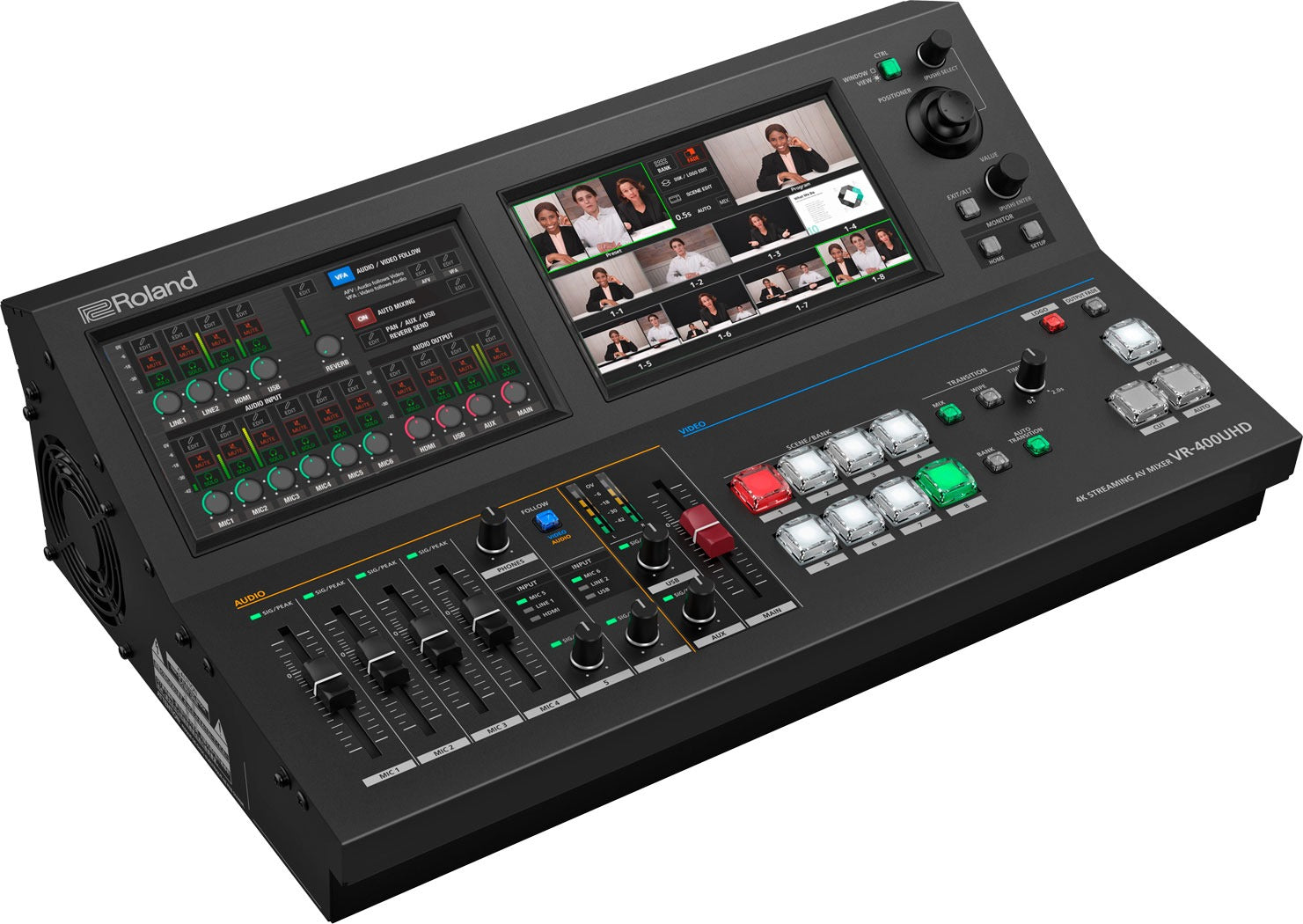

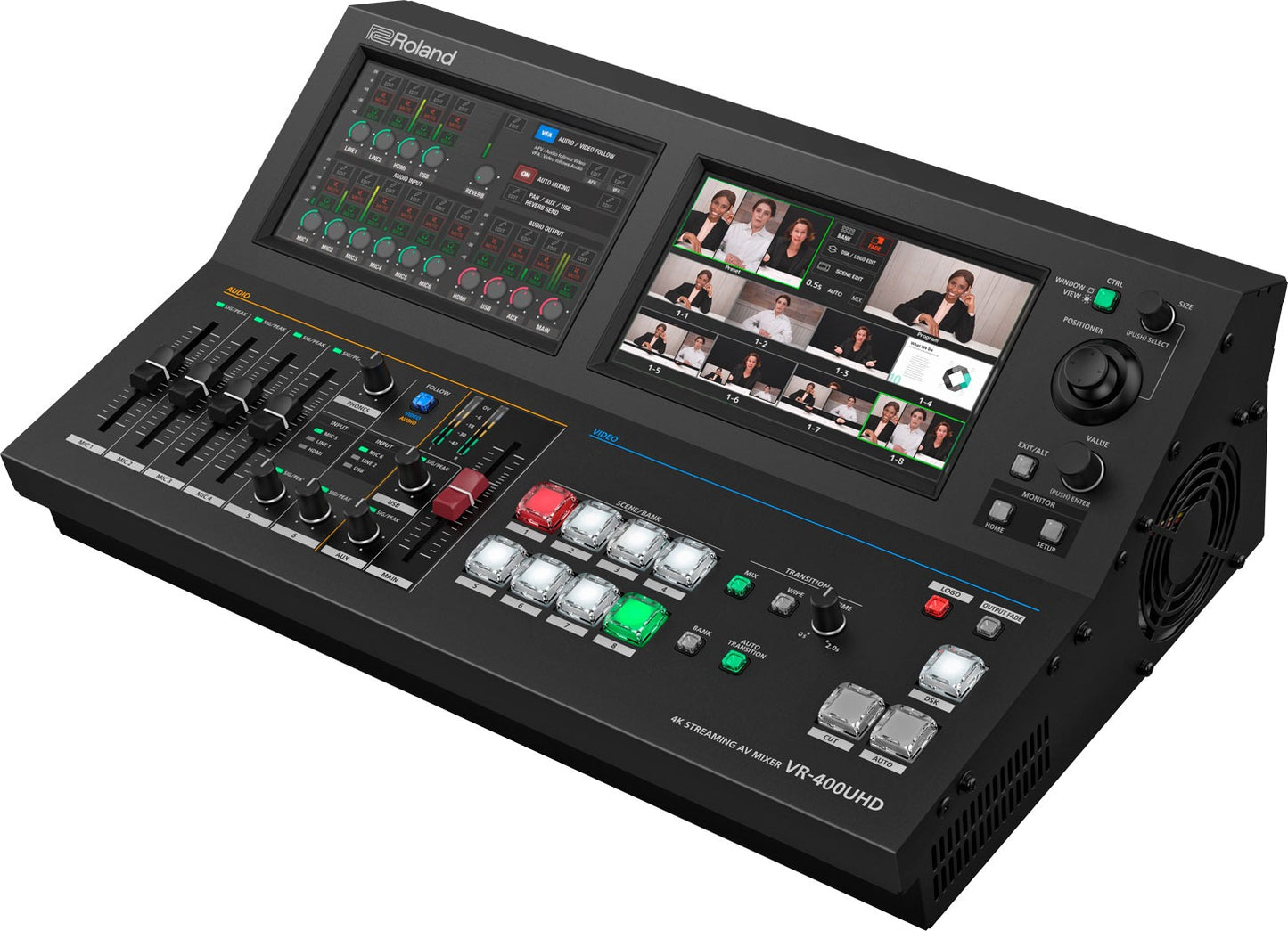

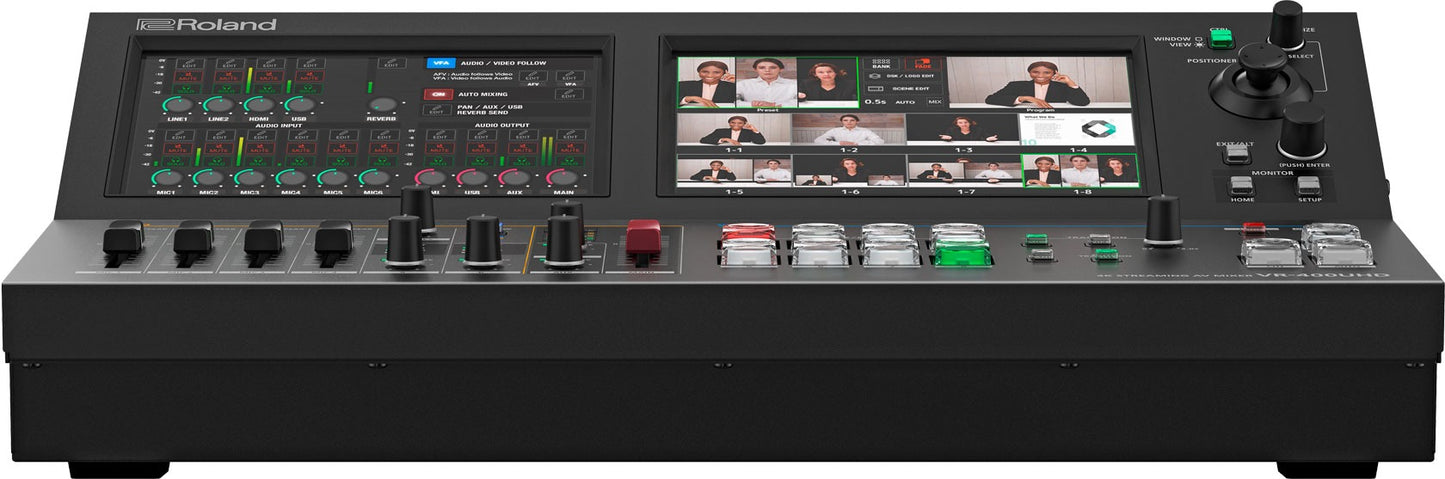

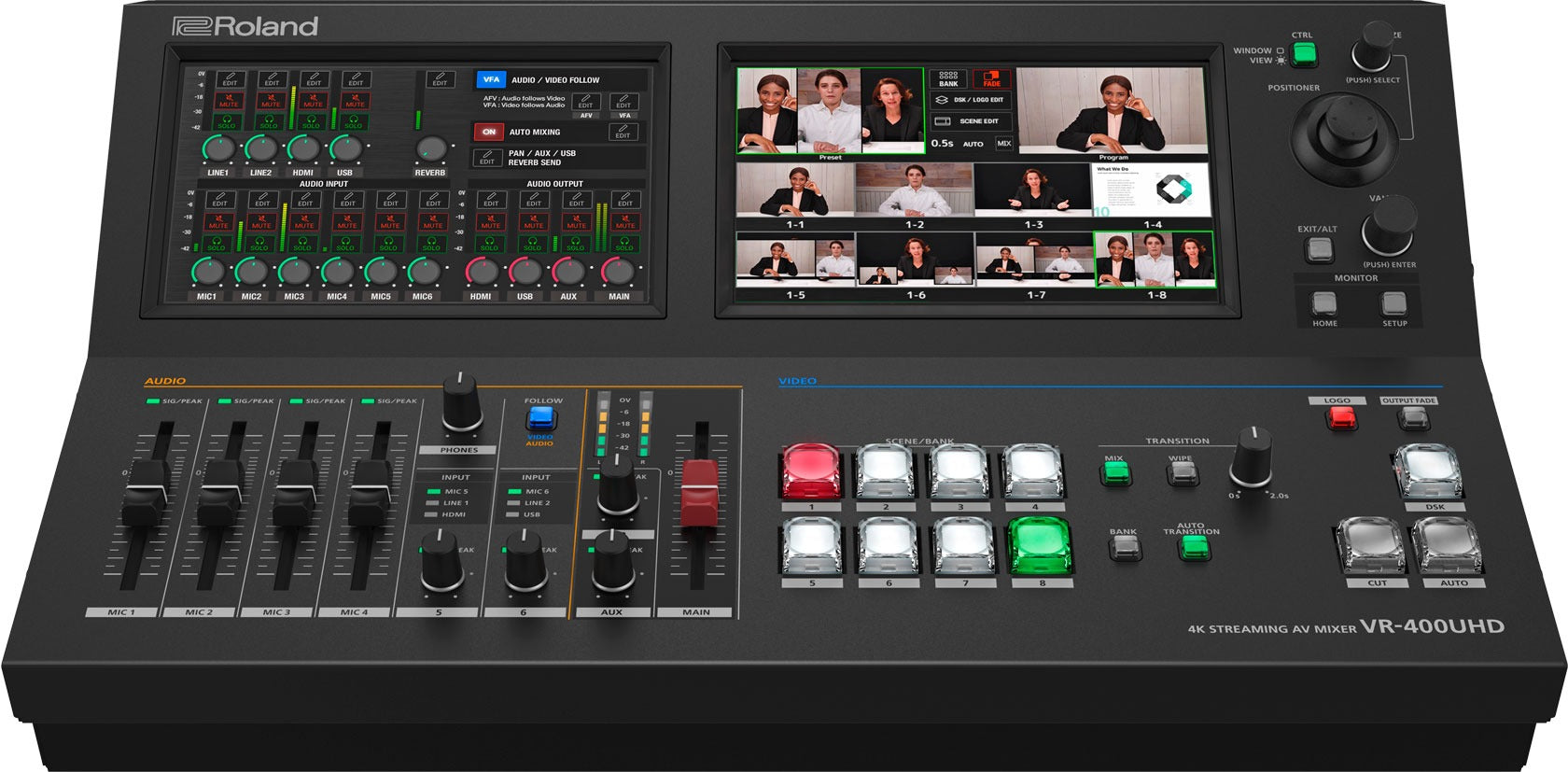

Touch and Go

Two seven-inch touchscreens make it simple to monitor video content and execute operations with quick touches. In the default PGM/PST mode, you can monitor and select up to eight video scenes on the right screen and access various video switching and audio functions on the left. Switching to Dual mode allows you to send video to both displays, which is ideal for events where you need to operate multiple presentation screens at once.

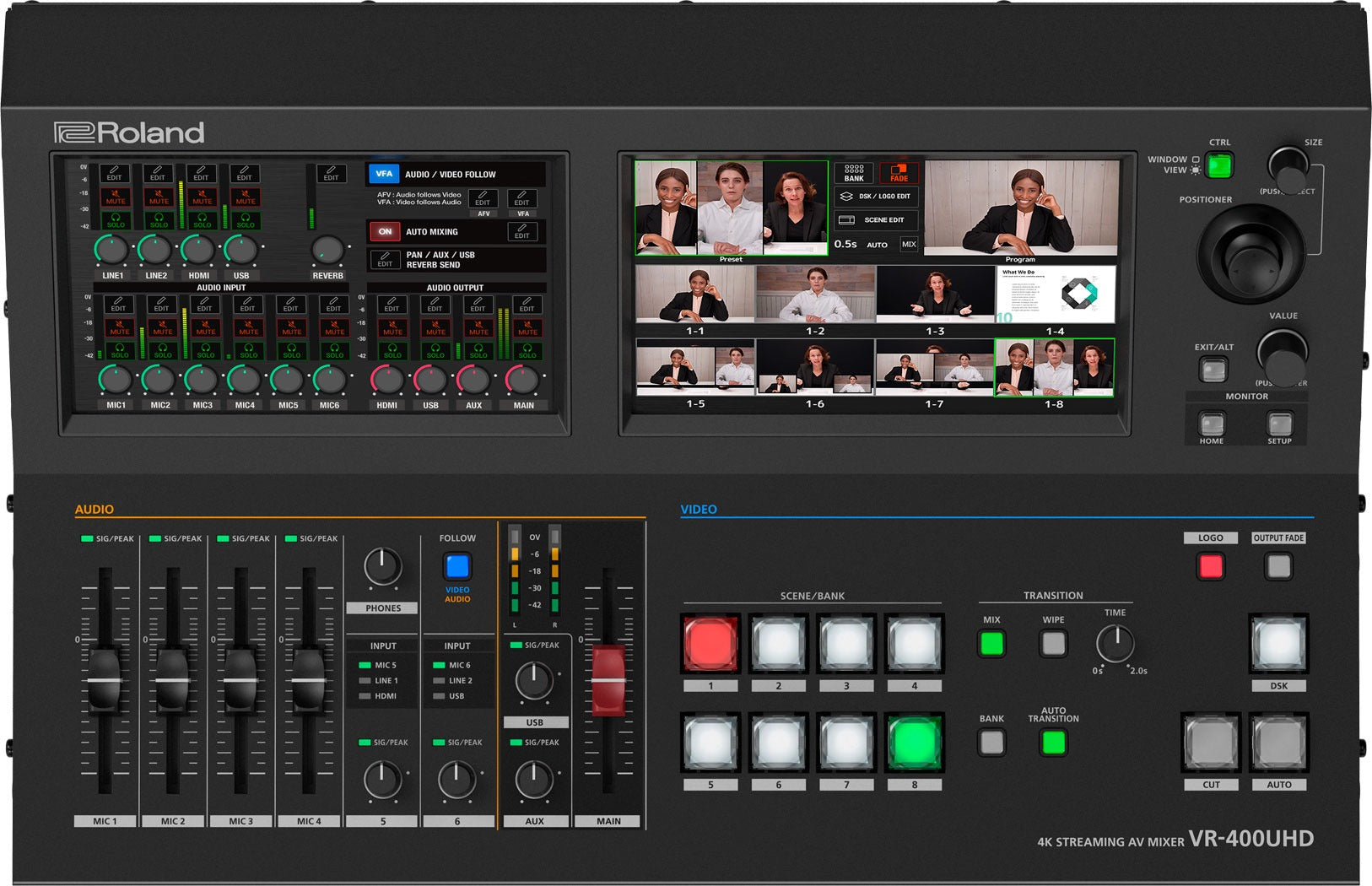

Tactile Controls

The VR-400UHD panel also includes a large selection of tactile controls to complement the touch workflow. The right side is filled with video controls, including dedicated scene/bank buttons and controls for transitions, keying, sizing, and more. Prime audio functions are easily controlled on the left side via familiar hands-on faders and knobs.

Present and Livestream in 4K

The VR-400UHD supports 4K/60fps—the standard for high-quality video—allowing you to connect 4K cameras and feed 4K displays and recorders. HDR and SDR formats are also supported, with automatic conversion into your 4K workflow. And with the USB-C webcam output* and integrated USB 3.2 Gen 2 support, you can simultaneously livestream to popular platforms on your computer. *Supports SDR video up to 4K/30p only.

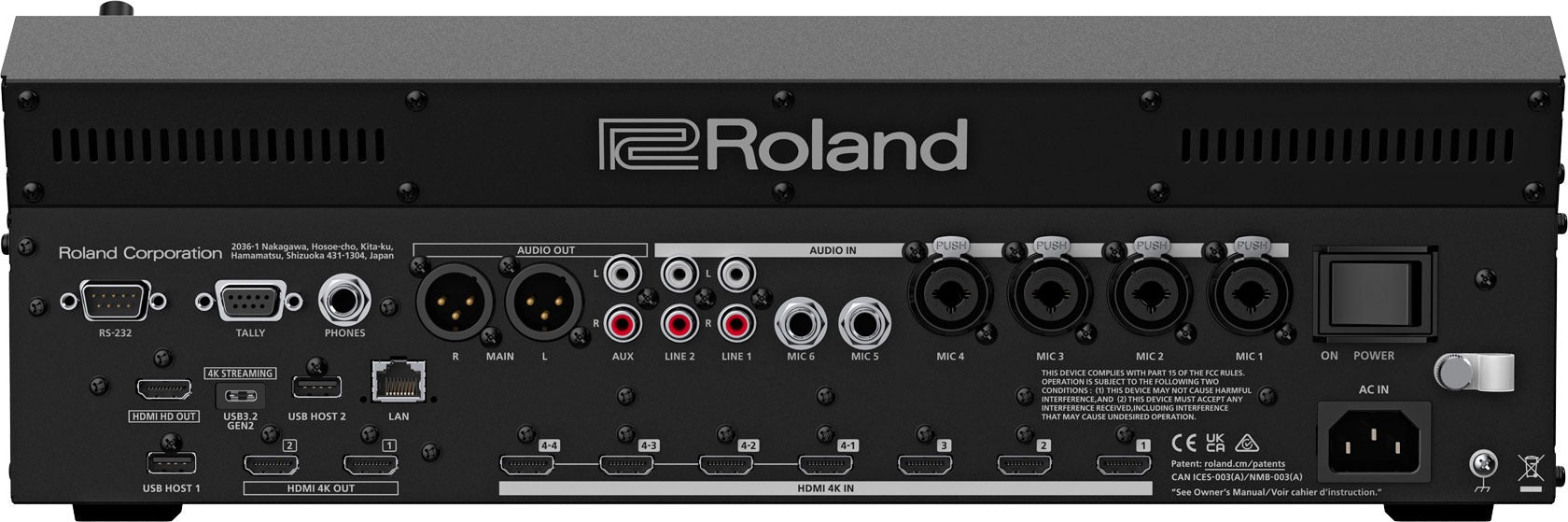

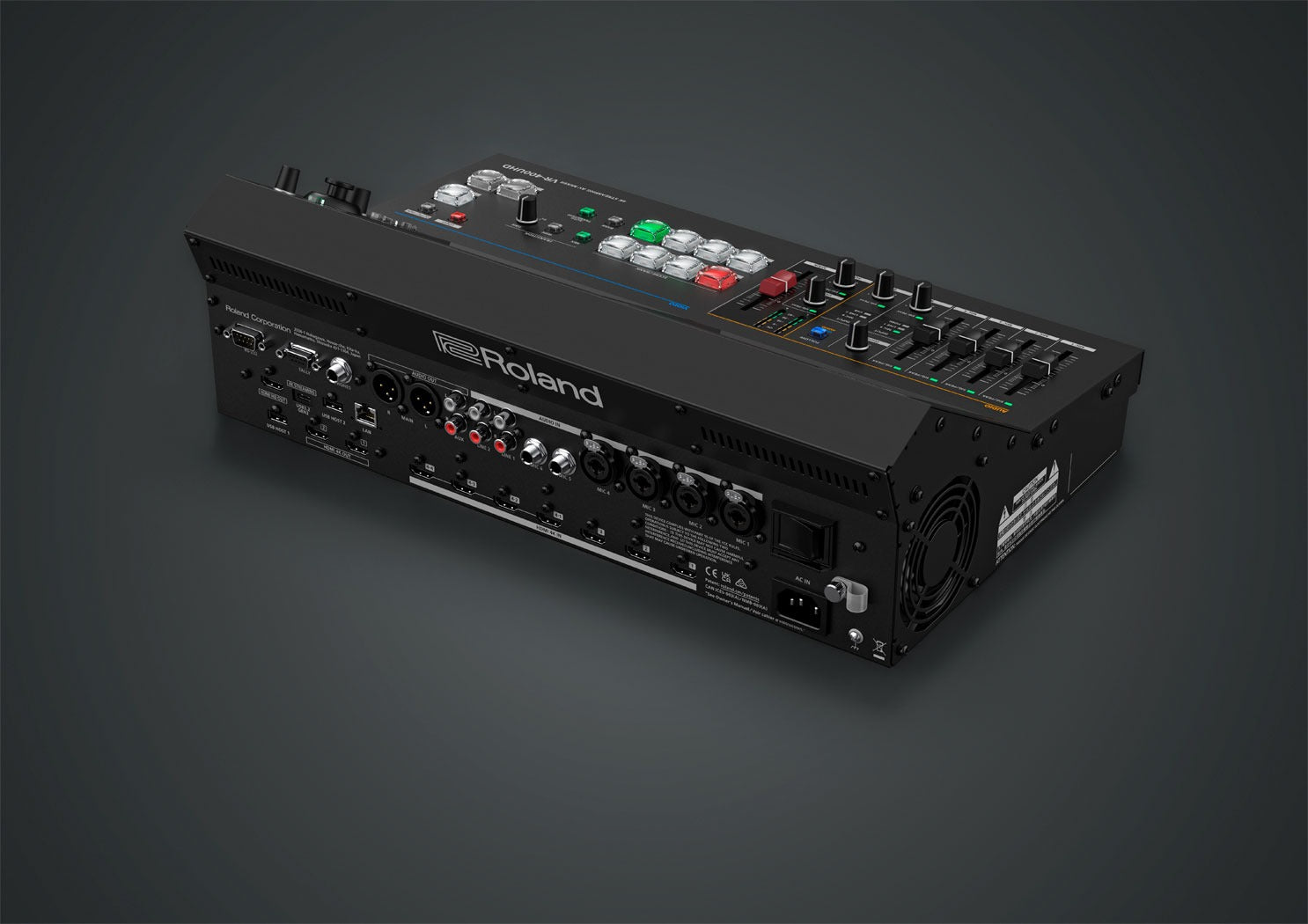

Powerful AV Connectivity

With its loaded rear panel, the VR-400UHD offers the audio and video connectivity you need to handle a variety of production situations without external mixers, switchers, and other gear.

Compact Convenience

The VR-400UHD stows easily into a carrying bag, and the compact footprint allows you to set up in the tightest production locations. It also fits a standard 19-inch rack case, ready to mount in a slide-out tray or directly on the rack rails.

Technical Specifications

Video Processing	4:2:2 (Y/Pb/Pr), 10-bit
Number of Video Channels	4 channels
Video Input Formats	HDMI 4K IN: 2160p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz 1080p/120 Hz, 119.88 Hz, 60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz 1080i/59.94 Hz, 50 Hz 720p/60 Hz, 59.94 Hz, 50 Hz 2560x1440/60Hz, 120Hz(Conforms to VESA-DMT) * HDCP 1.4, 2.2 supported. * Conforms to CTA-861-F * Color Gamut: Rec.709, Rec.2020 * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
Video Output Formats	HDMI 4K OUT: 2160p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz 1080p/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz * HDCP 1.4, 2.2 supported. * Conforms to CTA-861-F * Color Gamut: Rec.709, Rec.2020 * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG HDMI HD OUT: 1280 x 720/60 Hz * HDCP 1.4 supported. * Conforms to CTA-861-F * Color Gamut: Rec.709 * Dynamic Range: SDR 4K STREAMING: 960 x 540, 1280 x 720, 1920 x 1080, 2560 x 1440, 3840 x 2160 * Frame Rate (--2560 x 1440): 25 Hz, 29.97 Hz, 30 Hz, 50 Hz, 59.94 Hz, 60 Hz. * Frame Rate (3840 x 2160): 25 Hz, 29.97 Hz, 30 Hz. * Color Gamut: Rec.709 * Dynamic Range: SDR * Conforms to USB Video Class
Still Image:	Bitmap File (.bmp) Maximum 3840 x 2160 pixels, 24-bit color, uncompressed. JPEG File (.jpg, .jpeg) Maximum 3840 x 2160 pixels, 24-bit color PNG File (.png) Maximum 3840 x 2160 pixels, 24-bit color * It can be stored up to 8 files in the internal memory. * PNG alpha channel supported
Video Effects	Transition: Cut, Mix, Wipe (11 patterns) Composition: Background, Layer 1 (PinP + Key)(1), Layer 2 (PinP + Key) (1), DSK (2), Logo (3) Other: Multi-View, Output Fade, Output Freeze, Output Capture, Still Image playback, Test pattern output 1 Chrominance Key, Luminance Key 2 Chrominance Key, Luminance Key, Still image alpha channel *3 Chrominance Key, Luminance Key, Still image alpha channel, For 4K STREAMING only. Maximum size is 1920 x 1080.
Audio Processing	Sample rate: 24 bits, 48 kHz
Number of Audio Channels	14 Channels * MIC x6, LINE x2, HDMI, USB
Audio Formats	HDMI 4K IN : Linear PCM, 24 bits, 48 kHz, 2 ch HDMI 4K OUT : Linear PCM, 24 bits, 48 kHz, 2 ch 4K STREAMING (Input and Output) : Linear PCM, 16 bits, 48 kHz, 2 ch
Audio Effects	Channel Effects: Auto Gain, High pass filter, Anti-feedback, Noise Gate, De-esser, Compressor, 4-Band PEQ, Delay, Auto Mixing Master Effects: Reverb, Compressor/Limiter, Loudness Auto Gain Control, 15-band GEQ, Delay Others: Output fade, Test tone output
External Media	USB flash drive (commercially available)
Other Functions	Scene Memory (64 types) Panel Lock Function EDID Emulator Menu language (English, Japanese)
Video Input Connectors	HDMI 4K IN 1--3, 4-1--4-4: HDMI type A (HDMI 2.0) x 7 * HDCP 1.4, 2.2 Supported * Multi-format Supported
Video Output Connectors	HDMI 4K OUT 1--2: HDMI type A (HDMI 2.0) x 2 * HDCP 1.4, 2.2 Supported * Multi-format Supported HDMI HD OUT: HDMI type A (HDMI 1.4) x 1 * HDCP 1.4 Supported 4K STREAMING: USB Type-C (R) (USB 3.2 GEN 2 10 Gbps) 4K STREAMING: USB Type-C (R) (USB 3.1 GEN 2 10 Gbps)
Audio Input Connectors	Analog: AUDIO MIC IN 1--4: Combo type (XLR, 1/4-inch TRS phone) balanced, phantom power (DC 48 V, 10 mA Max) AUDIO MIC IN 5--6: 1/4-inch TRS phone, balanced AUDIO LINE IN 1--2: RCA phono type Digital: 4K STREAMING: USB Type-C (R) HDMI 4K IN 1--3, 4-1--4-4: HDMI type A (HDMI 2.0) x 7
Audio Output Connectors	Analog: AUDIO OUT MAIN (L, R): XLR type AUDIO OUT AUX (L, R): RCA phono type PHONES: Stereo 1/4-inch phone type Digital: 4K STREAMING: USB Type-C (R) HDMI 4K OUT 1--2: HDMI type A (HDMI 2.0) x 2 HDMI HD OUT: HDMI type A (HDMI 1.4) x 1
Other Connectors	USB HOST1--2: USB A type RS-232: 9 pin D-sub type (Male) LAN: RJ45 type, 100BASE-TX TALLY: 9 pin D-sub type (Female)
Nominal Input Level	AUDIO MIC IN 1--6: -64--+4 dBu (Maximum input level: +24 dBu) AUDIO LINE IN 1--2: -10 dBu (Maximum input level: +10 dBu)
Input Impedance	AUDIO MIC IN 1--6: 16 k ohms (phantom power OFF), 8 k ohms (phantom power ON) AUDIO LINE IN 1--2: 2.7 k ohms
Nominal Output Level	AUDIO OUT MAIN (L, R): +4 dBu (Maximum output level: +24 dBu) AUDIO OUT AUX (L, R): -10 dBu (Maximum output level: +10 dBu) PHONES: 90 mW + 90 mW (32 ohms load)
Output Impedance	AUDIO OUT MAIN (L, R): 600 ohms AUDIO OUT AUX (L, R): 1 k ohms PHONES: 10 ohms
Residual Noise Level (IHF-A, typ.)	-87 dBu (All faders: Min) -85 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one MIC 1 channel, gain: Min) -57 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one MIC 1 channel, gain: Max) * Input 150 ohms terminate * Output Connector: AUDIO OUT MAIN (L, R) jacks -100 dBu (All faders: Min) -99 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one MIC 1 channel, gain: Min) -80 dBu ([MAIN] Fader: Unity, Channel faders: Unity only one MIC 1 channel, gain: Max) * Input 150 ohms terminate * Output Connector: AUDIO OUT AUX (L, R) jacks
Display	7 inch Graphic color LCD 800 x 480 dots (touch screen) x2
Internal Speaker	Monaural 1 W
Power Supply	AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption	115 W
Operation Temperature	+5 to +40 degrees Celsius +41 to +104 degrees Fahrenheit
Dimensions	436 (W) x 279 (D) x 137 (H) mm 17-3/16 (W) x 11 (D) x 5-7/16 (H) inches
Weight (excluding Accessories)	6.8 kg 15 lbs
Accessories	Startup Guide Power cord
