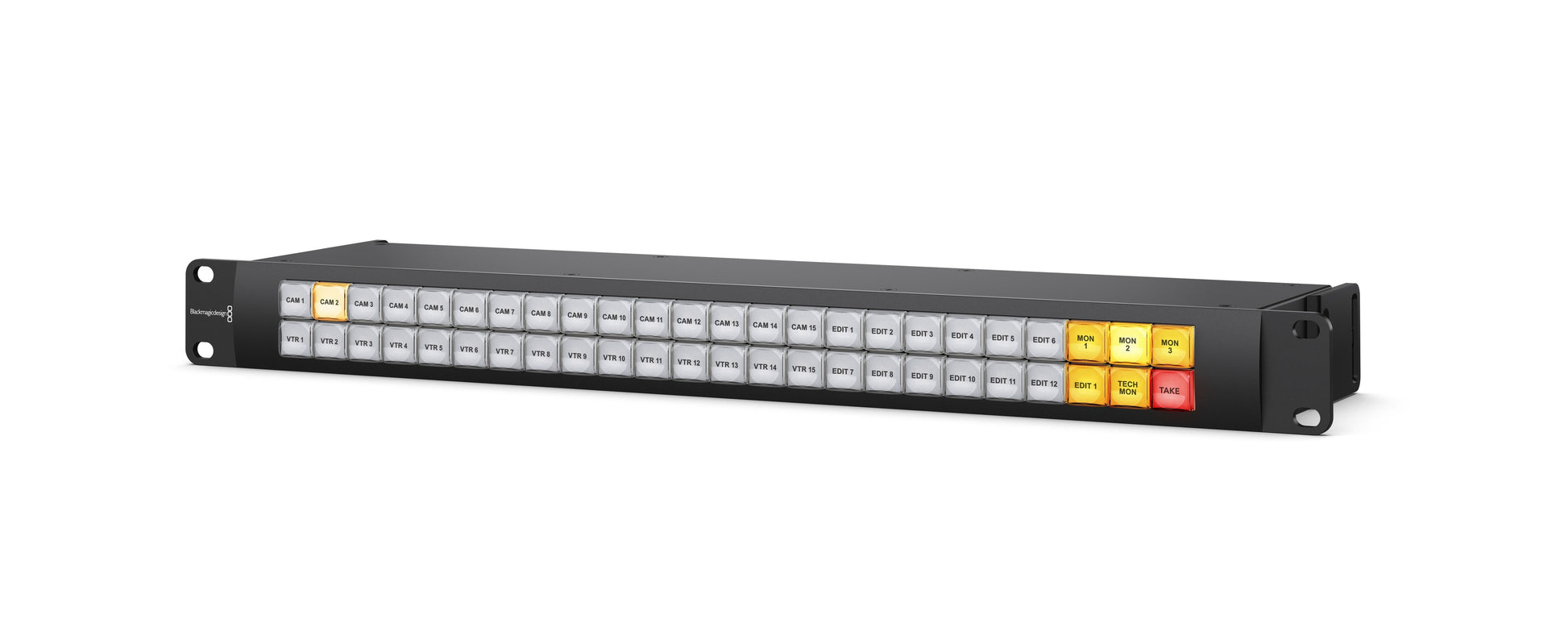

When you want the fastest routing you can get, then Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Plus Videohub Smart Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!
Official Technical Details

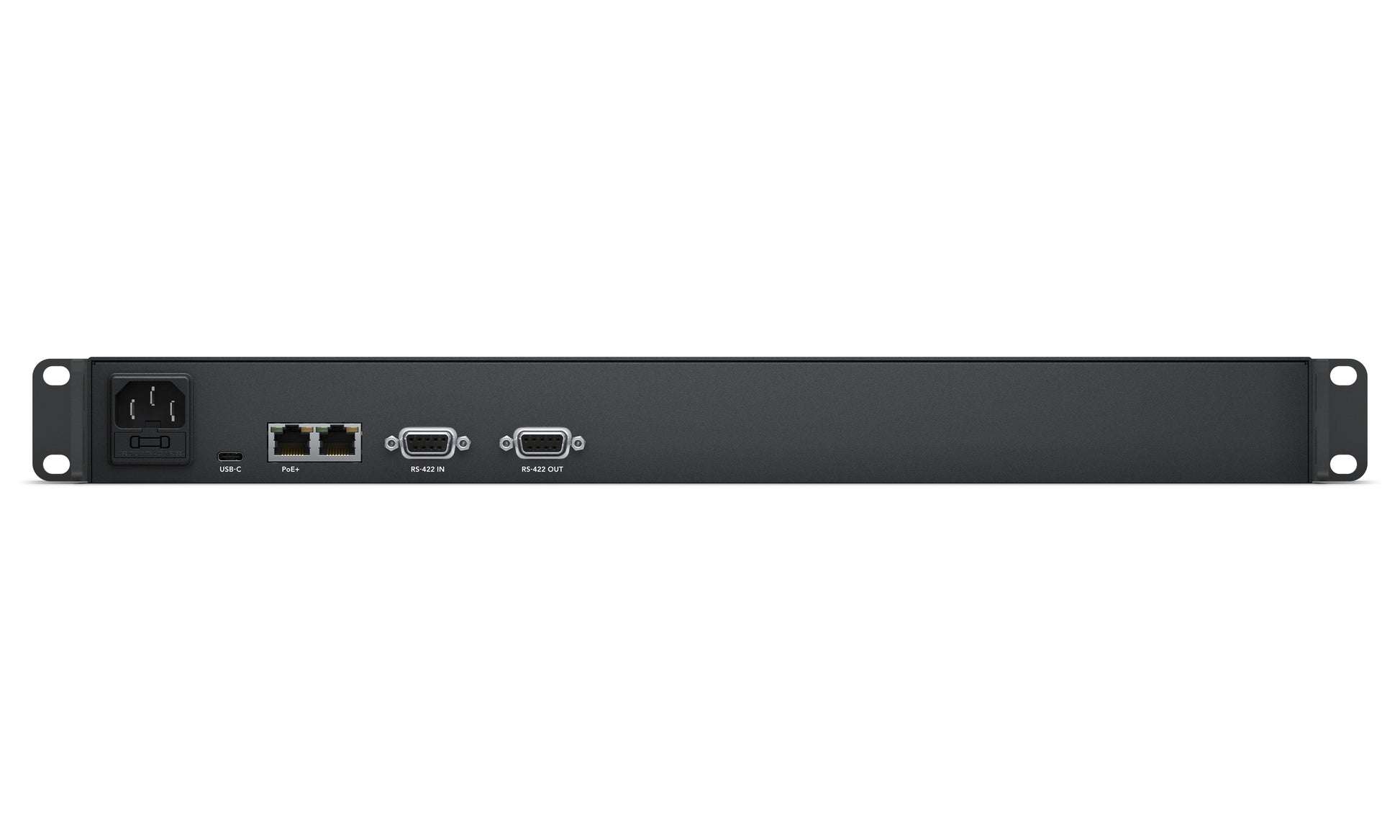

Connections
Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422: In and Out (for future implementation)
Computer Interface: USB-C for configuration and software updates.
Power: 100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control

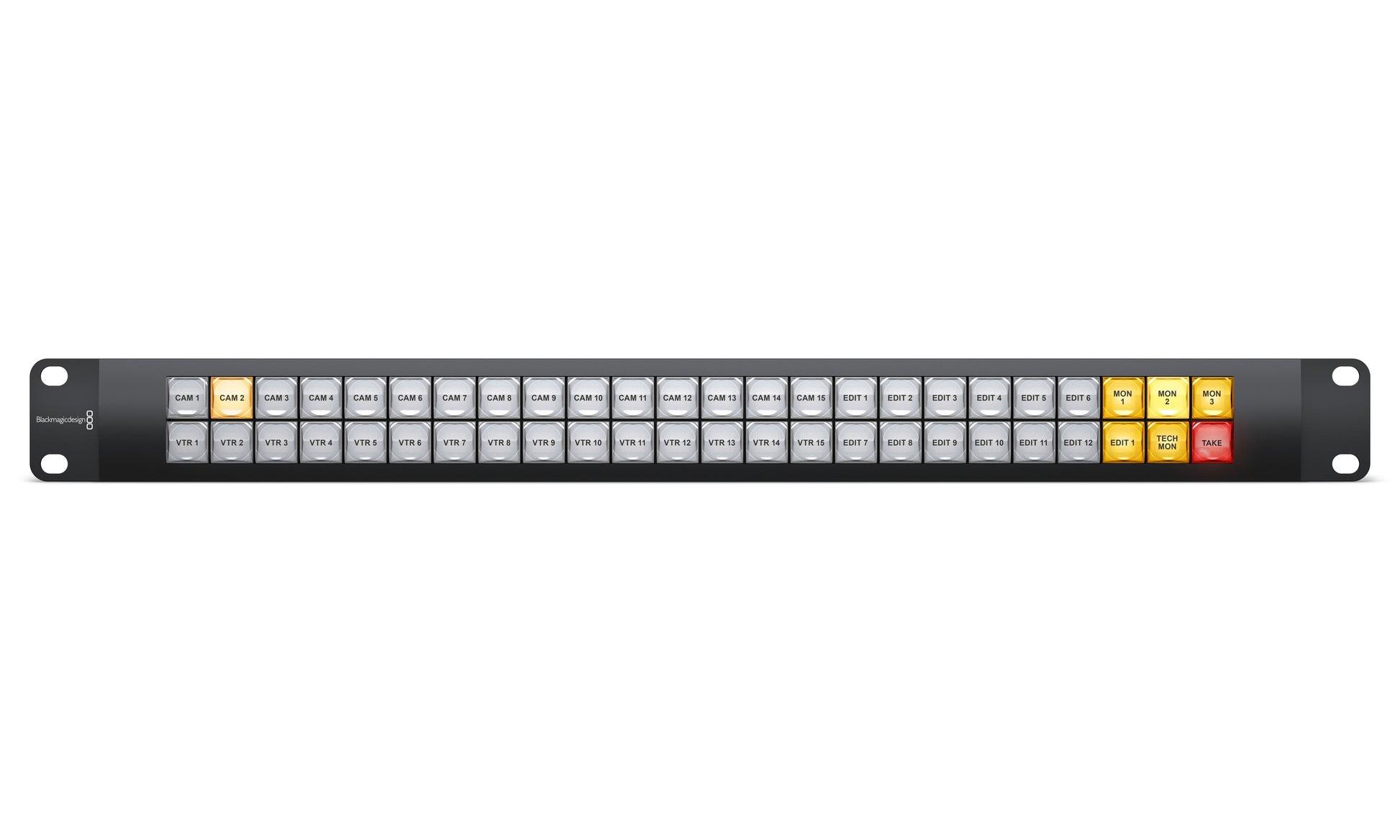

48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
IP Video Compliance
Precision Time Protocol: IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
NMOS IS-04 Discovery and Registration: v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP‑002‑01: Natural Grouping
NMOS BCP‑004‑01: Receiver capabilities
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10, 64-bit. Windows 11.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply: Internal 100 - 240 V AC
Environmental Specifications
Storage Temperature: -20° to 45° C (-4° to 113° F)
