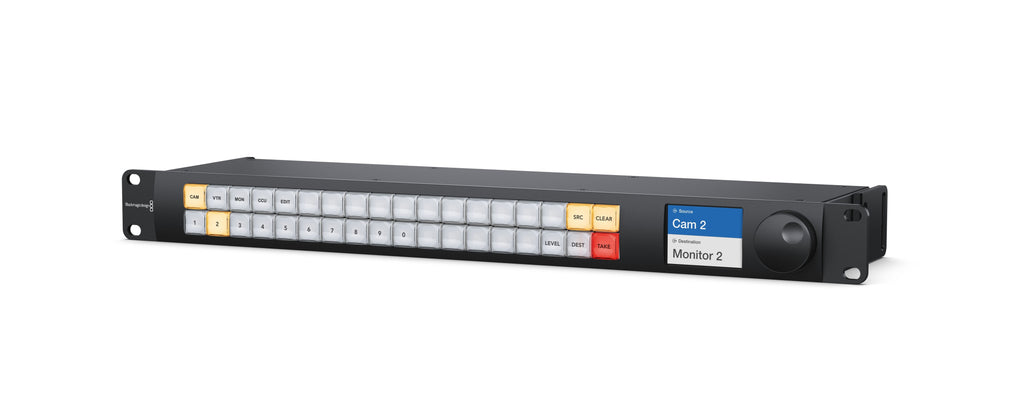

Blackmagic Design Videohub Master Control Pro

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Plus Videohub Master Control Pro can be configured to be a Videohub or 2110 NMOS controller. Powers via DC or the Ethernet connection!

Official Technical Details

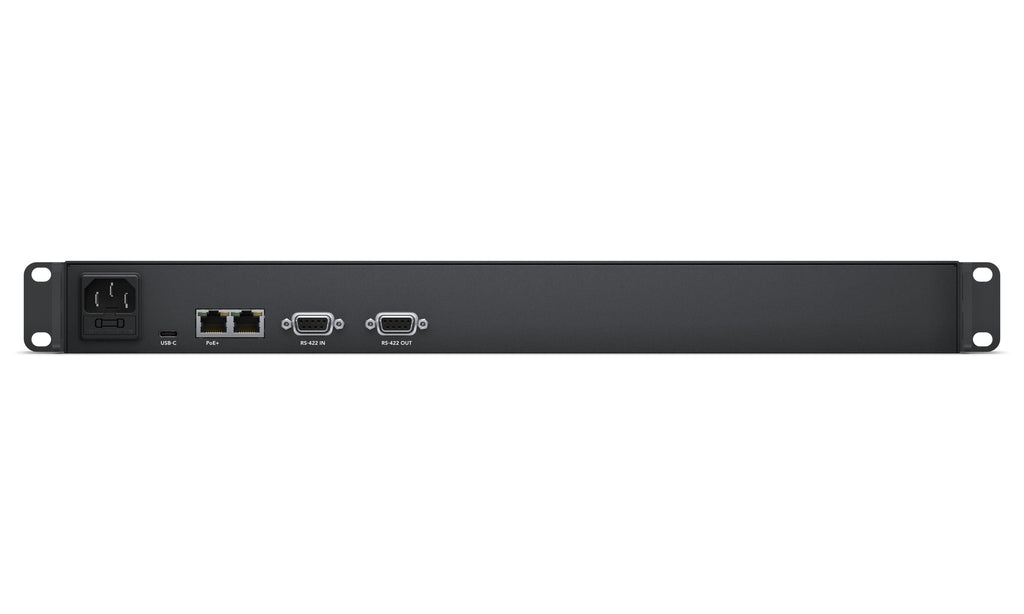

Connections

• Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
• RS-422: In and Out (for future implementation)
• Computer Interface: USB-C for configuration and software updates.
• Power: 100 - 240 AC

Hardware Control

• 21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.

IP Video Compliance

• Precision Time Protocol: IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP‑002‑01: Natural Grouping
• NMOS BCP‑004‑01: Receiver capabilities

Internal Software

• Internal Software upgrade via included firmware updater application via USB or ethernet.

Operating Systems

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
• Windows 10, 64-bit. Windows 11.

Physical Installation

• 1 rack unit size. Less than 3 inches deep.

Button Configuration

• Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.

Power Requirements

• Power Fail Requirements: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
• Power Supply: Internal 100 - 240 V AC

Environmental Specifications

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Videohub Master Control Pro

Warranty

• 1 Year Limited Manufacturer’s Warranty.
