Blackmagic 2110 IP Converter 3x3G

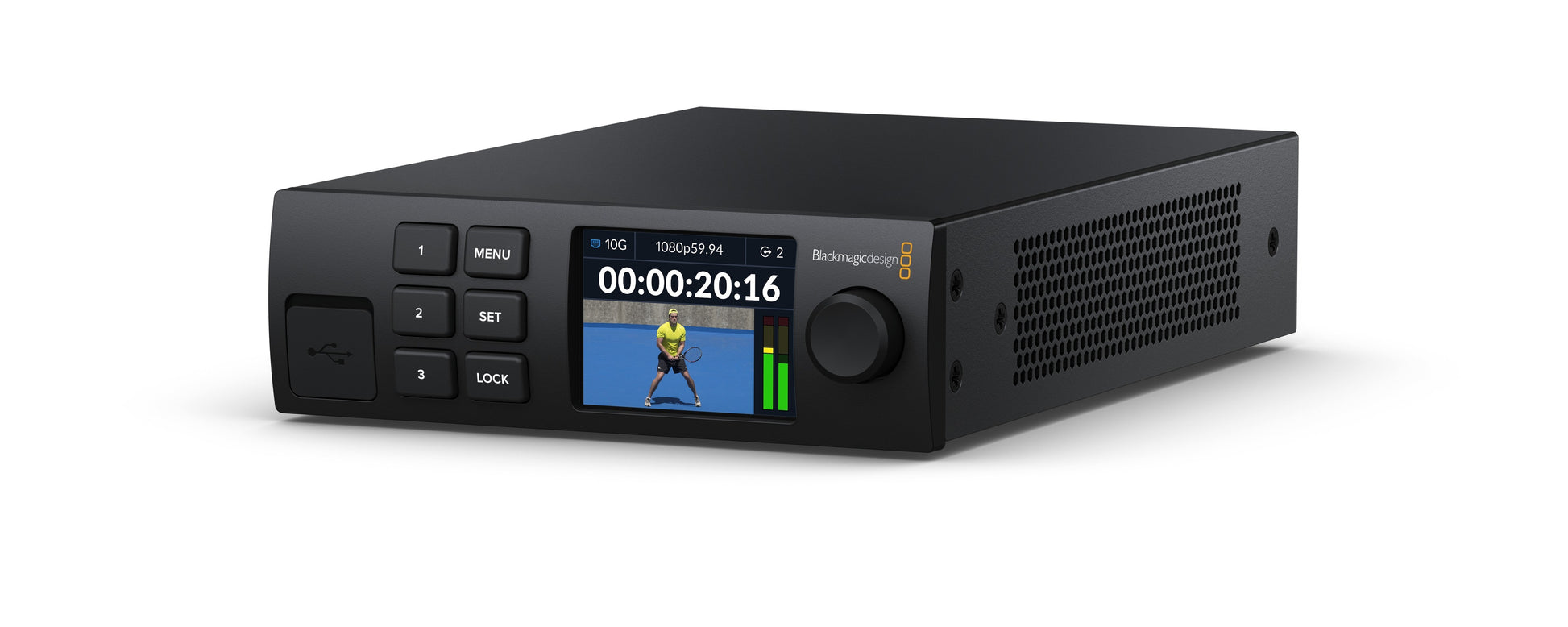

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

Official Technical Details

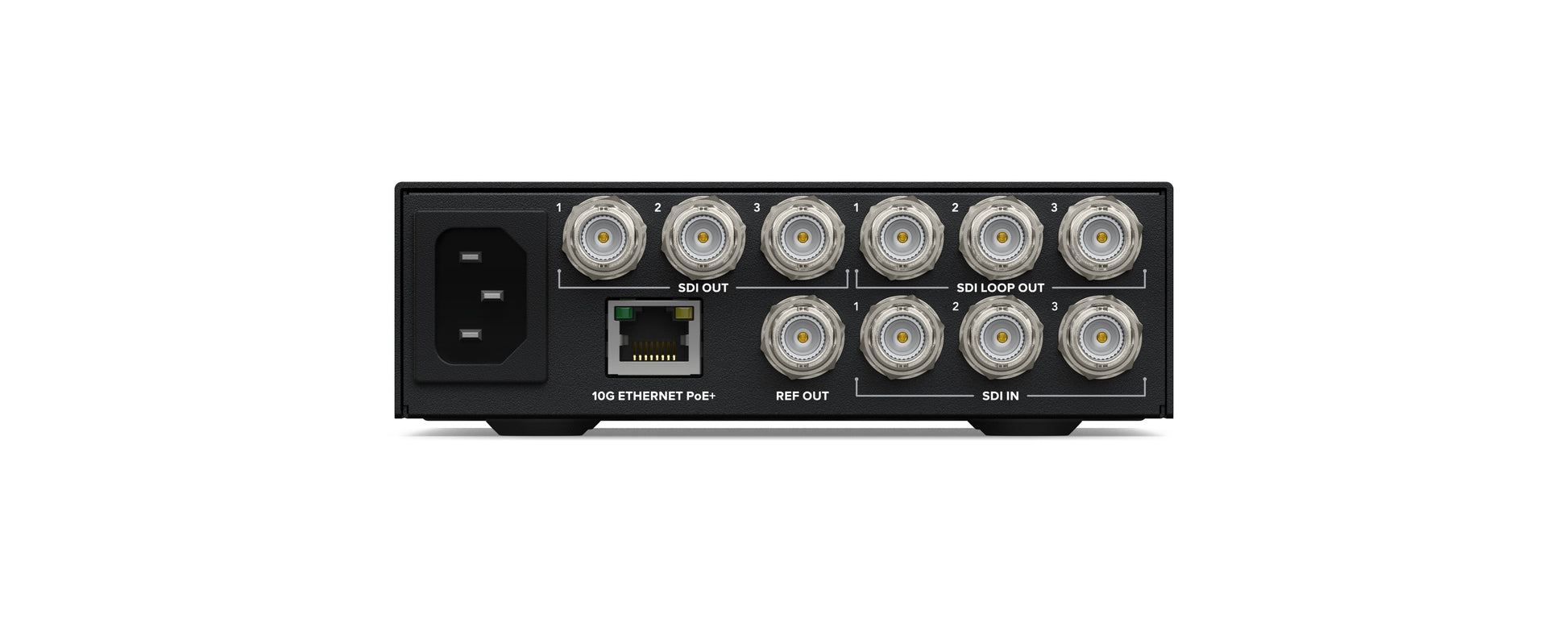

Connections

• SDI Inputs: 3
• SDI Loop Outputs: 3
• SDI Outputs: 3
• SDI Audio Inputs: 16 channels embedded audio.
• SMPTE 2110 Input / Output: 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
• 10G Ethernet Port: 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
• Reference Output: Tri-Sync or Black Burst.
• Computer Interface: USB-C for updates, configuration and control.

Video Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601.
• SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Color Precision: 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
• Color Space: REC 709

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Control

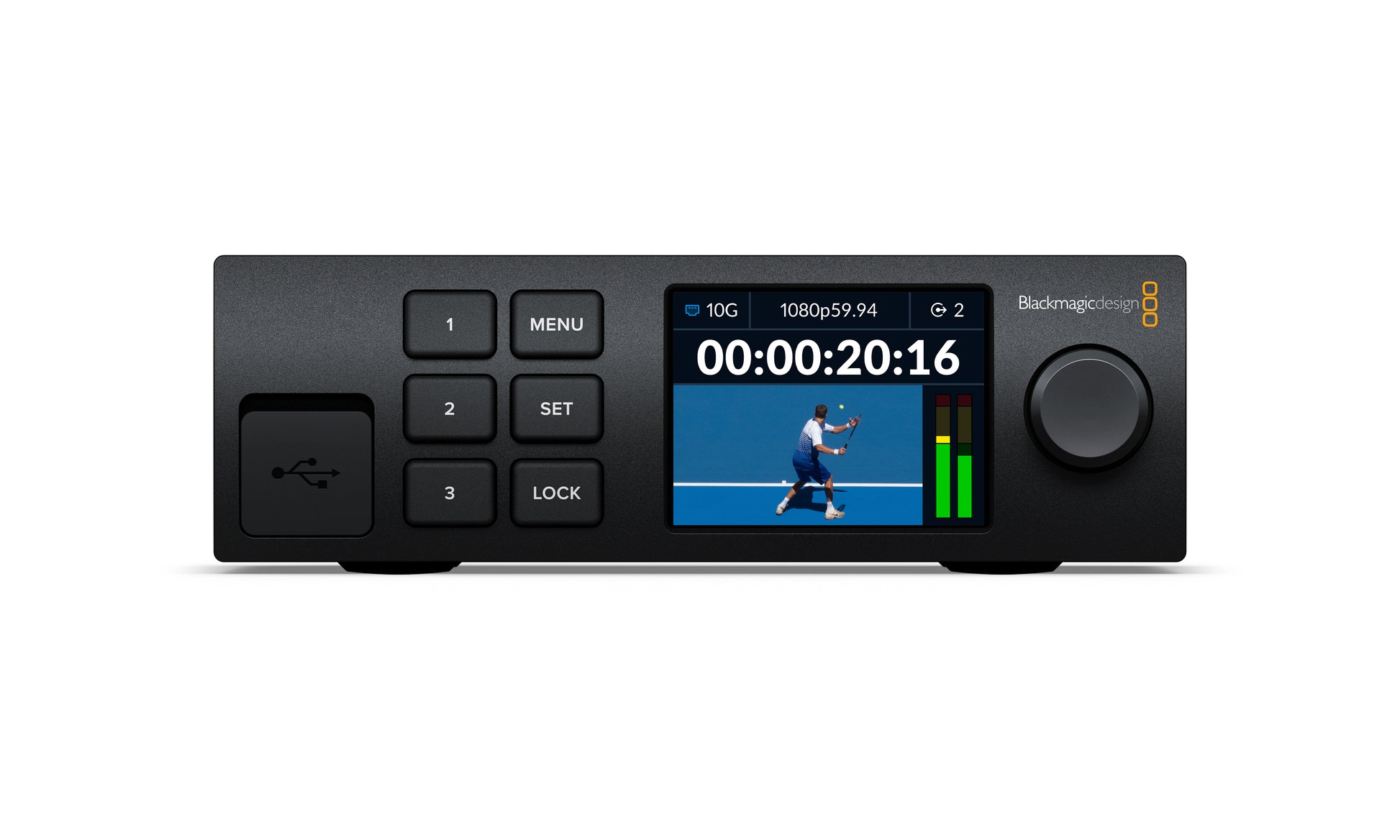

• Built in Control Panel: 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
• External Control: RJ-45 10Gb/s Ethernet and USB-C.

Display

• Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.

Operating Systems

• Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
• Windows 10 and 11.

Power Requirements

• Power Supply: 1 x Internal 100 - 240V AC 50/60Hz.
• Power Inputs: 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE+ power supplies.
• Power Usage: 20 W

Environmental Specifications

• Operating Temperature: 5° to 40 ° C (32° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Blackmagic 2110 IP Converter 3x3G
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer's Warranty

Official Documentation

• Official Tech Specs PDF
• Download Manual
• Official Product Page
