Roland ProAV

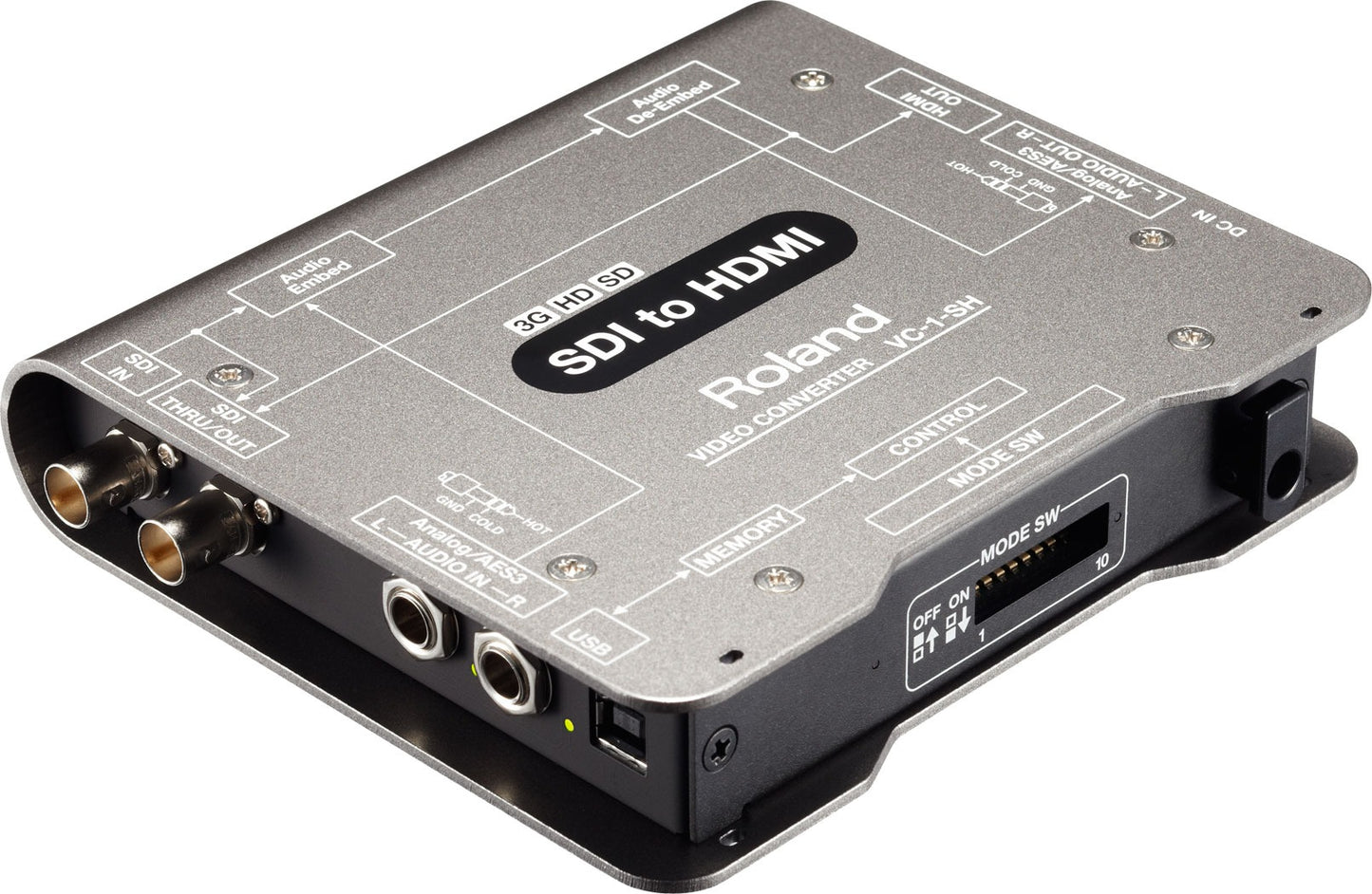

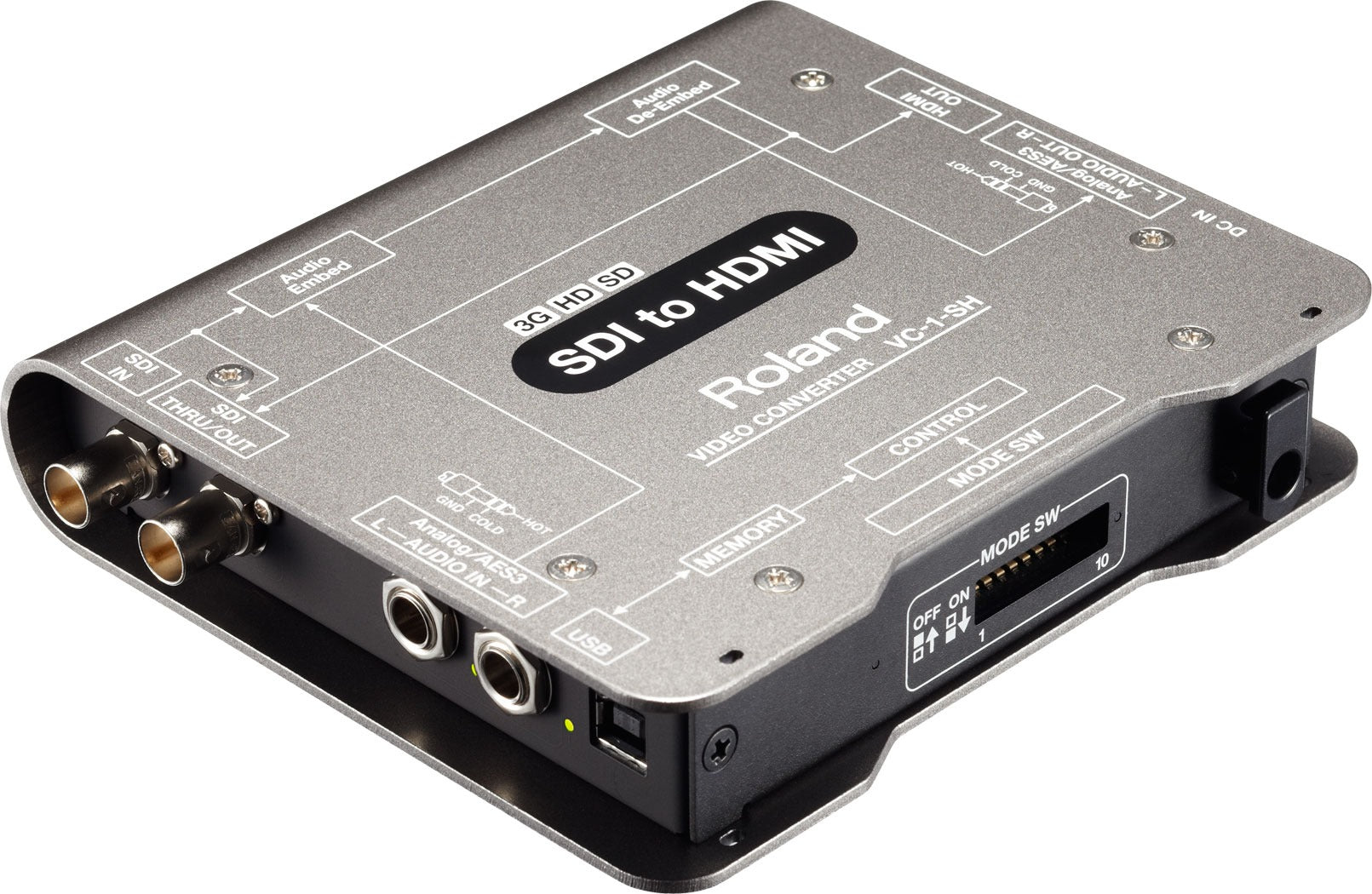

VC-1-SH SDI to HDMI Video Converter

Name: VC-1-SH SDI to HDMI Video Converter
Brand: Roland ProAV
SKU: VC-1-SH
Price: 545.0 EUR
Availability: InStock

€545,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

VC-1-SH: SDI to HDMI Video Converter - Conversion of video and audio signals from SDI input to HDMI output

Conversion of video and audio signals from SDI input to HDMI output

Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).

SDI to HDMI Conversion
Lossless Image Conversion
3G (Level A&B) /HD/ SD SDI
HDCP Support
VC-1 RCS, PC/MAC Control Application
Selectable Channel for Embedded/De-Embedded Audio

Technical Specifications

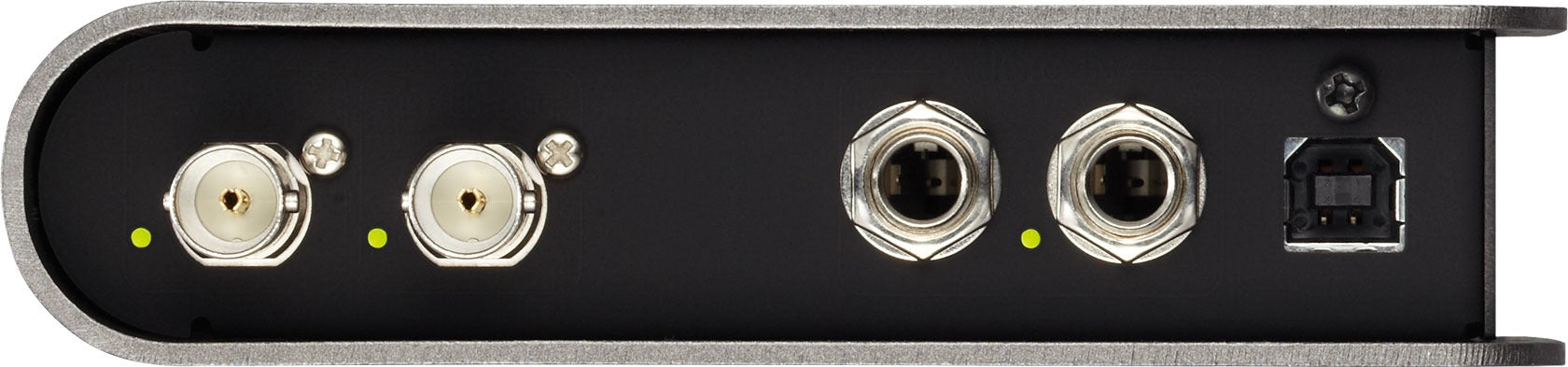

SDI Connector	BNC type x 1
Analog Audio Connector	1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector	1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
Processing	Audio embedding Audio de-embedding
SDI Connector	BNC type x 1 ( Thru/Out )

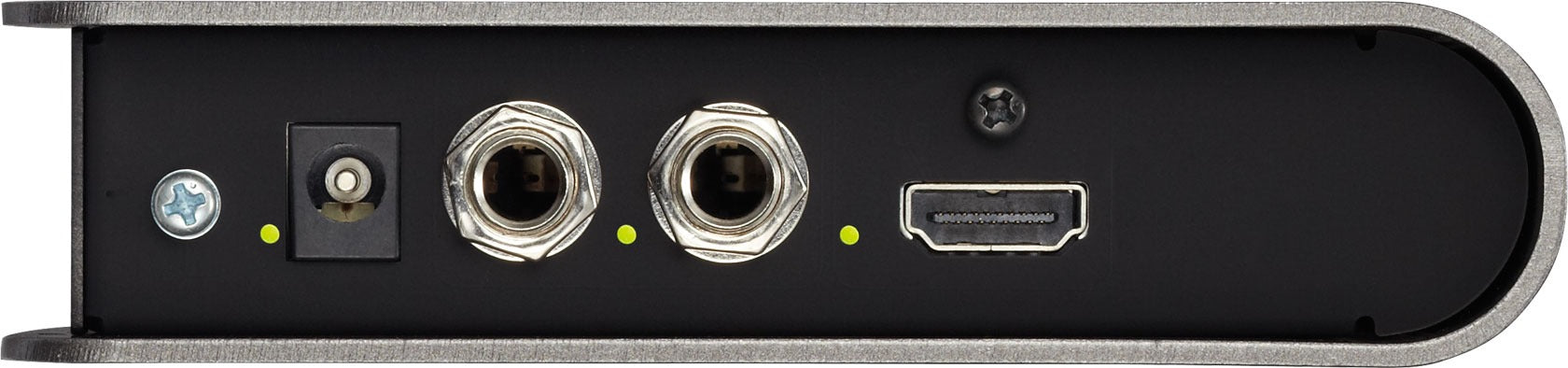

HDMI Connector	Type A (19 pins ) x 1
Analog Audio Connector	1/4" TRS phone type ( balanced) x 1 pair (L/R)
Digital Audio Connector	1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
SDI Input Signal Standards	SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format	1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Audio Format	Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format	1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format	Linear PCM, 24 bit, 48 kHz, 8 ch
SDI Output Signal Standards	SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format	1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
SDI Output Audio Format	Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format	1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Output Audio Format	Linear PCM, 24 bit, 48 kHz, 8 ch
Analog Audio Input Level	+4dBu
Analog Audio Maximum Input Level	+24dBu
Analog Audio Input Impedance	110 ohms
Analog Audio Output Level	+4dBu
Analog Audio Output Impedance	600 ohms
Digital Audio Output Signal Format	AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance	110 ohms
USB Connector	USB Type B (Hi-Speed USB) x 1
Power Supply	DC 9V
Power Consumption	8W
Operation Temperature	+0 to + 40 degrees Celsius
Accessories	AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
Width	150 mm 5-15/16 inches
Depth	130 mm 5-1/8 inches
Height	30 mm 1-3/16 inches
Weight	500 g 1 lbs. 2 oz.
