SWIT VANGO-100L | 8:1 RGBW Panel Light, 2.1cm ultra slim and 2kg weight, with Bag and Gooseneck Connector, Natural-Born-Soft by SWIT patent, professional 100W SMD-LED, V-Mount, DMX&APP

3x0.5 size, Equivalent to 300W color light, 21mm slim, on board LCD, APP control

100W Long Ratio Ultra Slim RGBW Light

Official Features

100W Long Ratio Ultra Slim RGBW

VANGO-100L, the slim portable size 100W RGBW panel of 3x0.5’ Long Ratio size and with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.

3x0.5’ Long Ratio, 21mm Ultra Slim

With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100L has a ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100L color light intensity equals to a regular 300W RGB color light intensity.

IEC 62471 Photobiological Safe Certificated

The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

Control Panel

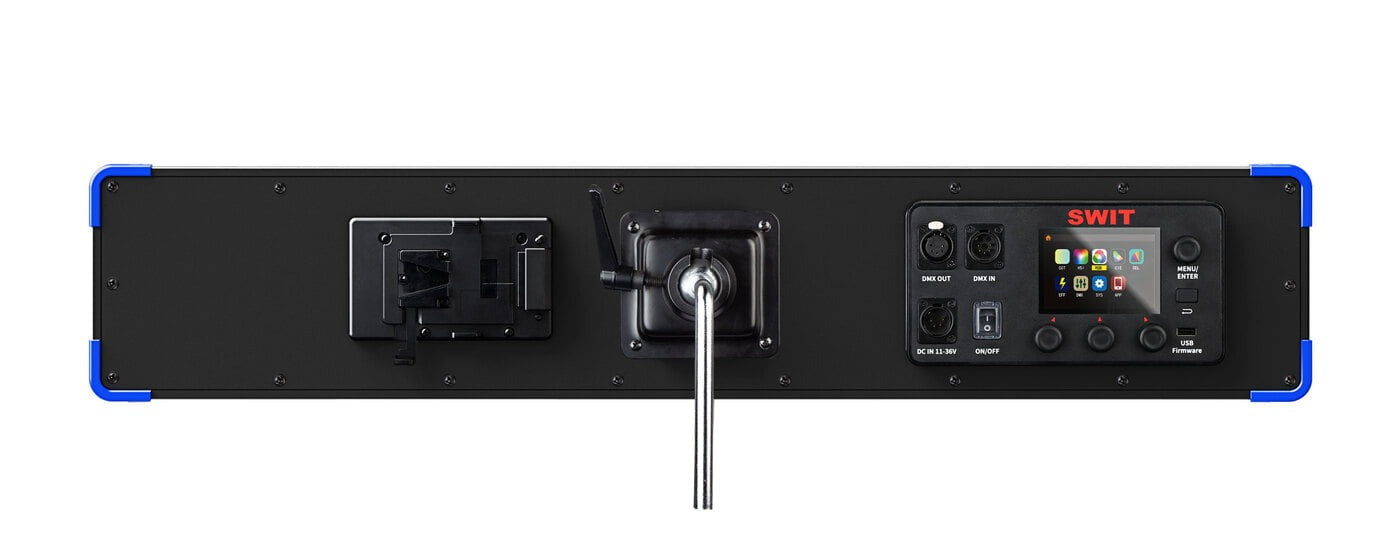

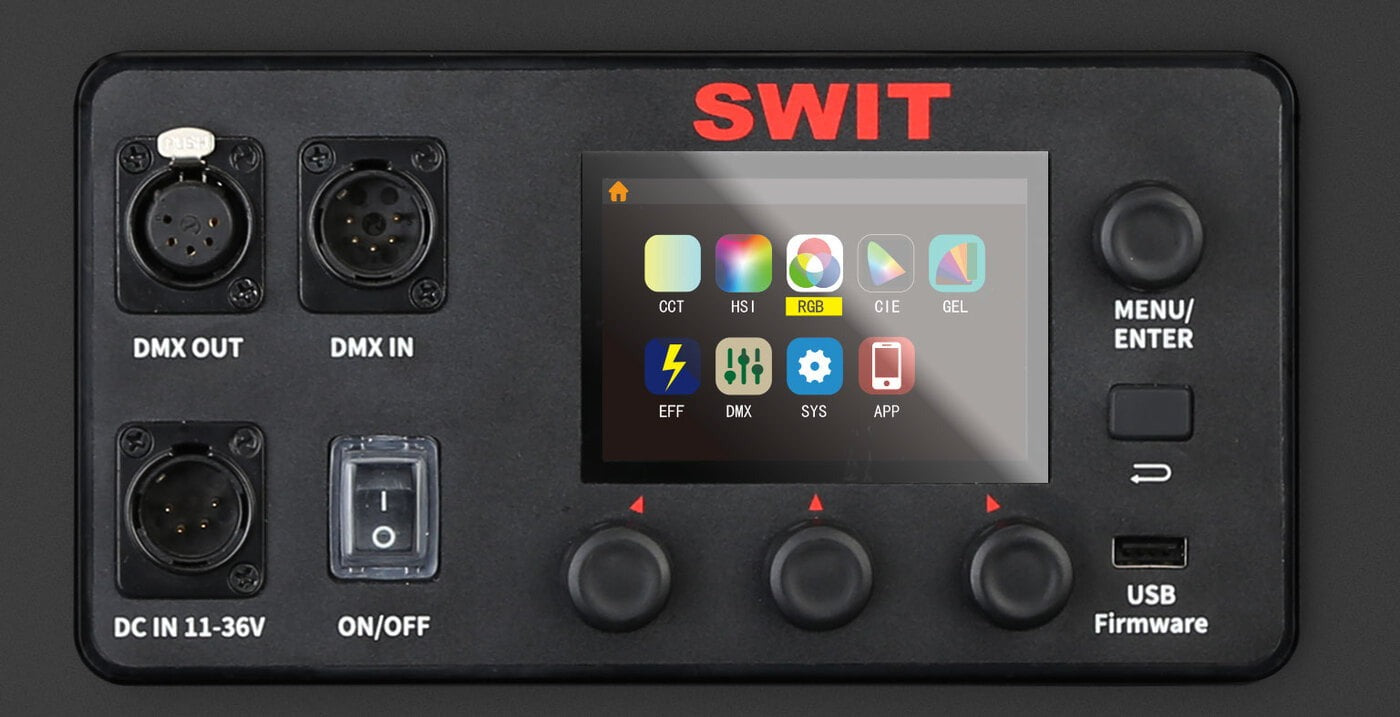

VANGO-100L rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

On-board 3.5-inch Color LCD

Visualized color selection

Bluetooth APP Control

Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.

SWIT Console APP

The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.

Official Product Data

• Model SPU: VANGO-100L
• Division: Lighting
• Big Category: Lighting
• Small Category: RGB Panel Light
• Power: 100W
• Voltage: 11-34V
• Weight (kg): 9.7
• Spec 1: DMX
• Spec 2: Natural-Born-Soft Slim patented Light
• Plate Type: V-Mount
• Lifecycle: 2022New, Project Support using another SKU:VANGO-100LH
• Accessory Options: LA-HE60, LA-GE60
