Equivalent to 300W color light, 21mm slim, on board LCD, APP control
100W 2:1 Ultra Slim RGBW Panel Light
Official Features
100W Ultra Slim RGBW Panel
VANGO-100, the slim portable size 100W RGBW panel with extreme high color light output, equivalent to regular 300W RGB color light intensity, for your flexible video studio setup.
21mm Ultra Slim and Soft
With SWIT unique Edge Mounted SMD and 90° high efficient light guide tech, the VANGO-100 has an ultra slim size to only 21mm thickness, and diffused to soft light to paint the entire environment.
Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W VANGO-100 color light intensity equals to a regular 300W RGB color light intensity.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

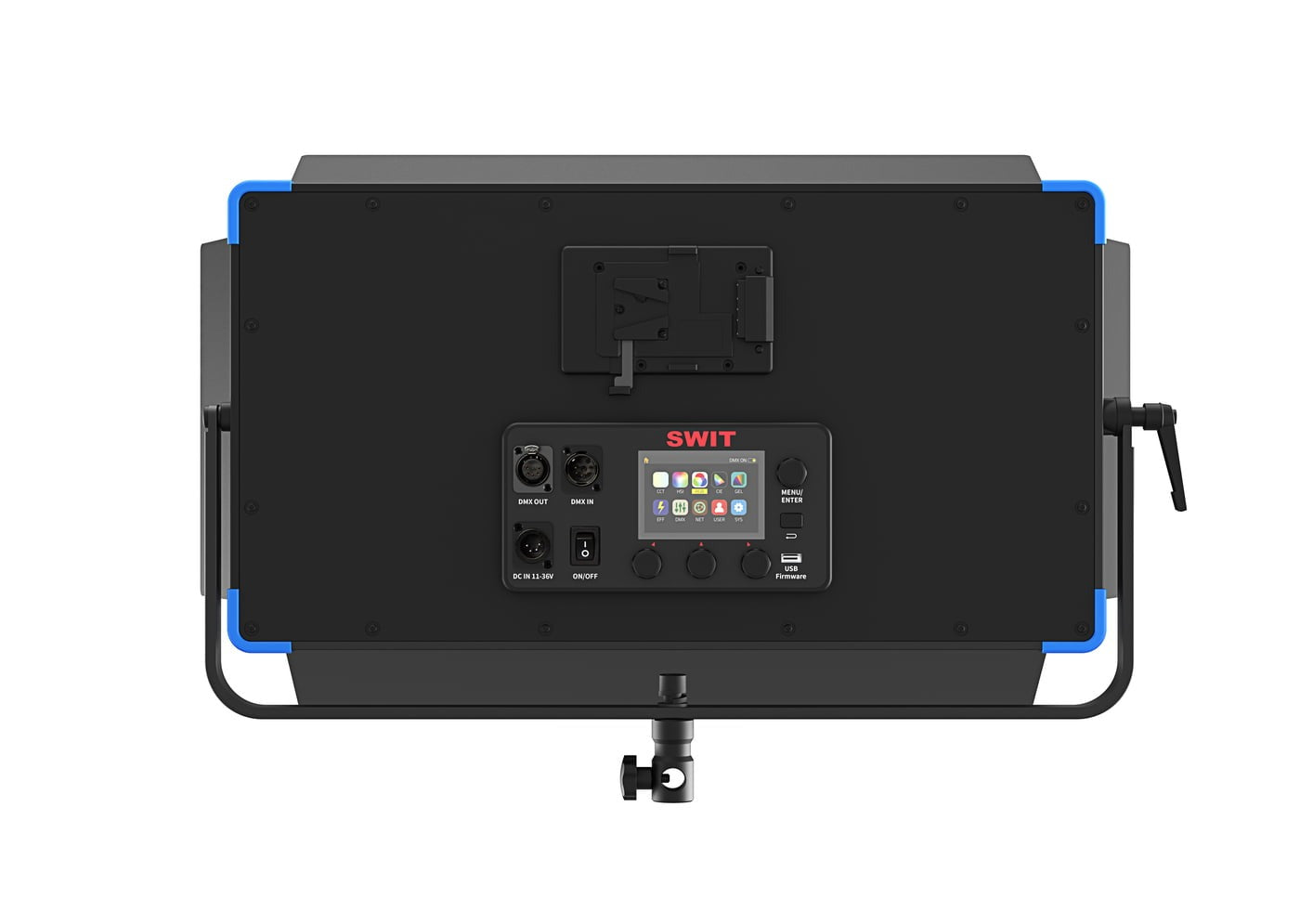

Control Panel
VANGO-100 rear control panel supports 5-pin DMX in & out, 4-pin XLR DC 11-36V in, and V-mount battery plate (Gold mount for option), and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.
On-board 3.5-inch Color LCD
Visualized color selection
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control VANGO lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.
Official Product Data
-
Model SPU: VANGO-100
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: RGB Panel Light
-
Power: 100W
-
Voltage: 11-34V
-
Weight (kg): 9.7
-
Spec 1: DMX
-
Spec 2: Natural-Born-Soft Slim patented Light
-
Plate Type: V-Mount
-
Lifecycle: 2022New
-
Accessory Options: LA-HE60, LA-GE60
