Roland ProAV

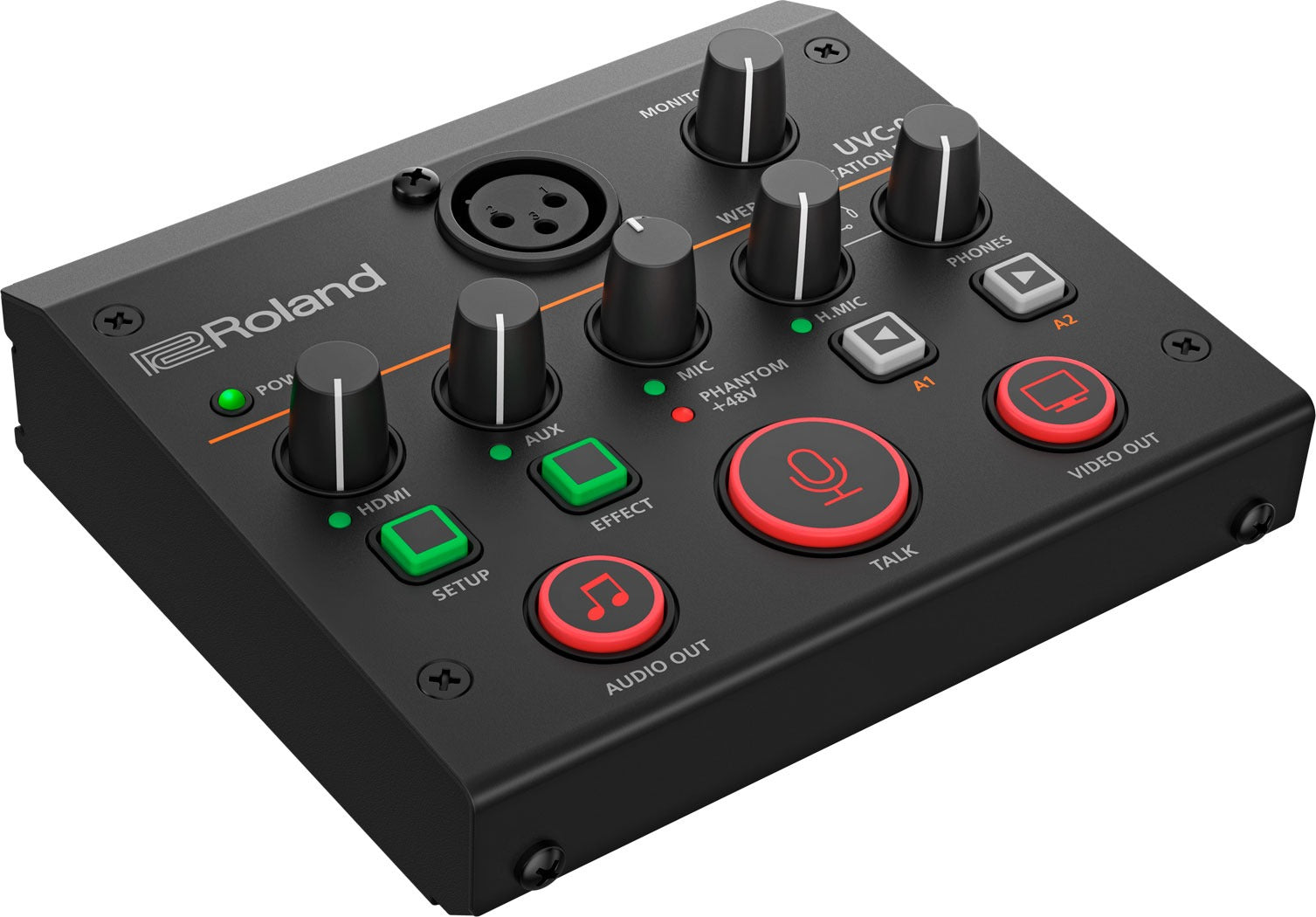

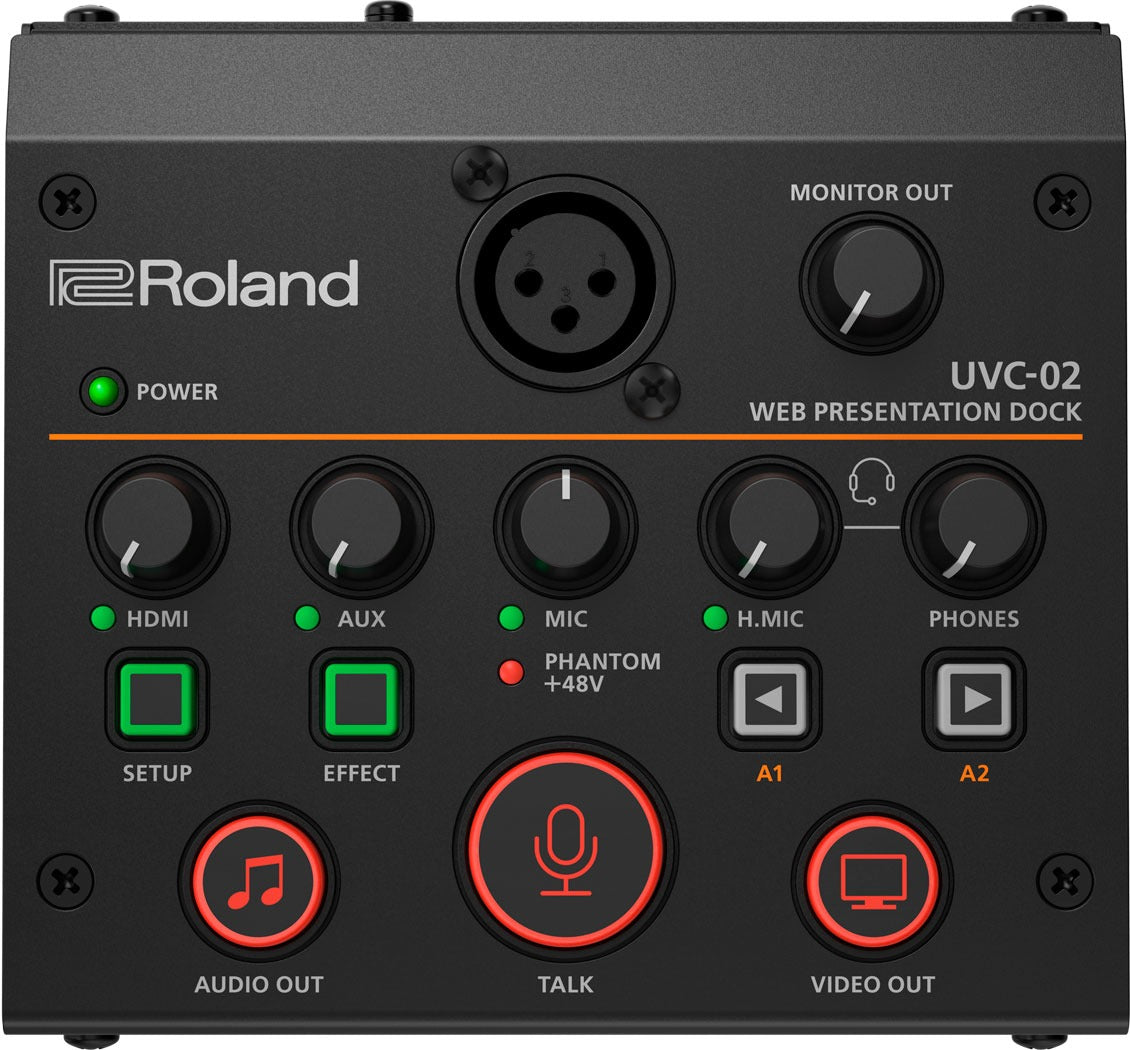

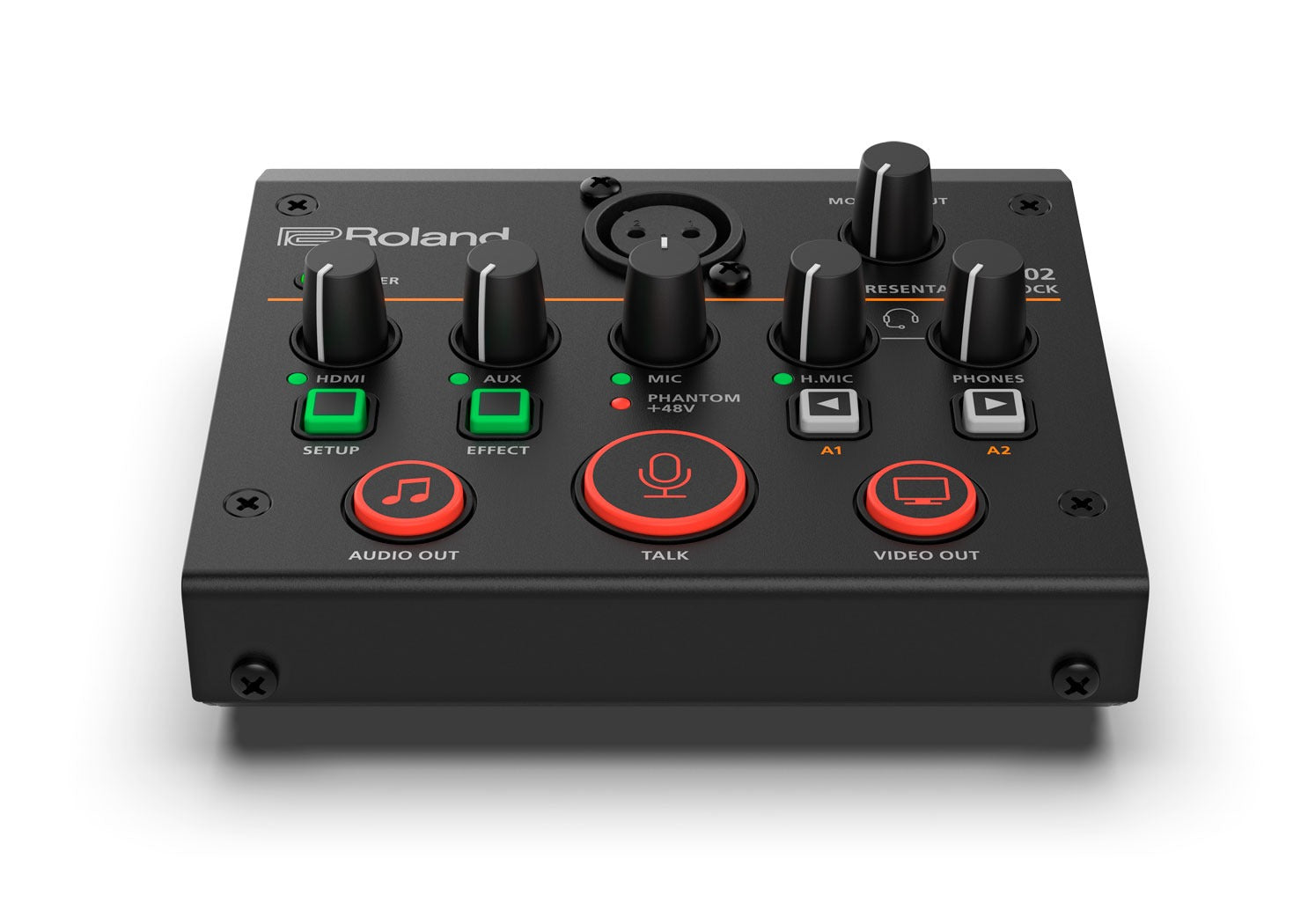

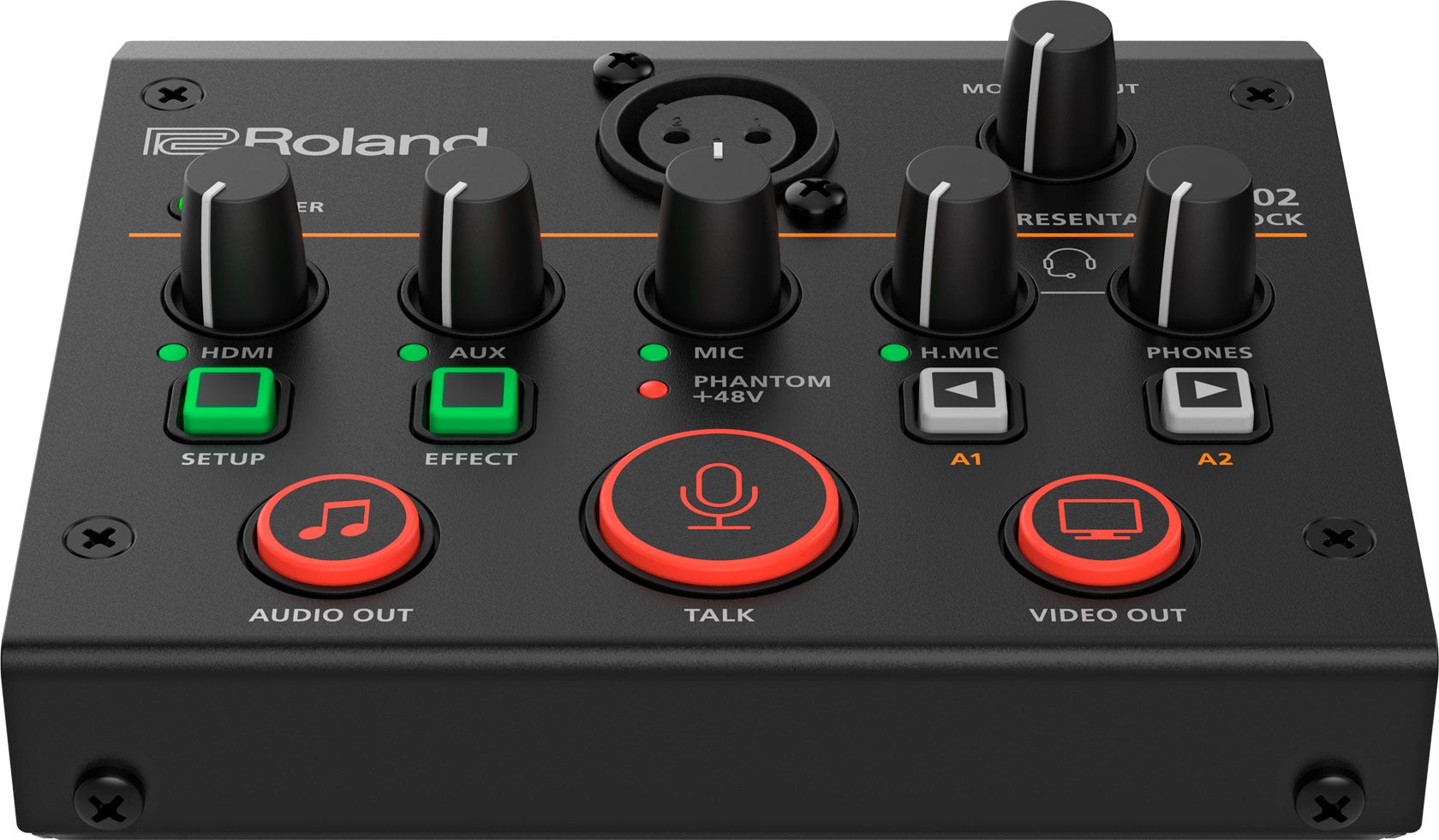

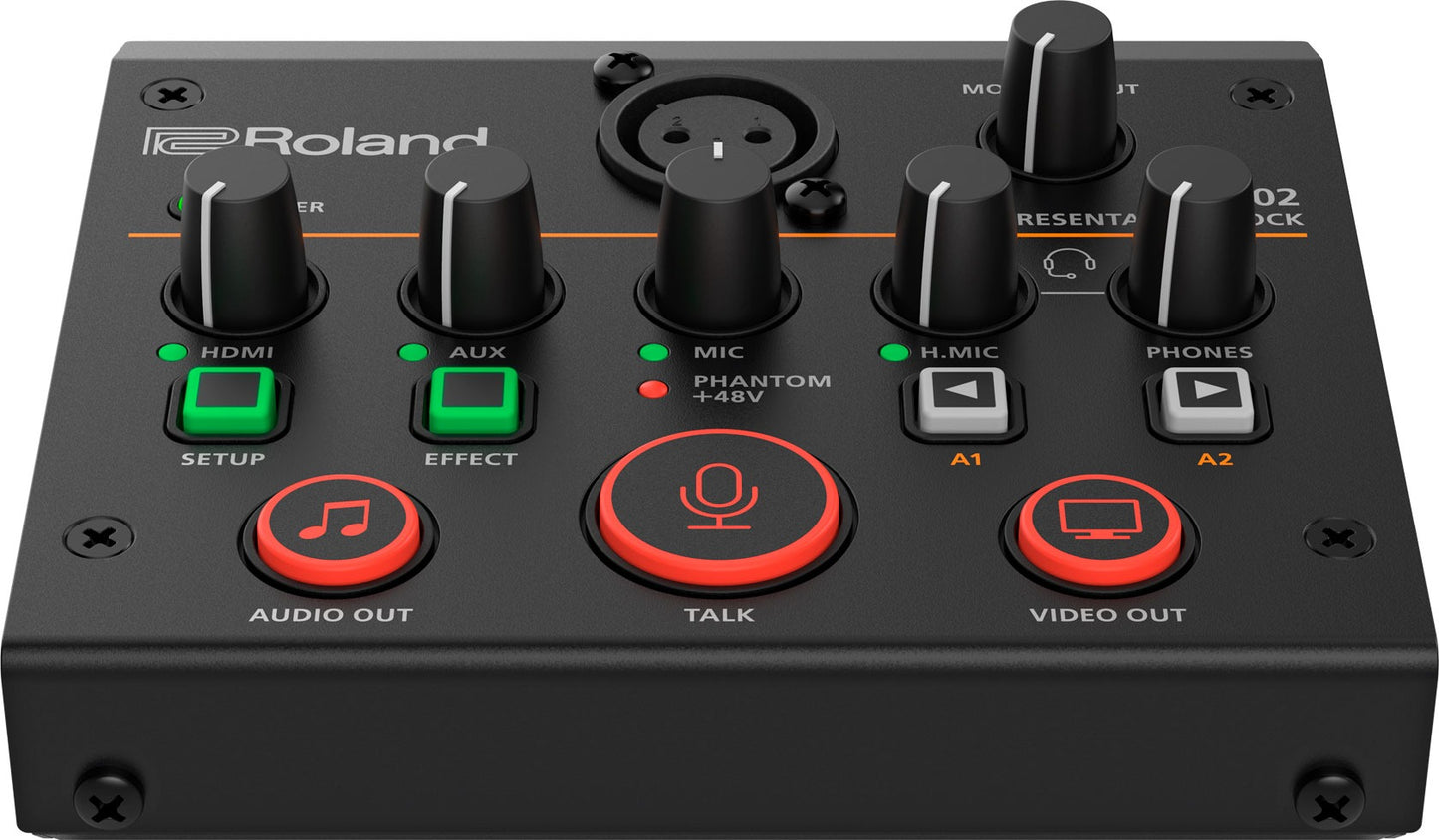

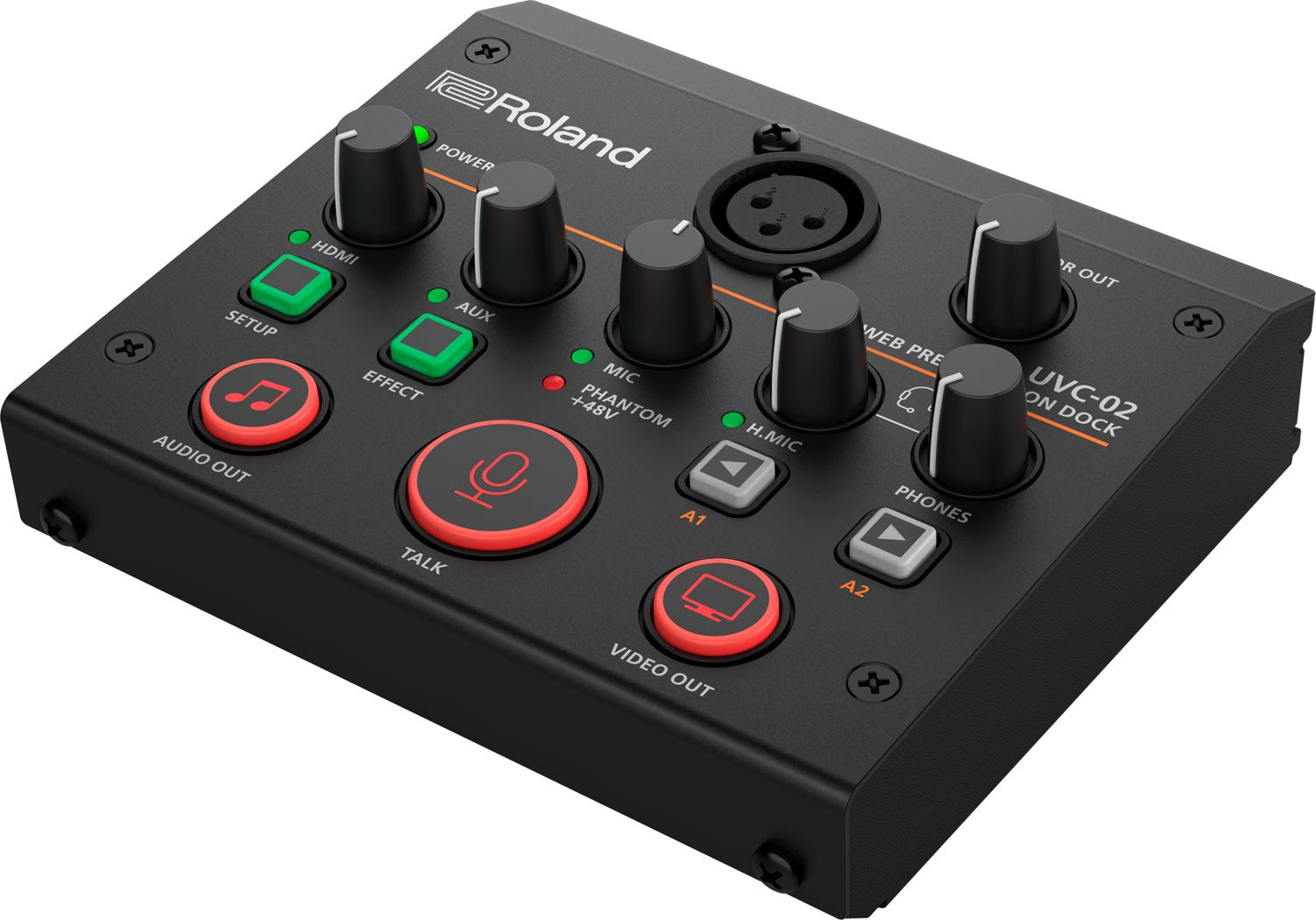

UVC-02 Web Presentation Dock

Name: UVC-02 Web Presentation Dock
Brand: Roland ProAV
SKU: UVC-02
Price: 315.0 EUR
Availability: InStock

€315,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

UVC-02: Web Presentation Dock - Look and Sound Your Best in Video Meetings and Presentations

Plug In and Play

Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it’s ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.

Technical Specifications

Input Connector	HDMI IN : HDMI type A * HDCP not Supported * Multi-format Supported
Input Formats	480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p, SVGA (800 x 600) 60 Hz / 75 Hz, XGA (1024 x 768) 6 0Hz / 75 Hz, WXGA (1280 x 800)60 Hz / 75 Hz, HD (1280 x 720) 60 Hz / 75 Hz, SXGA (1280 x 1024) 60 Hz / 75 Hz, FWXGA (1366 x 768) 60 Hz / 75 Hz, SXGA+ (1400 x 1050) 60 Hz / 75 Hz, UXGA (1600 x 1200) 60 Hz, FHD (1920 x 1080) 60 Hz * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
Output Connectors	USB STREAM : USB 3.0 Type-B
USB Video Output Format	YUY2 (Uncompressed), Motion JPEG (Compressed)
USB Video Output Resolution	1920 x 1080, 1280 x 720, 640 x 480 * Maximum frame rate is 60 fps.
Audio Processing	Sample Rate 48 kHz, 24 bits

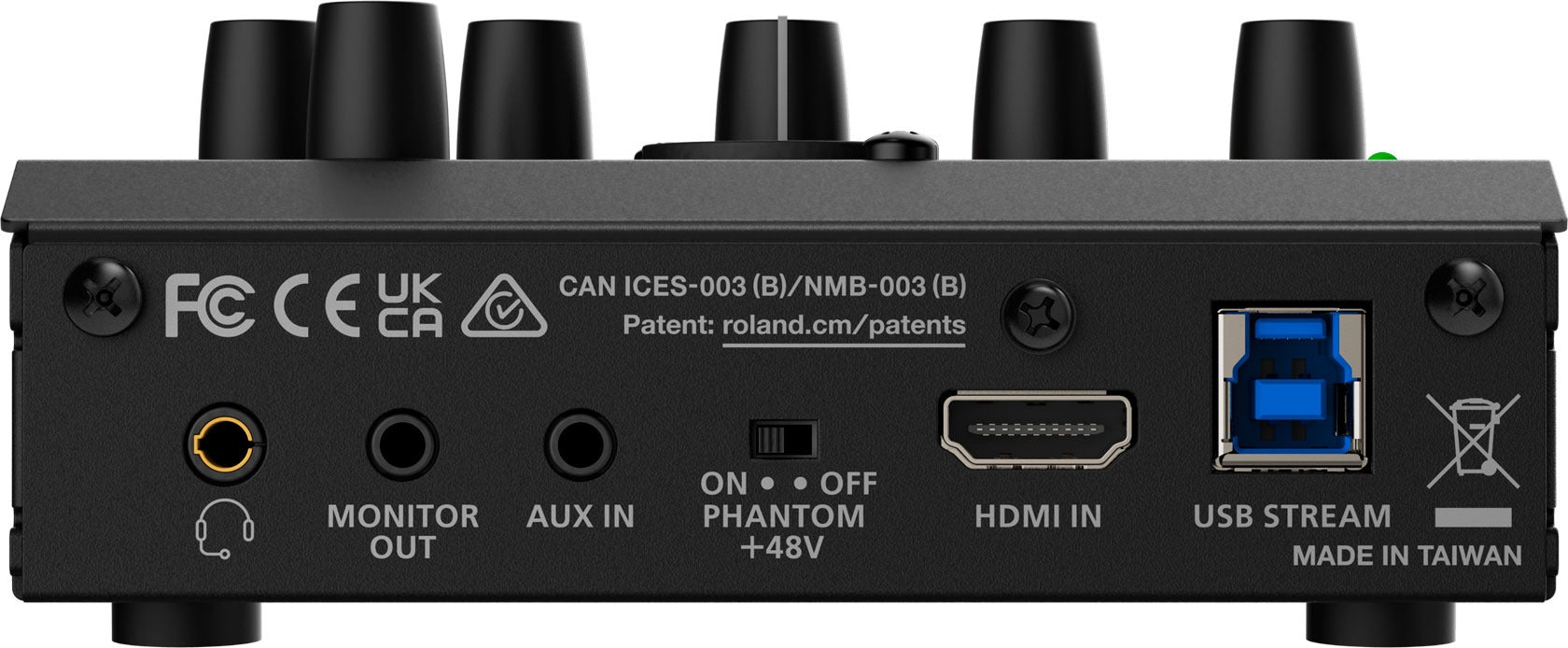

Analog Connectors	MIC : XLR type (Balanced, Phantom power DC 48V, 14 mA Max) HEADSET : Stereo miniature phone type (CTIA, PLUG-IN power) AUX IN : Stereo miniature phone type MONITOR OUT : Stereo miniature phone type
Digital Connectors	HDMI IN : HDMI Type A USB STREAM : USB 3.0 Type-B
Nominal Input Level	MIC IN : -54 to -14 dBu (Maximum input level : +4 dBu) HEADSET : -20 dBu (Maximum input level : -2 dBu) AUX IN : -10 dBu (Maximum input level : +8 dBu)
Nominal Output Level	MONITOR OUT : -10 dBu HEADSET : 9 mW + 9 mW (32 ohms load)
Input Impedance	MIC IN : 5.8 k ohms AUX IN : 10 k ohms HEADSET : 1 k ohms
Output Impedance	MONITOR OUT : 1 k ohms HEADSET : 22 ohms
Digital Audio Format	HDMI IN : Linear PCM, 48 kHz / 44.1 kHz, 24 / 20 / 16 bits, Stereo USB STREAM : Linear PCM, 48 kHz, 16 bits, Stereo
Audio Effects	Anti-Feedback, Echo Canceller, Ducker, Voice Changer, Reverb, Noise Suppressor, Equalizer, Expander, Compressor, Delay
Audio File Player	Number of tracks : 2 Data Formats : WAV (Linear PCM, 48 kHz, 16 bits, stereo / mono) Maximum Time : 5 seconds / track

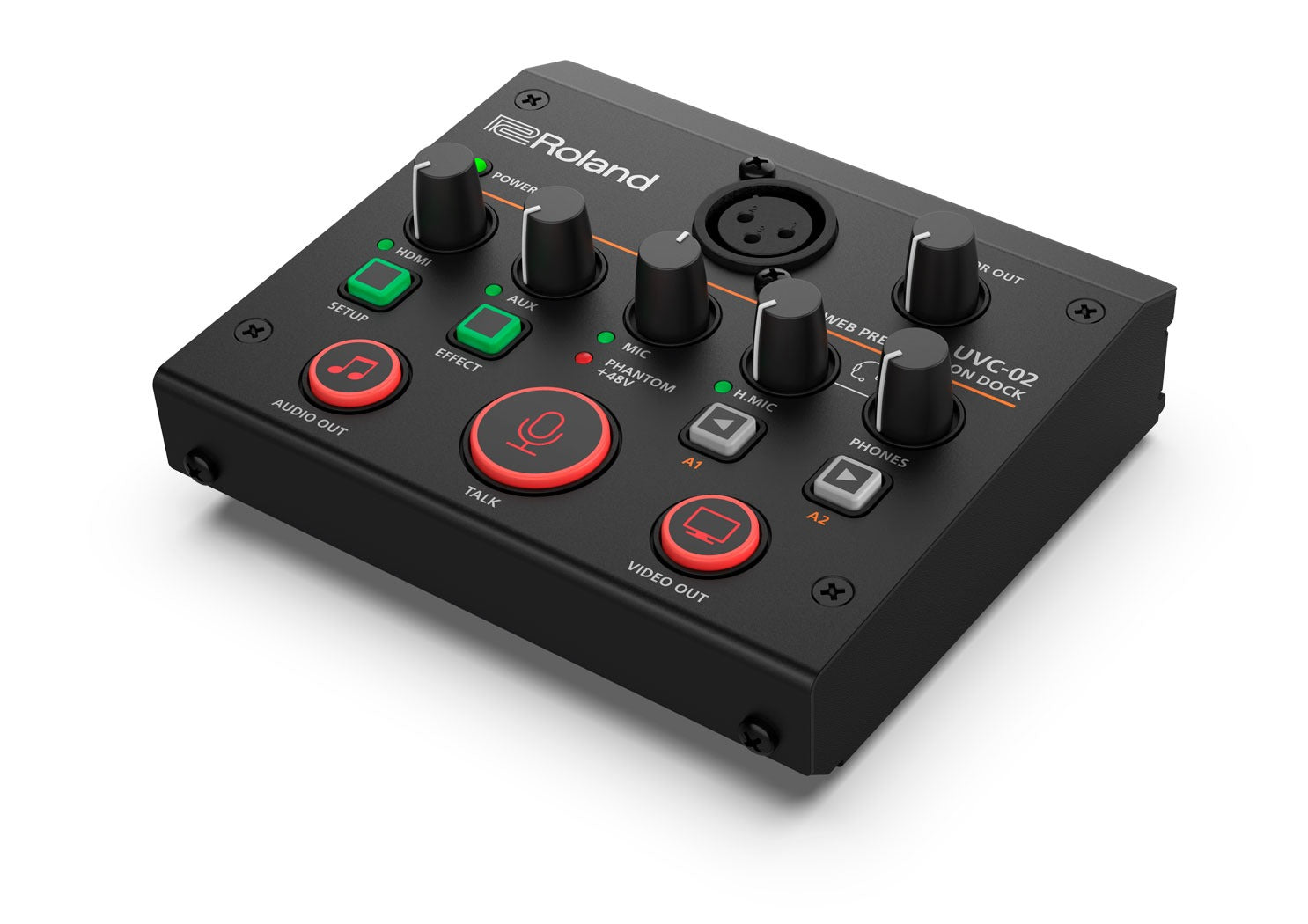

Other Functions	MIC Mute (TALK button) Audio Mute (AUDIO OUT button) Video Off (VIDEO OUT button) Slideshow Control
Power Supply	Supplied from the computer via USB
Current Draw	900 mA (4.5 W)
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	124 (W) x 117 (D) x 52 (H) mm 4-15/16 (W) x 4-5/8 (D) x 2-1/16 (H) inches
Weight (excluding cables)	460 g 1 lb 0.3 oz
Accessories	Leaflet "Read Me First" USB 3.0 Cable
